ABB DSQC601 3HAC12815-1 Maintenance-Ready Spare IRC5

ABB DSQC601 3HAC12815-1 Maintenance-Ready Spare IRC5: Spare Replacement & Industrial Downtime Risk Control

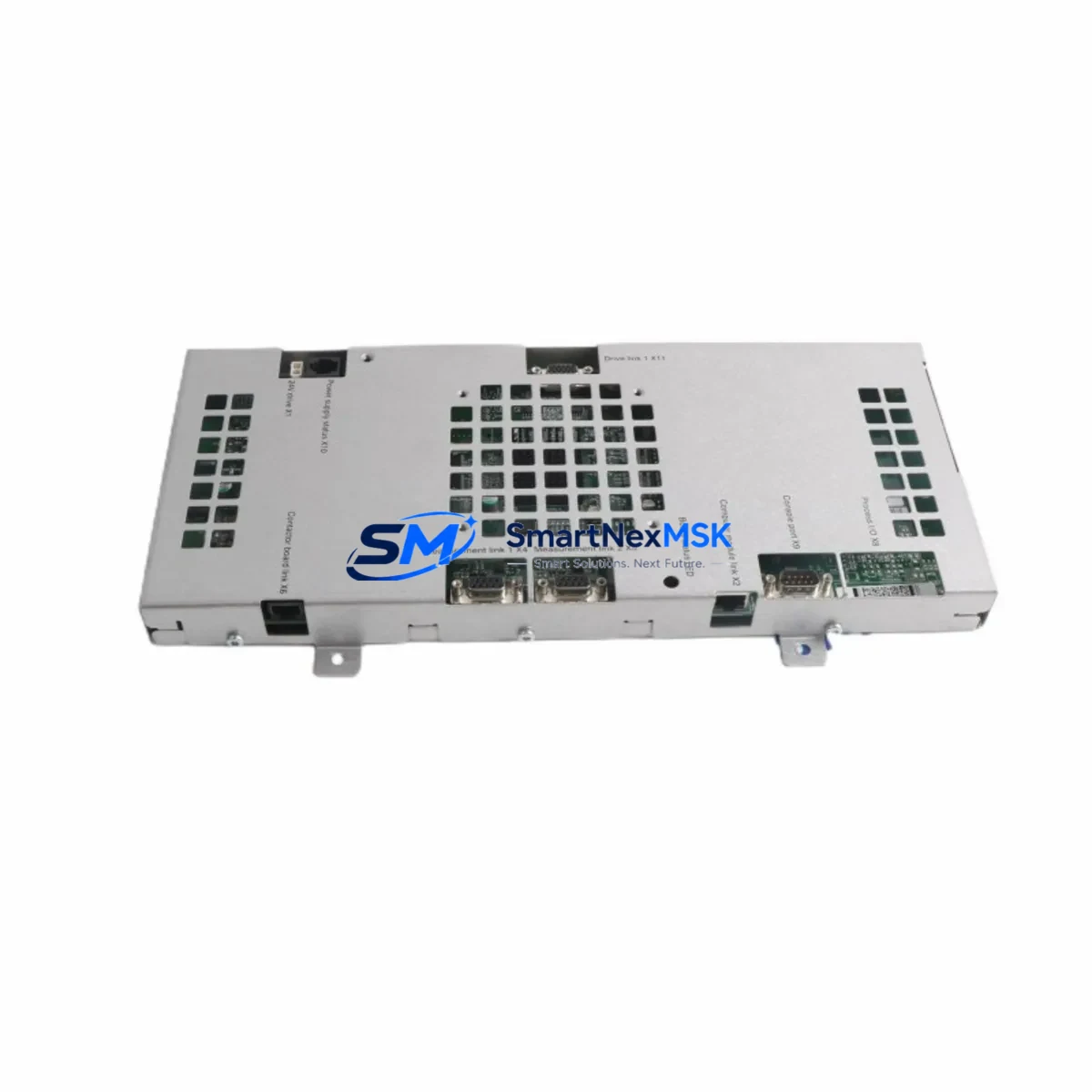

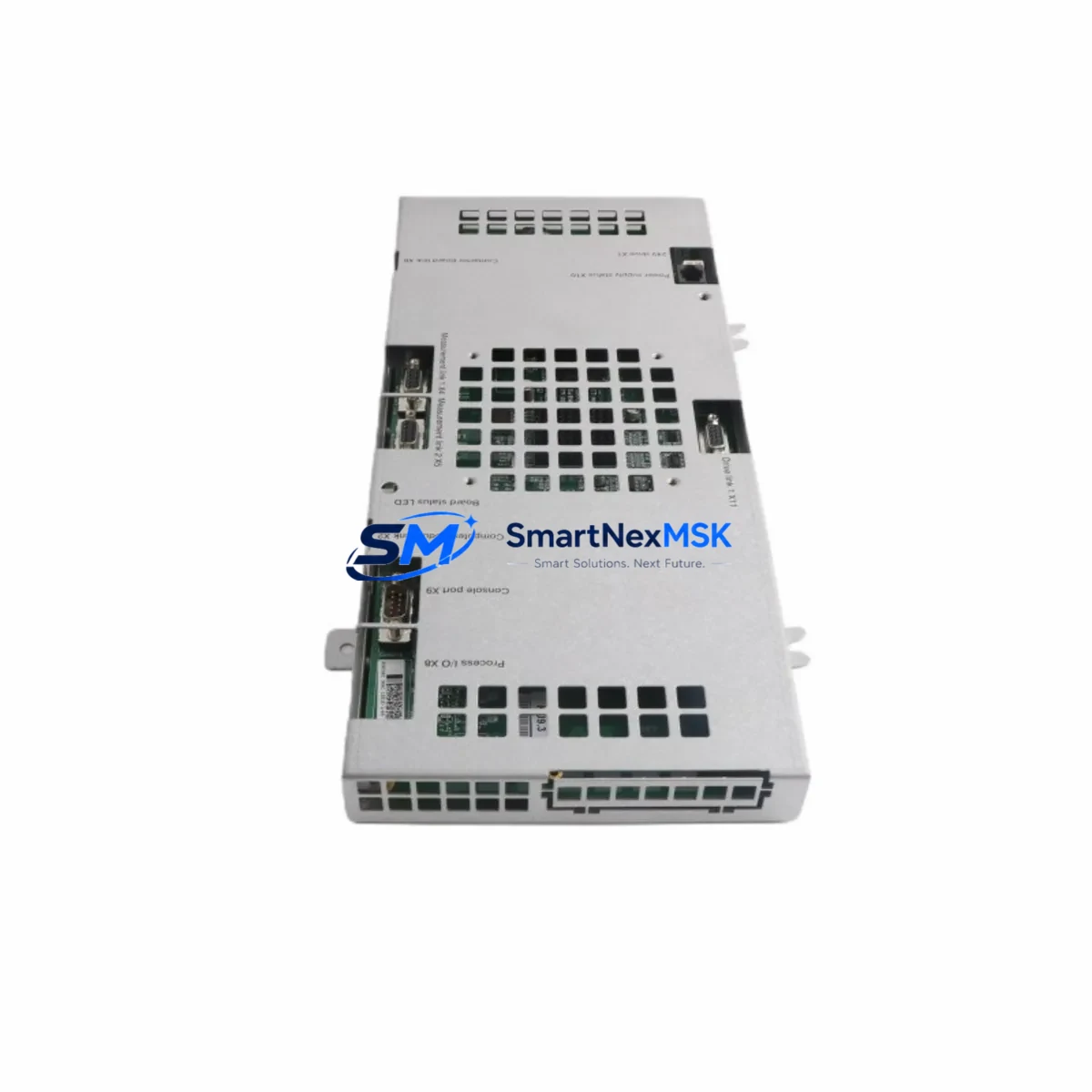

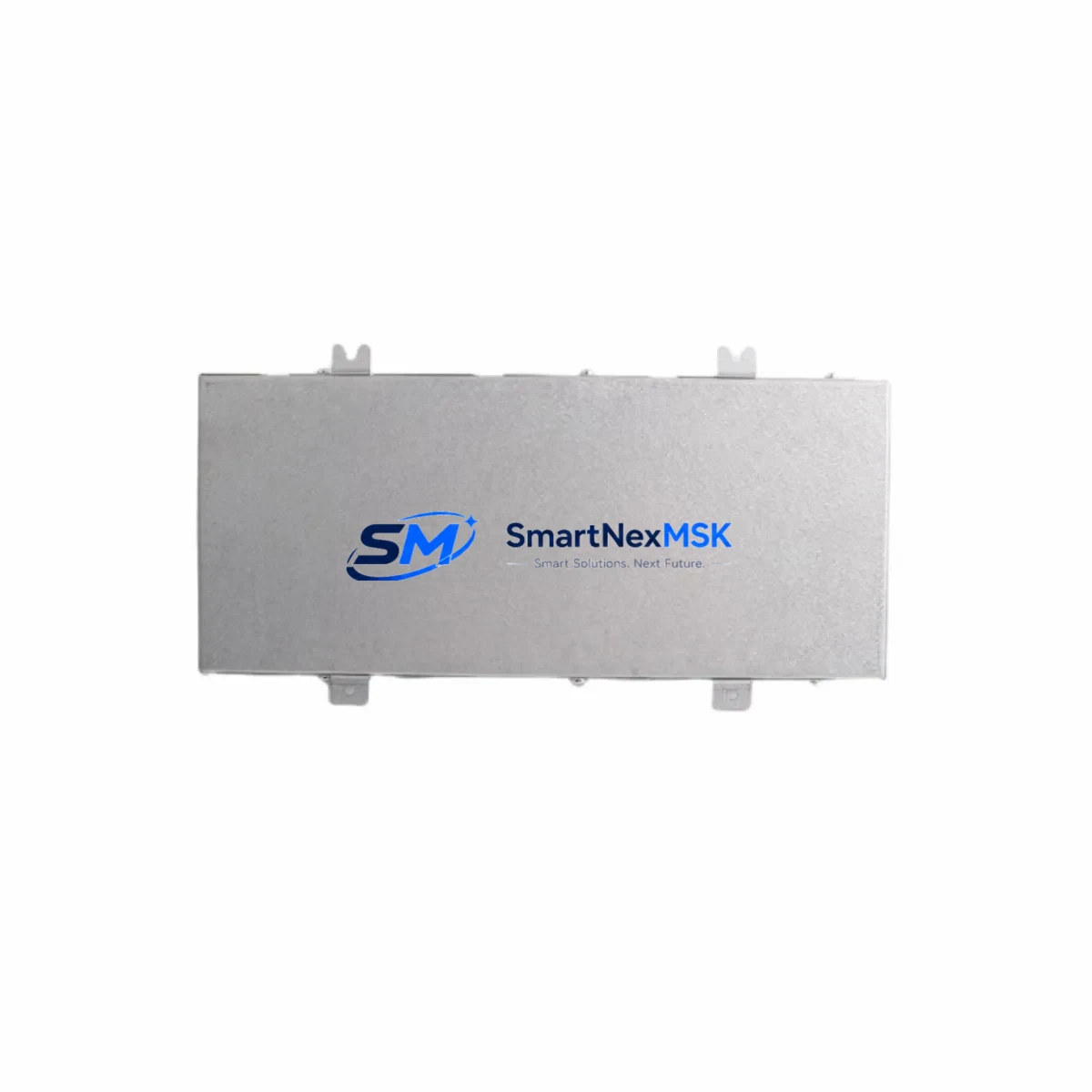

The ABB DSQC601 (part number 3HAC12815-1) is the axis computer board at the heart of the ABB IRC5 robot controller cabinet. It manages real-time motion control, servo drive communication, and safety interlock logic for IRB 4600, IRB 6640, IRB 6650S, and other IRC5-compatible robot platforms. When this board fails — whether from firmware corruption, power surge, or component aging — the entire robot cell goes offline. Holding a verified, tested replacement in your spare parts inventory is the single most effective strategy for minimizing unplanned downtime and protecting production continuity.

This listing supplies an original ABB DSQC601 3HAC12815-1 sourced from authorized channels, inspected and function-tested prior to shipment, and backed by a 12-month warranty. It is intended for maintenance engineers, reliability teams, and procurement specialists who manage IRC5-based automation cells and require a drop-in replacement that eliminates compatibility risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DSQC601 axis computer is rarely an isolated event. A board failure in the IRC5 controller is often preceded or accompanied by stress on adjacent components, and a thorough maintenance engineer will use the replacement opportunity to inspect and — where necessary — proactively swap related parts to prevent a second unplanned outage.

Begin with the DSQC662 main computer board (3HAC026254-001), which works in tandem with the DSQC601 to coordinate robot program execution and I/O management. If the axis computer has failed due to a power event, the main computer may carry latent damage. Similarly, inspect the DSQC627 power distribution board (3HAC020466-001), which regulates 24 VDC supply rails across the IRC5 cabinet — a degraded power board is a common root cause of axis computer faults.

Check the DSQC663 I/O board for signal integrity on digital input and output channels. In cells where the robot interfaces with external PLCs or safety relays, corrupted I/O signals can mimic axis computer failures and should be ruled out before condemning the DSQC601. The DSQC611 drive unit and associated DSQC608 rectifier unit should also be inspected: drive-side faults can back-feed voltage transients into the axis computer slot.

For IRC5 cabinets with fieldbus communication — DeviceNet, PROFIBUS, or EtherNet/IP — verify the condition of the DSQC652 DeviceNet board or DSQC688 EtherNet/IP adapter. Communication module failures are frequently misdiagnosed as axis computer issues. Inspect all backplane connectors and ribbon cables within the controller for oxidation or mechanical damage; a poor backplane connection can cause intermittent DSQC601 faults that survive a board swap if the connector is not cleaned or replaced.

Finally, review the FlexPendant (IRC5 teach pendant) and its cable for physical damage. A faulty pendant can generate spurious safety-stop signals that stress the axis computer’s interlock logic over time. Keeping a spare pendant cable and a replacement DSQC679 safety board in your maintenance kit rounds out a comprehensive IRC5 spare parts strategy.

Site Replacement Workflow

Step 1 — Fault Isolation: Before ordering, confirm the DSQC601 is the failed component. Use ABB RobotStudio or the FlexPendant event log to identify axis computer error codes (e.g., 20001–20099 series). Rule out drive faults, power supply issues, and communication errors first.

Step 2 — Safe Shutdown: Place the robot in manual mode, execute a controlled program stop, and isolate the IRC5 cabinet from mains power. Follow LOTO (Lockout/Tagout) procedures. Allow capacitors in the drive section to discharge fully (minimum 5 minutes after power-off).

Step 3 — Board Removal: Open the IRC5 cabinet door. Locate the axis computer slot on the main computer unit assembly. Disconnect the backplane connector and any drive communication cables. Remove the DSQC601 board by releasing the retention clips. Note the firmware revision label for reference.

Step 4 — Replacement Installation: Insert the new DSQC601 3HAC12815-1 into the axis computer slot. Reconnect all cables in the original configuration. Verify connector seating. Close the cabinet.

Step 5 — Firmware & Calibration Verification: Power on the IRC5 controller. The system will perform a self-test. If the replacement board carries a different firmware revision, update via RobotStudio or the FlexPendant system update function. Restore the robot calibration data from backup (Revolution Counter Update if required).

Step 6 — Functional Test: Run the robot through a low-speed manual jog on all axes. Verify I/O signals, safety functions, and fieldbus communication before returning to automatic production mode. Document the replacement in your maintenance log.

This workflow is compatible with IRC5 single-cabinet and dual-cabinet configurations and applies equally to IRB 4600, IRB 6640, and IRB 6650S installations. The DSQC601 3HAC12815-1 is a direct replacement for the original part — no hardware modification or parameter re-mapping is required when replacing like-for-like.

Spare Parts Support FAQ

Q1: Is this DSQC601 (3HAC12815-1) compatible with all IRC5 controller variants?
The DSQC601 3HAC12815-1 is the standard axis computer for the ABB IRC5 platform and is compatible with IRC5 single cabinet, dual cabinet, and compact cabinet configurations used with IRB 4600, IRB 6640, IRB 6650S, IRB 7600, and IRB 2600 series robots. Always cross-reference your controller’s existing board label and firmware revision before installation. If you are unsure, contact us with your controller serial number for compatibility confirmation.

Q2: How is the board tested and verified before shipment?
Every DSQC601 unit is function-tested on an IRC5-compatible test bench prior to dispatch. Testing covers power-on self-test, backplane communication, drive serial link integrity, and safety interlock logic. A test report is available on request. The board is packed in anti-static ESD packaging with foam protection to prevent transit damage.

Q3: What does the 12-month warranty cover, and how is a claim handled?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, a description of the fault, and any available error codes from the IRC5 event log. Replacement or repair will be arranged promptly to minimize your downtime.

Q4: How should I manage DSQC601 inventory for a multi-robot facility?
For facilities operating three or more IRC5 robots, we recommend holding at least one DSQC601 3HAC12815-1 as a live spare. For larger installations (10+ robots), a two-unit buffer is advisable given the lead time risk on legacy ABB components. Pair the DSQC601 with a spare DSQC662 main computer and DSQC627 power board to cover the most common IRC5 controller failure modes. We offer long-term supply agreements and reserved stock arrangements for high-volume maintenance programs — contact us to discuss your facility’s requirements.
