ABB DSQC609 3HAC14178-1 Safety-Enhanced Power Supply for Harsh Industrial Sites

ABB DSQC609 3HAC14178-1 Safety-Enhanced Power Supply for Harsh Industrial Sites

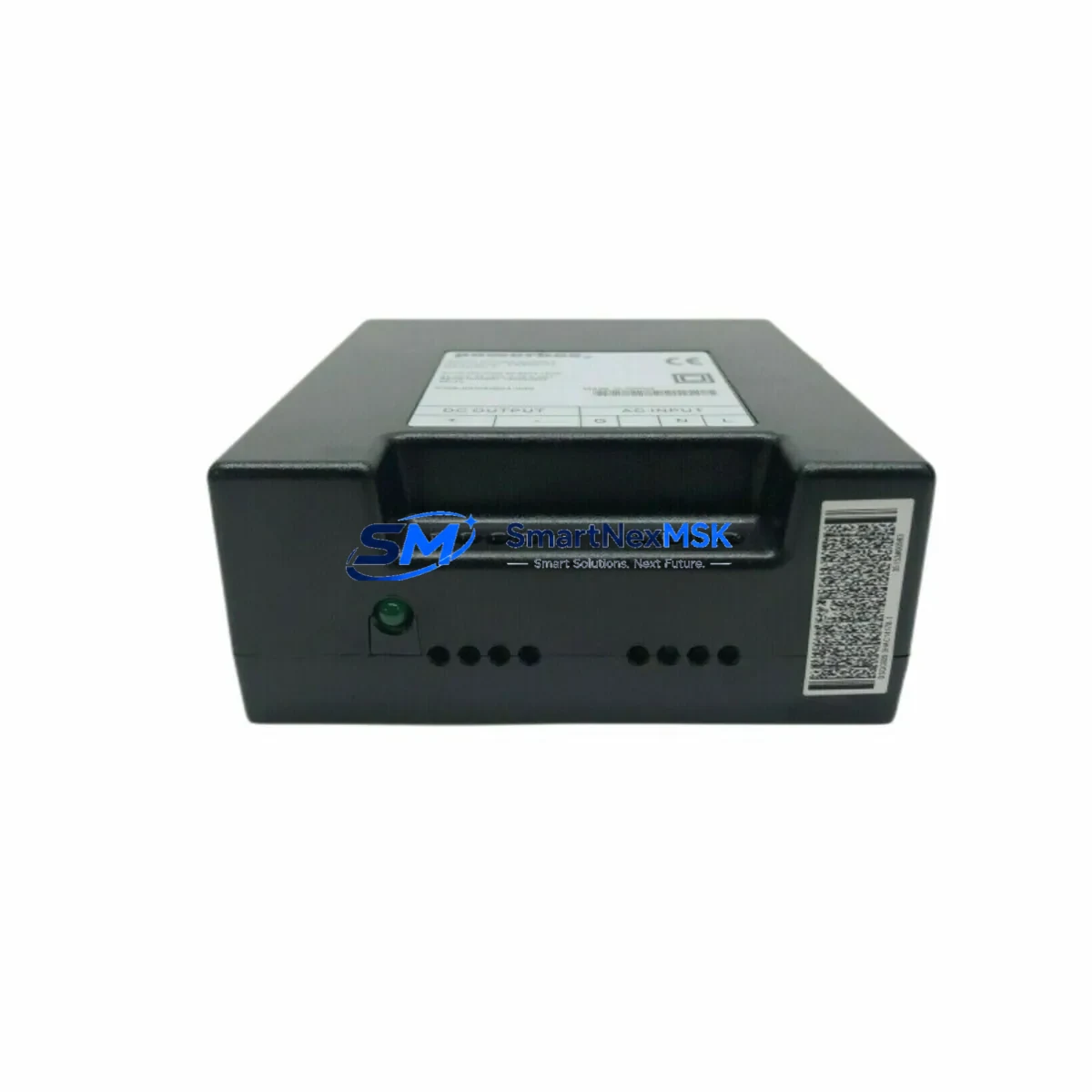

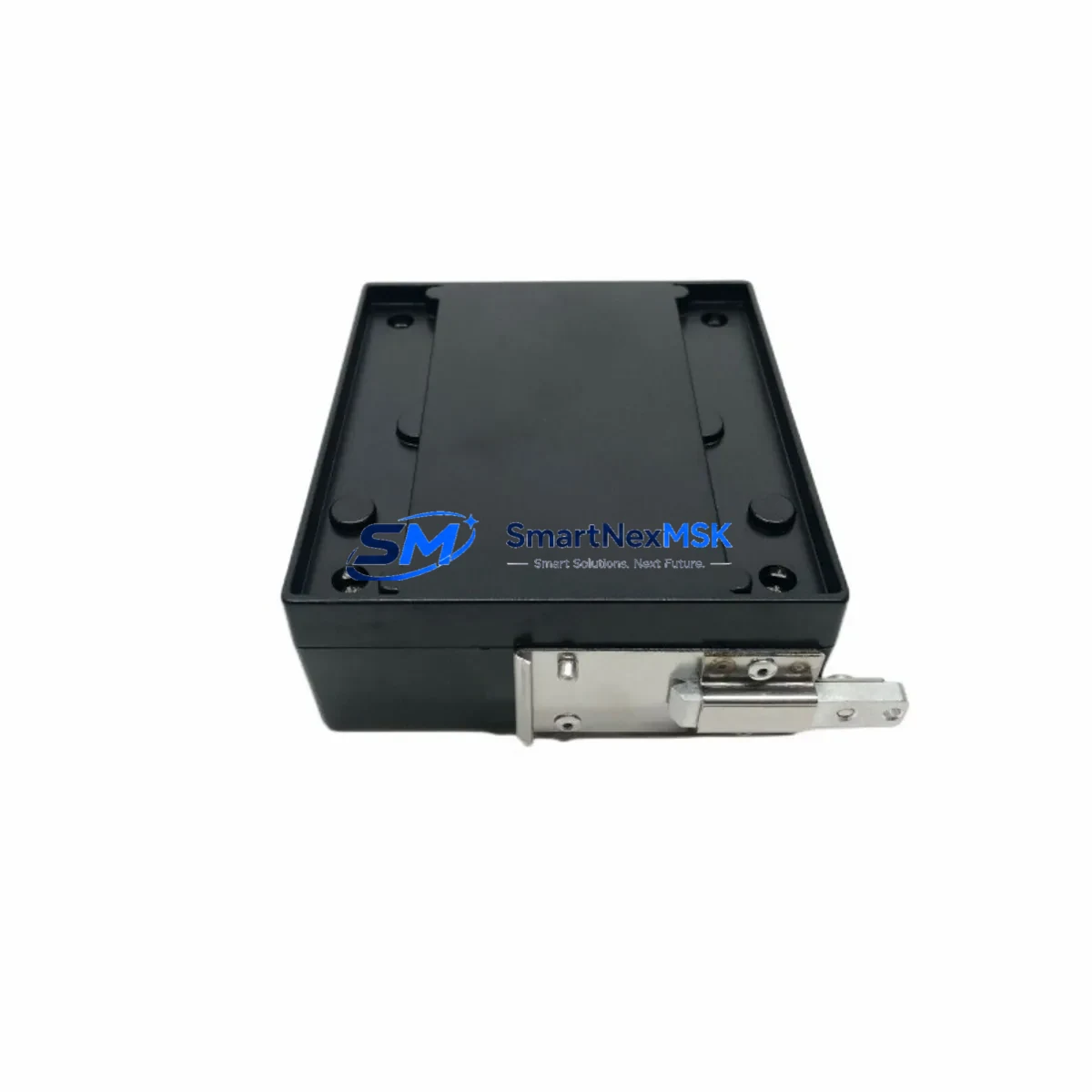

The ABB DSQC609 (3HAC14178-1 / PBSE5117) is a ruggedized DC power supply module engineered for the ABB IRC5 robot controller platform. Designed to sustain continuous, uninterrupted power delivery in high-demand industrial environments, this module is a critical component in control cabinet architectures where power stability directly determines process safety and uptime. Whether deployed in automotive body-in-white lines, petrochemical valve-control stations, steel mill automation cells, or port crane control systems, the DSQC609 provides the regulated, noise-filtered power backbone that keeps safety-critical I/O, motion control, and communication subsystems operating within specification — even under severe electrical stress.

In heavy industrial settings, power quality is the first line of defense against control system failure. Voltage sags, transient surges, high-frequency EMI from variable-frequency drives, and ground loops are constant threats to controller integrity. The DSQC609 addresses these risks through its internal surge suppression circuitry, wide-input voltage tolerance, and thermally stable regulation design. When paired with the ABB DSQC611 (3HAC026253-001) axis computer board and the ABB DSQC662 (3HAC026254-001) I/O module, the DSQC609 forms a tightly integrated power and control triad that minimizes inter-module voltage deviation — a key factor in preventing spurious axis faults and unplanned E-stops in continuous production lines.

Within the IRC5 cabinet, the DSQC609 supplies regulated power to the ABB DSQC679 (3HAC026254-001) teach pendant interface unit and the ABB DSQC688 (3HAC025338-001) safety board, both of which are directly involved in operator protection and emergency stop logic. Any power instability reaching these modules can trigger false safety trips or, more critically, mask genuine fault conditions — making the quality and reliability of the upstream power supply a direct safety concern. The DSQC609’s low-ripple output and fast transient response ensure that safety-rated circuits receive clean, stable power at all times, supporting the integrity of the robot’s functional safety architecture.

For installations in harsh environments — including outdoor enclosures, foundry floors, offshore platforms, and chemical processing areas — the DSQC609’s wide operating temperature range and conformal-coated PCB design provide resistance to condensation, particulate ingress, and corrosive atmospheres. When used alongside the ABB DSQC643 (3HAC025338-001) fieldbus adapter and the ABB DSQC658 (3HAC025338-001) DeviceNet board, the power supply supports stable communication bus operation, preventing the signal dropouts and CRC errors that can cause production halts in time-sensitive manufacturing cells.

Replacement and spare-part management for the DSQC609 is straightforward. The module is a direct plug-in replacement for all IRC5 single-cabinet and multi-cabinet controller variants, including the IRC5 Compact and IRC5 Panel Mounted Controller. Technicians can swap the unit without reconfiguration of the controller software, minimizing mean time to repair (MTTR) in breakdown scenarios. Each unit supplied by SMARTNEXMSK undergoes a full functional power-on test, output voltage verification across all rails, and load regulation check before dispatch. Units are shipped in anti-static, shock-protected packaging with individual test records.

The DSQC609 is also commonly specified as a preventive maintenance replacement alongside the ABB DSQC627 (3HAC020466-001) I/O unit and the ABB DSQC652 (3HAC025338-001) digital I/O board during scheduled IRC5 cabinet overhauls. Proactive replacement of aging power supply modules — typically recommended at 5–7 year intervals in continuous-duty applications — significantly reduces the risk of capacitor degradation-related failures that can cause intermittent faults difficult to diagnose in the field.

SMARTNEXMSK maintains ready stock of the DSQC609 3HAC14178-1 PBSE5117 to support urgent breakdown requirements and planned maintenance programs. All units are sourced from verified supply channels, carry a 12-month warranty covering manufacturing defects and functional failure, and are supported by pre-sales technical consultation to confirm compatibility with your specific IRC5 controller revision and cabinet configuration.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust IRC5 control cabinet protection strategy begins with a stable, clean power supply — and the DSQC609 is the foundation of that strategy. In high-interference environments such as arc welding cells, induction heating stations, and large motor drive installations, the DSQC609’s EMI-filtered input prevents conducted interference from propagating into the controller’s logic and safety circuits. This is particularly important when the IRC5 cabinet shares a power distribution panel with ABB ACS880 series variable-frequency drives or large servo amplifiers, which are known sources of high-frequency switching noise.

For complete cabinet-level protection, the DSQC609 is typically deployed alongside the ABB DSQC611 axis computer (3HAC026253-001), which manages real-time motion trajectory and axis supervision. The DSQC611 relies on stable power to maintain synchronization between axes — any power deviation can cause position drift or axis fault codes that halt production. The ABB DSQC662 I/O module handles field-level digital and analog signal processing; its signal integrity is directly dependent on the quality of the supply rail provided by the DSQC609.

In safety interlock architectures, the ABB DSQC688 safety board monitors emergency stop circuits, safety gates, and light curtain inputs. This board must receive uninterrupted, within-specification power to correctly evaluate safety input states — a power dropout or voltage sag to this module can cause the controller to enter an undefined safety state. The DSQC609’s fast transient response and hold-up time characteristics are specifically suited to bridging brief input power disturbances without dropping the safety board’s supply rail.

Communication reliability is equally critical. The ABB DSQC643 fieldbus adapter and ABB DSQC658 DeviceNet communication board depend on stable logic power to maintain bus timing and prevent frame errors. In process industries where the IRC5 controller communicates with PLCs, SCADA systems, or safety PLCs via PROFIBUS or DeviceNet, a communication fault caused by power instability can trigger a plant-wide interlock response — far more costly than the module itself. The DSQC609 ensures these communication modules operate within their specified power envelope at all times.

Critical Industrial Safety Applications

The ABB DSQC609 3HAC14178-1 is deployed across a wide range of safety-critical industrial applications where control system reliability is non-negotiable.

In petrochemical and refinery environments, IRC5-controlled robots perform valve actuation, pipe inspection, and hazardous material handling in Zone 2 classified areas. The DSQC609’s stable power output ensures that safety interlock logic remains active and responsive, preventing uncontrolled process conditions that could lead to release events.

In electric power generation and substation automation, robotic systems equipped with IRC5 controllers perform high-voltage equipment inspection and maintenance. Power supply reliability in these applications is directly linked to personnel safety — a controller fault during a live inspection task can have severe consequences.

In mining and mineral processing, IRC5 robots operate in environments with extreme dust loading, vibration, and temperature cycling. The DSQC609’s conformal-coated PCB and wide thermal operating range make it suitable for these demanding conditions, where replacement logistics are complex and unplanned downtime is extremely costly.

In water and wastewater treatment, robotic systems manage chemical dosing, pipe inspection, and pump station maintenance. Continuous operation is required, and the DSQC609’s reliability supports 24/7 uptime requirements without scheduled power-related maintenance interventions.

In metallurgy and steel production, IRC5 robots perform ladle handling, billet transfer, and furnace charging in environments with intense radiant heat, electromagnetic interference from induction furnaces, and airborne metallic particulates. The DSQC609’s robust design ensures sustained performance under these extreme conditions.

In port and logistics automation, IRC5-controlled systems manage container handling and heavy load positioning. Continuous duty cycles and high-cycle-rate operations place sustained demands on the power supply module, making the DSQC609’s thermal stability and long service life key selection criteria.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the ABB DSQC609 3HAC14178-1?
All DSQC609 units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with priority support, including advance replacement options for critical production environments. Contact sales@smartnexmsk.com to initiate a warranty claim.

Q2: What pre-shipment testing does each unit undergo?
Every DSQC609 unit undergoes a full functional test protocol before dispatch: power-on verification, output voltage measurement across all DC rails, load regulation testing, and visual inspection for physical integrity. A test record is included with each shipment. Units that do not meet ABB’s original output specifications are not dispatched.

Q3: Is the DSQC609 3HAC14178-1 compatible with all IRC5 controller variants?
Yes. The DSQC609 is compatible with all IRC5 platform variants including the IRC5 Single Cabinet Controller, IRC5 Multi-Cabinet Controller, IRC5 Compact Controller, and IRC5 Panel Mounted Controller. It is a direct plug-in replacement requiring no software reconfiguration. If you are uncertain about compatibility with a specific controller revision or cabinet build date, contact our technical team with your controller serial number for confirmation before ordering.

Q4: Can SMARTNEXMSK support long-term supply and planned maintenance programs?
Yes. SMARTNEXMSK maintains ongoing stock of the DSQC609 3HAC14178-1 PBSE5117 to support both emergency breakdown requirements and scheduled preventive maintenance programs. We can provide volume pricing for maintenance kits, coordinate phased delivery schedules, and advise on complementary modules — such as the DSQC611, DSQC662, and DSQC688 — for comprehensive IRC5 cabinet overhaul programs. Contact us at sales@smartnexmsk.com or +86 18259474341 to discuss your supply requirements.
