ABB DSQC643 3HAC024488-001 Retrofit-Ready Operator Panel for IRC5

ABB DSQC643 3HAC024488-001 Retrofit-Ready Operator Panel for IRC5 Control Systems

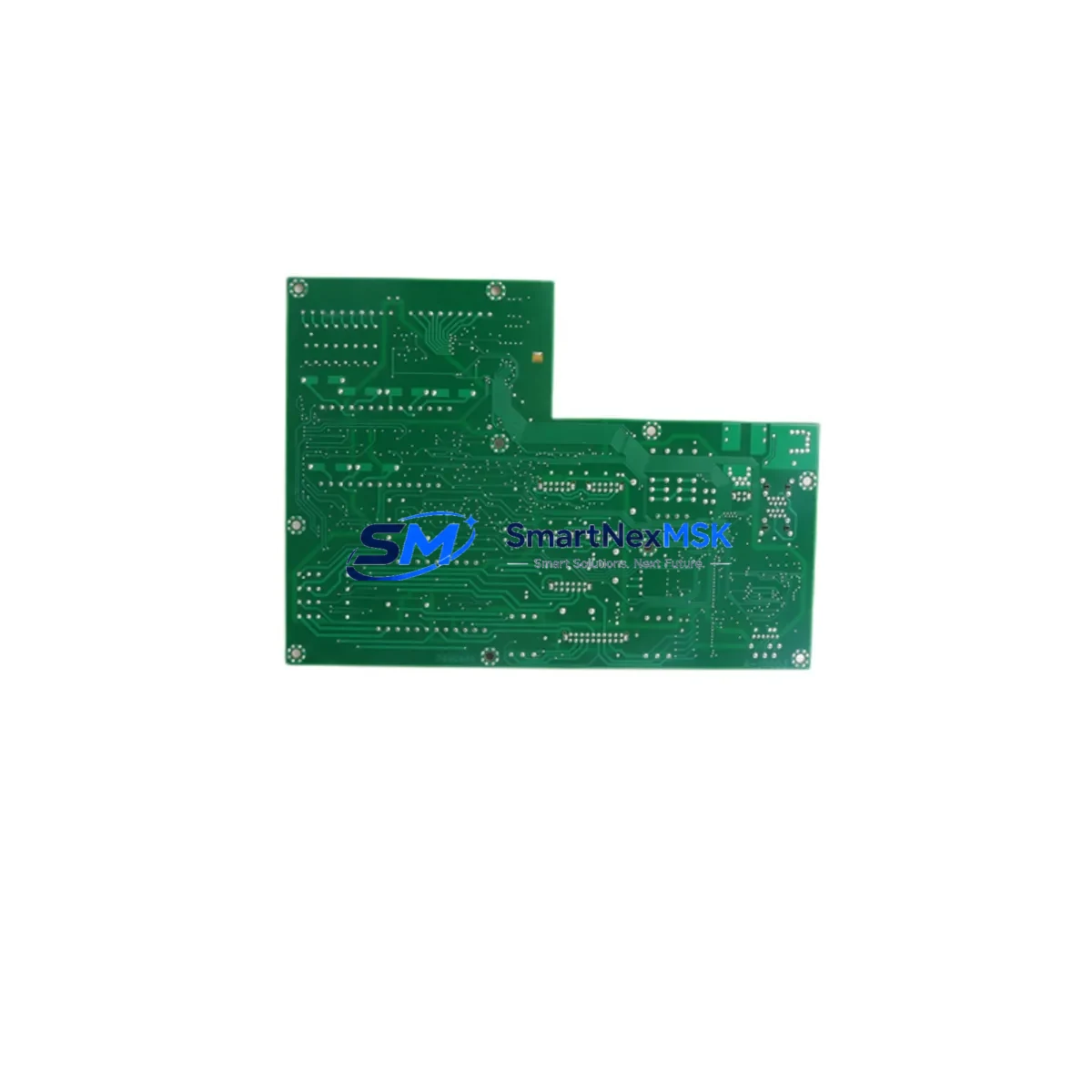

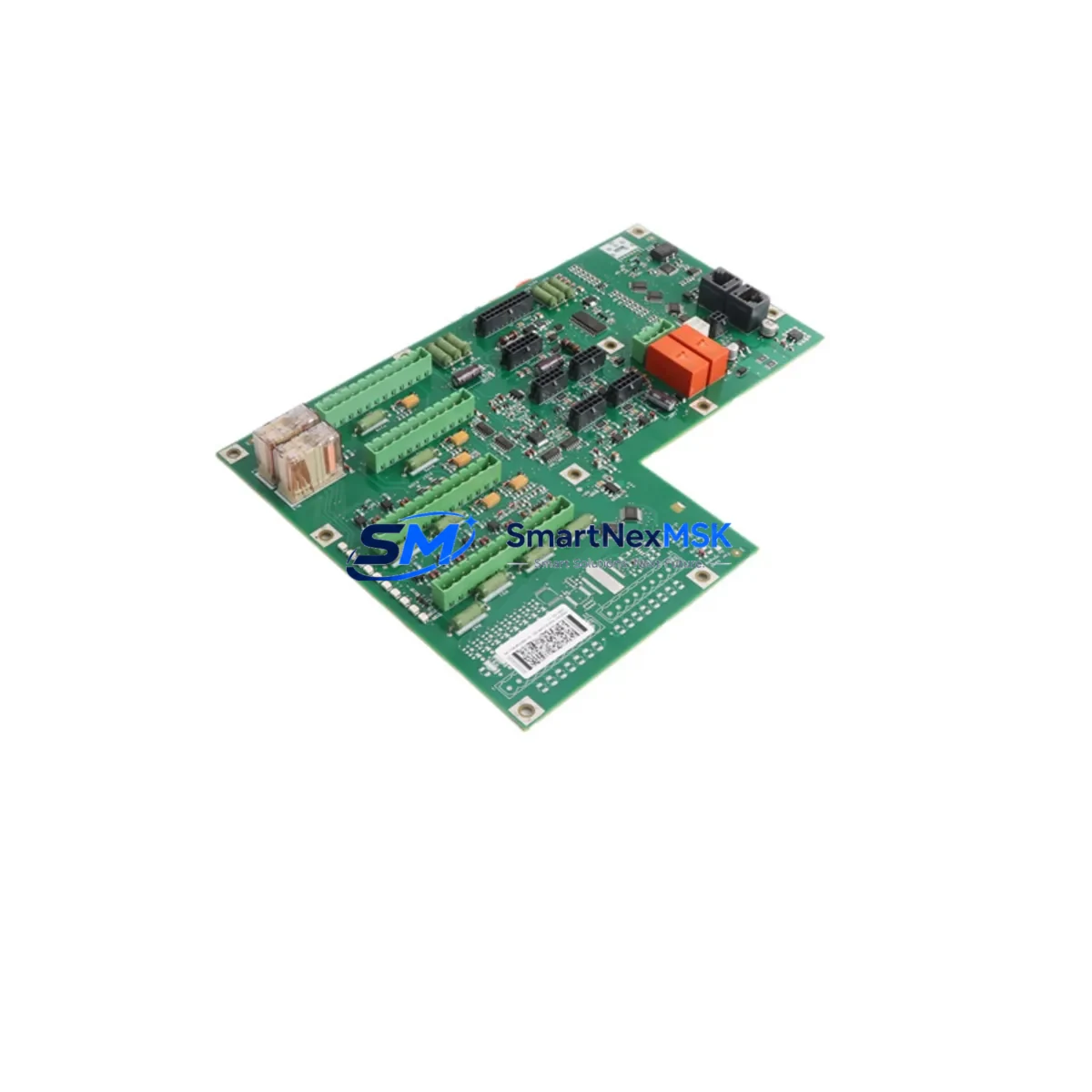

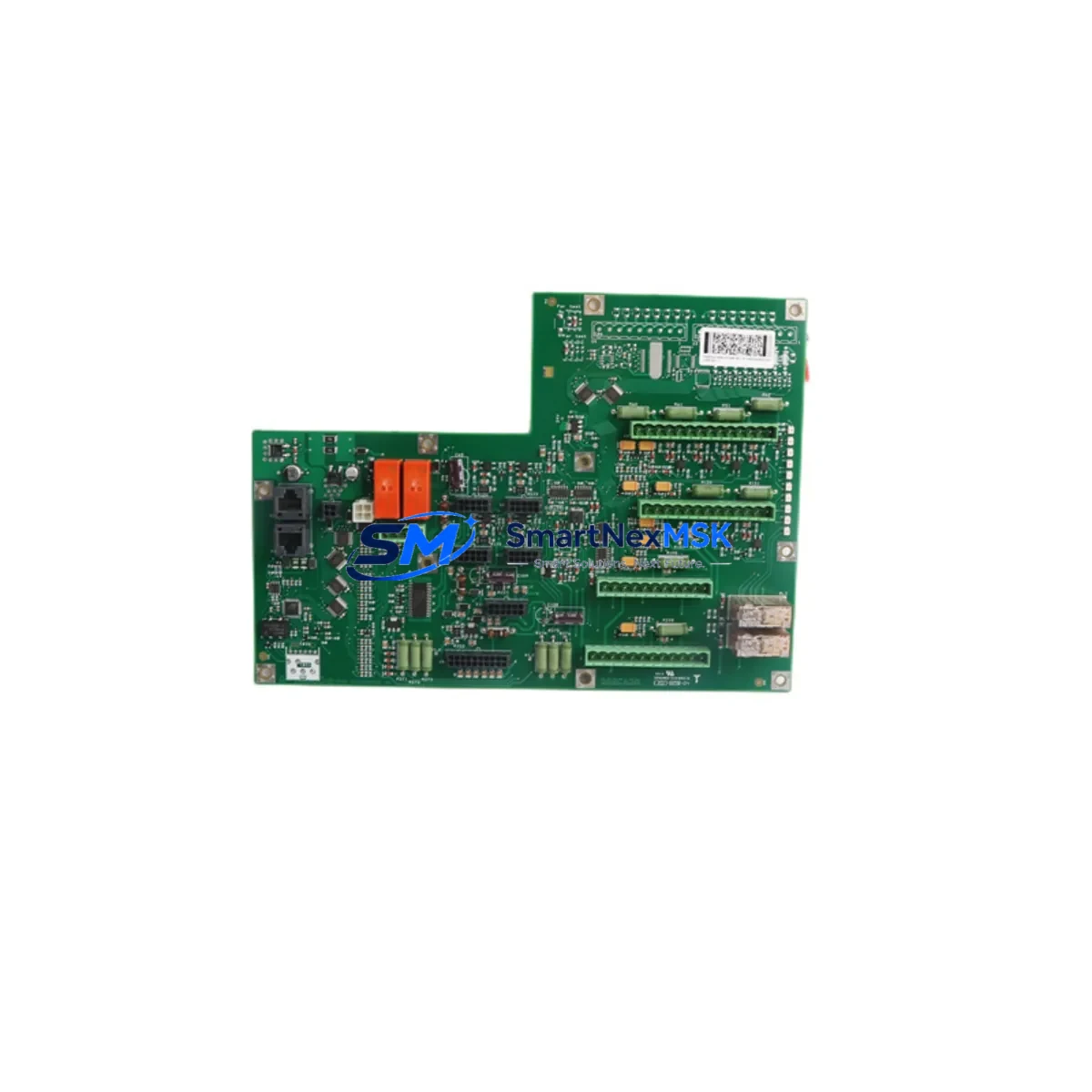

The ABB DSQC643 (part number 3HAC024488-001) is a critical operator panel board designed for ABB IRC5 robot controller cabinets. As legacy IRC5 installations age and original ABB spare parts become increasingly scarce, the DSQC643 has become one of the most sought-after retrofit and replacement components in industrial automation maintenance. Whether you are managing a planned system upgrade, responding to an unplanned failure, or executing a phased modernization of your production line, the DSQC643 provides a verified drop-in solution that preserves your existing wiring harness, backplane connections, and operator interface logic without requiring controller reprogramming.

This operator panel board interfaces directly with the IRC5 main computer unit — typically the DSQC639 or DSQC662 — via the internal panel bus. It manages the physical operator controls including the emergency stop circuit, mode selector switch, motor-on button, and status indicator LEDs. When replacing a failed DSQC643, engineers must verify that the replacement unit carries the same hardware revision as the original to ensure full compatibility with the installed IRC5 cabinet variant, whether that is a single-cabinet M2004 configuration or a dual-cabinet IRC5P panel-mounted system.

Before installation, confirm that the IRC5 cabinet power supply — commonly the DSQC609 or DSQC661 24VDC power unit — is delivering stable voltage within specification. A degraded power supply is a frequent root cause of operator panel board failures and must be ruled out before committing to a board replacement. Similarly, inspect the ribbon cable and connector between the DSQC643 and the teach pendant interface; damaged connectors can cause intermittent faults that mimic board failure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSQC643 retrofit begins well before the replacement unit arrives on site. Start by downloading the IRC5 Product Manual (document 3HAC021313-001) and cross-referencing the operator panel wiring diagram against your as-built cabinet drawings. In most IRC5 installations, the operator panel assembly also includes the DSQC648 safety board, which handles the dual-channel E-stop monitoring. If the DSQC643 failure was accompanied by safety fault codes, inspect the DSQC648 in parallel — both boards share the same 24V rail and a power surge affecting one will often stress the other.

For sites running ABB RobotWare 5.x, the DSQC643 replacement is fully transparent to the software layer — no license transfer or system parameter modification is required. However, if the site is planning to use the downtime window to upgrade from RobotWare 5.x to RobotWare 6.x simultaneously, additional steps are needed: back up the current system using the FlexPendant backup function, document all I/O signal mappings from the DSQC652 or DSQC651 I/O boards, and verify that any PROFIBUS-DP slave configurations stored in the DSQC667 fieldbus adapter are exported before the software migration begins.

In multi-robot cells where the IRC5 controller is networked to a PLC — commonly a Siemens S7-300, S7-400, or Allen-Bradley ControlLogix — the robot controller’s EtherNet/IP or PROFIBUS node address must remain unchanged after the panel board swap. Coordinate with the cell PLC programmer to confirm that the robot’s I/O handshake signals (program start, program end, fault reset, and home position confirmation) are re-validated after the DSQC643 is installed and the controller is powered on. This is especially important in lines where the IRC5 is integrated with a Siemens SIMATIC HMI or a Rockwell FactoryTalk View panel, as operator screen logic may reference robot status bits that need to be re-confirmed live.

For sites with aging IRC5 cabinets that also show wear on the DSQC639 main computer or the DSQC611 axis computer, consider staging a broader retrofit plan. Replacing the DSQC643 operator panel board while the cabinet is open is an efficient opportunity to inspect the DSQC611 fan assembly, clean the cabinet filters, and test the UPS battery backup if a DSQC627 or equivalent battery unit is installed. Proactive maintenance during a planned panel board replacement can extend the overall IRC5 service life by several years and defer the capital cost of a full controller replacement.

Downtime Control During System Migration

Minimizing production downtime during a DSQC643 replacement requires a structured pre-swap checklist. Before powering down the IRC5 cabinet, use the FlexPendant to perform a full system backup to a USB drive — this captures the RAPID program modules, system parameters, I/O configuration, and safety configuration in a single archive. Label the backup with the robot serial number, date, and RobotWare version to avoid confusion if multiple robots are being serviced in the same maintenance window.

Once the cabinet is de-energized and locked out per your site LOTO procedure, photograph the existing DSQC643 connector positions before disconnecting any cables. The panel bus ribbon cable, the E-stop loop wiring, and the mode selector switch harness each have a specific orientation that must be preserved. Incorrect reconnection of the E-stop loop is the most common commissioning error and will result in a safety fault that prevents the robot from entering automatic mode.

After installing the replacement DSQC643, power on the IRC5 in manual mode and verify that the FlexPendant connects and displays the main menu without error. Check the event log for any hardware fault codes referencing the panel board. Perform a manual E-stop test from both the operator panel and the FlexPendant to confirm dual-channel safety circuit integrity. Only after these checks pass should the robot be returned to automatic mode and the production cell restarted. A disciplined swap procedure typically keeps total downtime — including preparation, replacement, and recommissioning — under four hours for an experienced engineer.

Retrofit Support FAQ

Q: Is the DSQC643 (3HAC024488-001) a direct replacement for all IRC5 operator panel variants?
A: The DSQC643 is compatible with the standard IRC5 M2004 single-cabinet and IRC5P panel-mounted configurations. Always verify the hardware revision suffix on the original board label against the replacement unit. Some early IRC5 cabinets shipped with a predecessor board; confirm compatibility using the IRC5 spare parts catalog (3HAC043732-001) before ordering.

Q: Do I need to re-program the robot controller after replacing the DSQC643?
A: No. The DSQC643 is a hardware interface board and does not store RAPID programs or system parameters. Provided you have a current system backup, the controller will restore all programs and configurations from the backup after the swap. No software license transfer is required for a like-for-like panel board replacement.

Q: What wiring checks are mandatory before powering on after installation?
A: Verify the E-stop loop continuity on both channels using a multimeter before energizing. Confirm the panel bus ribbon cable is fully seated and the locking tab is engaged. Check that the 24VDC supply from the DSQC609 or DSQC661 power unit is within ±10% of nominal before applying power to the replacement board.

Q: What does the 12-month warranty cover, and what is the outgoing test procedure?
A: Every DSQC643 unit is function-tested prior to shipment, including power-on self-test, E-stop circuit continuity verification, and panel bus communication check. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or physical impact. Warranty claims are processed with photographic evidence of the fault condition and the original order reference.
