ABB DSQC652 3HAC025917-001 Maintenance-Ready Spare for IRC5

ABB DSQC652 3HAC025917-001 Maintenance-Ready Spare for IRC5 Automation

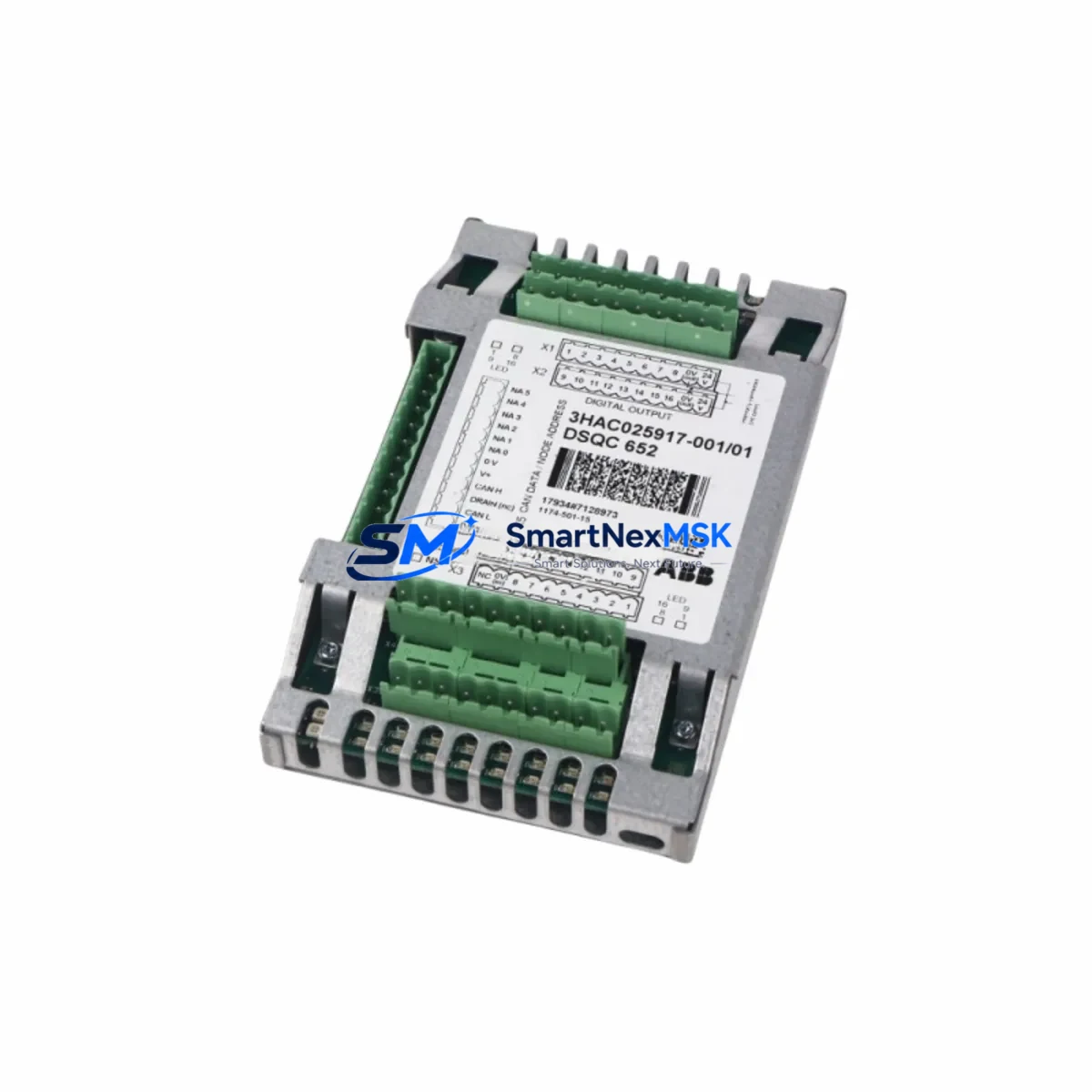

The ABB DSQC652 (part number 3HAC025917-001) is a factory-original digital I/O module designed for the ABB IRC5 robot controller platform. In industrial maintenance environments where robot downtime translates directly to production loss, having a verified, tested spare of this module on the shelf is a fundamental risk-control measure. This listing provides a genuine ABB DSQC652 sourced from authorized supply channels, pre-tested before shipment, and backed by a 12-month warranty — ensuring your IRC5 system can be restored to full operation with minimal delay.

The DSQC652 serves as the primary digital I/O interface within the IRC5 controller cabinet, handling 16 digital inputs and 16 digital outputs at 24VDC logic levels. It communicates with the IRC5 main computer via the internal DeviceNet backplane, making it a critical node in the robot’s signal chain. Failure or degradation of this module typically manifests as I/O faults, erratic end-effector behavior, or complete loss of peripheral communication — all of which halt production. Maintenance engineers familiar with IRC5 architecture will recognize that a failed DSQC652 is one of the most time-sensitive replacements in the controller cabinet.

For procurement engineers building or refreshing a spare parts inventory, the DSQC652 is a high-priority line item. Its role in signal routing between the robot controller and field devices — including grippers, sensors, safety relays, and conveyor interlocks — means that a single failed unit can cascade into broader system faults if not addressed promptly. Stocking one or two units per IRC5 cell is a widely adopted practice in automotive, electronics, and general manufacturing facilities running ABB robot lines.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSQC652 fault is identified during routine IRC5 diagnostics or an unplanned shutdown, experienced maintenance engineers know that the I/O module rarely fails in isolation. A thorough cabinet inspection should accompany any DSQC652 replacement to prevent repeat failures and ensure the restored system is stable.

Start by verifying the DSQC661 power distribution board — the 24VDC rail it supplies feeds the DSQC652 directly, and voltage ripple or intermittent supply is a common root cause of I/O module faults. Check the DSQC662 axis computer for any co-occurring fault logs, as axis and I/O faults sometimes share a common trigger. Inspect the DSQC679 safety board to confirm that safety relay outputs and emergency stop chains are intact after the I/O module swap.

On the field wiring side, examine all Phoenix Contact or Weidmüller terminal blocks connected to the DSQC652’s I/O connectors — loose or corroded terminals are a frequent source of intermittent digital signal faults that are misdiagnosed as module failures. If the IRC5 cabinet includes a DSQC688 DeviceNet gateway or external DeviceNet scanner, verify bus termination resistors and node addressing after reinstallation. For cells using DSQC643 analog I/O modules alongside the DSQC652, confirm that analog signal references and common grounds are undisturbed.

Facilities running older IRC5 systems with DSQC639 fieldbus adapter modules (PROFIBUS, EtherNet/IP) should also verify fieldbus communication integrity post-replacement, as a cabinet power interruption during module swap can reset fieldbus node parameters. If the cell includes an ABB FlexPendant (IRC5 teach pendant), reconnect and run a full I/O test sequence from the pendant before returning the robot to automatic mode. For high-cycle applications, consider adding a 24VDC UPS buffer module upstream of the IRC5 PSU to protect I/O modules from supply transients — a low-cost measure that significantly extends module service life.

Site Replacement Workflow

Replacing the DSQC652 in an IRC5 cabinet is a structured process that, when followed correctly, minimizes downtime and eliminates the risk of configuration loss or secondary faults.

Step 1 — Isolate and de-energize: Place the IRC5 in manual mode, engage the main isolator, and verify 24VDC rail discharge using a calibrated multimeter before opening the cabinet. Step 2 — Document I/O wiring: Photograph or log all field wiring connections to the DSQC652’s X1–X4 connectors before disconnection. The IRC5 does not store field wiring maps — this documentation is your recovery reference. Step 3 — Module extraction: Release the DIN rail locking tab, disconnect the DeviceNet backplane ribbon cable, and remove the module. Handle by the housing only — avoid contact with PCB surfaces. Step 4 — Install the replacement DSQC652 (3HAC025917-001): Seat firmly on the DIN rail, reconnect the backplane cable, and re-terminate all field wiring per your documentation. Step 5 — Power-up and verify: Restore 24VDC, boot the IRC5, and navigate to the I/O configuration panel on the FlexPendant. Confirm all 16 DI and 16 DO signals are recognized. Run a manual I/O test cycle before returning to automatic production.

This workflow applies equally to planned maintenance replacements and emergency fault recovery. The DSQC652’s plug-and-play compatibility with the IRC5 backplane means no firmware flashing or parameter re-entry is required — the IRC5 controller automatically recognizes the module upon boot, making it one of the faster cabinet-level replacements in the ABB IRC5 ecosystem.

Spare Parts Support FAQ

Q1: Is this DSQC652 compatible with all IRC5 controller variants?
The DSQC652 (3HAC025917-001) is compatible with the standard IRC5 single-cabinet and dual-cabinet configurations used with ABB IRB series robots (IRB 1600, IRB 2600, IRB 4600, IRB 6640, and others). It is not designed for the IRC5 Compact or IRC5 Panel Mounted Controller variants, which use different I/O module form factors. If you are unsure of your controller variant, provide your IRC5 serial number and we will confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on this module?
Each DSQC652 unit undergoes functional verification prior to dispatch, including 24VDC power-on test, DeviceNet communication check, and digital I/O channel continuity verification. A test report is available upon request. Units that do not pass all test criteria are not shipped. This process is part of our commitment to zero-DOA (dead-on-arrival) spare parts supply.

Q3: How should I manage DSQC652 inventory for a multi-robot facility?
For facilities operating 5 or more IRC5 controllers, a minimum stock of 1 DSQC652 per 5 robots is a commonly adopted guideline. For high-cycle or 24/7 production environments, a 1:3 ratio is recommended. Given that ABB has transitioned the IRC5 platform toward end-of-life support phases in some markets, securing long-term supply of critical modules like the DSQC652 now — rather than at point of failure — is a sound procurement strategy. We maintain ongoing stock and can support blanket order arrangements for volume buyers.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions within the IRC5 controller environment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, we provide advance replacement to minimize your downtime — you will not be required to return the defective unit before receiving the replacement.
