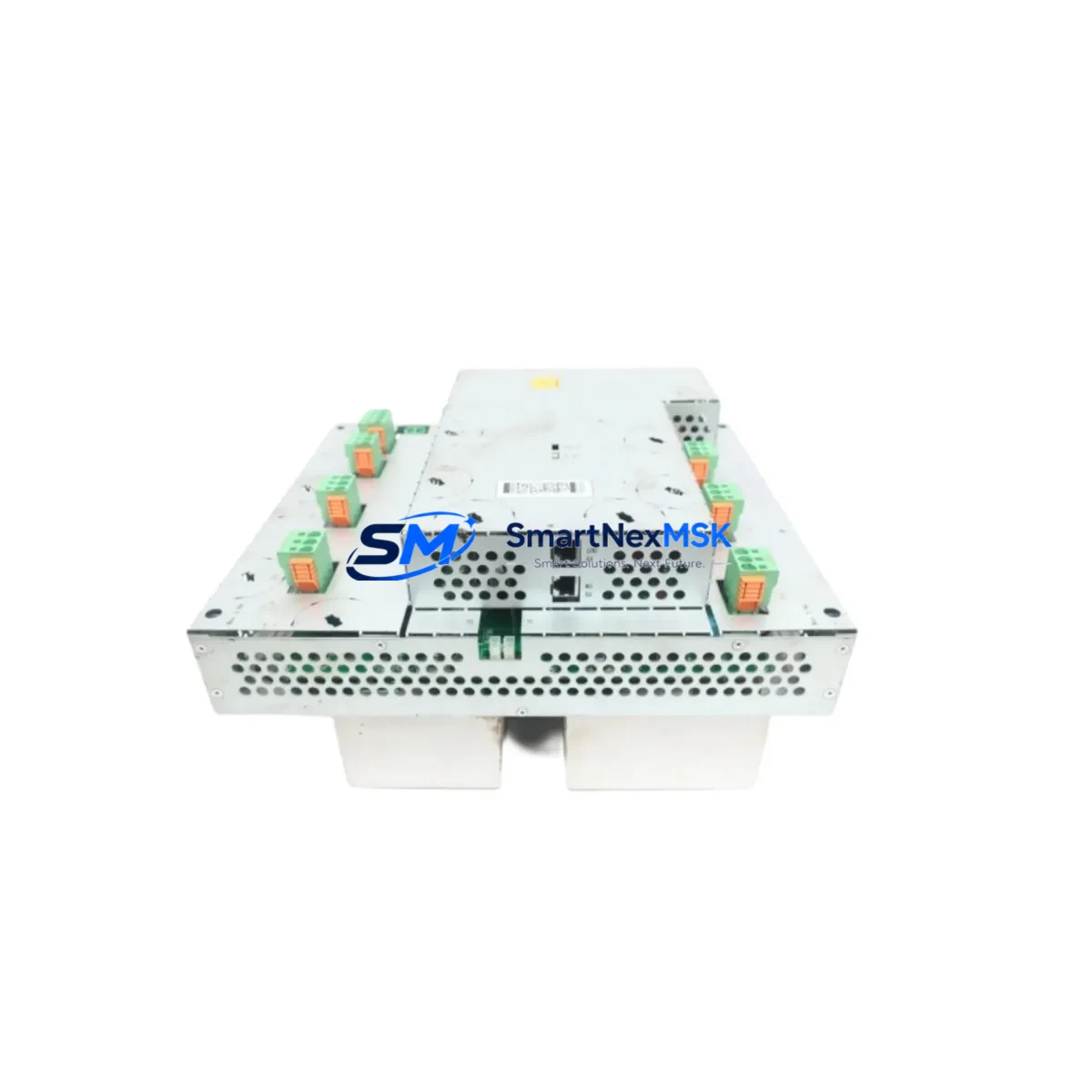

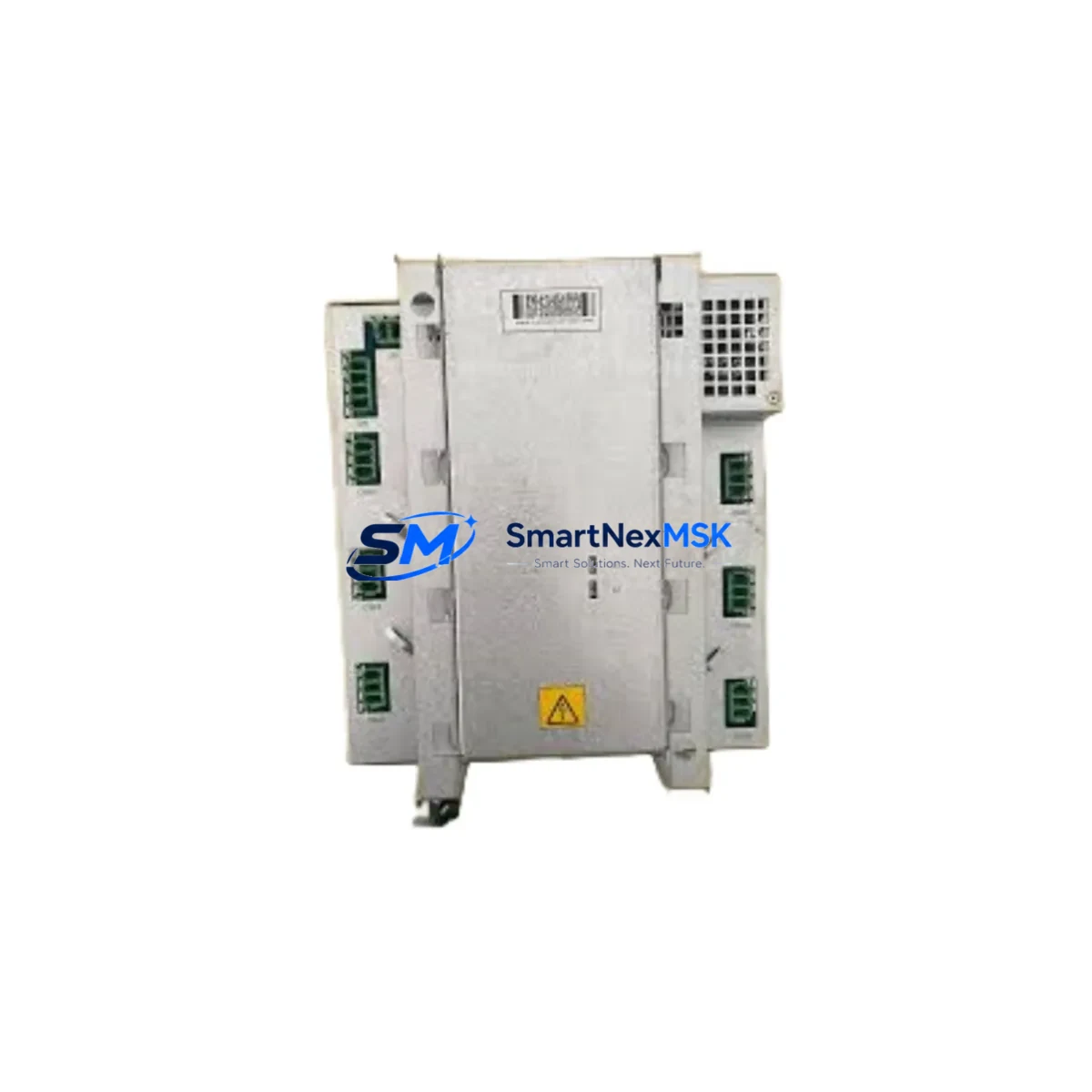

ABB DSQC687 3HAC031166-001 Safety-Enhanced Profibus-DP Module

ABB DSQC687 3HAC031166-001 Safety-Enhanced Profibus-DP Module for Harsh Industrial Sites

The ABB DSQC687 (3HAC031166-001) is a ruggedized Profibus-DP fieldbus communication module engineered for ABB IRC5 robot controllers operating in demanding industrial environments. Designed to maintain uninterrupted communication integrity under high electromagnetic interference, voltage fluctuation, and continuous-duty production cycles, this module is a critical component in safety-critical control architectures across heavy industry, process automation, and robotic manufacturing cells.

In high-load robotic lines, communication failures between the IRC5 controller and peripheral field devices can trigger emergency stops, production halts, and — in worst cases — unsafe machine states. The DSQC687 addresses this risk directly by providing a stable, noise-immune Profibus-DP interface that sustains deterministic data exchange even in environments characterized by strong variable-frequency drive (VFD) interference, high-current switching transients, and ground potential differences common in steel mills, automotive body shops, and petrochemical facilities.

Each unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification including communication handshake testing, power rail integrity checks, and connector contact resistance measurement — ensuring the module performs to ABB specification from the moment it is installed in your control cabinet.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the DSQC687 as part of a comprehensive IRC5 control cabinet protection strategy requires careful attention to the surrounding hardware ecosystem. In a typical robotic cell, the DSQC687 works in concert with the ABB DSQC639 (3HAC025097-001) main computer board, which manages the IRC5’s core processing and I/O arbitration. Any communication anomaly on the Profibus-DP segment — such as address conflicts, cable impedance mismatch, or termination errors — can propagate upstream and trigger fault states on the DSQC639, causing unplanned controller restarts.

To protect the Profibus-DP segment from surge events originating from field instrumentation or long cable runs, it is standard practice in heavy industrial installations to install Profibus-DP surge protection devices (such as Phoenix Contact TRABTECH or Weidmüller DEK series) at the cabinet entry point. These devices clamp transient overvoltages before they reach the DSQC687’s communication interface, significantly extending module service life in environments with frequent lightning activity or large motor switching.

The IRC5 cabinet’s internal power distribution — typically managed through the ABB DSQC609 (3HAC14265-1) power supply unit — must maintain stable 24 VDC output to the backplane. Voltage sag events caused by simultaneous axis acceleration or brake chopper activation can induce momentary communication dropouts on the Profibus-DP bus. Pairing the DSQC609 with an appropriately rated 24 VDC UPS buffer module or capacitive hold-up circuit is a recommended mitigation for continuous-process applications where even a 20 ms communication gap is unacceptable.

For installations where the IRC5 controller interfaces with safety PLCs or safety relay modules — such as the ABB JSHD4 (3HAC14550-2) safety board or external Pilz PNOZ safety relay chains — the Profibus-DP segment managed by the DSQC687 often carries safety-relevant I/O data including E-stop status, light curtain signals, and area scanner outputs. Ensuring the DSQC687 is correctly configured with the appropriate GSD file and that the Profibus master cycle time is within the safety system’s watchdog tolerance is essential for maintaining SIL-compliant operation.

Additional components commonly found in the same control cabinet include the ABB DSQC643 (3HAC025338-001) I/O board for digital signal distribution, the ABB DSQC662 (3HAC026253-001) fieldbus adapter for DeviceNet or EtherNet/IP bridging, and dedicated Profibus repeaters for multi-segment topologies spanning large factory floors. Each of these components depends on the DSQC687 maintaining a clean, stable Profibus-DP master or slave interface — making the health of this module central to the entire communication architecture.

Critical Industrial Safety Applications

The ABB DSQC687 3HAC031166-001 is deployed across a wide spectrum of safety-critical industrial environments where robotic control system reliability is non-negotiable.

In automotive body-in-white welding lines, IRC5-controlled robots perform continuous resistance spot welding at cycle times under 60 seconds. The DSQC687 manages Profibus-DP communication between the IRC5 and welding timer units, servo gun controllers, and conveyor PLC systems. A communication fault in this environment can result in incomplete weld sequences, triggering quality escapes and potential structural safety issues in vehicle bodies.

In petrochemical and refinery facilities, robotic inspection and maintenance systems operating in classified hazardous areas rely on IRC5 controllers housed in purged and pressurized enclosures. The DSQC687’s EMC robustness is critical in these environments, where high-voltage switchgear, large pump motors, and extensive cable trays create intense electromagnetic noise floors that can corrupt fieldbus communication on lesser-grade modules.

In metallurgical and steel processing plants, IRC5 robots perform ladle handling, billet transfer, and surface inspection tasks in environments with extreme thermal radiation, airborne conductive particulates, and heavy crane-induced ground current fluctuations. The DSQC687’s surge immunity and wide operating temperature range make it a reliable choice for these conditions, where module replacement during active production carries significant safety and financial risk.

In port and logistics automation, robotic palletizing and container handling systems operate around the clock with minimal maintenance windows. The DSQC687 supports the high-availability communication architecture required for these applications, where a single module failure can halt an entire terminal operation. SMARTNEXMSK maintains in-stock inventory of the DSQC687 to support rapid spare-part replacement with same-day or next-day dispatch capability.

In water and wastewater treatment facilities, robotic sampling and chemical dosing systems integrated with SCADA networks via Profibus-DP depend on the DSQC687 for reliable data exchange. The module’s resistance to humidity and condensation — within its rated operating envelope — supports deployment in pump stations and wet-process areas where environmental control is limited.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the ABB DSQC687 3HAC031166-001?
Every DSQC687 unit supplied by SMARTNEXMSK is backed by a 12-month warranty covering functional defects under normal operating conditions. If the module fails within the warranty period due to a manufacturing or component defect, we provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned item.

Q2: What pre-shipment testing does each unit undergo?
Prior to dispatch, each DSQC687 is subjected to a multi-point inspection protocol including: Profibus-DP communication handshake verification, 24 VDC backplane power rail continuity and voltage regulation check, connector pin contact resistance measurement, and visual inspection for physical damage, corrosion, or counterfeit indicators. A test record is retained for traceability.

Q3: Is this module compatible with all IRC5 cabinet variants and RobotWare versions?
The DSQC687 (3HAC031166-001) is compatible with ABB IRC5 Single Cabinet, Dual Cabinet, and Panel Mounted Controller (PMC) variants. It is supported under RobotWare 5.x and 6.x. For specific RobotWare version compatibility or GSD file requirements, our technical team can provide configuration guidance prior to purchase.

Q4: Can SMARTNEXMSK support long-term or repeat supply of this module?
Yes. SMARTNEXMSK maintains dedicated stock of the DSQC687 and other ABB IRC5 spare modules to support ongoing maintenance programs, planned shutdowns, and emergency replacement scenarios. We can accommodate blanket purchase orders and consignment arrangements for customers with high-volume or multi-site requirements. Contact our sales team to discuss supply agreements tailored to your maintenance strategy.
