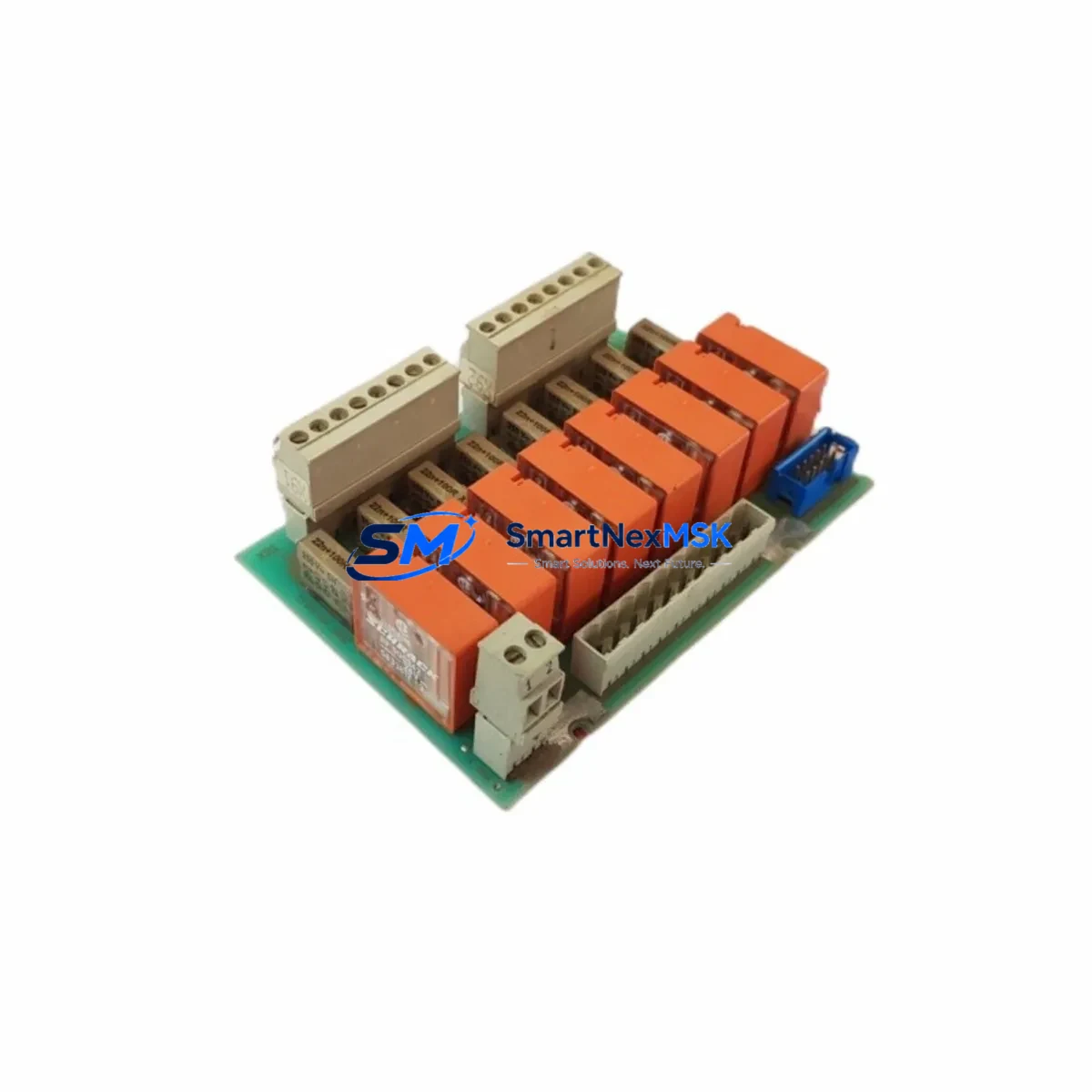

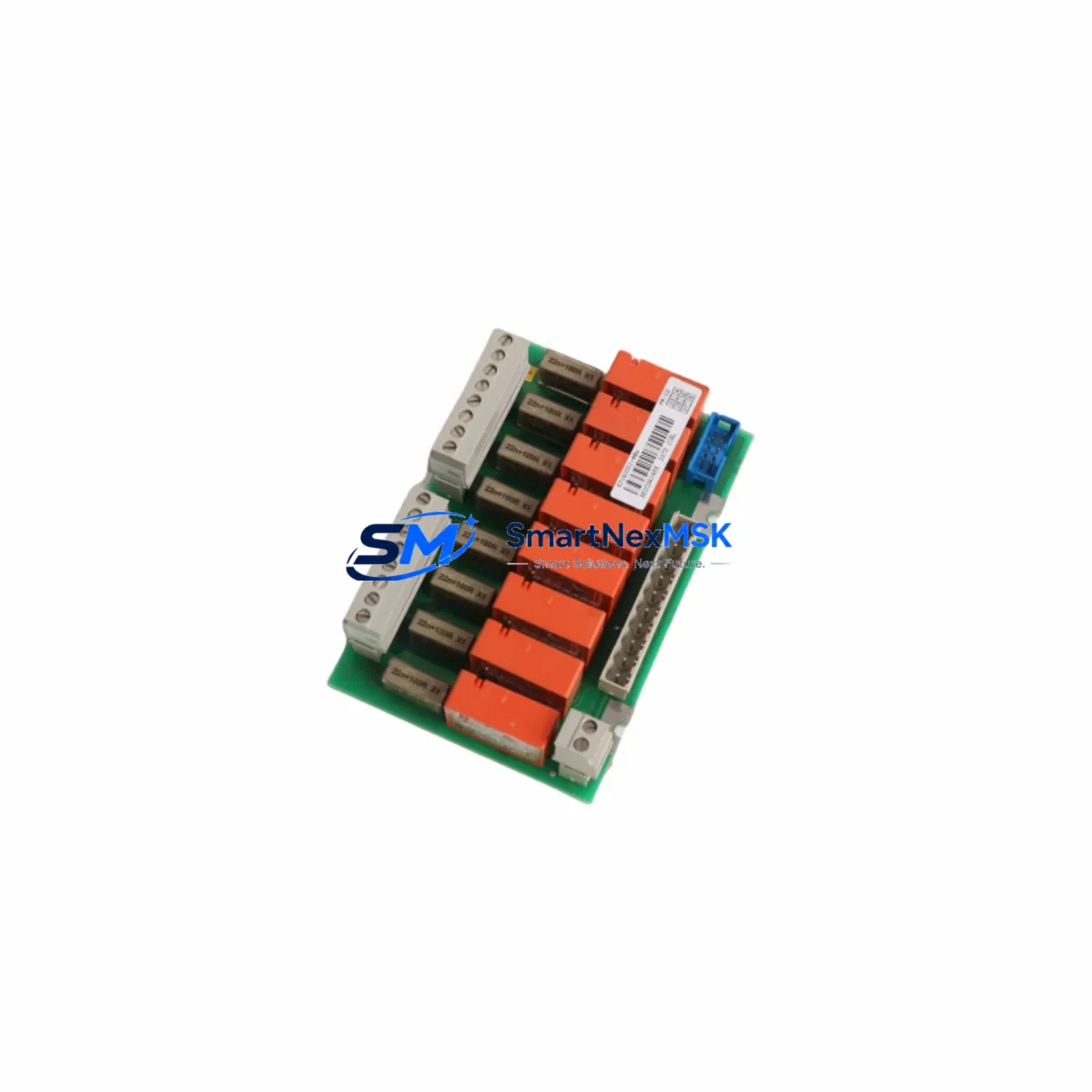

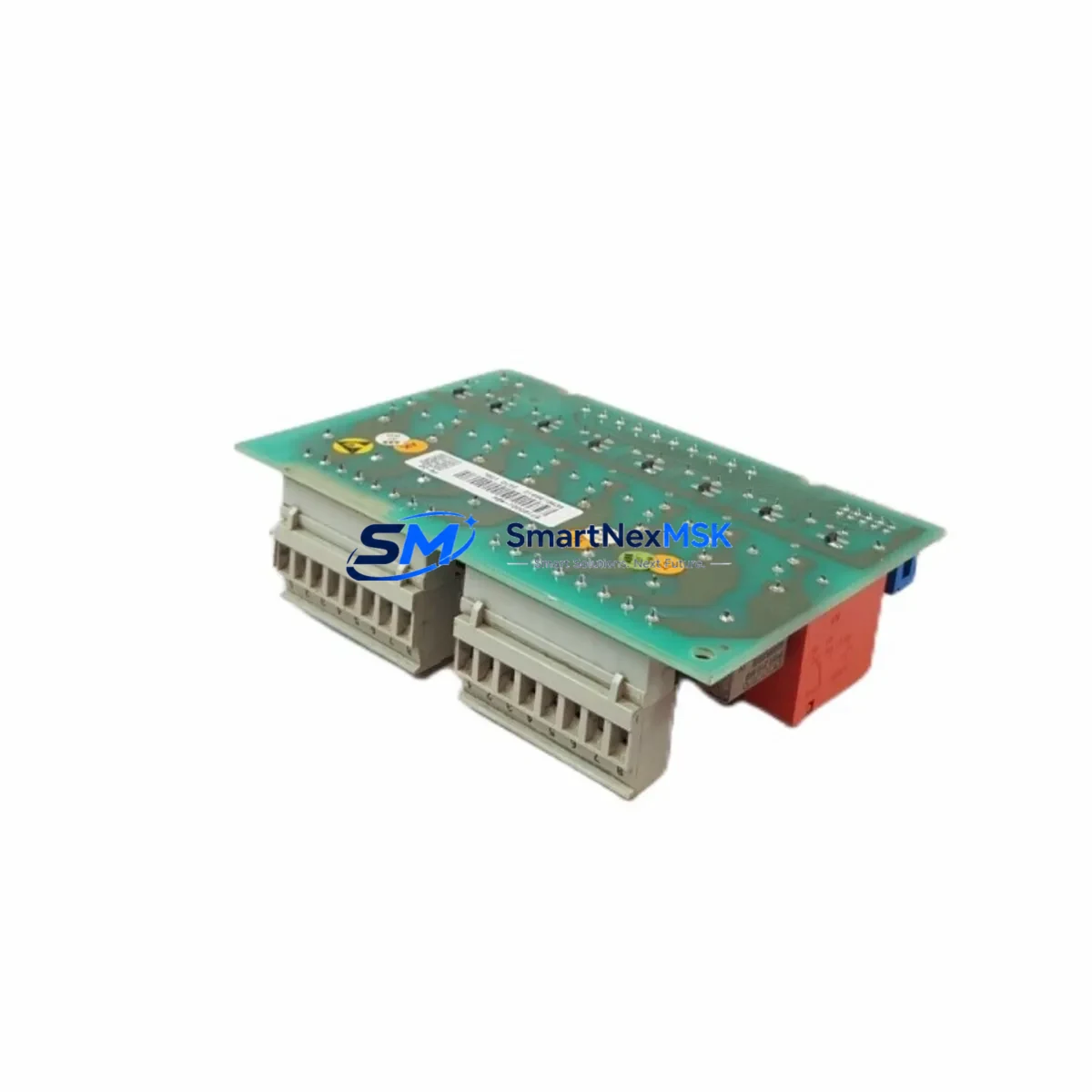

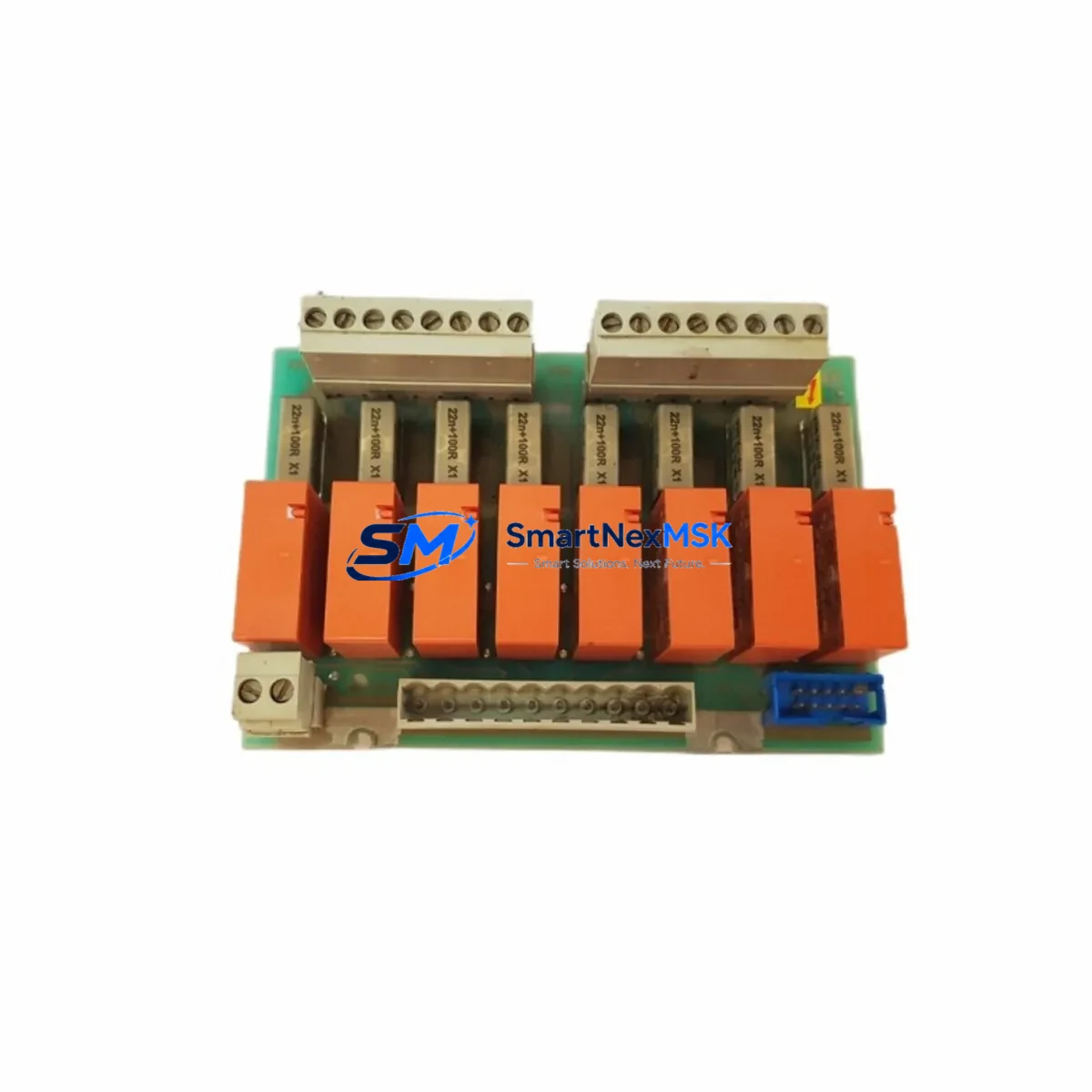

ABB DSTD108L Retrofit-Ready DCS Connection Unit for AC450

ABB DSTD108L Retrofit-Ready DCS Connection Unit for AC450 Control Systems

The ABB DSTD108L is a DCS connection unit designed for the Advant Controller AC450 platform — one of ABB’s most widely deployed distributed control systems in process industries including pulp and paper, oil and gas, power generation, and chemical manufacturing. As the AC450 platform approaches end-of-life and spare parts become increasingly scarce, the DSTD108L has become a critical retrofit component for engineers tasked with extending the operational life of existing control architectures or executing a structured migration to modern ABB systems.

Whether you are replacing a failed unit on an active production line, building a spare-parts buffer for a multi-year maintenance contract, or planning a phased upgrade from the Advant AC450 to the ABB System 800xA or AC800M platform, the DSTD108L serves as a foundational interface module that bridges field wiring to the controller backplane. Its role in the signal chain — connecting I/O termination assemblies to the processor and communication modules — makes it indispensable during any retrofit or system recovery scenario.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSTD108L retrofit begins well before the module arrives on site. Engineers should start by auditing the existing AC450 cabinet layout, documenting the current slot assignments for all installed modules including the DSPC172 processor module, DSTC110 or DSTC190 communication controllers, and any DSDI or DSDO digital I/O modules occupying adjacent backplane slots. The DSTD108L connects directly to the S100 I/O bus, so confirming backplane integrity — particularly the bus connector pins and rack power distribution — is a prerequisite step that prevents secondary failures during the swap.

Power budget verification is equally critical. The AC450 rack power supply, typically a DSSB110 or DSSB116 unit, must have sufficient headroom to support the replacement module alongside all co-installed boards. If the existing power supply is already operating near capacity or shows signs of aging — voltage ripple, thermal discoloration, or intermittent shutdowns — it is advisable to replace the DSSB unit concurrently rather than risk a second unplanned outage shortly after the DSTD108L installation.

Field wiring at the termination panel should be photographed and labeled before any disconnection. In most AC450 installations, the DSTD108L interfaces with a dedicated cable harness that routes to marshalling cabinets or junction boxes in the field. Retaining the original harness and connector block eliminates re-termination risk and preserves the signal integrity that was validated during the original commissioning. If the harness shows insulation degradation or connector corrosion, replacement with an equivalent shielded cable assembly is recommended before the new module is powered.

For sites planning a longer-term migration from the AC450 to the ABB System 800xA or AC800M platform, the DSTD108L replacement provides a stable interim solution that keeps the existing AMPL application logic, MasterBus 300 network topology, and Advant Station HMI graphics fully operational while the migration project is engineered and scheduled. During this window, engineers can begin parallel tasks such as converting AMPL function blocks to Control Builder M, mapping existing I/O lists to S800 I/O modules like the AI810 or DI810, and validating the new OPC DA/UA communication paths without disrupting live production.

Sites using PROFIBUS DP for field device communication should verify that the DSTC190 PROFIBUS master module and its GSD file database remain consistent after the DSTD108L swap. In most cases the connection unit replacement is transparent to the PROFIBUS layer, but a full network diagnostic scan using a PROFIBUS tester is recommended as part of the post-installation checkout. Similarly, any HART-enabled field instruments connected through the I/O chain should be verified for pass-through communication continuity using a HART communicator or asset management tool.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a DCS connection unit in a live process environment. The recommended approach for DSTD108L replacement is a pre-staged hot-swap procedure: the replacement module is bench-tested and verified before the maintenance window begins, all tools and documentation are staged at the cabinet, and the field team is briefed on the exact sequence of steps — power isolation, module extraction, insertion, address verification, and power restoration — so that the physical swap can be completed within a single planned outage window of 30 to 60 minutes.

Before powering down the affected rack, the control system engineer should place the relevant AC450 control loops in manual mode at the Advant Station operator console, ensuring that field actuators — control valves, motor starters, and variable speed drives — hold their last commanded position during the outage. This prevents process upsets caused by loss of control signal during the module exchange. If the process cannot tolerate even a brief manual hold, a temporary hardwired bypass or a portable controller may be required to maintain critical loop control during the swap.

After the DSTD108L is seated and the rack is re-energized, the engineer should confirm module recognition in the AC450 system status display before returning loops to automatic. A channel-by-channel I/O verification — comparing live field readings against the AMPL database expected values — should be completed before sign-off. Any discrepancy in analog input scaling, digital input polarity, or analog output trim should be resolved before the maintenance window closes. Retaining the original AMPL application program without modification is the safest approach for a like-for-like replacement; no program download should be required if the module address and hardware configuration are identical to the removed unit.

For organizations managing multiple AC450 systems across a plant or across multiple sites, maintaining a small buffer stock of DSTD108L units — typically two to four modules per system — is a proven strategy for reducing mean time to repair. As ABB has discontinued active production of AC450 components, sourcing lead times from the open market can range from days to several weeks depending on global inventory levels. Having verified, tested spares on the shelf eliminates this variable from the critical path when an unplanned failure occurs.

Retrofit Support FAQ

Q1: Is the DSTD108L a direct drop-in replacement for the original unit in my AC450 system?
In the vast majority of AC450 installations, yes. The DSTD108L is a like-for-like hardware replacement that retains the original backplane slot, field wiring harness, and module address configuration. No changes to the AMPL application program or DSPC172 processor firmware are required for a standard swap. We recommend confirming the hardware revision label on both the removed and replacement units; if revisions differ, consult the ABB AC450 hardware compatibility matrix or contact our technical team before installation.

Q2: What pre-shipment testing is performed on the DSTD108L before delivery?
Every DSTD108L unit we supply undergoes a functional verification test prior to shipment. This includes power-on self-test confirmation, backplane connector integrity check, and I/O channel continuity verification where applicable. Units are shipped in anti-static packaging with a test record. The 12-month warranty covers functional failure under normal operating conditions from the date of delivery.

Q3: Can the DSTD108L be used during a phased migration from AC450 to System 800xA?
Yes. The DSTD108L is well-suited as an interim solution during a phased migration. It keeps the existing AC450 I/O infrastructure, MasterBus 300 network, and Advant Station HMI fully operational while the System 800xA engineering environment is being configured. This allows migration teams to work on the new platform in parallel without impacting live production. When the migration cutover is executed, the DSTD108L and associated S100 I/O modules are decommissioned and replaced with the target S800 I/O hardware.

Q4: What information should I provide when ordering to ensure compatibility?
Please provide the full SKU (DSTD108L), your AC450 system serial number or project reference if available, the hardware revision of the unit being replaced, and your required delivery timeline. If you are ordering for a migration project and need compatibility guidance for associated modules such as the DSPC172, DSTC110, DSSB116, or S800 I/O modules, our technical team can assist with a full bill-of-materials review prior to order confirmation.
