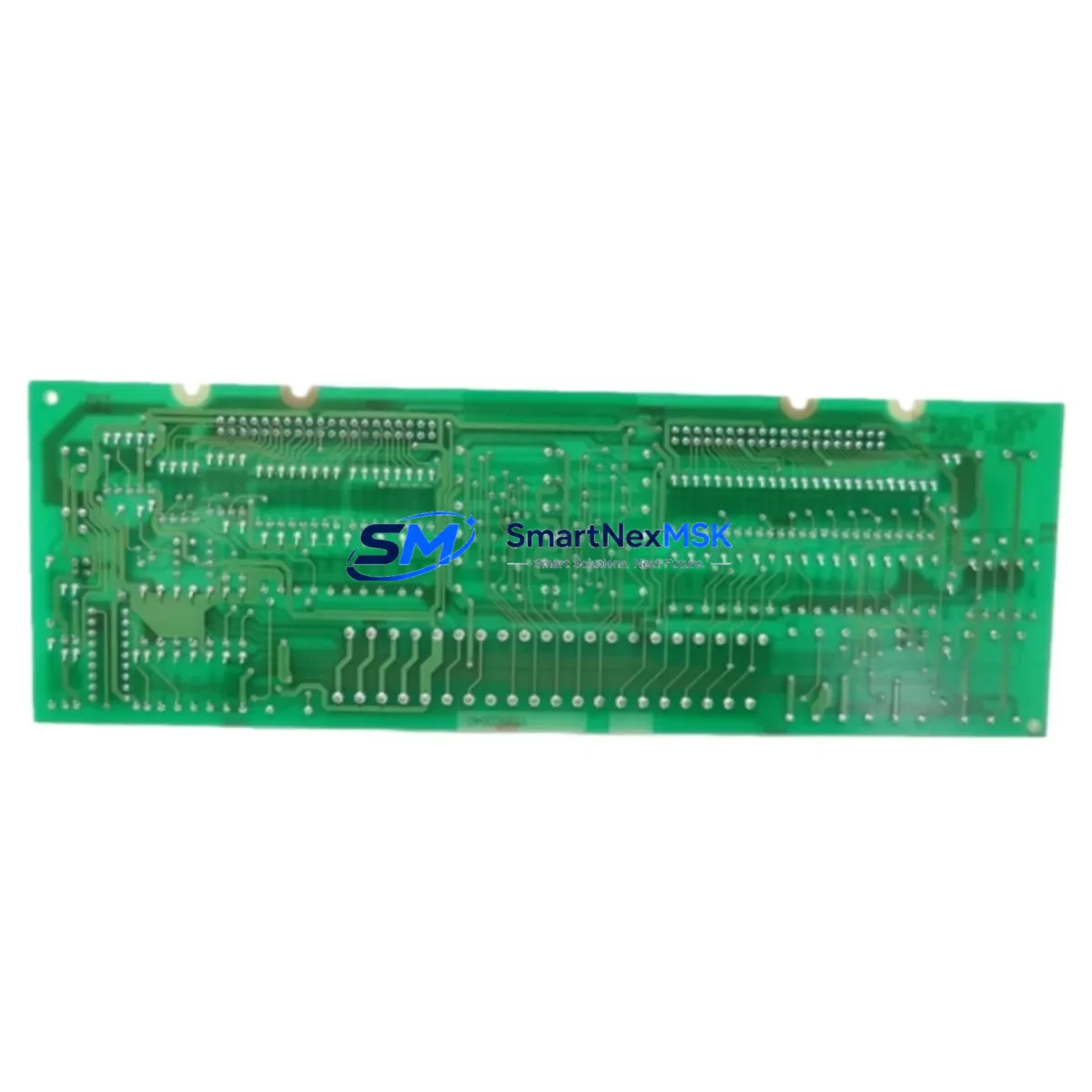

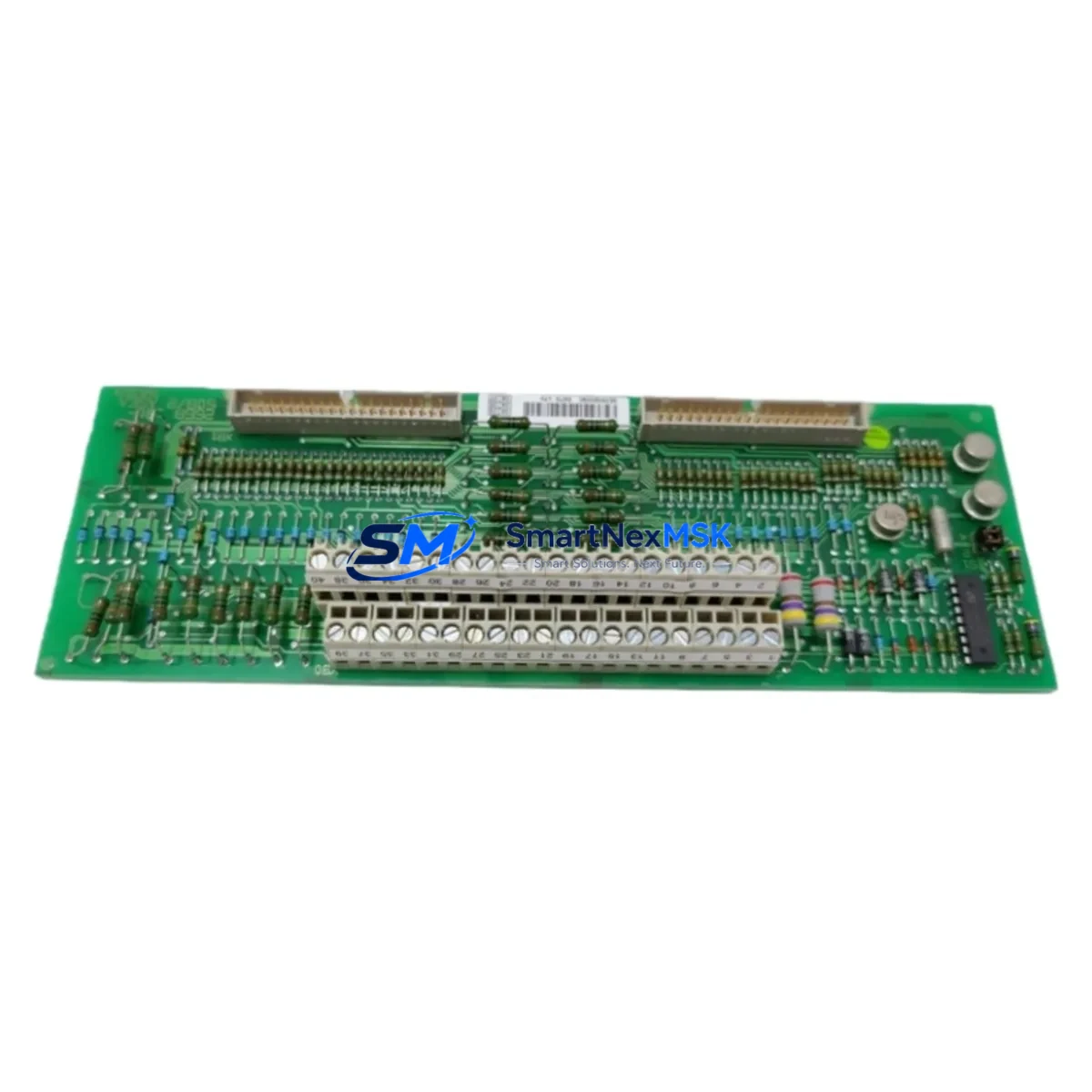

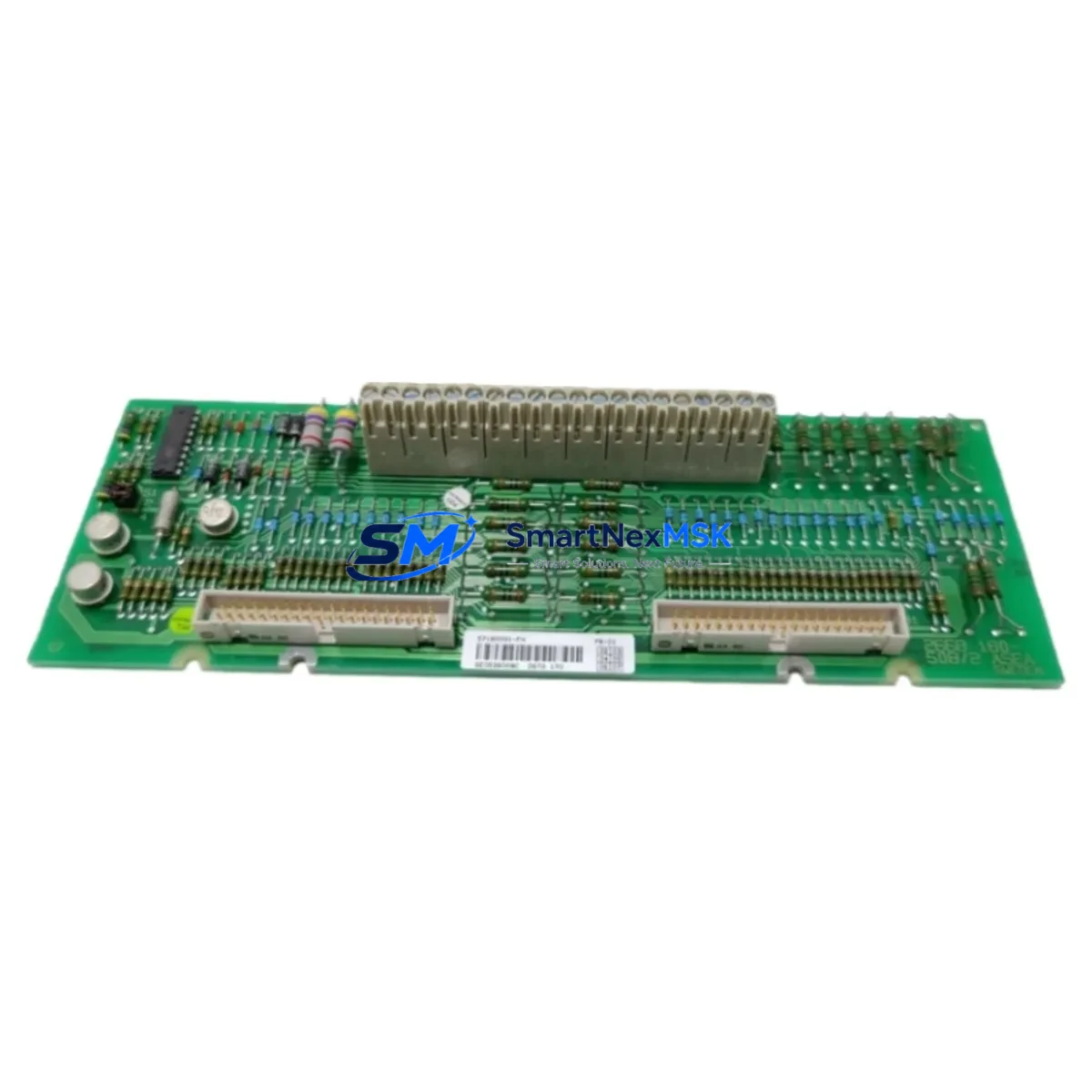

ABB DSTD180 57160001-HE Safety-Enhanced DCS Connection Unit

ABB DSTD180 57160001-HE Safety-Enhanced DCS Connection Unit: Reliable Control in Harsh Industrial Sites

The ABB DSTD180 57160001-HE is a ruggedized DCS connection unit engineered for the ABB Advant OCS MOD 300 distributed control system architecture. Designed to operate continuously in high-load, high-interference industrial environments — including petrochemical plants, power generation facilities, metallurgical smelters, mining control rooms, and water treatment stations — this module delivers the signal integrity and structural resilience that safety-critical control loops demand.

In continuous production environments, a single point of signal degradation or connection failure can cascade into unplanned shutdowns, process deviations, or safety interlock trips. The DSTD180 57160001-HE addresses this risk directly: its robust terminal block architecture and shielded signal routing minimize susceptibility to electromagnetic interference (EMI), ground loops, and voltage transients that are endemic to heavy industrial cabinets. Whether installed adjacent to variable frequency drives, high-current motor starters, or high-voltage bus bars, this connection unit maintains stable signal transmission across all connected I/O channels.

Within a MOD 300 control cabinet, the DSTD180 typically interfaces with ABB DSAI 130 analog input modules and DSDO 115 digital output modules, forming a tightly integrated signal conditioning chain. When paired with ABB DSCS 140 communication supervisory modules and DSMB 127 bus interface units, the connection unit ensures that field signals from transmitters, actuators, and safety sensors reach the controller backplane without distortion or latency. This is particularly critical in safety instrumented systems (SIS) where signal fidelity directly determines the reliability of emergency shutdown (ESD) responses.

Surge and transient protection is a key operational concern in field installations near high-power switching equipment. The DSTD180 57160001-HE’s terminal design accommodates external surge protection devices such as Phoenix Contact or Weidmüller surge arresters, allowing integrators to build a layered protection strategy within the marshalling cabinet. Combined with ABB DSTD 150 termination units and DSAX 110 signal conditioners in the same rack, the system forms a coherent, fault-tolerant I/O front-end that reduces the probability of module misoperation due to power line disturbances.

For power system stability, the DSTD180 operates reliably when supplied through ABB DSPU 110 power supply units or equivalent 24 VDC regulated sources with sufficient hold-up time. In installations where power quality is a concern — such as those near large induction furnaces or arc welders — pairing the power supply with an uninterruptible power supply (UPS) module and appropriate filtering capacitors is recommended to prevent voltage sag-induced resets of the DCS controller rack.

Communication integrity is equally important. In MOD 300 architectures, the DSTD180 connection unit supports the field wiring interface that feeds into the DSMB 175 Masterbus communication modules. Any degradation in the physical connection layer — loose terminals, corroded contacts, or thermally stressed PCB traces — can introduce communication anomalies that manifest as sporadic I/O faults or controller alarms. The DSTD180 57160001-HE is manufactured to ABB’s industrial-grade standards, with gold-plated contact surfaces and conformal-coated PCB assemblies that resist humidity, dust, and chemical vapors common in petrochemical and metallurgical environments.

From a maintenance and spare parts perspective, the DSTD180 57160001-HE is a direct replacement for aging connection units in legacy MOD 300 installations. Many plants operating ABB Advant OCS systems have extended their operational life well beyond the original design horizon, making reliable spare part availability a strategic priority. SMARTNEXMSK maintains verified stock of this module, with each unit undergoing pre-shipment functional inspection to confirm terminal continuity, PCB integrity, and connector alignment before dispatch.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust MOD 300 control cabinet protection strategy begins at the field wiring interface — precisely where the DSTD180 57160001-HE operates. In high-risk installations such as offshore platforms, chemical reactors, or continuous casting lines, the connection unit must coexist with a range of protective and conditioning components. Integrators typically deploy ABB DSAI 130 analog input modules directly upstream, with DSDO 115 digital output modules handling actuator command signals. The DSTD180 bridges these modules to field instrumentation, including pressure transmitters, thermocouple inputs, and solenoid valve feedback loops.

To guard against surge events — particularly in lightning-prone regions or facilities with large motor loads — surge protection terminal blocks from established manufacturers are inserted at the marshalling level before signals reach the DSTD180 terminals. This two-stage protection (field-side surge arrester + DSTD180 shielded termination) significantly reduces the risk of transient-induced I/O module damage or spurious output activation.

Power distribution within the cabinet is managed through ABB DSPU 110 power supply units, with redundant supply configurations recommended for SIL-rated loops. The DSMB 127 and DSMB 175 Masterbus modules handle inter-controller communication, and any instability in the physical termination layer — which the DSTD180 anchors — can propagate as communication timeouts or data integrity errors at the supervisory level. Maintaining the DSTD180 in verified condition is therefore not merely a hardware concern but a system-level safety requirement.

For installations requiring hot-standby redundancy, the DSTD180 57160001-HE can be pre-staged as a cold spare alongside DSCS 140 supervisory communication modules and DSAX 110 signal conditioners, enabling rapid swap-out during planned maintenance windows without extended process downtime.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation and catalytic cracking units, the DSTD180 supports the termination of safety-critical analog signals from pressure and temperature transmitters feeding into emergency shutdown (ESD) logic. Signal continuity at the connection unit level is a prerequisite for reliable SIS performance.

Power Generation Facilities: Thermal and hydroelectric power plants operating ABB Advant OCS MOD 300 systems rely on DSTD180 connection units to maintain stable I/O communication between turbine control sensors and the DCS controller. Any terminal degradation can result in false alarms or missed trip signals.

Mining & Mineral Processing: In ore processing and conveyor control systems, the DSTD180 handles field wiring from motor protection relays, belt speed sensors, and level transmitters. Its conformal-coated PCB withstands the high dust and humidity levels typical of underground and surface mining control rooms.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use MOD 300 DCS platforms for pump sequencing, chemical dosing, and effluent monitoring. The DSTD180 provides the reliable field termination needed to sustain 24/7 unattended operation with minimal maintenance intervention.

Metallurgy & Steel Production: Electric arc furnace (EAF) and continuous casting environments subject control hardware to extreme electromagnetic interference from high-current switching. The DSTD180’s shielded architecture and robust terminal design make it suitable for marshalling cabinets in close proximity to furnace control panels and transformer switchgear.

Port & Bulk Material Handling: Automated ship loaders, stacker-reclaimers, and conveyor systems in port terminals use ABB DCS platforms for coordinated motion control. The DSTD180 ensures reliable signal termination across long cable runs subject to vibration and thermal cycling.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the DSTD180 57160001-HE?
The 12-month warranty covers all functional failures arising under normal operating conditions, including terminal contact failure, PCB trace defects, and connector misalignment identified during operation. Warranty claims are processed with priority dispatch of a replacement unit to minimize process downtime. Physical damage caused by incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded.

Q2: What pre-shipment testing is performed on each unit?
Every DSTD180 57160001-HE unit undergoes a pre-shipment inspection protocol that includes terminal continuity verification across all I/O channels, PCB visual inspection for solder joint integrity and conformal coating coverage, connector alignment check, and functional power-on test where applicable. Units that do not pass inspection are quarantined and not dispatched.

Q3: Is the DSTD180 57160001-HE compatible with all MOD 300 rack configurations?
The DSTD180 57160001-HE is designed for ABB Advant OCS MOD 300 systems and is compatible with standard MOD 300 I/O rack configurations using DSAI 130, DSDO 115, and related I/O modules. Compatibility with specific rack revisions or custom configurations should be verified against the plant’s existing system documentation. SMARTNEXMSK technical support can assist with compatibility confirmation prior to order.

Q4: Can long-term supply of this module be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains active inventory of the DSTD180 57160001-HE and sources units through verified industrial surplus and OEM channels. For plants with scheduled maintenance programs or multi-year spare parts agreements, we recommend contacting our sales team to discuss volume reservation and priority allocation arrangements to ensure uninterrupted supply.
