ABB DSTK228SL3 3BSC950174R30 Maintenance-Ready Spare for AC800M Automation

ABB DSTK228SL3 3BSC950174R30 Maintenance-Ready Spare for AC800M Automation

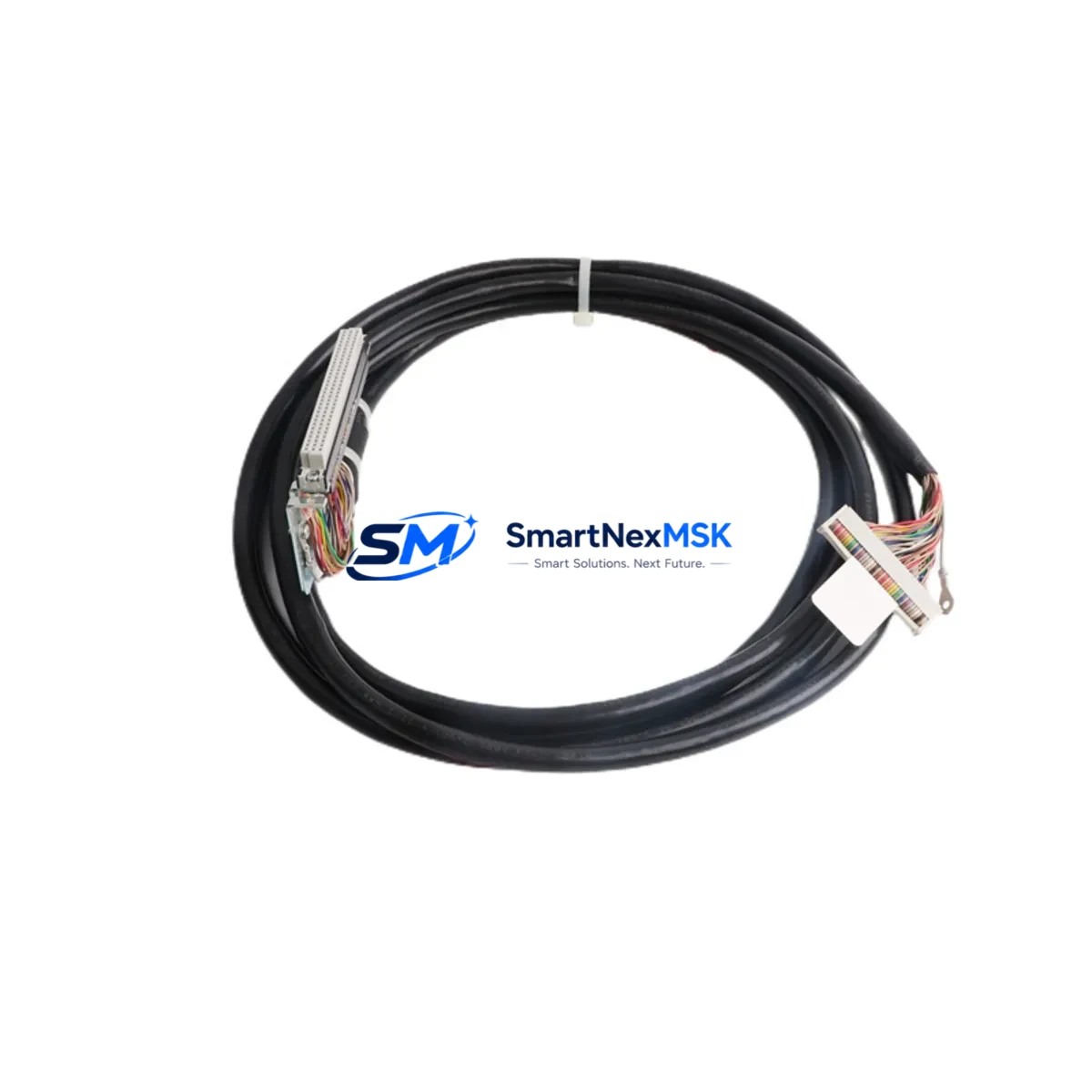

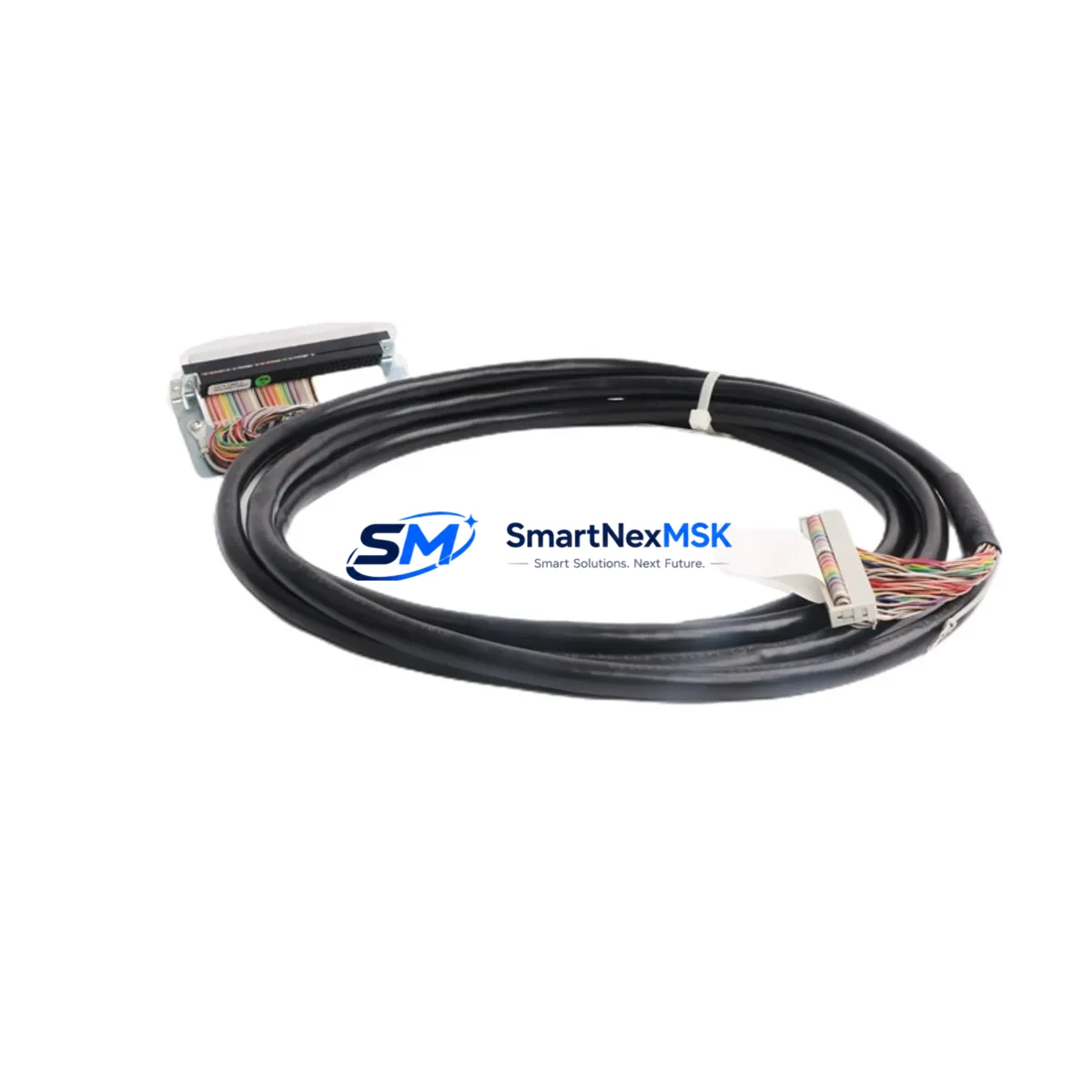

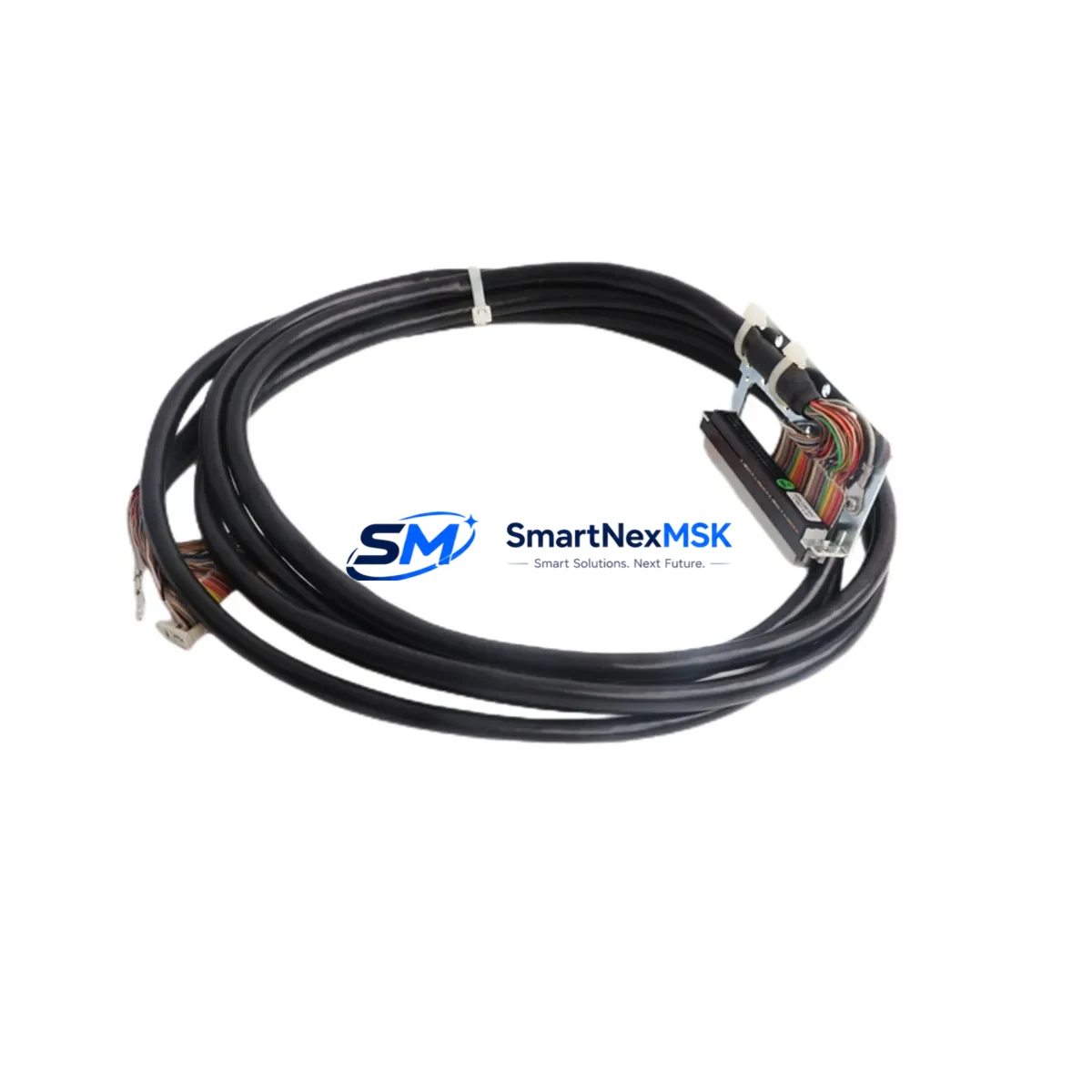

The ABB DSTK228SL3 (part number 3BSC950174R30) is an original ribbon cable assembly designed for use within the AC800M Distributed Control System platform — one of ABB’s most widely deployed process automation architectures in oil & gas, power generation, pulp & paper, and chemical processing facilities. This cable serves as a critical internal interconnect between processor modules, I/O carrier boards, and backplane assemblies within the AC800M controller cabinet. A failed or degraded DSTK228SL3 can cause intermittent communication faults, I/O scan errors, or complete controller dropout — all of which translate directly into unplanned downtime and production loss.

Sourced as an original ABB component, the DSTK228SL3 3BSC950174R30 is tested prior to dispatch and ships with a 12-month warranty. Stocking this cable as part of your critical spare parts inventory is a low-cost, high-impact strategy for protecting continuous operation in AC800M-based control systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer investigates an AC800M controller fault, the DSTK228SL3 ribbon cable is rarely the first component inspected — yet it is frequently the root cause of elusive, intermittent faults that resist diagnosis at the module level. A disciplined cabinet inspection should treat this cable as part of a broader system health check.

During planned maintenance windows or after any unplanned controller restart, engineers should simultaneously inspect the following components in the same control cabinet or electrical loop:

• PM856 / PM860 / PM864 Processor Modules — verify firmware version, battery status, and backplane seating; a degraded cable can cause false processor faults.
• TB820 / TB840 I/O Termination Units — check for loose field wiring, corroded terminals, and correct channel addressing after cable replacement.
• SD821 / SD822 Power Supply Modules — confirm 24 VDC rail stability; voltage sag during peak I/O scan cycles can stress ribbon cable connectors.
• CI854 / CI857 PROFIBUS / FOUNDATION Fieldbus Communication Interfaces — re-verify bus termination and node addressing after any internal cable disturbance.
• AI810 / AO810 Analog I/O Modules — recalibrate signal channels and confirm 4–20 mA loop integrity following cable swap.
• DI810 / DO810 Digital I/O Modules — test all discrete channels for correct ON/OFF state reporting after reconnection.
• TK212 / TK213 Optical Link Cables — inspect for bend radius violations and connector contamination if the cabinet has been disturbed during cable replacement.
• Panel 800 / PP865 HMI Operator Panels — confirm communication link restoration and alarm history synchronization after controller recovery.
• SA811 / SA812 Signal Isolators — verify isolation barrier integrity on critical analog loops, particularly in hazardous area installations.
• Fuse terminals and MCBs on the 24 VDC distribution rail — replace any blown fuses and document the event as part of the fault record.

Maintaining a minimum of one DSTK228SL3 3BSC950174R30 per AC800M controller cluster in your on-site spare parts kit eliminates the risk of extended downtime caused by cable procurement lead times. For facilities operating multiple AC800M cabinets, a ratio of one spare cable per three controllers is a practical stocking benchmark.

Site Replacement Workflow

The DSTK228SL3 is a direct plug-in replacement for the original factory-installed cable. No hardware modification, firmware update, or system reconfiguration is required. The replacement procedure is as follows:

• Step 1 — Isolate and document: Place the affected AC800M controller in manual or backup control mode. Record all active alarms and I/O states before de-energizing the cabinet section.
• Step 2 — Remove the faulty cable: Carefully release the locking tabs on both ribbon connectors. Note the cable routing and orientation before removal to ensure correct reinstallation.
• Step 3 — Install the DSTK228SL3 3BSC950174R30: Seat both connectors fully until the locking tabs engage. Verify the cable is not kinked or under tension.
• Step 4 — Power-up and verify: Re-energize the controller section and confirm that all I/O modules report healthy status in the AC800M engineering tool (Control Builder M). Clear any latched faults.
• Step 5 — Return to automatic: Restore automatic control mode and monitor the system for 15–30 minutes to confirm stable operation before closing the maintenance work order.

This workflow is compatible with both hot-standby redundant AC800M configurations and single-controller installations. In redundant systems, the switchover to the standby controller should be initiated before beginning cable replacement to maintain process continuity.

Spare Parts Support FAQ

Q1: Is the DSTK228SL3 3BSC950174R30 compatible with all AC800M controller variants?
The DSTK228SL3 is designed for the AC800M platform and is compatible with the PM851, PM856, PM860, PM861, PM864, and PM866 processor module families. Always verify the cable length and connector pitch against your specific controller revision before installation. If you are unsure, contact our technical team with your controller nameplate details.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects, connector failure, and functional non-performance under normal industrial operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical abuse. Warranty claims are processed with a replacement unit dispatched after fault confirmation.

Q3: How is the cable tested before shipment?
Each DSTK228SL3 unit undergoes continuity testing across all conductors, insulation resistance verification, and physical connector seating inspection before dispatch. A test record is available upon request for quality-critical installations.

Q4: Can this cable be used to extend the life of an aging AC800M system?
Yes. Ribbon cable assemblies are a common wear item in long-running DCS installations, particularly in environments with vibration, thermal cycling, or frequent cabinet access. Replacing degraded cables as part of a planned life-extension program is a cost-effective alternative to full controller replacement and can extend reliable system operation by several years.
