ABB DSTX170 57160001-ADK Spare for MASTER/SYMPHONY Automation

ABB DSTX170 57160001-ADK Spare for MASTER/SYMPHONY Automation

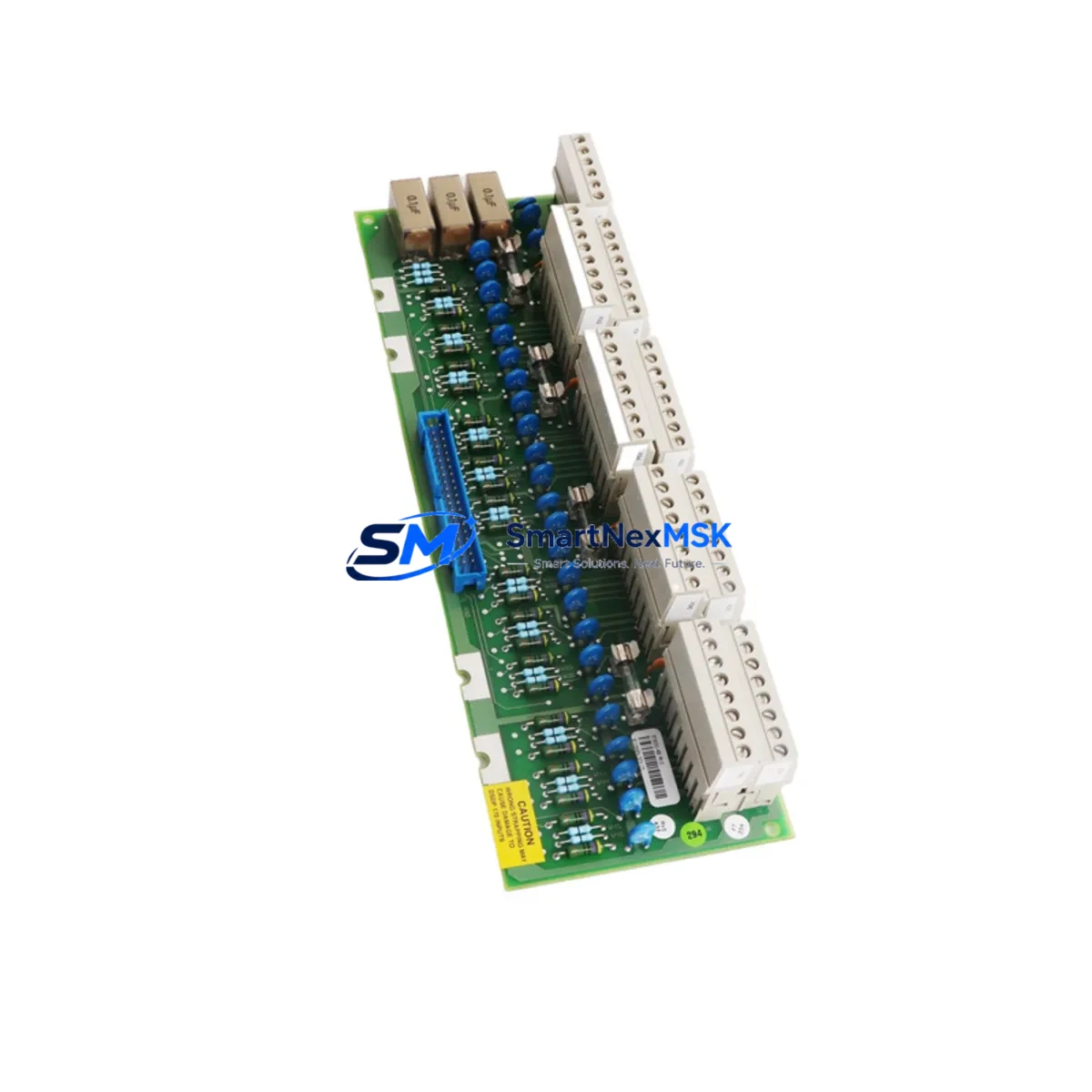

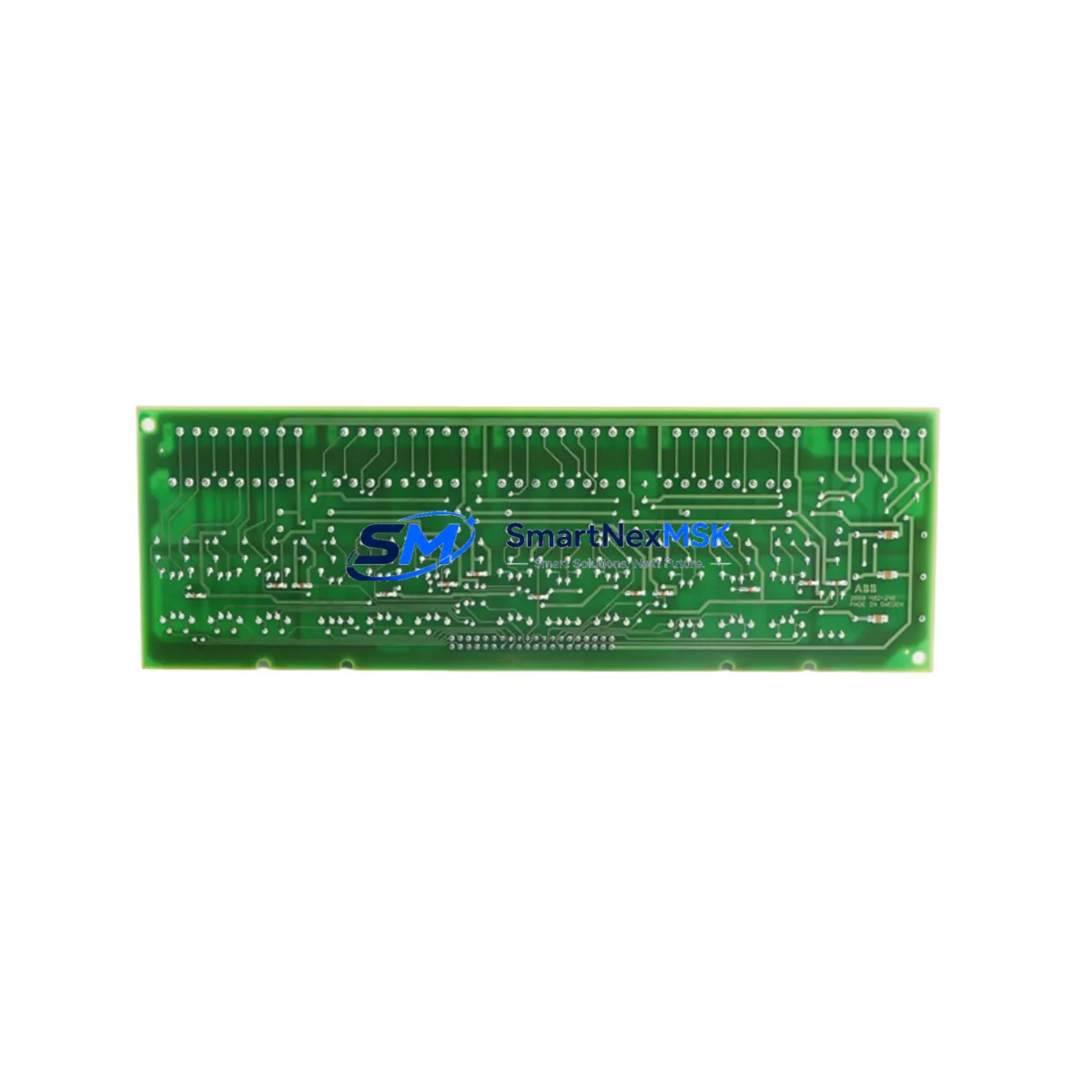

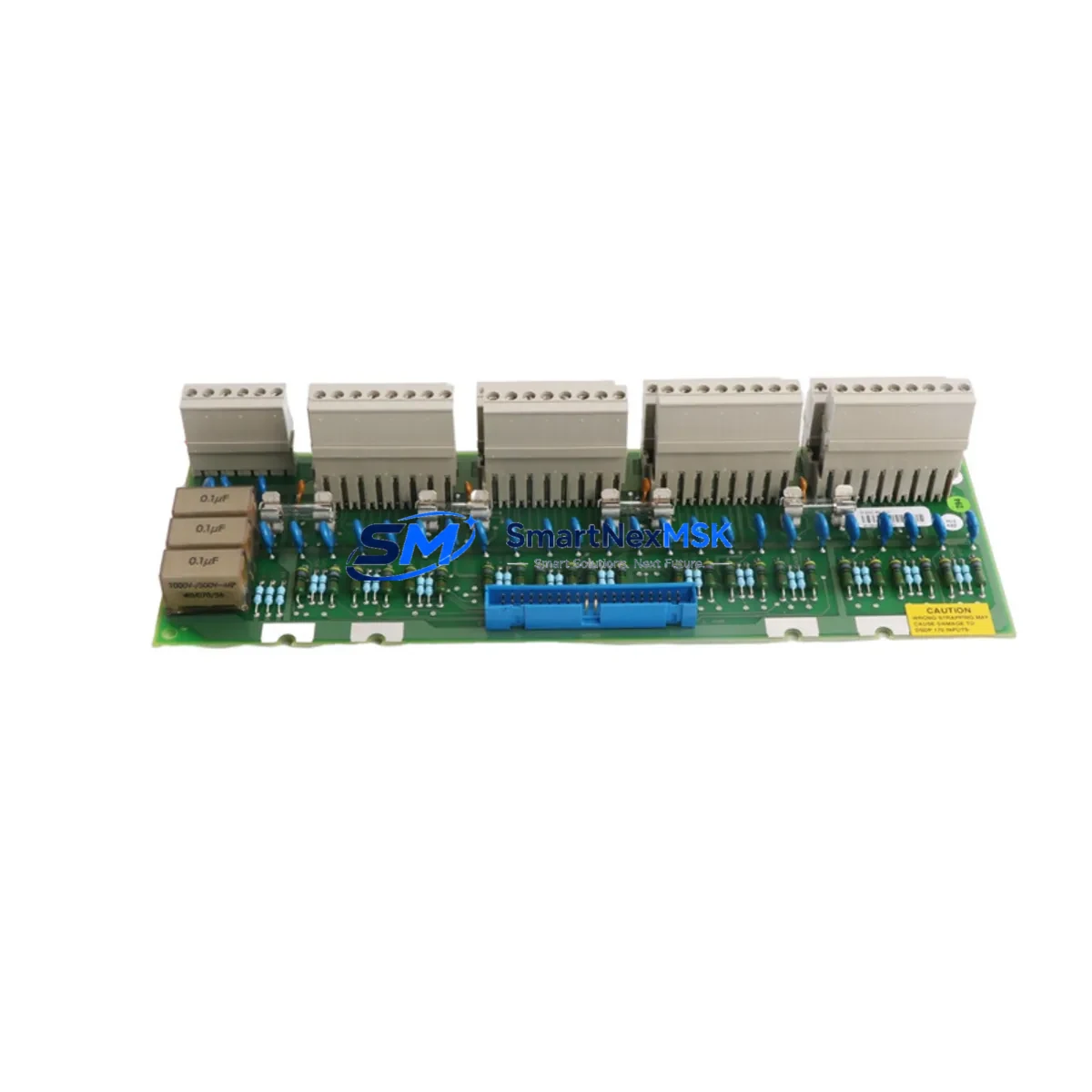

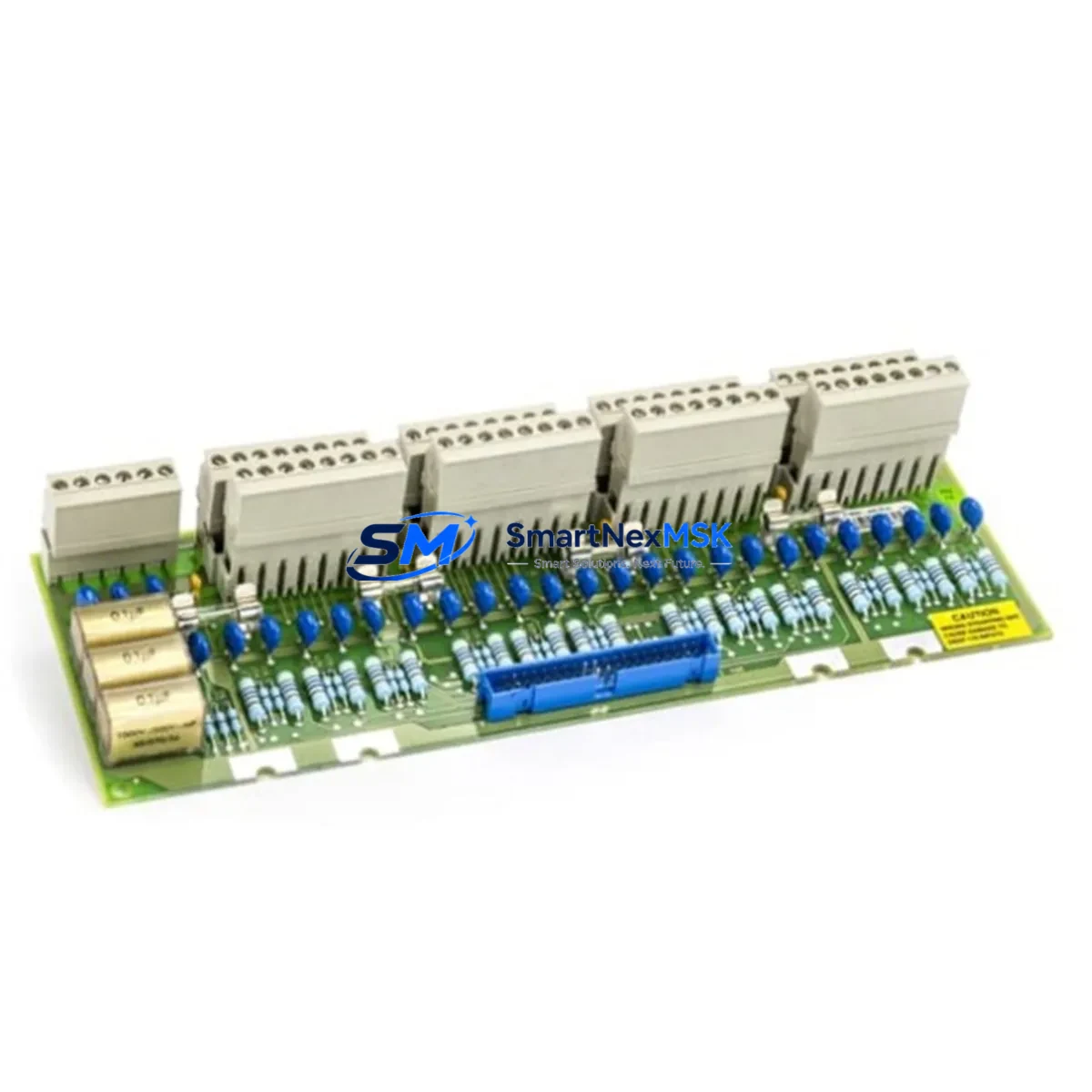

The ABB DSTX170 57160001-ADK is a critical DCS connection unit designed for ABB’s MASTER and SYMPHONY distributed control system platforms. In industrial facilities where continuous process control is non-negotiable, maintaining a verified spare of this module is a fundamental element of any proactive maintenance strategy. Unplanned downtime caused by a failed connection unit can cascade across entire control loops, triggering process shutdowns, safety interlocks, and costly production losses. Sourcing an original, factory-tested DSTX170 57160001-ADK ensures that your maintenance team can execute a rapid, like-for-like replacement without compatibility risk or extended commissioning time.

This unit serves as the physical and electrical interface between field wiring terminations and the MASTER/SYMPHONY controller backplane. It handles signal routing, terminal connectivity, and I/O marshalling for the associated processor or I/O modules. When this component degrades — due to terminal oxidation, connector fatigue, vibration-induced micro-fractures, or age-related insulation breakdown — the symptoms often manifest as intermittent signal loss, erratic loop behavior, or complete channel failure. Having a pre-tested replacement on the shelf eliminates the diagnostic ambiguity and allows maintenance engineers to restore system integrity within a single maintenance window.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty. We maintain long-term stock of legacy ABB DCS components to support facilities operating aging MASTER/SYMPHONY infrastructure, where OEM supply chains have been discontinued or lead times are unacceptably long.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSTX170 57160001-ADK replacement is scheduled or triggered by a fault condition, experienced maintenance engineers treat it as an opportunity to audit the surrounding control cabinet infrastructure. The connection unit does not operate in isolation — its reliability depends on the integrity of every upstream and downstream component in the same electrical loop.

Begin with the DSAI130 analog input module or DSDI110 digital input module that feeds into the same backplane slot. These I/O modules share the signal path with the connection unit, and a degraded module can cause symptoms that are incorrectly attributed to the DSTX170 itself. Inspect the DSDO110 digital output module on adjacent slots for signs of contact wear or output drift. Check the DSDP140 processor module for firmware currency and battery status — a processor with a failing backup battery can corrupt configuration data during a power cycle, complicating post-replacement commissioning.

Inspect the DSBC172 bus connection board and backplane connectors for oxidation or mechanical damage. The backplane is the communication spine of the MASTER/SYMPHONY rack; any intermittent contact here will undermine the performance of a newly installed connection unit. Verify that the DSTD108 termination unit associated with the replaced module is also in serviceable condition — worn screw terminals or cracked housings are a common source of recurring faults.

On the power supply side, confirm that the DSSB146 power supply module is delivering stable DC rail voltage within specification. Voltage sag or ripple on the 24 VDC bus is a leading cause of premature connection unit failure and intermittent I/O behavior. If the cabinet includes a DSCA120 communication adapter for INSUM or fieldbus connectivity, verify its link status and error counters after the replacement is complete.

For facilities using DSRF180 signal conditioning modules or external signal isolators in the same loop, confirm that isolation barriers are functioning correctly and that input impedance remains within the module’s specified range. Finally, inspect all field cable terminations at the DSTX170 itself — re-torque screw terminals to specification and verify cable labeling against the as-built loop drawing before returning the loop to service.

Site Replacement Workflow

Step 1 — Preparation: Obtain the loop drawing and I/O assignment sheet for the affected channel. Confirm the replacement DSTX170 57160001-ADK part number matches the installed unit exactly. Do not substitute with a different ADK suffix variant without engineering review, as terminal mapping and signal conditioning parameters may differ.

Step 2 — Safe Isolation: Follow your site’s lock-out/tag-out (LOTO) procedure for the affected loop. Place the associated controller channel in manual or safe-state mode via the SYMPHONY operator station or engineering workstation before disconnecting field wiring.

Step 3 — Removal: Document the existing field wiring termination positions with photographs before disconnection. Label each wire individually. Remove the DSTX170 from the backplane slot, noting any visible signs of damage — burn marks, terminal corrosion, or cracked housing — for your maintenance record.

Step 4 — Installation: Seat the replacement DSTX170 57160001-ADK firmly into the backplane connector. Reconnect field wiring in exact accordance with the loop drawing. Torque screw terminals to the manufacturer’s specification (typically 0.5–0.6 Nm for this terminal class).

Step 5 — Verification: Restore power to the rack. Confirm the module is recognized by the MASTER/SYMPHONY controller. Perform a channel-by-channel signal check from the field device to the operator station. Return the loop to automatic control only after all signal values are confirmed within expected range.

Step 6 — Documentation: Update the maintenance management system (CMMS) with the replacement date, part number, and technician sign-off. Retain the failed unit for root-cause analysis if required.

Spare Parts Support FAQ

Q1: Is the DSTX170 57160001-ADK still available as a new original part?
ABB has progressively phased out MASTER/SYMPHONY hardware from active production. SMARTNEXMSK maintains dedicated stock of original, unused DSTX170 57160001-ADK units sourced through authorized industrial channels. Each unit is individually verified before shipment. We provide long-term supply support for facilities committed to extending the operational life of their existing DCS infrastructure.

Q2: How do I confirm compatibility before ordering?
The DSTX170 57160001-ADK is compatible with ABB MASTER and SYMPHONY DCS racks that use the standard DSBC172 backplane architecture. Confirm your rack model, slot assignment, and I/O module type before ordering. If you can share your system configuration or existing part label, our technical team can verify compatibility prior to dispatch.

Q3: What does the 12-month warranty cover?
The warranty covers functional failure under normal operating conditions for 12 months from the date of delivery. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specification. In the event of a warranty claim, we arrange collection, inspection, and replacement or refund at no additional cost.

Q4: Can you supply multiple units for a site spare parts inventory?
Yes. We regularly supply maintenance kits and multi-unit orders for facilities building or replenishing their critical spare parts inventory. Volume pricing is available for orders of 3 or more units. Contact our sales team to discuss your site’s spare parts strategy and lead time requirements.
