ABB DTCA717A Safety-Enhanced Drive Control for Harsh Sites

ABB DTCA717A Safety-Enhanced Drive Control for Harsh Industrial Sites

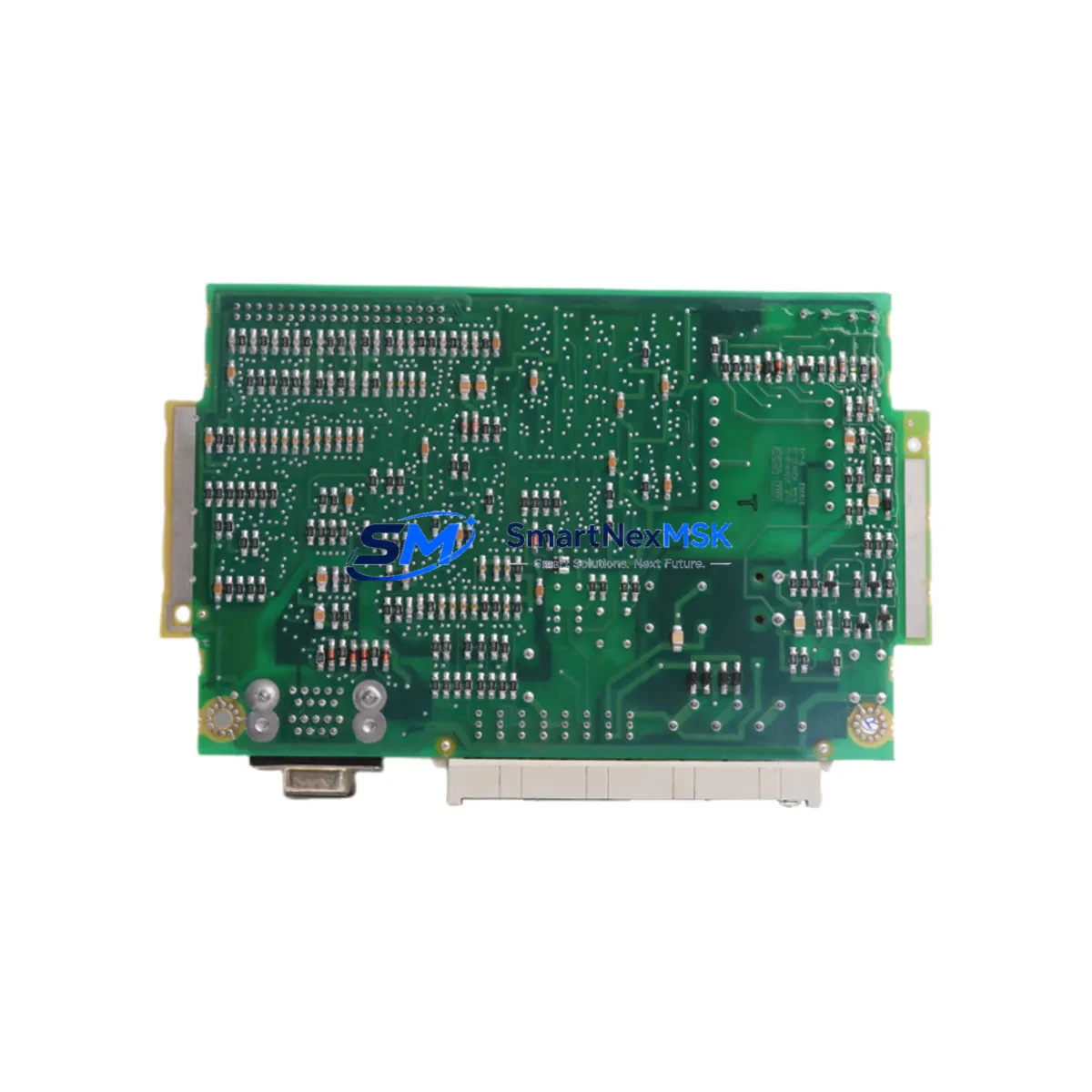

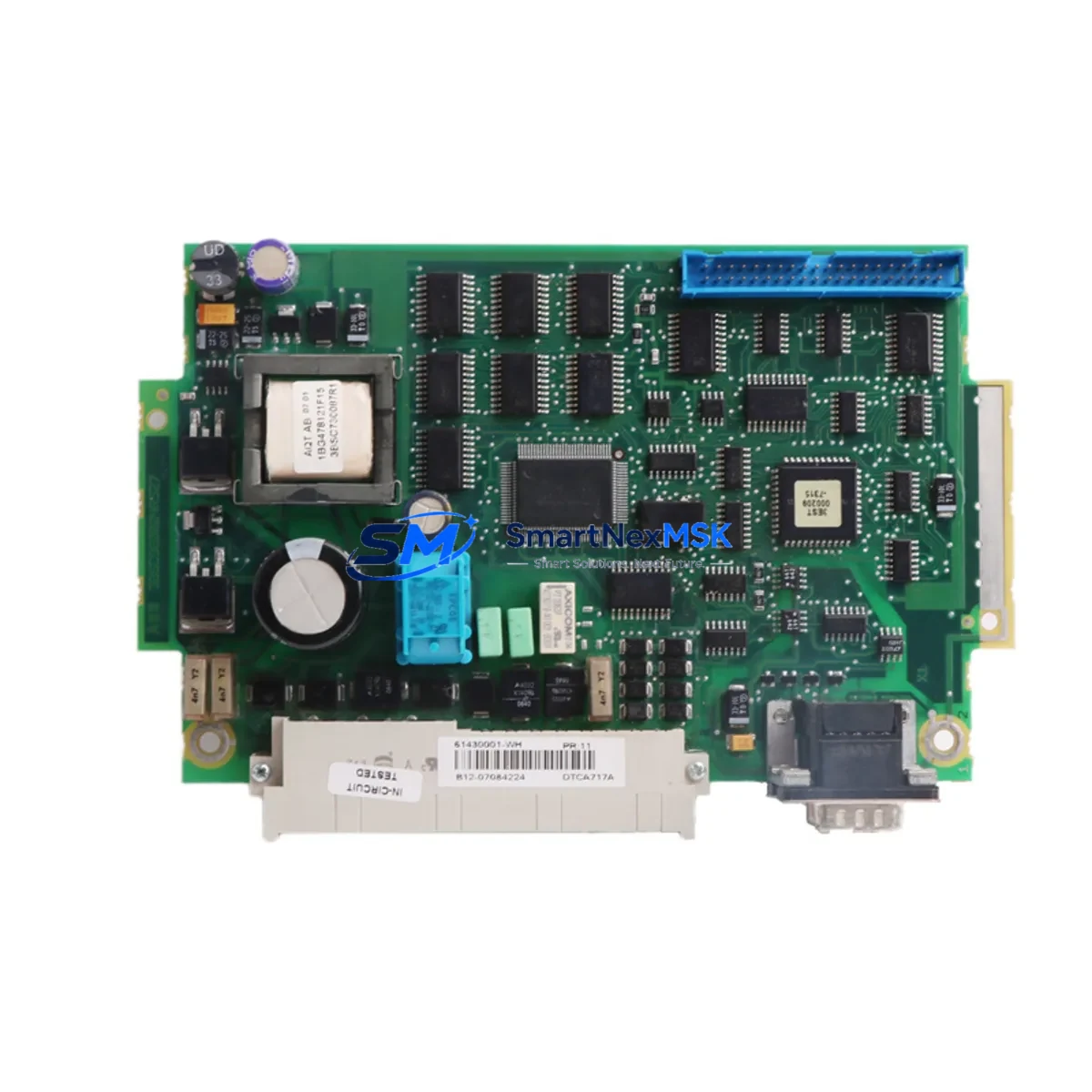

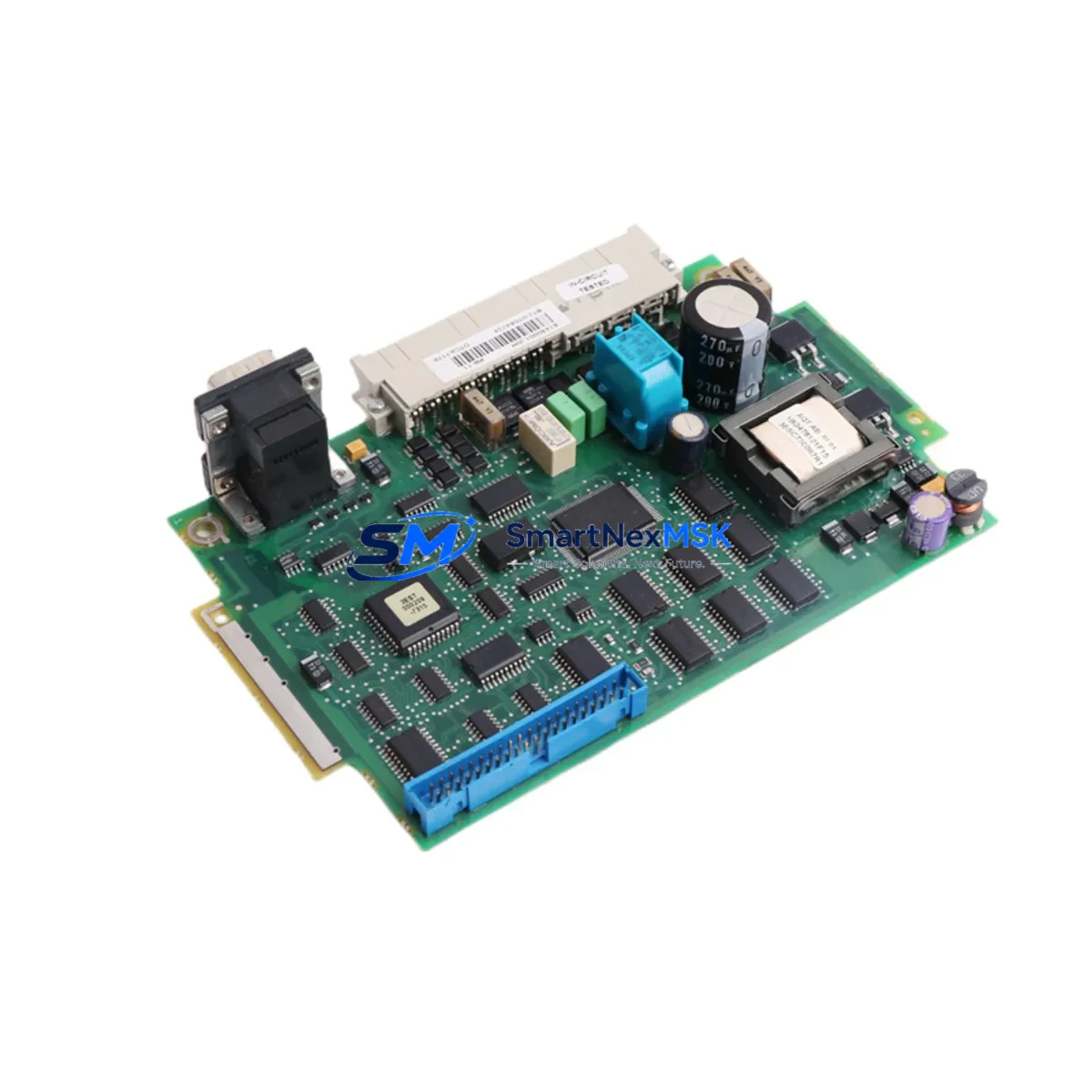

The ABB DTCA717A (part number 61430001-WH) is a drive control module engineered for the ABB ACS800 series variable speed drive platform, purpose-built to maintain reliable motor control in the most demanding industrial environments. From high-load continuous production lines to hazardous-area control cabinets subject to electrical interference, thermal stress, and voltage transients, the DTCA717A delivers the signal integrity, fault tolerance, and operational continuity that safety-critical applications demand. Each unit supplied by SMARTNEXMSK is sourced from verified channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

In heavy industrial settings — including petrochemical plants, metal processing facilities, port crane systems, and continuous paper or cement production lines — drive control modules are among the most failure-sensitive components in the motor control chain. A compromised drive control board can cause uncontrolled motor acceleration, loss of speed reference, torque ripple, or complete drive trip, any of which can trigger process shutdowns, safety system activations, or equipment damage. The DTCA717A addresses these risks through its robust hardware design, which incorporates EMC shielding, transient voltage suppression, and thermal management features suited to the ACS800’s demanding duty cycles.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the DTCA717A in a safety-conscious control cabinet architecture requires attention to the full power and signal chain surrounding the ACS800 drive. The drive control module interfaces directly with the ACS800’s AINT (inverter control interface board) and APOW (power supply board), both of which must be in serviceable condition for the DTCA717A to operate correctly. In multi-drive cabinet configurations — where several ACS800 units share a common DC bus — the DTCA717A communicates with the master drive controller via the DDCS fiber optic link, using RDCO-02 or RDCO-04 communication option modules to maintain synchronization across the drive chain.

Power quality at the drive input is a primary factor in control board longevity. Sites with unstable grid supplies, frequent switching transients, or high harmonic distortion should install ABB-compatible line reactors or du/dt filters upstream of the ACS800 to reduce voltage stress on the DTCA717A’s internal power regulation circuits. In cabinet environments where multiple drives, PLCs, and I/O systems share a common power distribution rail, an isolation transformer or active front end (AFE) unit can further protect the drive control module from conducted interference originating elsewhere in the installation.

Grounding and shielding discipline within the control cabinet is equally critical. The DTCA717A’s analog and digital signal lines — including speed reference inputs, encoder feedback connections, and fieldbus communication cables — must be routed away from high-voltage power conductors and terminated with proper cable shields grounded at a single point to prevent ground loop interference. In installations using PROFIBUS DP or DeviceNet fieldbus adapters (such as the RPBA-01 or RDNA-01 option modules) connected to the ACS800, cable shielding and termination resistor placement must comply with the fieldbus standard’s physical layer requirements to prevent communication errors that could cause drive faults or loss of speed control.

Thermal management within the control cabinet directly affects the DTCA717A’s service life. The ACS800 drive generates significant heat during high-load operation, and the control module’s electronics are sensitive to sustained elevated temperatures. Cabinet cooling systems — whether forced-air fans, heat exchangers, or air conditioning units — must be sized to maintain internal cabinet temperatures within the drive’s rated operating range. In outdoor or semi-outdoor installations, IP54 or higher cabinet enclosures with filtered ventilation are recommended to prevent dust and moisture ingress that can cause tracking faults or corrosion on the DTCA717A’s PCB connectors.

For installations where the ACS800 drive is integrated into a safety instrumented system (SIS), the DTCA717A’s Safe Torque Off (STO) input circuit must be wired in accordance with the site’s functional safety plan. The STO circuit, when activated by a safety relay or safety PLC output — such as those from ABB’s AC500-S safety controller series — removes the drive’s gate firing pulses without removing main power, allowing the motor to coast to a stop in a controlled and auditable manner. This architecture is commonly used in emergency stop circuits for conveyors, hoists, compressors, and pump stations where a hard power cut would create additional process hazards.

Critical Industrial Safety Applications

The DTCA717A is deployed across a wide range of heavy industrial sectors where motor drive reliability is directly linked to process safety and production continuity.

In petrochemical and refinery applications, ACS800 drives equipped with DTCA717A control boards manage pump and compressor motors in continuous service, often in Zone 2 classified areas where drive faults can trigger flare events or emergency depressurization sequences. The drive control module’s stable speed regulation and fault detection capabilities help prevent the uncontrolled motor behavior that could initiate a process safety event. Drives in these environments are typically integrated with the plant’s DCS via PROFIBUS or Modbus RTU, and the DTCA717A’s communication stability under electrical noise is essential for maintaining the control loop integrity that the DCS relies on.

In mining and mineral processing, ACS800 drives with DTCA717A boards control conveyor drives, ball mill motors, and slurry pump systems operating under high starting torque demands and frequent load variations. The harsh electromagnetic environment created by large motor starts, thyristor rectifiers, and welding equipment in mining facilities places extreme demands on drive control electronics. The DTCA717A’s EMC-hardened design and robust DDCS fiber optic communication architecture maintain control integrity even in these high-interference conditions.

In port and crane applications, ACS800 multi-drive systems using DTCA717A control modules manage hoist, trolley, and gantry drives in container cranes and ship-to-shore equipment. These applications demand precise torque control, fast dynamic response, and reliable brake control coordination — all functions managed through the DTCA717A’s control algorithms. A drive control board failure in a crane application can result in uncontrolled load movement, making rapid access to verified replacement modules a critical element of the site’s maintenance strategy.

In water and wastewater treatment, ACS800 drives with DTCA717A boards control large centrifugal pumps and blower motors in continuous 24/7 service. Pump station operators rely on the drive’s PID control capability — executed through the DTCA717A’s firmware — to maintain precise flow and pressure setpoints while minimizing energy consumption. Unplanned drive failures in water treatment applications can disrupt supply to large populations, making spare module availability and fast replacement capability essential operational requirements.

In steel and metallurgical processing, ACS800 drives in rolling mill and continuous casting applications use DTCA717A control boards to manage high-inertia motor loads with precise speed and tension control. The thermal and electrical stresses in these environments are among the most severe in industrial automation, and the DTCA717A’s design margins and pre-shipment testing protocol ensure that replacement modules perform reliably from the first power-on in a live production environment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim initiated?
The 12-month warranty covers manufacturing defects and operational failures occurring under normal operating conditions within the DTCA717A’s specified environmental and electrical ratings. It does not cover damage from incorrect installation, overvoltage events beyond the module’s rated transient immunity, physical impact, or operation outside rated parameters. To initiate a claim, contact SMARTNEXMSK with the module serial number, purchase order reference, and a description of the observed failure. Replacement units are dispatched upon claim verification, and failed modules are returned under the RMA procedure provided at the time of claim.

Q2: What pre-shipment testing is performed on each DTCA717A unit?
Every DTCA717A unit dispatched by SMARTNEXMSK undergoes functional verification before shipment. This includes power-on testing to confirm correct firmware initialization, communication interface verification on the DDCS fiber optic port, and inspection of all PCB connectors and solder joints for physical integrity. Units that do not pass functional verification are quarantined and not dispatched. Test records are retained and can be provided upon request for quality-critical procurement processes.

Q3: Is the DTCA717A compatible with all ACS800 drive variants, and are there any known compatibility restrictions?
The DTCA717A (61430001-WH) is the standard control board for the ABB ACS800 single drive and multi-drive cabinet platforms. It is compatible with the ACS800-01, ACS800-02, ACS800-04, and ACS800-07 drive variants in the applicable power ranges. Compatibility with specific firmware versions should be confirmed against the drive’s existing software revision before installation, as certain ACS800 firmware releases may require a corresponding DTCA717A firmware version. SMARTNEXMSK’s technical support team can assist with compatibility verification based on the drive’s nameplate data and existing firmware revision.

Q4: How does SMARTNEXMSK support long-term supply continuity for the DTCA717A?
SMARTNEXMSK maintains dedicated inventory of the DTCA717A to support both planned maintenance programs and emergency replacement requirements. Stock levels are managed to support same-day dispatch for confirmed orders placed before the daily cut-off, with international shipping options available for urgent requirements. For customers operating large fleets of ACS800 drives, SMARTNEXMSK can discuss scheduled supply agreements to ensure that replacement modules are available on demand without lead time risk, supporting the site’s maintenance strategy and minimizing exposure to unplanned production downtime.
