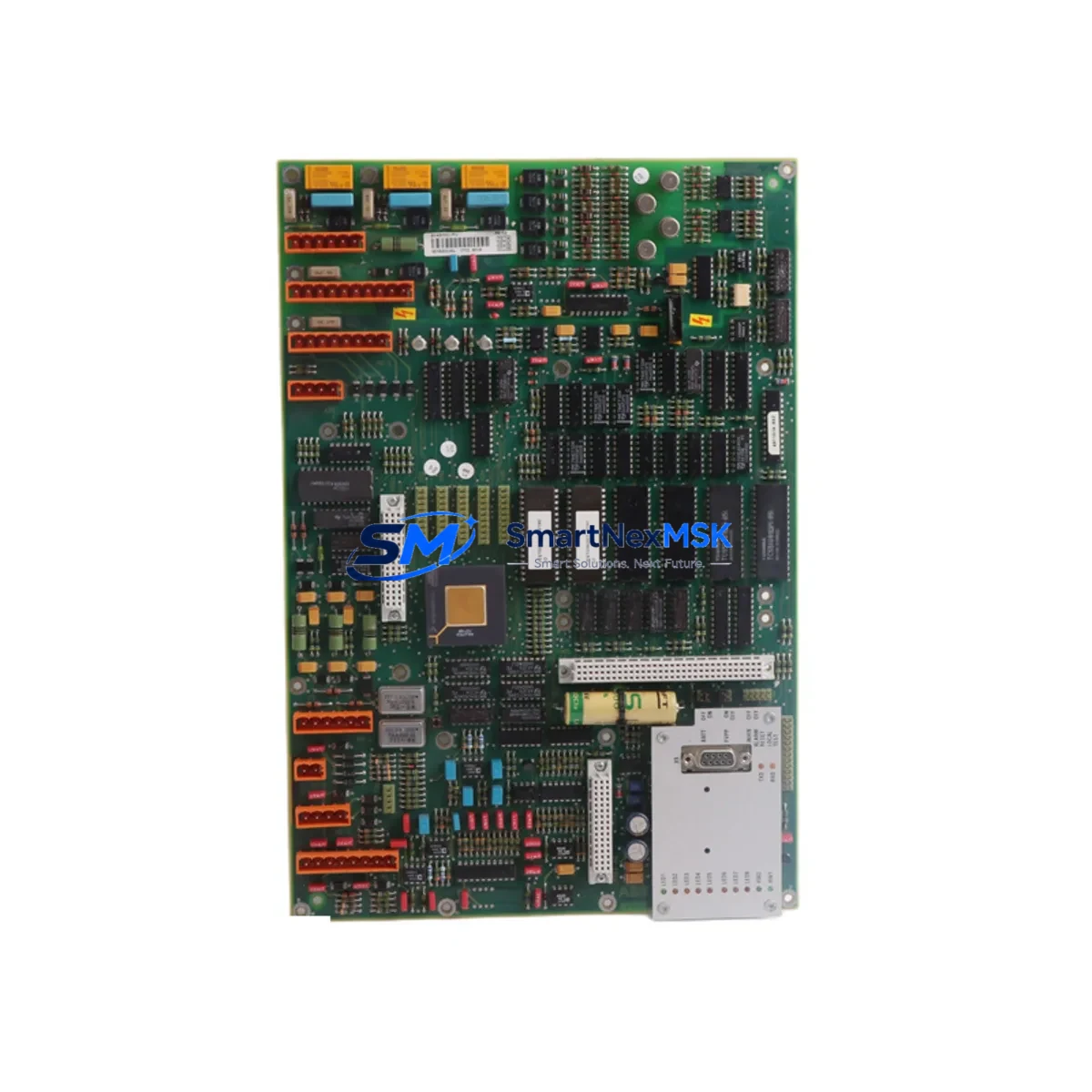

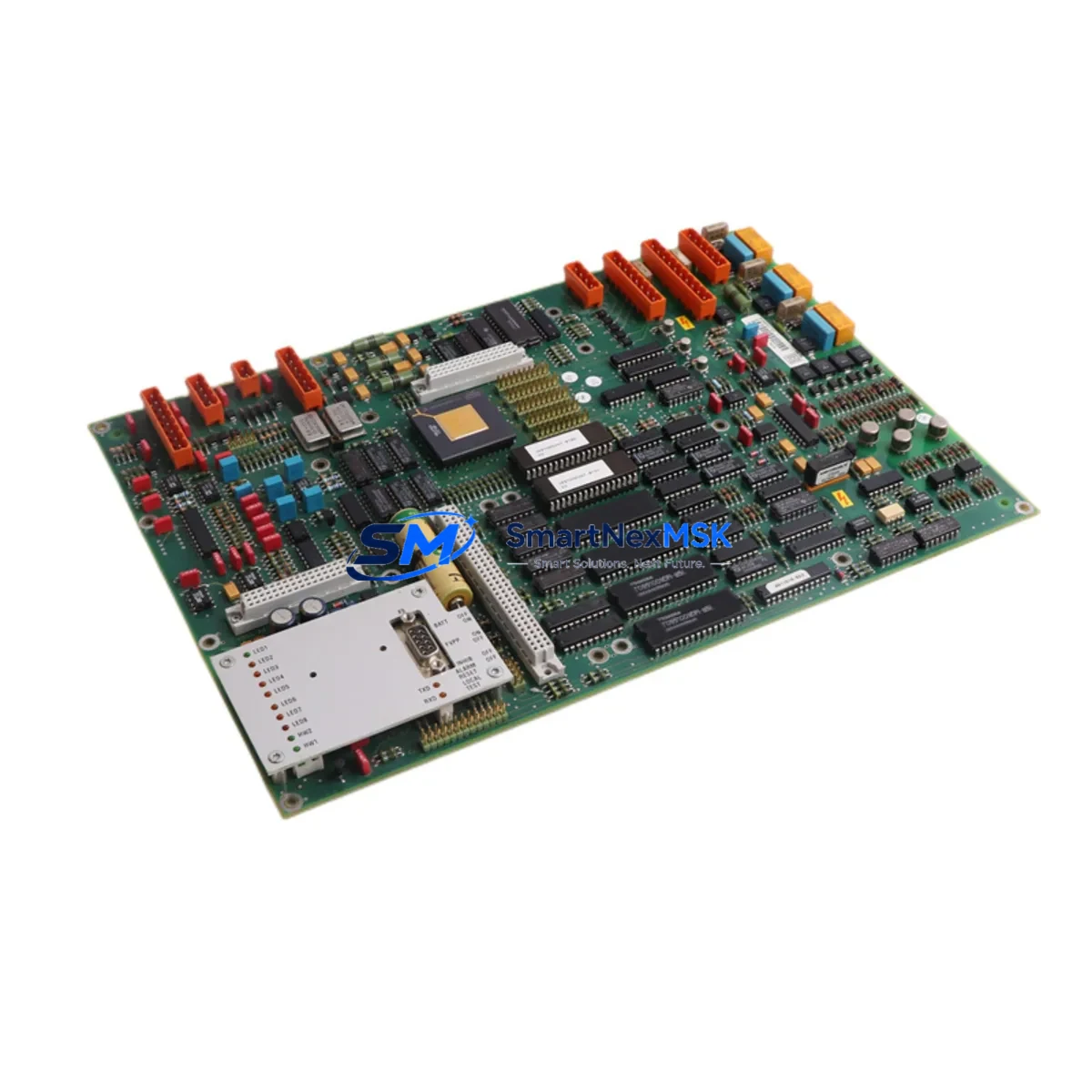

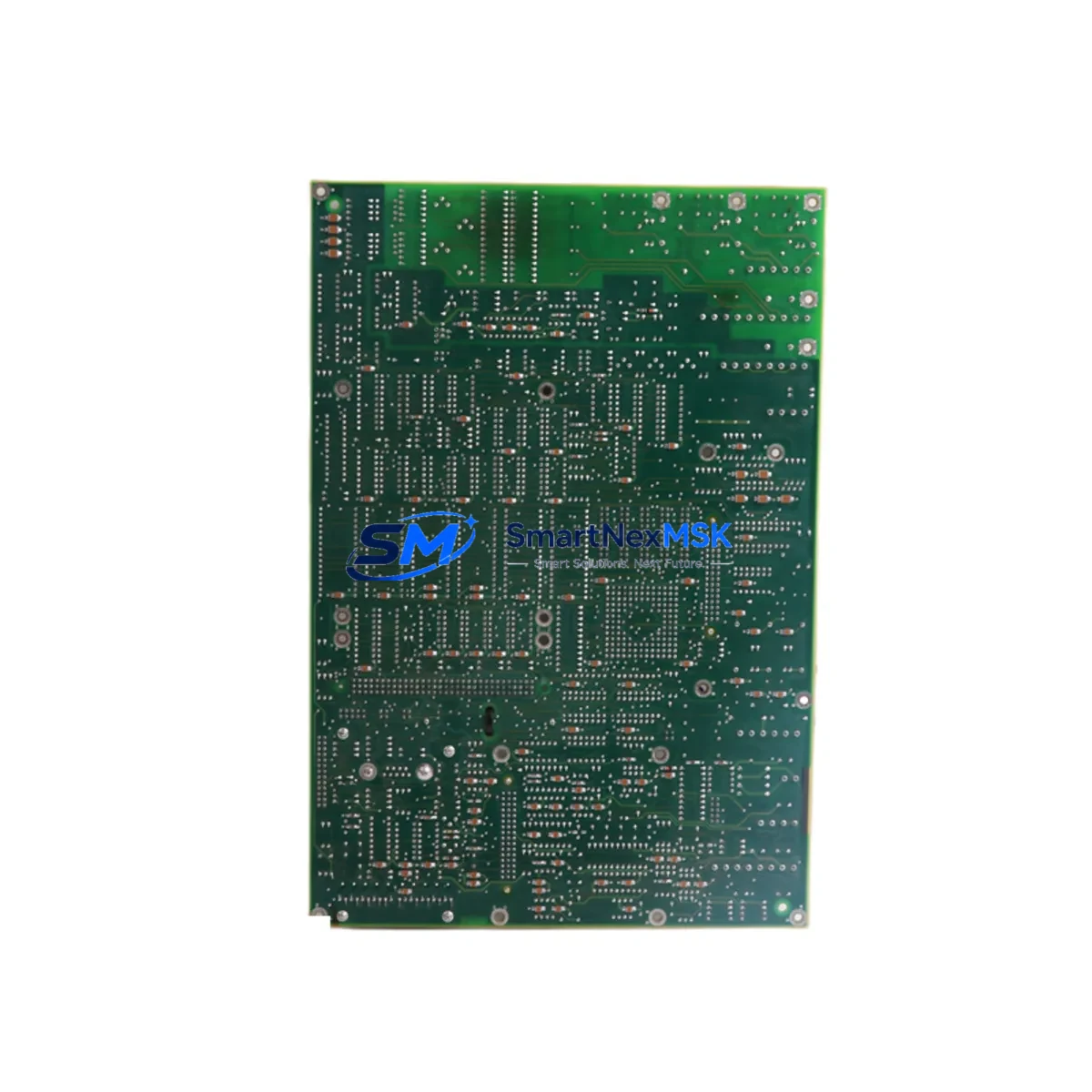

ABB DTCC901B 61430001-FU Retrofit-Ready DCS Module for AC800M Control Systems
The ABB DTCC901B (part number 61430001-FU) is a communication and I/O interface module designed for the ABB AC800M Distributed Control System platform. As legacy AC800M installations approach end-of-life support cycles, the DTCC901B remains one of the most sought-after retrofit components for engineers tasked with modernizing existing control architectures without full system replacement. This module provides a reliable, drop-in upgrade path that preserves existing wiring infrastructure, backplane slot assignments, and control logic — dramatically reducing both project cost and planned downtime.
Whether you are replacing a failed unit in a running plant, building a cold-standby spare inventory, or executing a phased migration from an older S800 I/O generation to a current AC800M topology, the DTCC901B 61430001-FU delivers the electrical and protocol compatibility required for seamless integration. Our units are sourced from verified supply channels, individually tested prior to shipment, and covered by a 12-month warranty against manufacturing defects and functional failure.
Upgrade Compatibility Table
| Parameter | DTCC901B 61430001-FU | Retrofit Notes |
|---|---|---|
| Target Platform | ABB AC800M DCS | Compatible with PM861, PM864, PM866 controllers |
| Backplane Interface | S800 I/O Bus | Direct slot replacement; no adapter required |
| Communication Protocol | PROFIBUS DP / MasterBus 300 | Verify GSD file version in Control Builder M |
| Power Supply Requirement | 24 VDC (via backplane) | Confirm TB820V2 or SD821 power supply capacity before swap |
| Module Address | Configurable via DIP switch | Match address to original unit; document before removal |
| Terminal Wiring | Standard S800 terminal block | TU810V1 / TU830V1 terminal units are fully compatible |
| Replacement Compatibility | Replaces DTCC901, DTCC901A | Firmware upgrade may be required for DTCC901 → DTCC901B |
| Commissioning Tool | ABB Control Builder M | Re-download application after module swap |
| HMI Compatibility | ABB 800xA / Freelance | No HMI screen rebuild required for like-for-like swap |
| Warranty | 12 Months | Covers functional failure and manufacturing defects |
Retrofit Planning for Existing Automation Systems
A successful DTCC901B retrofit begins well before the module arrives on site. Engineers should start by auditing the existing AC800M cabinet layout, confirming the rack type — typically an TP830 or CI830B fieldbus coupler rack — and verifying that the installed SD821 or SD822 power supply unit has sufficient current headroom to support the replacement module alongside existing I/O loads. In many aging installations, the power budget has been incrementally consumed by added AI810, AO810V2, or DI810 I/O modules over the years, leaving little margin for an unplanned swap.
Terminal wiring is the next critical checkpoint. The DTCC901B interfaces with the field through standard S800 terminal units such as the TU810V1 or TU830V1. Before disconnecting the original module, photograph and document all terminal assignments, cable labels, and shield grounding points. In older installations where cable markers have faded, this documentation step alone can prevent hours of troubleshooting during recommissioning. If the existing terminal unit shows signs of corrosion or mechanical wear, replacing it simultaneously with the DTCC901B is strongly recommended — the TU810V1 is a low-cost component that eliminates a common source of intermittent faults post-retrofit.
For sites running PROFIBUS DP networks, the CI854A or CI854AK PROFIBUS interface module in the same rack must be checked for GSD file compatibility with the replacement DTCC901B firmware version. Mismatched GSD files are a frequent cause of communication faults that appear only after the new module is powered up. Download the correct GSD file from the ABB library and pre-load it into Control Builder M before the maintenance window begins. Similarly, if the plant uses a CI840A FOUNDATION Fieldbus interface alongside the DTCC901B, verify that the fieldbus segment load remains within specification after the module exchange.
For sites that have not yet migrated their programming environment, the DTCC901B is fully supported under ABB Control Builder M version 5.1 and later. If the existing engineering workstation is running an older version, a software update should be scheduled as part of the same maintenance window. Programming cables such as the TK212A USB-to-serial adapter remain compatible and do not require replacement during a DTCC901B swap.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any brownfield retrofit involving a live production system. For the DTCC901B 61430001-FU, the recommended approach is a hot-standby preparation strategy: configure and test the replacement module on a bench setup or spare rack before the scheduled maintenance window. Use Control Builder M to pre-load the existing application program onto the new module, verify all I/O channel assignments, and confirm that the module address DIP switches are set identically to the unit being replaced.
During the actual swap, follow a structured sequence: place the AC800M controller in manual mode, inhibit all PROFIBUS DP alarms at the 800xA operator station, remove the original DTCC901B, insert the replacement, and restore power. The controller will perform an automatic module recognition cycle. If the application was pre-loaded, the system typically returns to automatic control within two to four minutes — well within the tolerance of most process hold strategies. For critical loops where even brief interruption is unacceptable, coordinate with the process team to implement a manual bypass or field-level hold before beginning the swap.
Retain the original DTCC901B unit after removal. Even if it has failed, it may contain recoverable configuration data or serve as a reference for address and wiring verification. Label it clearly with the date of removal, fault symptom, and rack slot position before placing it in quarantine storage.
Retrofit Support FAQ
Q: Is the DTCC901B 61430001-FU a direct replacement for the older DTCC901A?
A: Yes, the DTCC901B is the current production revision and is backward compatible with DTCC901A installations in terms of physical form factor, terminal unit interface, and backplane slot assignment. A firmware update via Control Builder M is recommended after installation to ensure full feature parity and protocol stability.
Q: What pre-shipment testing is performed on each unit?
A: Every DTCC901B 61430001-FU unit undergoes functional power-on testing, communication interface verification, and visual inspection before dispatch. Units are shipped with anti-static packaging and include a test record. The 12-month warranty covers all functional failures identified after installation under normal operating conditions.
Q: How do I verify wiring compatibility before installing the replacement module?
A: Compare the terminal block layout of the existing TU810V1 or TU830V1 terminal unit against the DTCC901B wiring diagram (ABB document 3BSE036352R1). If the terminal unit is the same revision, no rewiring is required. If the terminal unit has been modified or is a non-standard variant, consult the ABB S800 I/O System wiring manual before proceeding.
Q: What is the lead time and can I order multiple units for spare inventory?
A: Units are available from stock for immediate dispatch. Volume orders for spare inventory are accepted and typically ship within 3–5 business days with full documentation. Contact our sales team to discuss quantity pricing and staggered delivery schedules for multi-site retrofit programs.
