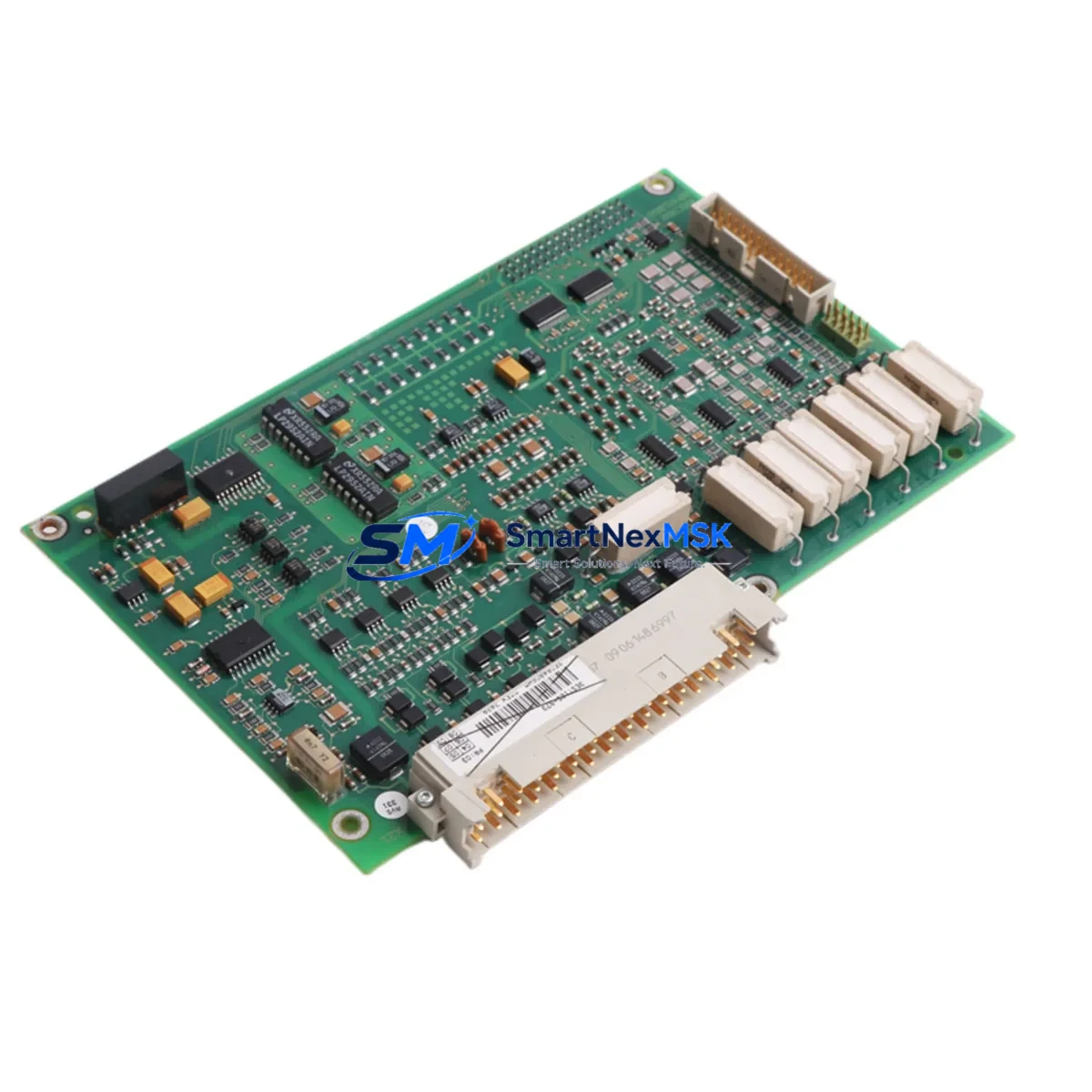

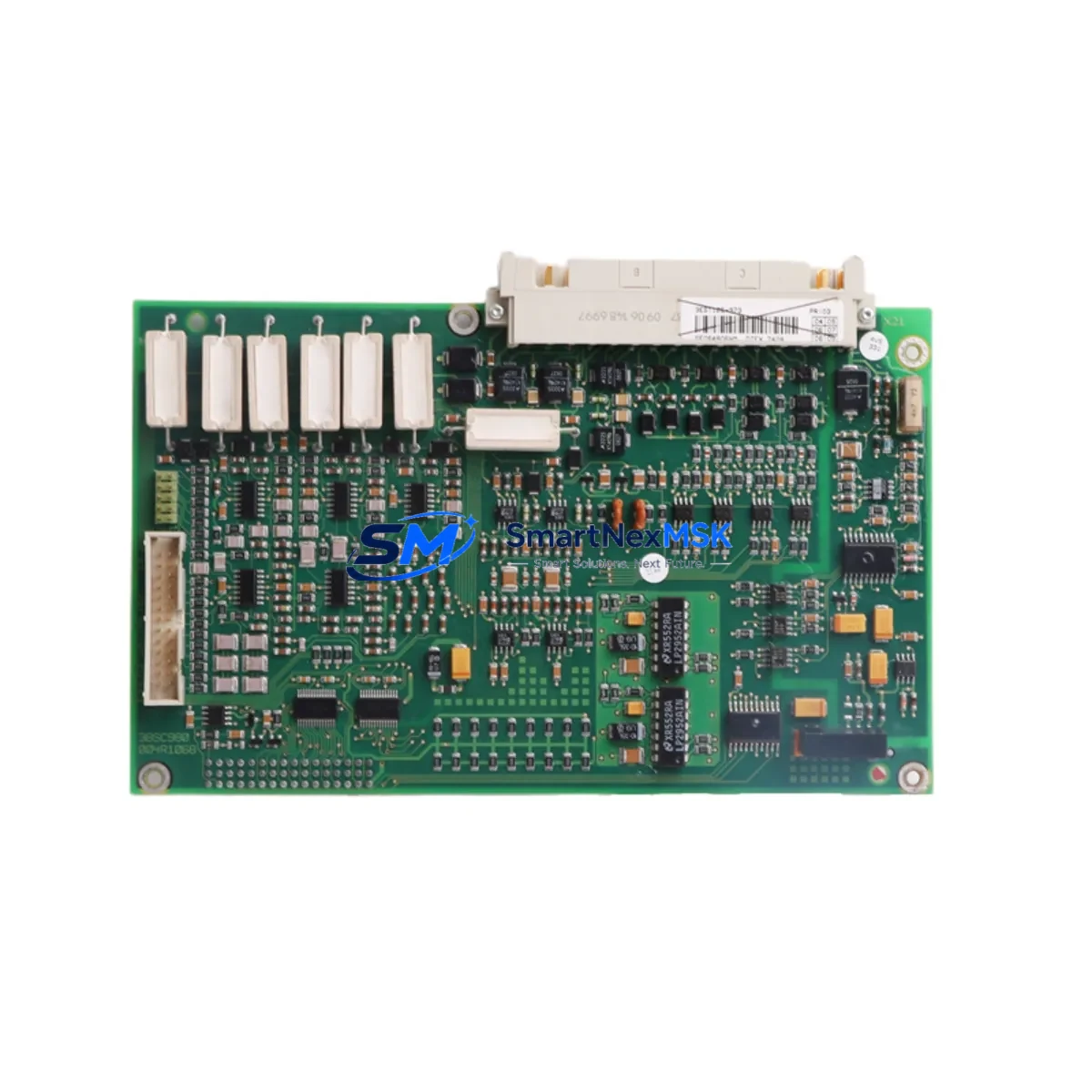

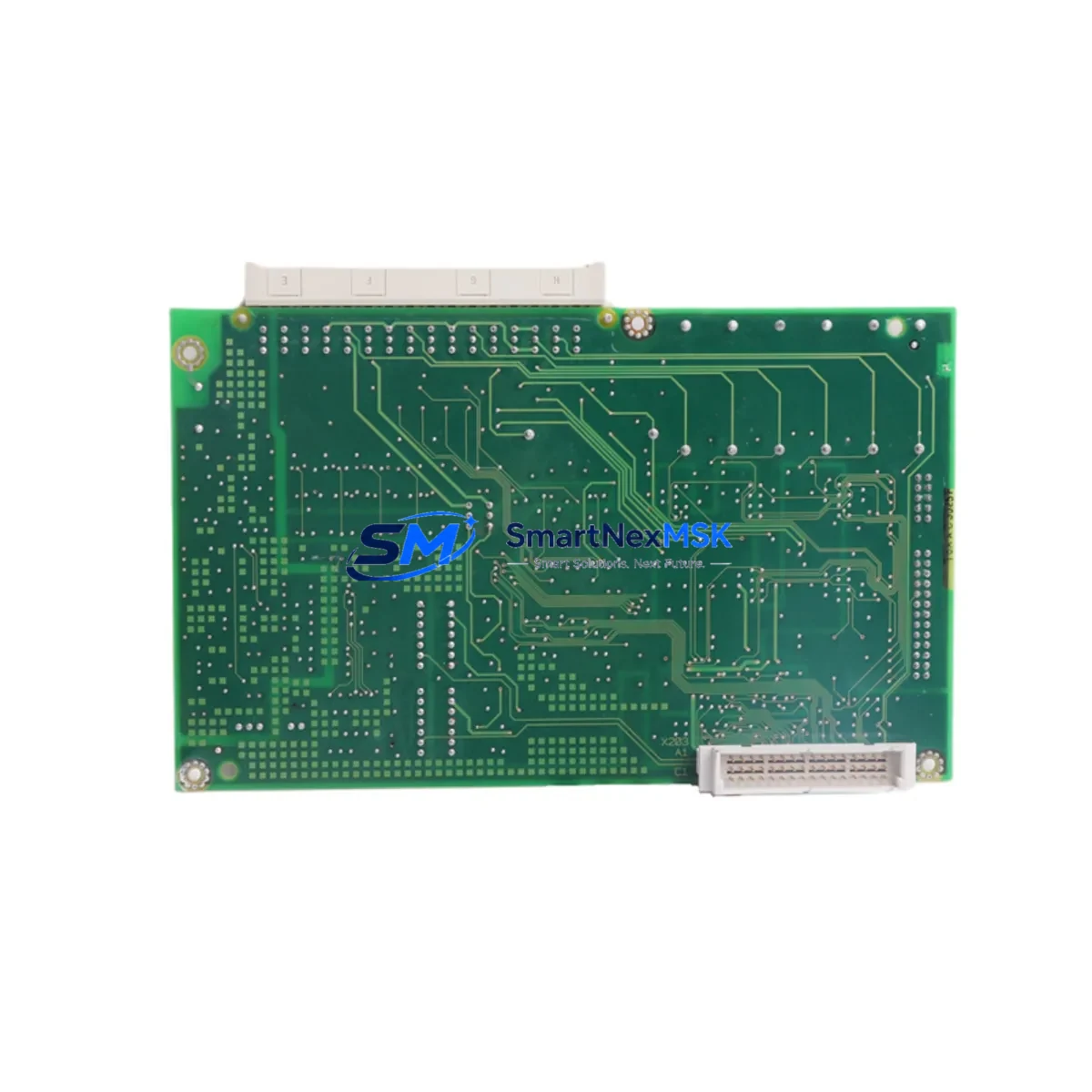

ABB DTEX742A 3EST125-973 Safety-Enhanced Backplane Power Supply

ABB DTEX742A 3EST125-973 Safety-Enhanced Backplane Power Supply for Harsh Industrial Sites

The ABB DTEX742A 3EST125-973 (also referenced as YWPEHA13 / 3BSC980004R1068) is a ruggedized backplane power supply module engineered for mission-critical distributed control system (DCS) environments. Designed as an integral component of the ABB AC800M controller platform, this module delivers stable, conditioned DC power directly to the S800 I/O backplane, ensuring uninterrupted control loop operation even under the most demanding industrial conditions — including high-load continuous production, strong electromagnetic interference, voltage fluctuation, and hazardous-area installations.

In heavy industrial facilities such as petrochemical refineries, power generation plants, metallurgical smelters, and offshore platforms, backplane power integrity is the foundation of every safety interlock and process control loop. A failing or undersized power supply module can cascade into signal drift across analog input cards, spurious trips in digital output modules, communication timeouts on PROFIBUS DP or Modbus RTU networks, and ultimately unplanned process shutdowns. The DTEX742A 3EST125-973 is purpose-built to eliminate these failure modes, providing a hardened, EMC-compliant power backbone that keeps the entire control cabinet operating within specification.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its power distribution architecture. The ABB DTEX742A 3EST125-973 anchors the power layer of the AC800M rack, working in concert with a carefully selected suite of protection and control components to form a complete, fault-tolerant system.

At the controller level, the ABB PM864A and ABB PM866 processor modules depend on stable backplane voltage to maintain deterministic scan cycles and prevent watchdog resets during load transients. Any ripple or dropout on the backplane rail can cause the CPU to enter a safe-state halt, triggering unplanned shutdowns in continuous processes. The DTEX742A’s regulated output eliminates this risk by maintaining tight voltage tolerance across the full operating temperature range.

On the I/O side, analog input modules such as the ABB AI810 and ABB AI820 are particularly sensitive to power quality. Voltage noise as small as a few millivolts can introduce measurement errors in 4–20 mA process signals, leading to false alarms or missed process deviations in critical loops. By supplying clean, filtered power to the S800 backplane, the DTEX742A directly protects signal integrity across all connected analog cards.

Digital output modules including the ABB DO810 and ABB DO820 drive field actuators — valves, contactors, and motor starters — in safety-critical sequences. Momentary power interruptions to these modules can cause spurious actuator commands, a serious hazard in interlock and emergency shutdown (ESD) circuits. The DTEX742A’s surge-suppressed, EMC-hardened design prevents such events even in environments with frequent switching transients from large motor drives or transformer energization.

For communication integrity, the ABB CI854A PROFIBUS DP communication interface module and ABB CI857 PROFINET adapter rely on stable backplane power to maintain fieldbus synchronization. Communication timeouts caused by power instability can isolate entire I/O clusters from the controller, creating blind spots in process monitoring. The DTEX742A ensures the communication layer remains continuously energized and synchronized.

In redundant power configurations — common in SIL 2 and SIL 3 safety loops — the DTEX742A is paired with a secondary power supply module and an ABB SD802F power distribution unit to provide automatic failover. This architecture ensures that even a complete failure of the primary power feed does not interrupt control or safety functions, meeting the high-availability requirements of continuous chemical, refining, and power generation processes.

Upstream, 24 VDC panel power is typically conditioned by industrial DIN-rail power supplies and protected by surge protection devices (SPDs) rated to IEC 61643-11. The DTEX742A’s internal transient suppression provides a second line of defense, absorbing residual surges that pass through upstream protection — a critical safeguard in facilities with frequent lightning events or large inductive load switching.

Critical Industrial Safety Applications

Petrochemical & Refining: In hydrocarbon processing units, the DTEX742A supports the AC800M controller managing burner management systems (BMS), high-integrity pressure protection systems (HIPPS), and emergency shutdown (ESD) valves. Continuous, uninterrupted backplane power is a prerequisite for SIL-rated interlock performance in these environments, where a control system failure can result in catastrophic process releases.

Power Generation: Thermal and hydroelectric power plants deploy AC800M systems for turbine governor control, boiler drum level regulation, and generator protection. The DTEX742A ensures the backplane remains energized through grid disturbances, generator synchronization transients, and auxiliary power switchovers — conditions that routinely stress control system power supplies in generation facilities.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The DTEX742A’s ruggedized construction and wide operating temperature range make it suitable for conveyor control, crusher automation, and ventilation management systems in these harsh environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require continuous, unattended operation of pumping, dosing, and filtration control loops. The DTEX742A supports AC800M systems managing these processes, providing the power stability needed for reliable PID control and alarm management without operator intervention.

Metallurgy & Steel: Electric arc furnaces, rolling mills, and continuous casting lines generate severe electromagnetic interference from high-current switching. The DTEX742A’s EMC-hardened design maintains backplane integrity in these environments, preventing the I/O errors and communication faults that can disrupt production sequences and damage equipment.

Port & Material Handling: Automated port terminals and bulk material handling systems rely on AC800M controllers for crane sequencing, conveyor routing, and weighing system integration. The DTEX742A provides the power reliability needed for 24/7 throughput operations where control system downtime directly impacts cargo handling capacity and vessel turnaround times.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects, functional failures, and component integrity issues from the date of shipment. If the module fails to perform to ABB’s published specifications under normal operating conditions within the warranty period, we will repair or replace it at no charge. Warranty claims are processed with priority to minimize your process downtime.

Q2: How is the module tested before shipment?
Every DTEX742A 3EST125-973 unit undergoes a 100% functional test and burn-in inspection prior to dispatch. Testing verifies output voltage regulation, ripple suppression, surge response, and thermal performance under load. A test report is available upon request for quality documentation and incoming inspection purposes.

Q3: Is this module compatible with my existing AC800M / S800 I/O system?
Yes. The DTEX742A 3EST125-973 is a genuine ABB component designed specifically for the AC800M controller platform and S800 I/O backplane. It is a direct replacement for units with the same part numbers (YWPEHA13, 3BSC980004R1068) and is compatible with all standard AC800M rack configurations. If you need to verify compatibility with a specific system revision or firmware version, contact our technical team with your system details.

Q4: Can you guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated stock of the DTEX742A 3EST125-973 and related AC800M components to support planned maintenance, emergency replacement, and multi-year spare parts programs. For facilities with critical uptime requirements, we recommend establishing a consignment or reserved-stock arrangement to ensure immediate availability when needed. Contact our sales team to discuss long-term supply agreements tailored to your maintenance schedule.
