ABB EB142355SPER 1C1-AA Spare for REF Automation: Spare Replacement & Industrial Downtime Risk Control

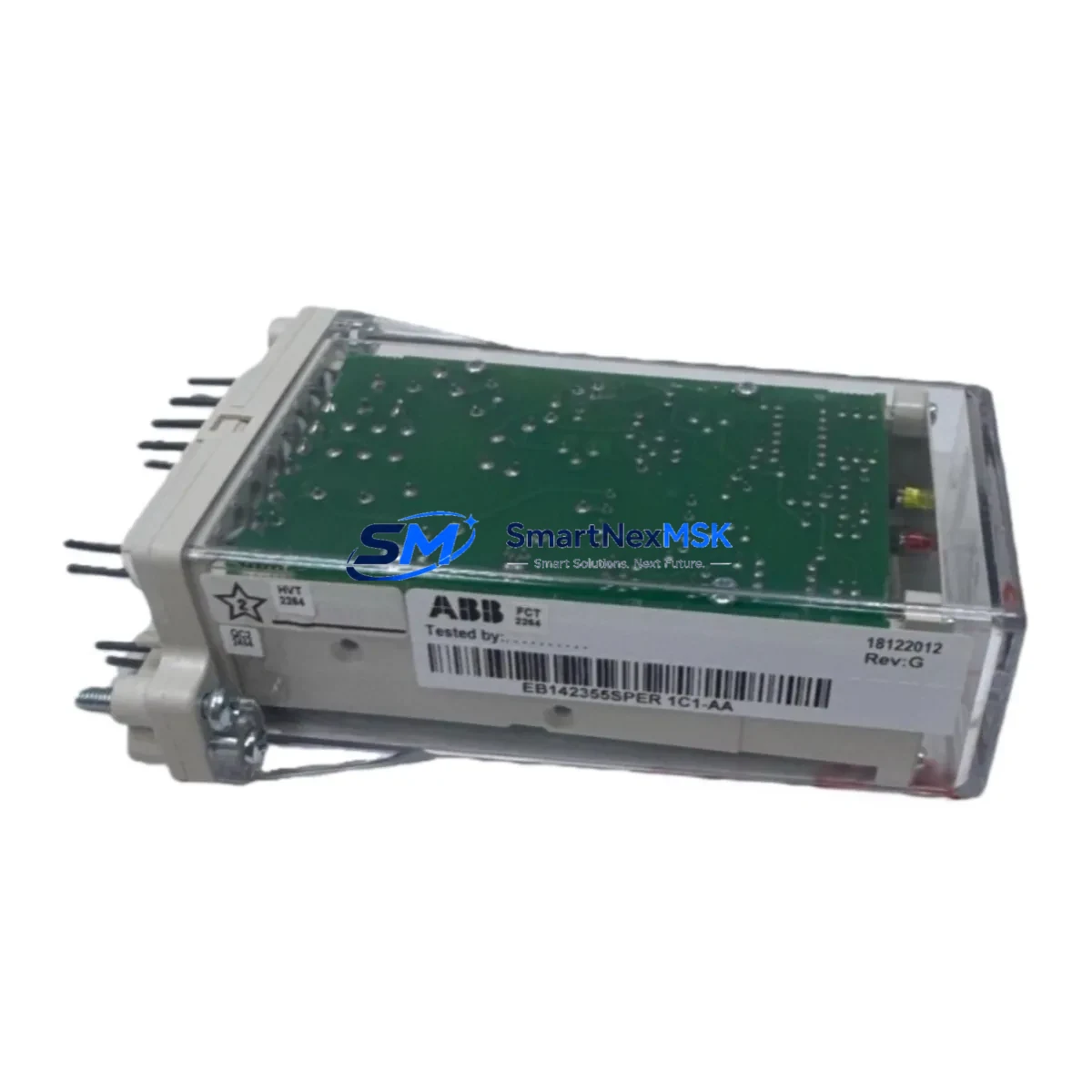

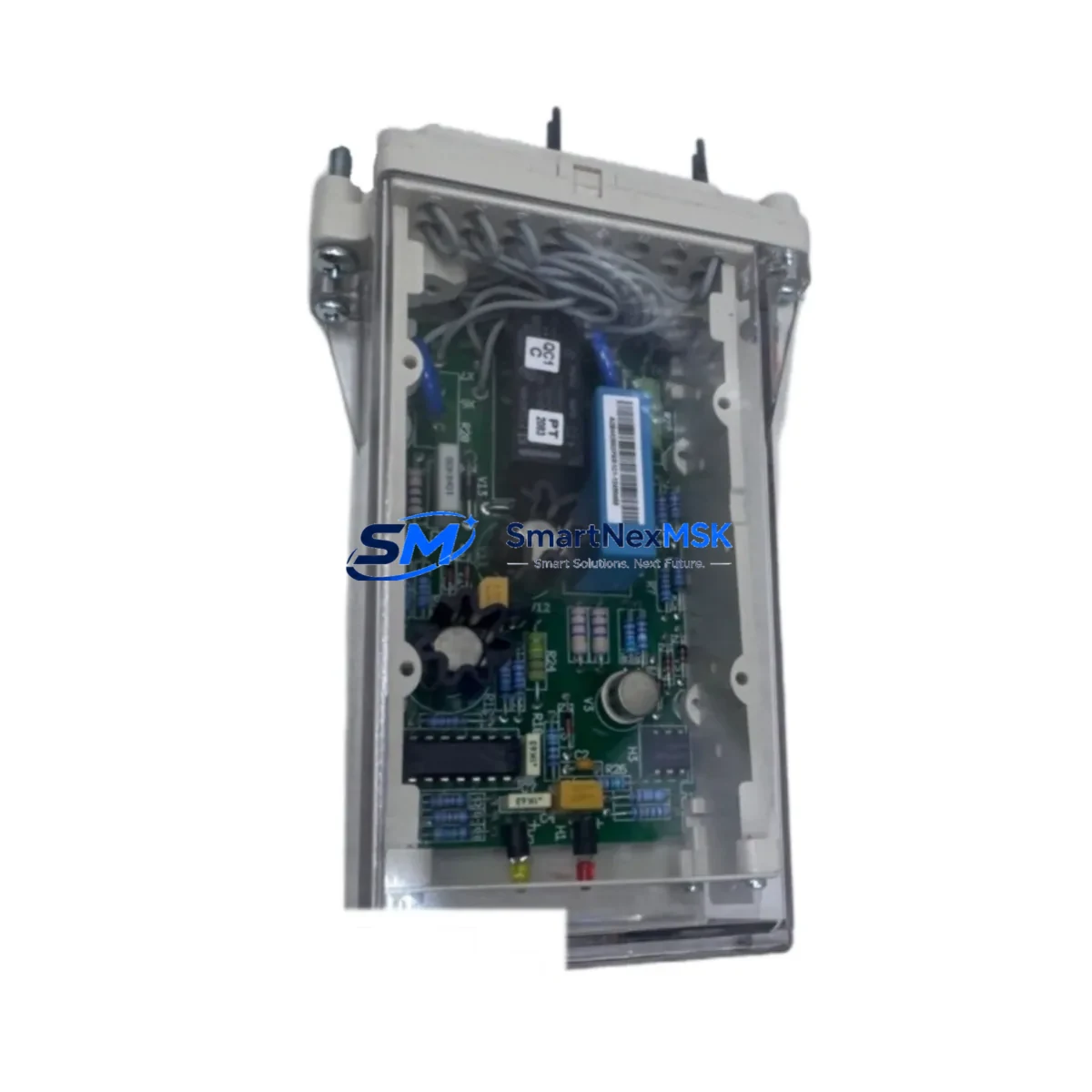

The ABB EB142355SPER 1C1-AA is a trip circuit supervision relay belonging to ABB’s REF protection relay series — a critical component in substation automation, motor protection panels, and industrial switchgear cabinets. Designed to continuously monitor the integrity of trip circuits in protection systems, this relay ensures that breaker trip coils, wiring continuity, and auxiliary power supplies remain operational at all times. When this component fails or degrades, the entire protection chain is compromised, exposing the plant to undetected fault conditions and potential catastrophic equipment damage.

For maintenance engineers managing aging protection panels or planning scheduled outages, having a verified original ABB EB142355SPER 1C1-AA spare on hand is not optional — it is a fundamental element of any responsible maintenance strategy. This unit supports a wide input voltage range of 24–250V AC/DC, making it compatible across diverse panel configurations without requiring auxiliary power supply changes. DIN rail mounting ensures straightforward drop-in replacement with minimal rewiring, reducing mean time to repair (MTTR) during emergency callouts.

At SMARTNEXMSK, every EB142355SPER 1C1-AA unit is sourced from authorized supply chains, individually tested prior to dispatch, and covered by a 12-month warranty. We maintain buffer stock to support both planned procurement cycles and urgent breakdown orders, with same-day or next-business-day dispatch available for in-stock units.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB EB142355SPER 1C1-AA in a live protection panel, a disciplined maintenance engineer will not stop at the relay itself. Trip circuit supervision failures are frequently symptomatic of broader degradation across the protection loop. A thorough site inspection should include the following associated components and subsystems:

Auxiliary Power Supply: Verify that the panel’s DC auxiliary power supply — typically an ABB CP-D or equivalent 24VDC/48VDC unit — is delivering stable voltage within tolerance. A sagging or noisy auxiliary supply is a common root cause of nuisance supervision alarms and premature relay wear.

Trip Coil and Breaker Auxiliary Contacts: Inspect the circuit breaker’s trip coil resistance and the 52a/52b auxiliary contact condition. Worn or oxidized auxiliary contacts will cause intermittent supervision signals that can mask genuine trip circuit faults.

Terminal Blocks and Wiring: Check all Phoenix Contact or equivalent terminal blocks in the trip circuit loop for loose connections, corrosion, or insulation breakdown. A single high-resistance joint can trigger false supervision alarms without triggering a full trip.

Protection Relay Main Unit: If the panel hosts an ABB REF615 or REF543 main protection relay, verify that its binary input cards and output relay modules are functioning correctly. The EB142355SPER 1C1-AA interfaces directly with these units, and a degraded binary input module can produce misleading supervision status.

Signal Isolators: Where trip circuit signals are routed through signal isolators or galvanic separators — common in older DCS-integrated protection panels — inspect these isolators for drift or failure. A failed isolator can interrupt the supervision loop without triggering any other alarm.

Fuses and MCBs: Confirm that all miniature circuit breakers and fuses in the auxiliary DC circuit are intact and within rated capacity. A blown fuse upstream of the supervision relay will disable the entire monitoring function silently.

Communication Modules: In IEC 61850-enabled substations, verify that the panel’s GOOSE messaging and IED communication modules (such as ABB’s FOX615 or COM600 gateway) are correctly reporting supervision status to the SCADA layer. A communication module fault can mask a genuine trip circuit alarm at the control room level.

HMI and Annunciator Panels: Test the local HMI or annunciator panel to confirm that supervision alarms are correctly displayed and latched. A faulty HMI relay output or annunciator card can prevent operators from receiving timely alerts even when the EB142355SPER 1C1-AA is functioning correctly.

Addressing all of these elements during a planned replacement window — rather than treating the EB142355SPER 1C1-AA as an isolated swap — significantly reduces the probability of repeat callouts and unplanned outages within the same protection zone.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a valid permit to work (PTW) and isolate the relevant circuit breaker and its auxiliary DC supply. Confirm isolation with a calibrated voltage tester before opening the panel.

Step 2 — Document Existing Wiring: Photograph or sketch the existing terminal connections on the EB142355SPER 1C1-AA before removal. Although the DIN rail form factor is standardized, terminal labeling conventions can vary between panel builders.

Step 3 — Remove the Defective Unit: Release the DIN rail clip and carefully disconnect all wiring. Label each wire if not already marked. Inspect the terminal block for signs of heat damage or arcing before proceeding.

Step 4 — Install the Replacement Unit: Clip the new EB142355SPER 1C1-AA onto the DIN rail and reconnect all wiring per the original documentation or ABB REF series wiring diagram. Torque terminal screws to the manufacturer’s specified value to ensure reliable contact.

Step 5 — Functional Verification: Restore auxiliary power and verify that the supervision relay energizes correctly and that no alarm is present under normal trip circuit conditions. Simulate a trip circuit open condition (if safe to do so) to confirm that the relay correctly detects and signals the fault.

Step 6 — System Integration Check: Confirm that the supervision status is correctly reported to the local HMI, annunciator, and SCADA system. Update the maintenance log and reset any latched alarms.

This workflow is applicable whether replacing a like-for-like EB142355SPER 1C1-AA or upgrading from an older ABB supervision relay variant. The universal 24–250V AC/DC input range eliminates the need for auxiliary supply reconfiguration in most legacy panel environments, making this unit an efficient drop-in solution for system life extension programs.

Spare Parts Support FAQ

Q1: Is the EB142355SPER 1C1-AA still available as a new original part, or only as a refurbished unit?
All EB142355SPER 1C1-AA units supplied by SMARTNEXMSK are new original ABB components sourced from authorized distribution channels. We do not supply refurbished, reconditioned, or third-party substitute units under this part number. Each unit is individually tested before dispatch and ships with a 12-month warranty from the date of shipment.

Q2: How do I verify compatibility with my existing REF series protection panel before ordering?
Compatibility can be confirmed by cross-referencing the panel’s wiring diagram against the EB142355SPER 1C1-AA datasheet, specifically the input voltage range (24–250V AC/DC) and contact configuration (1C1 changeover). If you can share your panel’s auxiliary supply voltage and the existing relay’s terminal layout, our technical team can confirm compatibility before you place an order. Contact us at [email protected] with your panel documentation.

Q3: What is your typical lead time, and can you support urgent breakdown orders?
For in-stock units, we offer same-day or next-business-day dispatch. For urgent breakdown situations, contact us directly at +86 18259474341 to confirm real-time stock availability and arrange priority shipping. We maintain buffer inventory of high-demand ABB REF series components specifically to support unplanned outage recovery scenarios.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact [email protected] with your order reference, a description of the fault, and photographic evidence of the defective unit. We will arrange a replacement or credit within our standard claims processing timeline.
