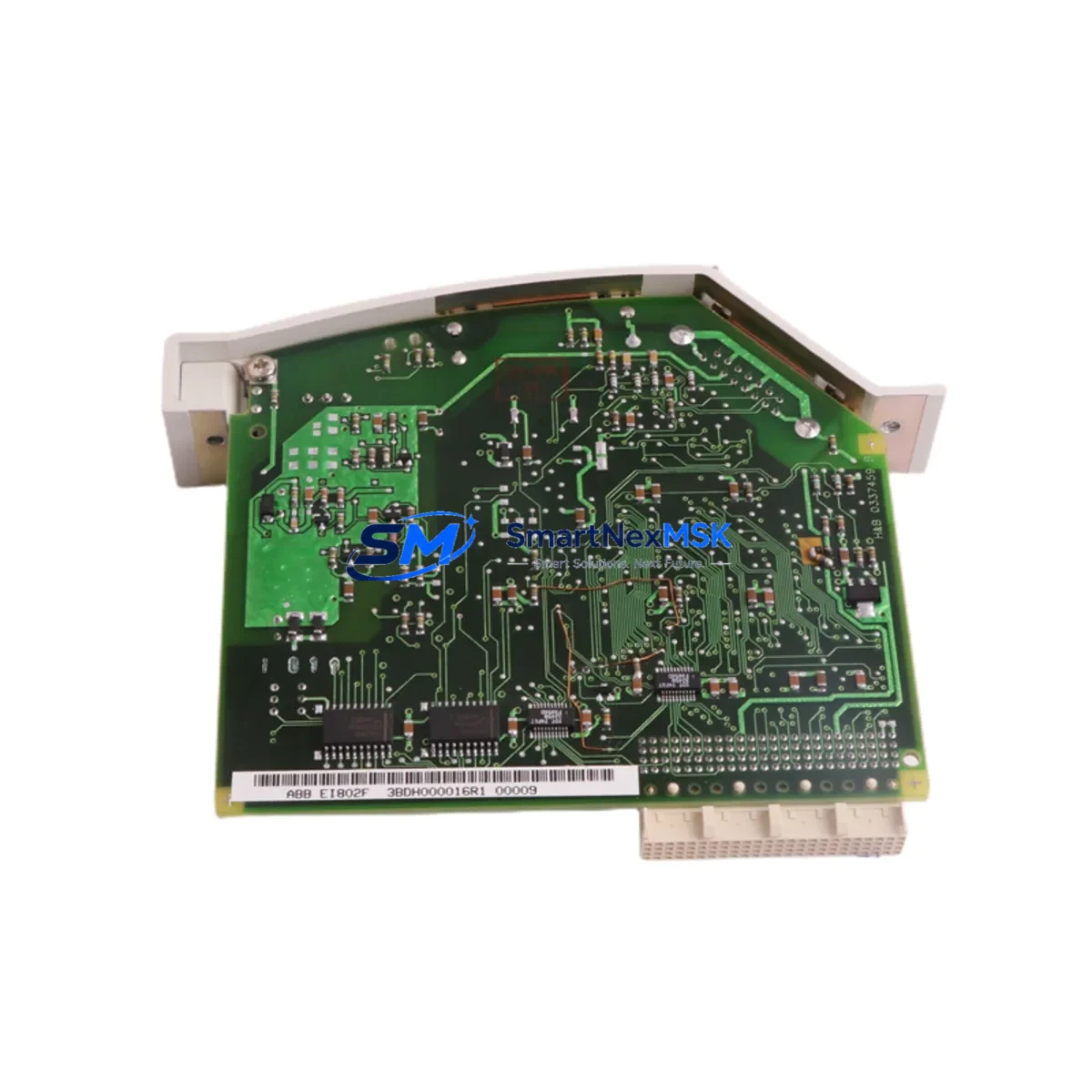

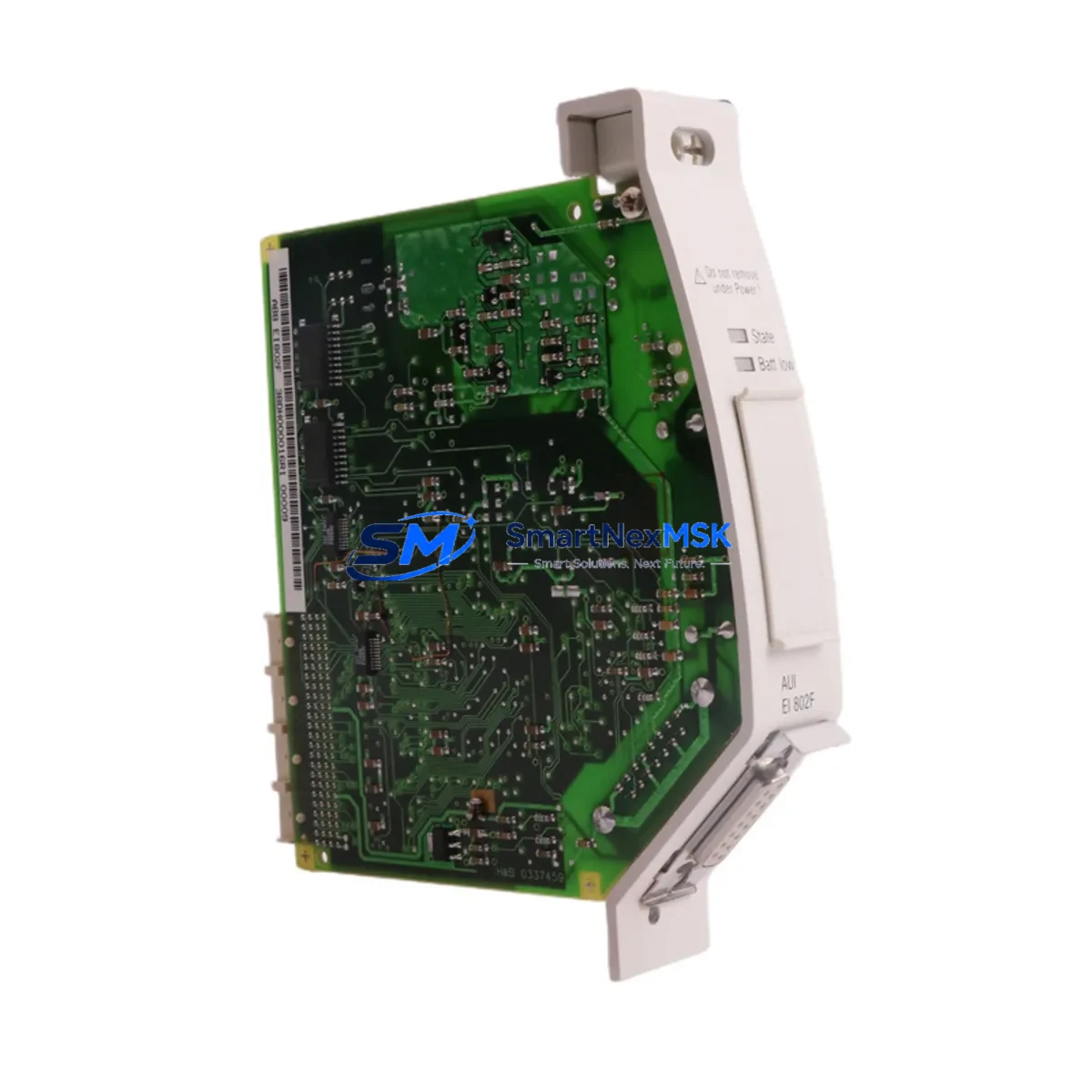

ABB EI802F 3BDH000016R1 Retrofit-Ready Ethernet AUI for AC800M

ABB EI802F 3BDH000016R1 Retrofit-Ready Ethernet AUI for AC800M Control Systems

The ABB EI802F (part number 3BDH000016R1) is an Ethernet AUI communication module engineered for the AC800M Distributed Control System platform. As legacy DCS installations age and OEM support windows close, the EI802F has become one of the most sought-after retrofit components for engineers tasked with extending the operational life of existing AC800M control cabinets without a full platform migration. SMARTNEXMSK maintains verified stock of the EI802F 3BDH000016R1, fully tested and backed by a 12-month warranty, ready for immediate dispatch to global destinations.

The EI802F module occupies a standard slot on the AC800M controller backplane and provides the Ethernet AUI interface required for high-speed communication between the PM861A or PM864A processor module and upstream SCADA, historian, or engineering workstation networks. When the original EI802F fails or reaches end-of-life, the control loop remains intact at the field I/O level, but supervisory visibility and remote programming access are lost — making rapid replacement critical for continuous production environments.

Before installing a replacement EI802F 3BDH000016R1, engineers should verify the firmware revision of the resident PM861A or PM864A processor to confirm compatibility with the module’s embedded communication stack. The AC800M backplane uses a proprietary high-speed bus; the EI802F must be seated in the correct slot position as defined in the rack configuration stored in Control Builder M. Incorrect slot assignment will generate a hardware mismatch fault and prevent the module from initializing. Confirm the slot address in the hardware configuration tree before powering the rack.

Wiring adaptation is straightforward: the EI802F connects to the plant Ethernet network via a standard RJ-45 port. However, if the existing installation uses an AUI-to-10BASE-T transceiver on an older network segment, verify that the transceiver is still functional and that the cable plant meets Cat5e or better specification. IP address assignment, subnet mask, and gateway parameters are retained in the PM processor’s non-volatile memory and do not need to be re-entered after a module swap, provided the processor itself has not been replaced simultaneously.

In retrofit scenarios where the AC800M rack is being relocated or the control cabinet is being rebuilt, the SD821 or SD822 power supply module output capacity must be recalculated to account for all installed modules — including the EI802F, any CI854A or CI858 fieldbus communication interfaces, and the DI810 or DO810 digital I/O modules populating the remaining rack slots. Insufficient power supply headroom is a common cause of intermittent module faults after retrofit work.

For installations migrating from a legacy Advant OCS or MOD 300 platform to AC800M, the EI802F plays a central role in re-establishing the Ethernet backbone that connects the new controller to existing MasterBus 300 or INSUM network segments via protocol gateways. In these migration projects, the AF100 fieldbus interface or the CI853 PROFIBUS DP module may also be required to bridge legacy field devices to the new AC800M I/O bus, and the TB820V2 or TB840A termination boards must be matched to the new I/O module types.

HMI screen adaptation is another consideration during EI802F replacement. If the plant uses ABB’s 800xA System or an older Operate IT environment, the communication path from the HMI server to the AC800M controller passes through the Ethernet interface provided by the EI802F. After module replacement, verify that the OPC server or 800xA connectivity server re-establishes the controller connection without requiring a full re-download of the application program. In most cases, a warm restart of the connectivity server is sufficient.

SMARTNEXMSK performs pre-shipment functional testing on every EI802F 3BDH000016R1 unit, including power-on self-test verification, Ethernet link negotiation, and backplane communication handshake simulation. Each unit ships with a test report and is covered by a 12-month warranty against manufacturing defects and functional failure. Expedited shipping options are available for emergency breakdown situations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful EI802F 3BDH000016R1 retrofit begins with a complete audit of the existing AC800M rack population. Document every installed module: the PM861A or PM864A processor, the EI802F communication interface, any CI854A PROFIBUS PA or CI858 FOUNDATION Fieldbus interfaces, the DI810 digital input and DO810 digital output modules, and the TB820V2 or TB840A termination boards connected to field junction boxes. This inventory forms the basis of the spare parts plan and ensures that no interdependent component is overlooked during the upgrade window.

Power budget verification is non-negotiable. The SD821 or SD822 power supply module has a defined maximum load current for the backplane bus. Adding or replacing modules — even with identical types — requires recalculating the total current draw, particularly if the rack has been modified since original commissioning. A marginal power supply operating near its rated limit is a leading cause of unexplained module resets and communication dropouts after retrofit work.

For sites migrating fieldbus segments, the CI853 PROFIBUS DP module or the AF100 fieldbus interface may need to be reconfigured in Control Builder M to reflect new device addresses or baud rate settings. Termination resistors on the PROFIBUS cable must be verified at both ends of each segment. If the plant is transitioning from a legacy Advant Controller 450 or MOD 300 system, the protocol gateway configuration must be updated to reflect the new AC800M node address before the EI802F is brought online.

Programming cable access during retrofit is typically provided via the PM processor’s built-in Ethernet port or through the EI802F itself. If the EI802F is the failed component, a temporary USB-to-serial programming cable connected directly to the PM processor’s service port allows Control Builder M access for configuration verification before the new EI802F is installed. This approach eliminates the need to take the controller offline for extended periods during the diagnostic phase.

Downtime Control During System Migration

Minimizing downtime during an EI802F replacement requires preparation before the maintenance window opens. The application program currently executing in the PM861A or PM864A processor is stored in non-volatile flash memory and is not affected by removing the EI802F module. Field I/O continues to execute the last downloaded control logic in standalone mode during the module swap, provided the processor itself remains powered and the rack power supply is not interrupted.

Before removing the failed EI802F, export the current hardware configuration from Control Builder M and save a timestamped backup of the project database. This backup is the recovery point if the new module triggers an unexpected hardware mismatch fault. Verify that the replacement EI802F 3BDH000016R1 carries the same or a compatible firmware revision as the unit being replaced — firmware mismatches between the EI802F and the PM processor can prevent the module from registering on the backplane bus.

After seating the new EI802F, power-cycle the rack and monitor the module status LEDs. The EI802F should display a steady green RUN indicator within 30 seconds of power-on if the slot assignment and firmware are correct. If the LED remains amber or flashes red, connect Control Builder M via the PM processor’s service port and review the hardware diagnostic log for fault codes before proceeding. Once the EI802F is confirmed online, restart the 800xA connectivity server or OPC server and verify that all controller tags are updating correctly in the HMI before releasing the system to operations.

Retrofit Support FAQ

Q: Is the EI802F 3BDH000016R1 a direct drop-in replacement for all AC800M rack configurations?
A: Yes, the EI802F 3BDH000016R1 is compatible with all standard AC800M rack configurations using PM861A, PM864A, or PM866A processors. The slot assignment must match the hardware configuration defined in Control Builder M. No field wiring changes are required — only the module is swapped.

Q: Will replacing the EI802F require re-downloading the application program to the controller?
A: No. The application program resides in the PM processor’s non-volatile memory and is unaffected by the EI802F replacement. A warm restart of the 800xA connectivity server or OPC server is typically sufficient to re-establish supervisory communication after the new module is online.

Q: What commissioning checks should be performed after installing the replacement EI802F?
A: Verify the RUN LED status on the EI802F within 30 seconds of power-on. Confirm Ethernet link negotiation via the port LED. Reconnect Control Builder M and verify the module appears in the hardware tree without fault codes. Restart the connectivity server and confirm all HMI tags are updating. Document the commissioning result and retain the pre-shipment test report supplied with the unit.

Q: What warranty coverage is provided with the EI802F 3BDH000016R1 from SMARTNEXMSK?
A: Every EI802F 3BDH000016R1 unit supplied by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects and functional failure from the date of shipment. Each unit is pre-tested prior to dispatch and ships with a test report. Warranty claims are processed directly through SMARTNEXMSK’s technical support team.
