ABB EM-CAY Safety-Enhanced Analog Output for Harsh Sites

ABB EM-CAY Safety-Enhanced Analog Output for Harsh Industrial Sites

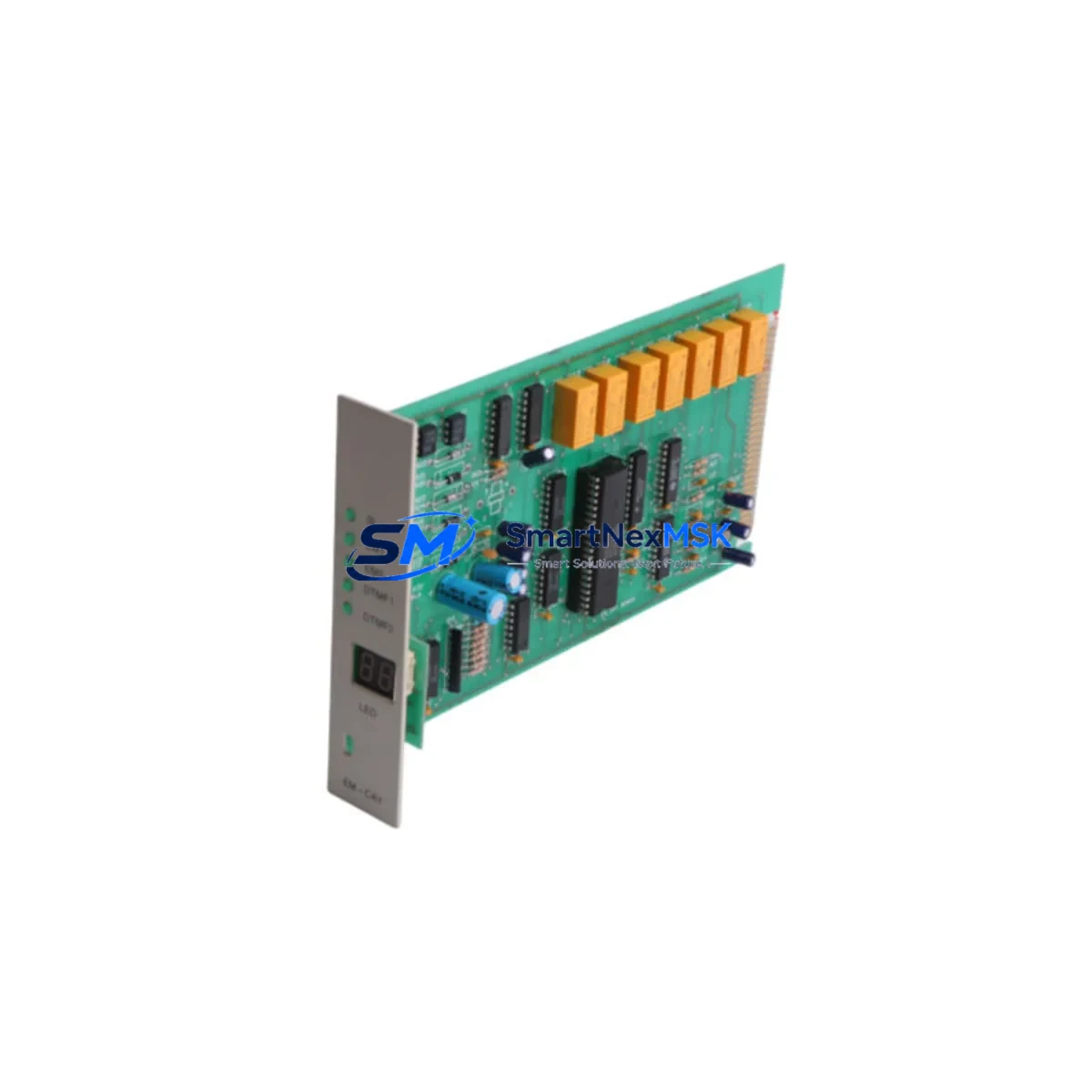

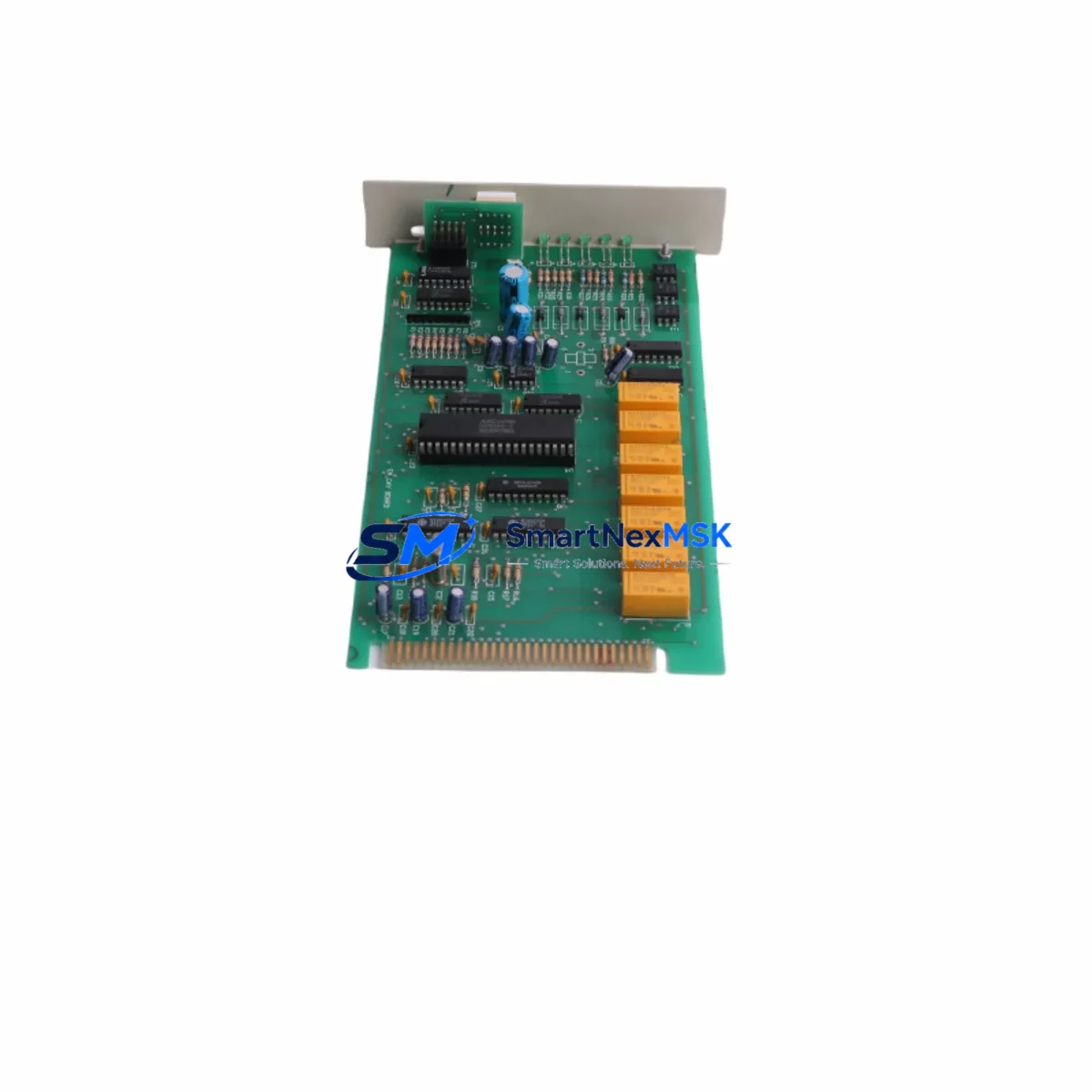

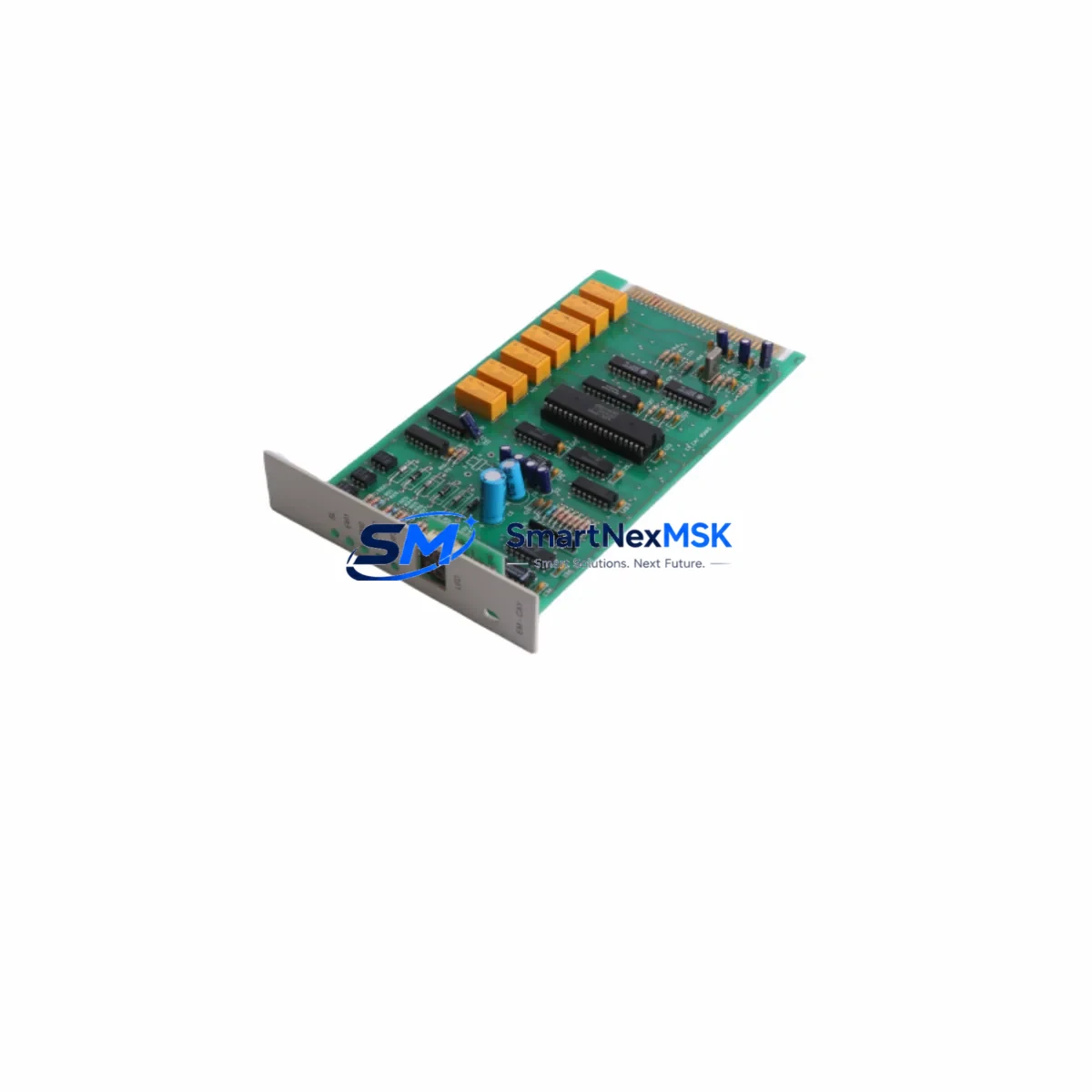

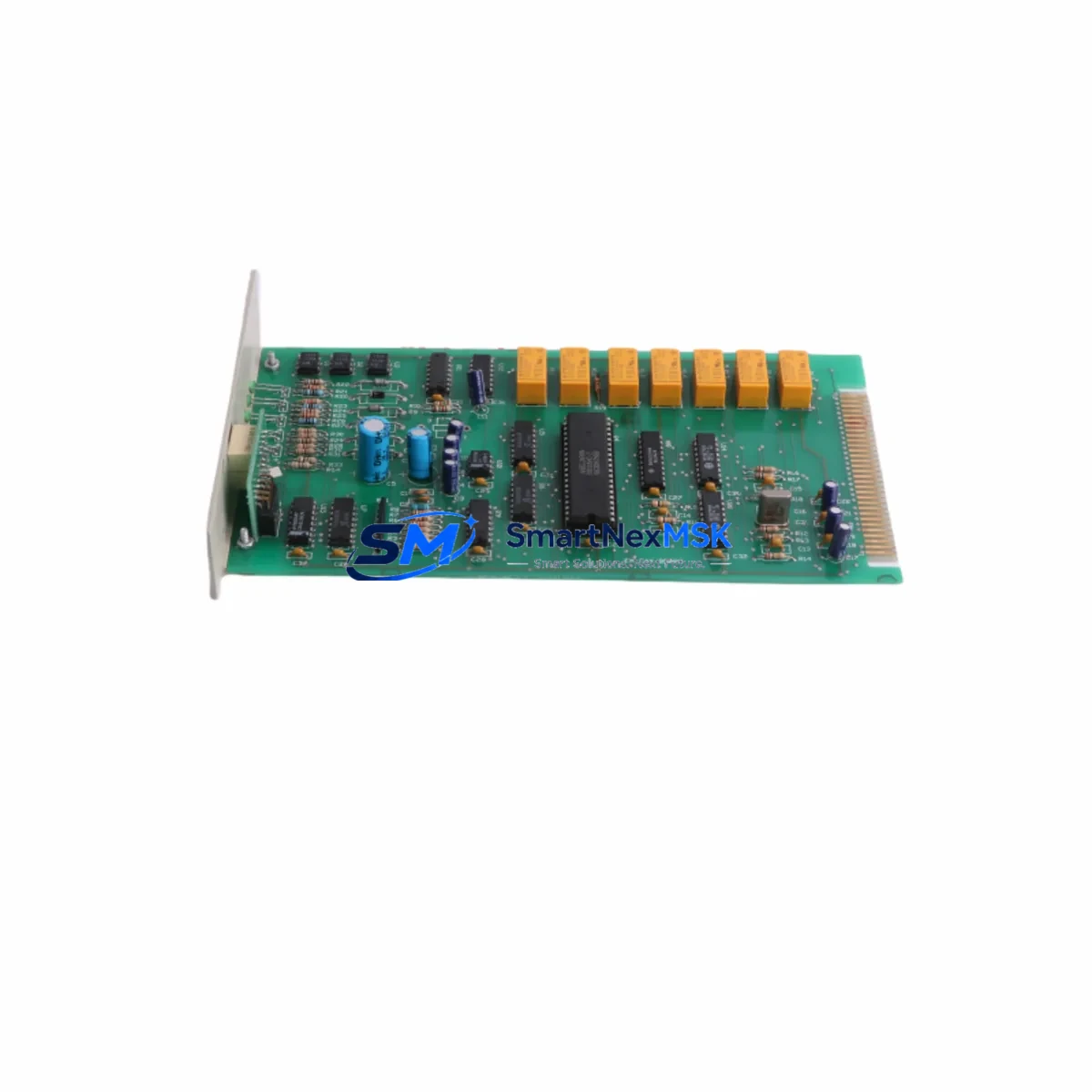

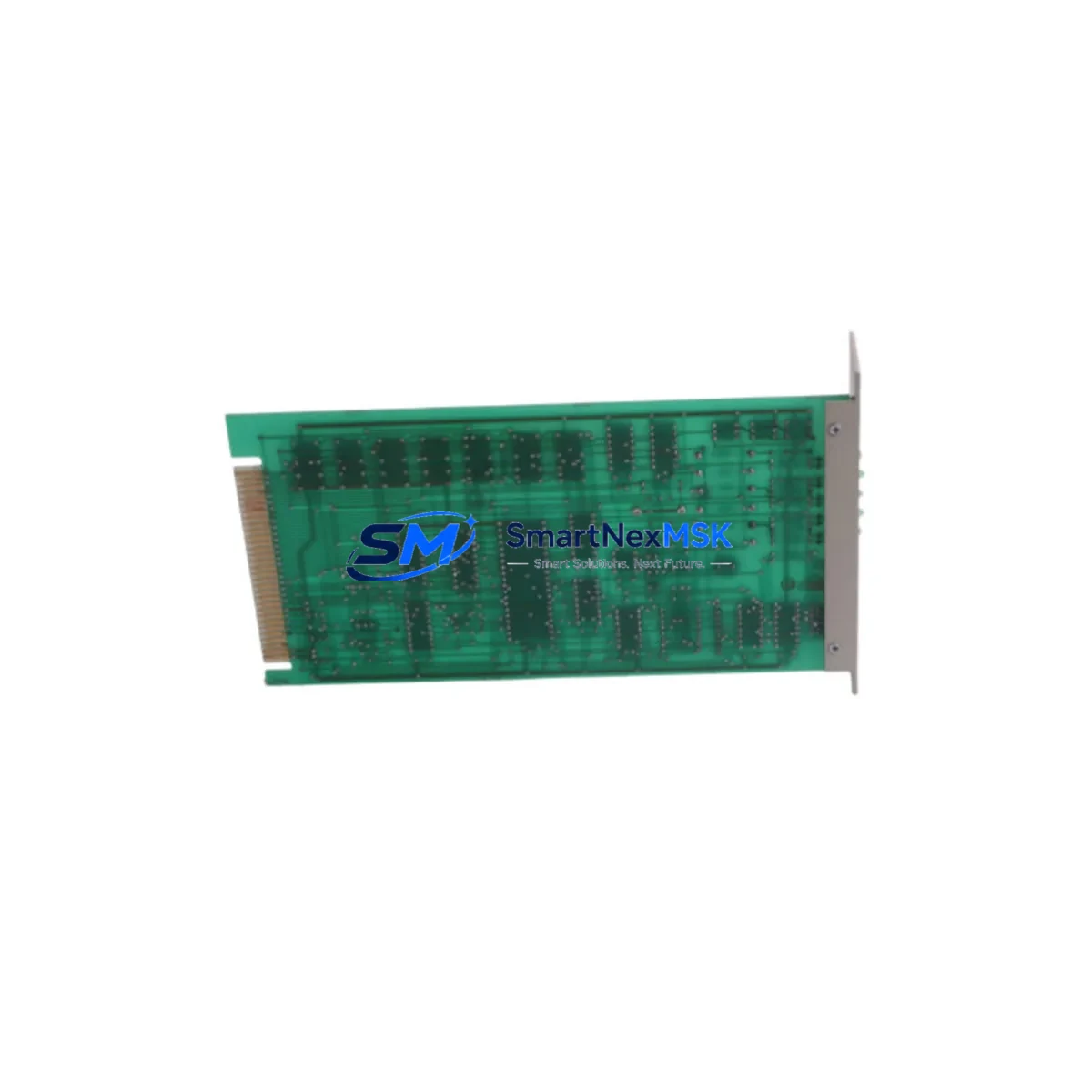

The ABB EM-CAY is a ruggedized analog output module engineered for the Bailey INFI 90 Distributed Control System (DCS), purpose-built to sustain reliable signal delivery in high-load, high-interference, and continuously operating industrial environments. In critical process industries — where a single control loop failure can cascade into unplanned shutdowns, equipment damage, or personnel hazards — the EM-CAY provides the signal integrity and environmental resilience that safety-critical applications demand.

Designed to operate within the INFI 90 modular architecture, the EM-CAY converts digital control commands from the DCS processor into precise 4–20 mA or 0–10 V analog output signals, driving final control elements such as control valves, variable-speed drives, and positioners. Its ruggedized construction addresses the core failure modes that plague standard analog output modules in harsh field environments: signal drift under thermal stress, output instability from electromagnetic interference, and premature failure from voltage transients and surge events.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered INFI 90 control cabinet, the EM-CAY does not operate in isolation — it functions as part of a layered protection architecture. The module receives its setpoint commands from the ABB IMMFP12 Master Fieldbus Processor or equivalent DCS controller card, which coordinates process logic and communicates output demands across the INFI 90 module bus. Upstream of the EM-CAY, the ABB IMFEC11 Field Interface Module conditions incoming field signals, ensuring that the analog output commands are based on clean, validated process data rather than noise-corrupted inputs.

Power integrity is foundational to analog output stability. The EM-CAY relies on the ABB IMPS10 Power Supply Module to deliver regulated 24 VDC to the rack. In high-criticality applications, a redundant power supply configuration using a secondary IMPS10 or compatible redundant power module eliminates single-point power failure as a risk to the output loop. Surge events from nearby motor starts, arc flash incidents, or lightning-induced transients on field wiring are mitigated by the EM-CAY’s built-in transient suppression, supplemented at the cabinet level by Phoenix Contact TRABTECH or equivalent DIN-rail surge protection devices installed on the 24 VDC bus and field signal terminals.

For communication integrity across the INFI 90 network, the ABB IMCIS02 Communication Interface Module manages inter-controller data exchange, ensuring that output commands from supervisory systems reach the EM-CAY without packet loss or latency-induced control errors. In safety interlock architectures, the EM-CAY output channels are often paired with ABB IMASO01 Analog Signal Output redundancy modules or monitored by the ABB IMDSO14 Digital Output Module to provide cross-verification of final control element position. Discrete safety shutdown signals are handled in parallel by dedicated safety relay modules such as the ABB IMDSF01, ensuring that analog output faults do not compromise the integrity of the emergency shutdown (ESD) circuit.

Field wiring from the EM-CAY to control valves and actuators is typically routed through ABB NTAI05 or NTAI09 termination units, which provide screw-terminal field connections, loop-powered signal conditioning, and physical separation between the module and field-side wiring. This termination architecture simplifies module replacement during maintenance windows without disturbing field wiring, a critical advantage in continuous-process plants where loop downtime must be minimized.

Critical Industrial Safety Applications

The ABB EM-CAY is deployed across the most demanding sectors of heavy industry, where analog output reliability is directly linked to process safety and regulatory compliance.

In petrochemical and refinery operations, the EM-CAY drives control valves on distillation column reflux loops, reactor feed streams, and pressure control circuits. Signal drift or output failure in these loops can result in off-spec product, pressure excursions, or activation of safety instrumented system (SIS) trips. The module’s ruggedized design and surge protection ensure that output signals remain stable even in environments with high electromagnetic noise from variable-frequency drives and large motor loads.

In thermal and hydroelectric power generation, the EM-CAY controls turbine governor valve positioners, boiler feedwater control valves, and generator excitation systems. These are applications where output accuracy and response time are critical to grid stability. The module’s channel isolation prevents a fault on one output loop from propagating to adjacent control loops — a key safety requirement in power plant DCS architectures.

In mining and mineral processing, the EM-CAY operates in control cabinets exposed to vibration, dust ingress, and wide ambient temperature swings. It controls slurry pump speed references, flotation cell reagent dosing valves, and crusher load management systems. The module’s extended temperature rating and EMI shielding make it suitable for surface and underground control room installations.

In water and wastewater treatment, the EM-CAY manages chemical dosing pump speed signals, aeration blower control, and filter backwash valve positioning. Continuous 24/7 operation is the norm in these facilities, and the module’s proven reliability in INFI 90 systems makes it a trusted component for long-term unattended operation.

In metallurgical and steel production facilities, the EM-CAY controls furnace temperature setpoints, rolling mill speed references, and cooling water flow control valves. These environments combine extreme heat, heavy electrical interference, and the operational consequence of any control interruption being measured in tons of scrap or equipment damage.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB EM-CAY?
The 12-month warranty covers all manufacturing defects, functional failures, and output calibration deviations identified under normal operating conditions consistent with the INFI 90 system specifications. If the module fails to perform its specified analog output function within the warranty period, SMARTNEXMSK will provide a replacement or full refund. The warranty period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on the EM-CAY before dispatch?
Every ABB EM-CAY unit undergoes a full functional test prior to shipment. This includes output channel verification across the full 4–20 mA range, channel isolation testing, backplane interface communication check, and visual inspection for physical integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the EM-CAY compatible with all INFI 90 rack configurations and firmware versions?
The EM-CAY is designed for standard INFI 90 module racks and is compatible with the full range of INFI 90 controller and communication modules. Compatibility with specific rack revisions or firmware versions should be confirmed against the ABB INFI 90 system documentation for your installation. SMARTNEXMSK technical support can assist with compatibility verification prior to purchase.

Q4: Can SMARTNEXMSK guarantee long-term supply of the ABB EM-CAY for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains dedicated inventory of legacy ABB Bailey INFI 90 modules, including the EM-CAY, to support long-term maintenance, emergency replacement, and planned outage programs. For facilities managing multi-year maintenance contracts or critical spare parts programs, we recommend contacting our sales team to discuss reserved stock arrangements and volume pricing.
