ABB FI820F 3BDH000031R1 Spare for AC800M DCI Automation

ABB FI820F 3BDH000031R1 Spare for AC800M DCI Automation: Fieldbus Replacement & Downtime Risk Control

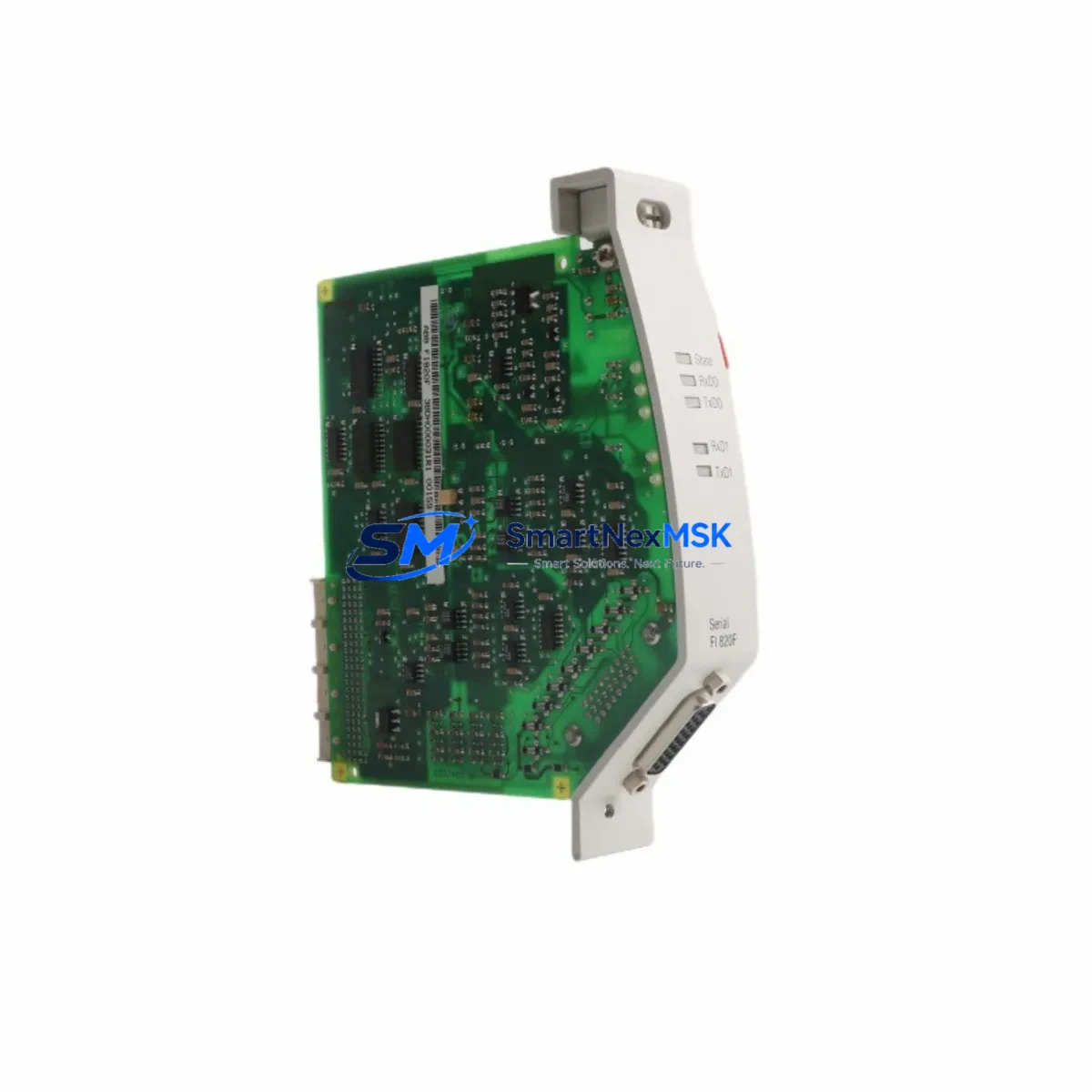

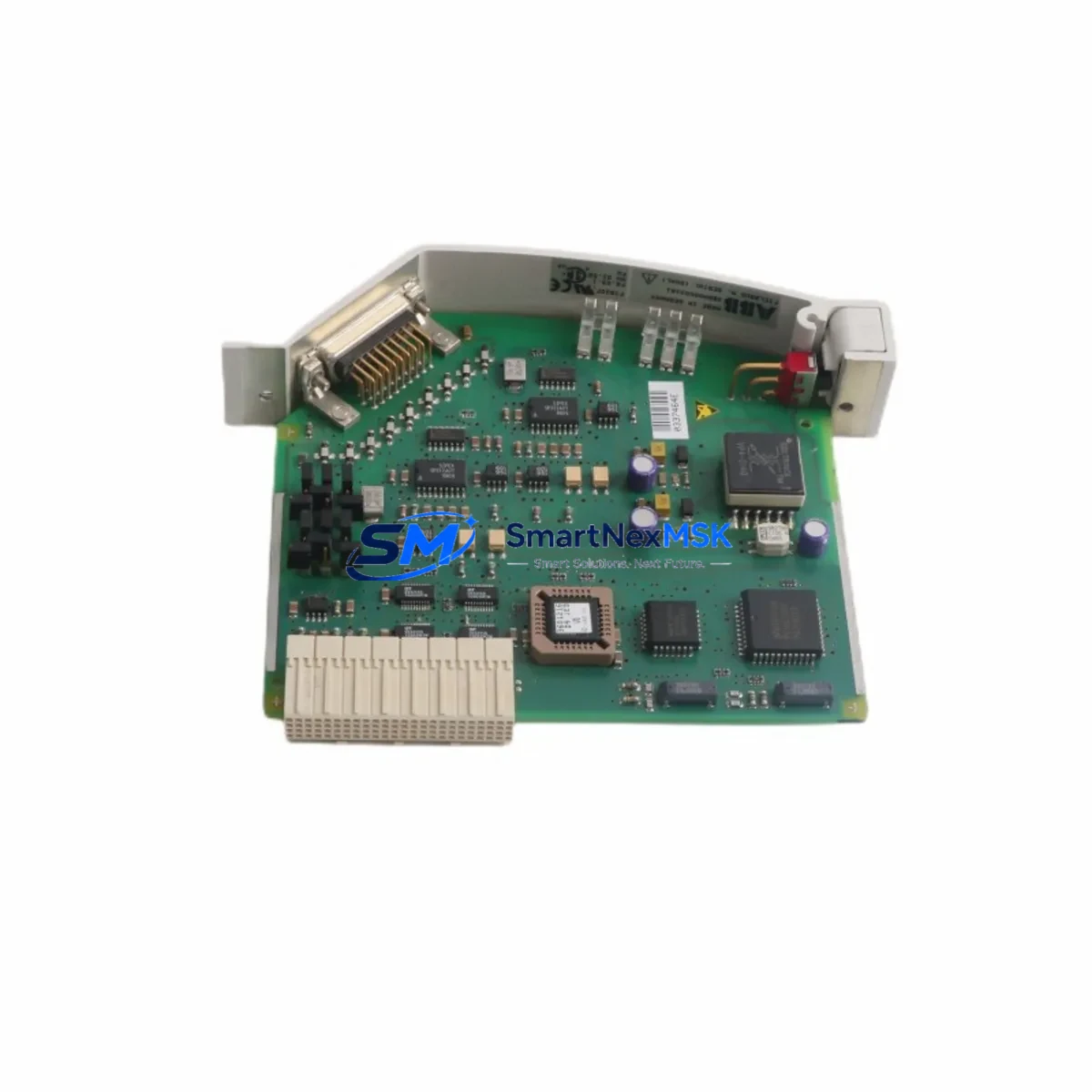

The ABB FI820F (part number 3BDH000031R1) is a critical fieldbus communication module designed for the AC800M DCI distributed control system. In process-critical environments — refinery control loops, power generation DCS cabinets, chemical plant automation panels — a failed FI820F can isolate an entire fieldbus segment, triggering unplanned shutdowns that cascade across multiple I/O nodes. Stocking a verified original spare is the single most effective measure a maintenance team can take to compress mean time to repair (MTTR) and protect production continuity.

This listing supplies the FI820F 3BDH000031R1 as a maintenance-ready original spare: factory-sourced, function-tested prior to dispatch, and backed by a 12-month warranty covering manufacturing defects and operational failure under normal service conditions. Each unit ships with protective packaging suited to long-term spare parts storage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the FI820F 3BDH000031R1, the fieldbus segment outage window should be used to inspect all interdependent components in the same control cabinet. A disciplined cabinet-level inspection during a planned FI820F swap prevents secondary failures from surfacing immediately after restart.

Power supply integrity is the first checkpoint. The AC800M DCI rack relies on a dedicated 24 V DC rail; the SD821 / SD822 power supply modules feeding the controller rack should be load-tested and their output ripple verified. A marginal power supply is a common root cause of intermittent fieldbus communication errors that are incorrectly attributed to the FI820F itself.

Backplane and rack health should be confirmed next. The TB820V2 ModuleBus modem and the rack backplane connectors are wear items in high-vibration environments; inspect for oxidation, bent pins, and secure module seating. If the FI820F failure was preceded by intermittent loss of fieldbus segments, the backplane should be treated as a suspect component.

Fieldbus segment wiring and terminators must be verified before the new FI820F is commissioned. Each FF-H1 segment requires exactly two 100 Ω terminators — one at each physical end of the cable. Incorrect termination is the leading cause of premature fieldbus module failure. Measure segment impedance and check cable shielding continuity at the same time.

I/O and field device health on the affected segments should be reviewed. FOUNDATION Fieldbus field devices — flow transmitters, pressure transmitters, valve positioners — connected to the failed segment may have logged diagnostic alerts during the outage. Pull device diagnostics via the AC800M DCI engineering station and clear latched faults after the FI820F replacement is confirmed stable.

Communication interface modules in the same rack, such as the CI858 DCI ModuleBus Optical Interface or CI868 IEC 61850 communication module, should be visually inspected and their status LEDs confirmed normal. A communication fault on one module can mask or trigger cascading alerts on adjacent modules.

Relay output and digital I/O modules — for example DO810 / DO820 digital output modules — that are interlocked with the fieldbus segment should be tested for correct output state after the FI820F is restored. Confirm that any safety interlock logic that was bypassed during the outage has been re-enabled and tested.

HMI and SCADA connectivity should be validated end-to-end. After the FI820F replacement, verify that the AC800M DCI operator station or connected SCADA system is receiving live process values from all field devices on the restored segments. Stale or frozen values in the historian are a common post-maintenance oversight.

Fuses and surge protection on the fieldbus segment power conditioner should be inspected. A blown segment fuse or a degraded fieldbus power conditioner / segment coupler will prevent the new FI820F from establishing communication even if the module itself is fully functional. Replace any fuses that show signs of thermal stress.

Maintaining a minimum spare parts inventory of one FI820F 3BDH000031R1 per AC800M DCI rack — alongside spares for the CI858 interface, SD821 power supply, and at least one DO810 output module — is the recommended strategy for sites operating legacy AC800M DCI systems beyond their standard product lifecycle.

Site Replacement Workflow

Step 1 — Pre-replacement preparation. Download the current FI820F configuration from the AC800M DCI engineering tool (Control Builder M) and save a timestamped backup. Confirm the replacement 3BDH000031R1 unit matches the firmware revision required by the project configuration, or plan a firmware update as part of the replacement procedure.

Step 2 — Segment isolation. Notify the control room and place the affected fieldbus segments in manual or bypass mode per site safety procedures. Confirm all field devices on the segments are in a safe state before proceeding.

Step 3 — Module swap. Power down the rack slot if hot-swap is not confirmed for the site configuration. Remove the failed FI820F, inspect the backplane connector, and seat the replacement 3BDH000031R1 firmly. Restore rack power and observe the module status LEDs — both fieldbus segment LEDs should transition to steady green within 30 seconds of a successful link establishment.

Step 4 — Configuration restore and verification. Download the saved configuration to the replacement module via Control Builder M. Verify that all field devices on both FF-H1 segments are communicating and that process values are within expected ranges. Check the system event log for any residual fault codes.

Step 5 — Return to automatic control. Release the affected control loops from manual/bypass mode in a controlled sequence. Monitor the first 15 minutes of automatic operation closely for any communication retries or device alerts. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

This workflow applies equally when upgrading from an older FI820 variant to the FI820F 3BDH000031R1, which is the recommended migration path for sites seeking to extend AC800M DCI system life without a full controller platform upgrade.

Spare Parts Support FAQ

Q1: Is the FI820F 3BDH000031R1 compatible with all AC800M DCI rack configurations?
The FI820F 3BDH000031R1 is designed for the AC800M DCI platform and is compatible with standard AC800M DCI controller racks. Compatibility with specific rack revisions and firmware versions should be confirmed against the ABB AC800M DCI hardware compatibility matrix. If your site runs a mixed-revision rack, contact our technical team with your rack serial number and current firmware version before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every FI820F 3BDH000031R1 dispatched from our inventory undergoes a functional communication test to verify that both FF-H1 fieldbus segment ports are operational and that the module initializes correctly. Units that do not pass testing are not dispatched. A test record is available on request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects and operational failure under normal industrial service conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, a description of the failure mode, and photographs of the unit and installation environment. Replacement or repair will be arranged within 5 business days of claim confirmation.

Q4: Can I stock this module long-term, and what are the recommended storage conditions?
Yes. The FI820F 3BDH000031R1 is suitable for long-term spare parts storage. Recommended conditions are a dry, climate-controlled environment at 15–25 °C with relative humidity below 60 %, away from direct sunlight and electromagnetic interference sources. Modules should be stored in their original ESD-protective packaging. For sites planning multi-year storage, an annual visual inspection of the packaging integrity is recommended. Long-term supply availability is maintained — contact us for volume pricing on multi-unit spare kits.
