ABB FS225R12KE3/AGDR-71CS Spare for ACS800 Automation

ABB FS225R12KE3/AGDR-71CS Spare for ACS800 Automation: Spare Replacement & Downtime Risk Control

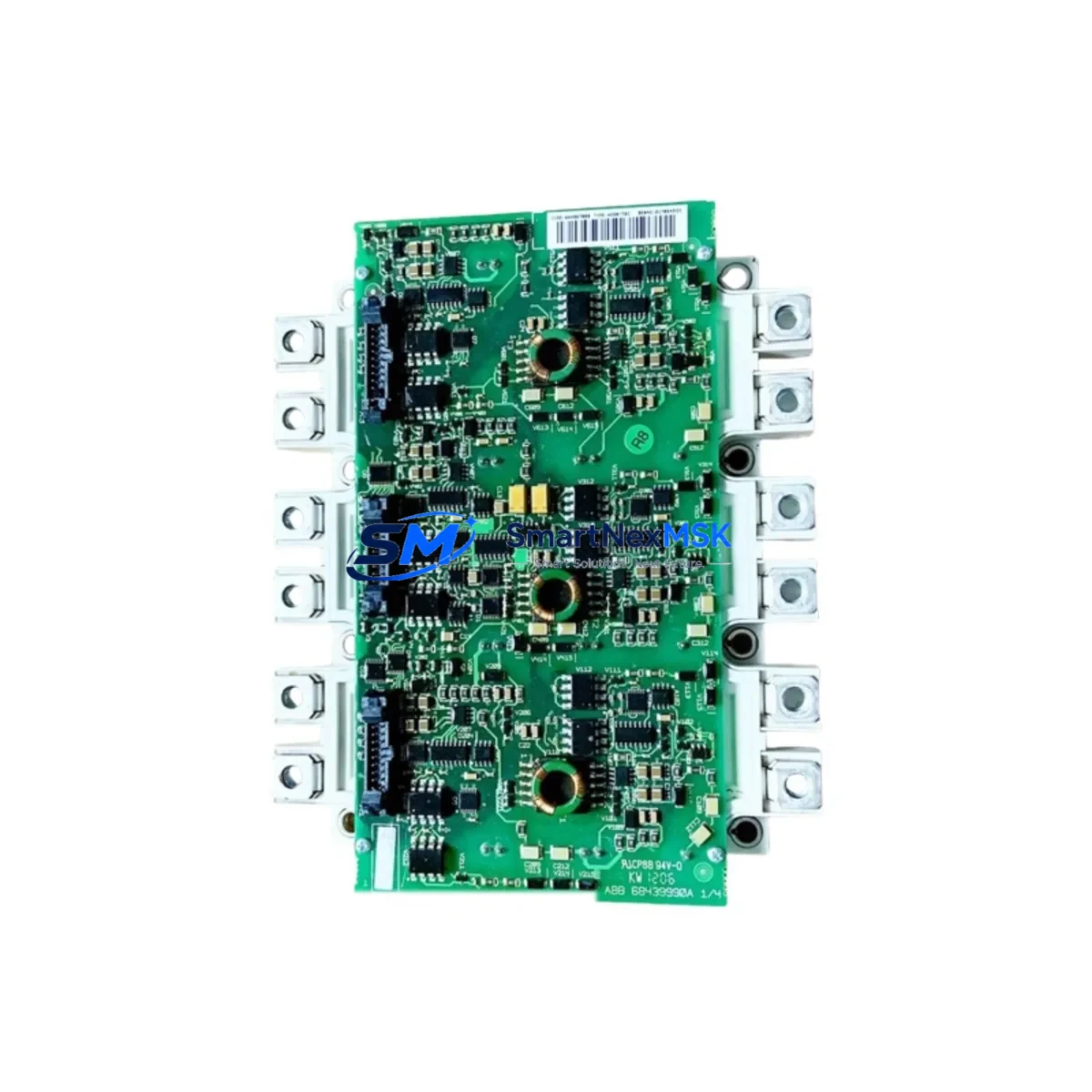

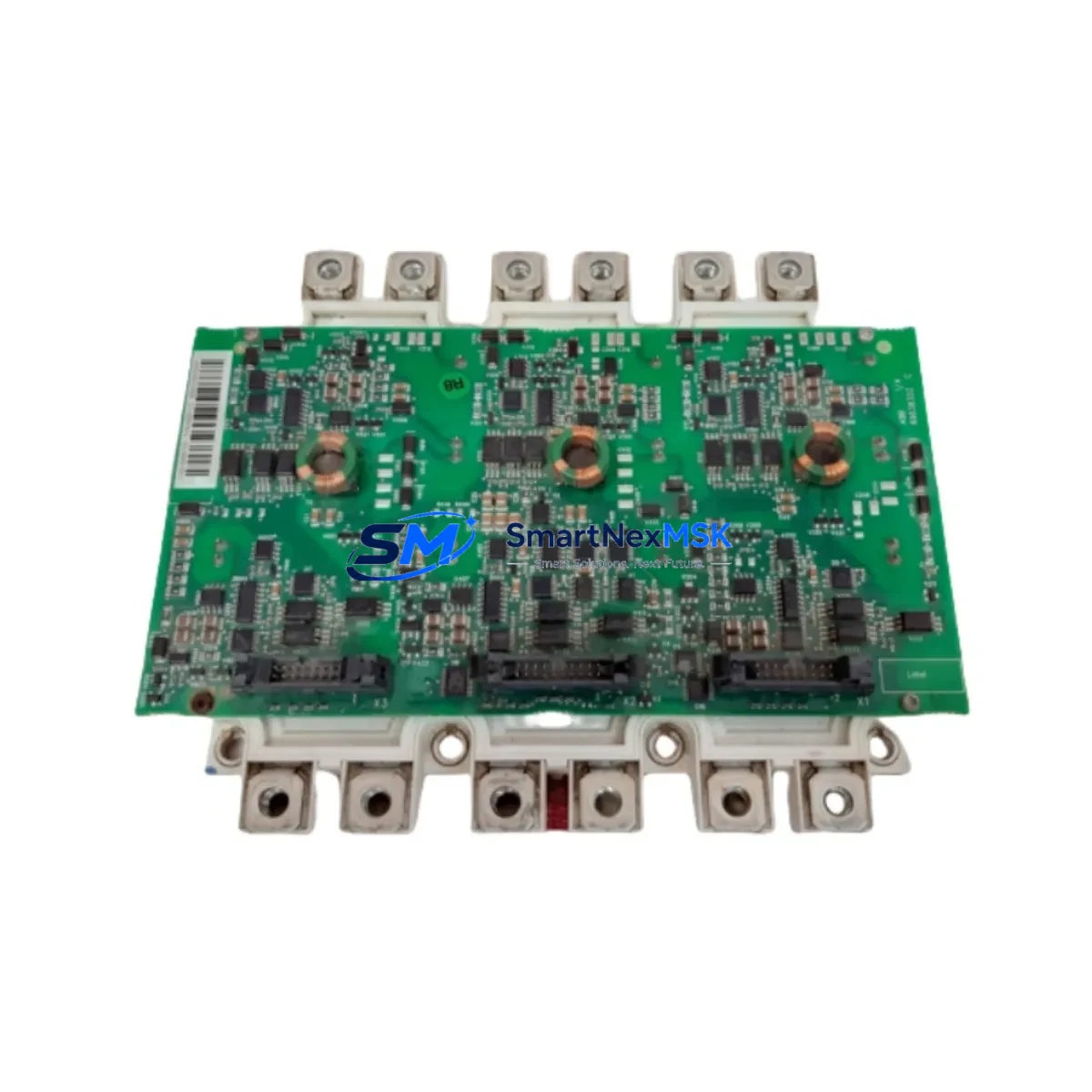

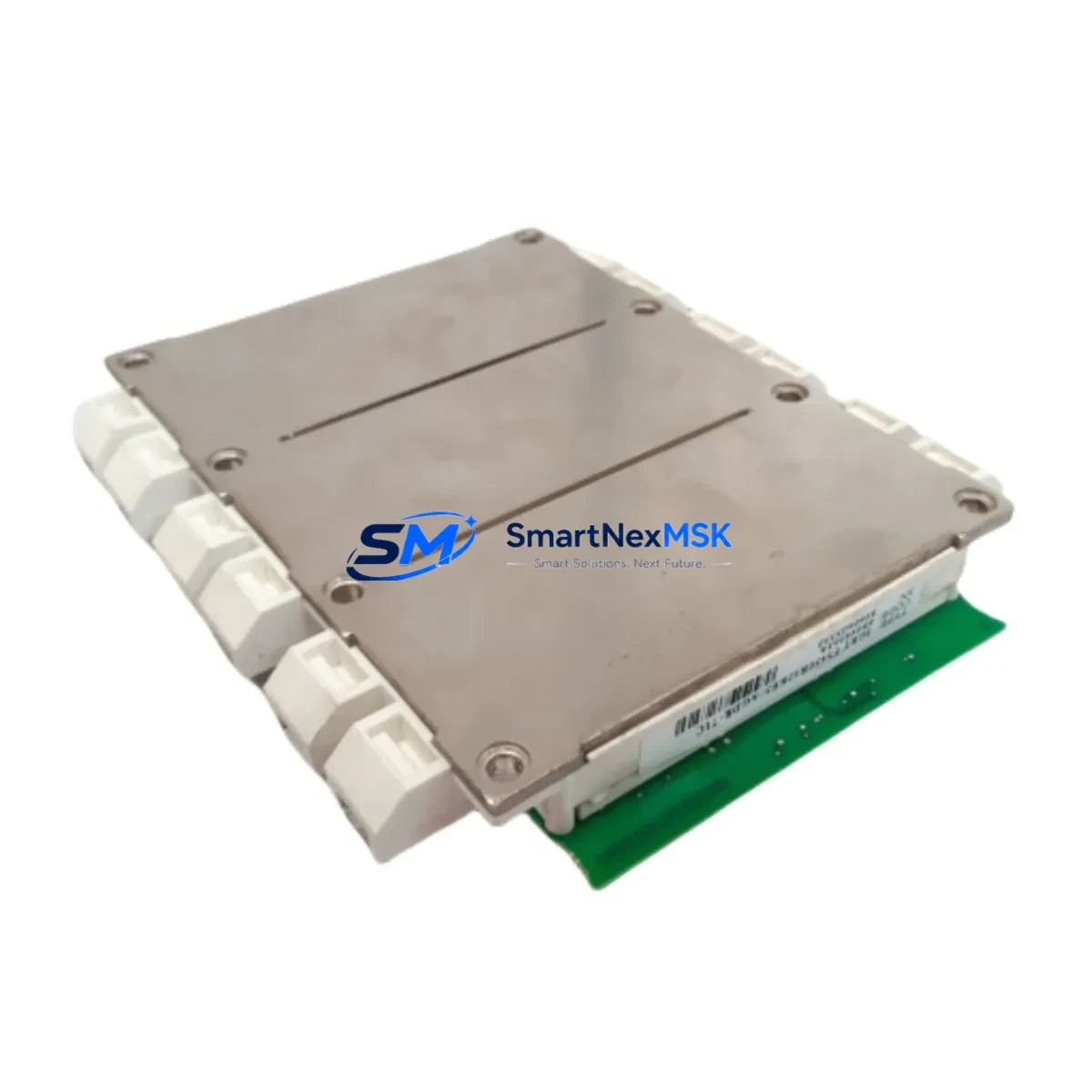

The ABB FS225R12KE3/AGDR-71CS is an original IGBT gate driver board engineered for ABB ACS800 series variable frequency drives. In industrial automation environments — from paper mills and steel processing lines to water treatment facilities and heavy-duty conveyor systems — the ACS800 drive platform is a cornerstone of motor control infrastructure. When the gate driver board fails, the entire drive goes offline, triggering unplanned downtime that can cost thousands per hour. Stocking a verified original spare of the FS225R12KE3/AGDR-71CS is one of the most cost-effective decisions a maintenance or procurement engineer can make.

This unit is sourced as an original ABB component, fully tested prior to shipment, and backed by a 12-month warranty. It is suitable for direct replacement in ACS800 drive cabinets without firmware reconfiguration in most standard installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault in the ACS800 drive — whether through a fault code on the ACS800 control panel (CDP312R) or a physical inspection revealing gate signal anomalies — the FS225R12KE3/AGDR-71CS is typically the first component to evaluate. However, a thorough site replacement should never stop at the gate driver board alone.

During planned maintenance or emergency fault isolation, engineers should simultaneously inspect the RINT-5514C or RINT-5611C rectifier/inverter interface boards, which work in close coordination with the gate driver in the ACS800 power stack. A degraded interface board can cause recurring gate driver failures even after a fresh replacement. The APOW-01C auxiliary power supply board should also be checked — undervoltage on the auxiliary rail is a common root cause of gate driver malfunction that is frequently misdiagnosed as a driver board failure.

On the I/O and signal side, inspect the RDIO-01C digital I/O extension module and any RAIO-01C analog I/O modules installed in the drive’s option slots. Corrupted I/O signals can mask or mimic gate driver faults. If the drive communicates over fieldbus, verify the RPBA-01 PROFIBUS adapter or RCAN-01 CANopen module is functioning correctly — communication dropouts during a drive fault event can complicate fault logging and delay diagnosis.

For drives installed in older control cabinets, also inspect the terminal blocks and wiring harnesses connecting the gate driver to the IGBT module. Thermal cycling over years of operation can cause micro-fractures in solder joints and connector pins. Replacing the gate driver board without addressing degraded wiring is a common cause of repeat failures within 6–12 months.

Finally, if the ACS800 system includes a du/dt filter or sine filter on the output side, verify filter capacitor condition. Capacitor degradation increases voltage stress on the IGBT module and accelerates gate driver wear. Procurement engineers building a comprehensive spare parts kit for ACS800 installations should consider stocking the FS225R12KE3/AGDR-71CS alongside the APOW-01C, RINT board variants, and at least one set of control panel cables to ensure full drive restoration capability without waiting on multiple shipments.

Site Replacement Workflow

Step 1 — Fault Confirmation: Record the active fault code from the ACS800 control panel (CDP312R). Common codes associated with gate driver failure include F-0022 (Short Circuit) and F-0001 (Overcurrent). Cross-reference with the ACS800 Hardware Manual to confirm the FS225R12KE3/AGDR-71CS as the suspected faulty component.

Step 2 — Safe Isolation: De-energize the drive following lockout/tagout (LOTO) procedures. Discharge DC bus capacitors and verify zero voltage with a calibrated meter before opening the drive cabinet. The ACS800 DC bus can retain dangerous charge for several minutes after power-off.

Step 3 — Component Removal: Disconnect the gate driver board from the IGBT module and the interface board connectors. Note the orientation and cable routing before removal. Photograph the installation if this is the first replacement on this unit.

Step 4 — Compatibility Verification: Confirm the replacement FS225R12KE3/AGDR-71CS matches the hardware revision of the removed unit where applicable. Check the ABB drive serial number and manufacturing date code to identify any revision-specific requirements.

Step 5 — Installation & Re-commissioning: Install the new gate driver board, reconnect all cables, and restore power. Run the ACS800 through a no-load test cycle before reconnecting the motor load. Monitor drive temperature and output current during the first 30 minutes of operation.

Step 6 — Documentation: Update the maintenance log with the replacement date, part number, and any observations. Schedule a follow-up inspection at 500 operating hours to verify stable performance.

Spare Parts Support FAQ

Q1: Is the FS225R12KE3/AGDR-71CS compatible with all ACS800 variants?
The FS225R12KE3/AGDR-71CS is designed for ACS800 drives that use the FS225R12KE3 IGBT module in the power stage. Compatibility depends on the specific ACS800 frame size and power rating. Please provide your drive’s full type code (found on the nameplate) when ordering to confirm compatibility. Our technical team can cross-reference your drive’s BOM before shipment.

Q2: How is the unit tested before shipment?
Every FS225R12KE3/AGDR-71CS unit undergoes functional testing and insulation resistance verification prior to packaging. Test records are available upon request. Units are packed in anti-static ESD-safe packaging with shock-absorbing foam to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside specified parameters. Warranty claims are processed with a return authorization; replacement or repair is completed within 10 business days of receipt.

Q4: How quickly can I receive the part for an emergency shutdown situation?
We maintain stock of the FS225R12KE3/AGDR-71CS for immediate dispatch. Expedited air freight options are available for emergency orders. Contact our team directly at sales@smartnexmsk.com or +86 18259474341 to confirm stock availability and arrange priority shipment. Most in-stock orders ship within 24 hours of payment confirmation.
