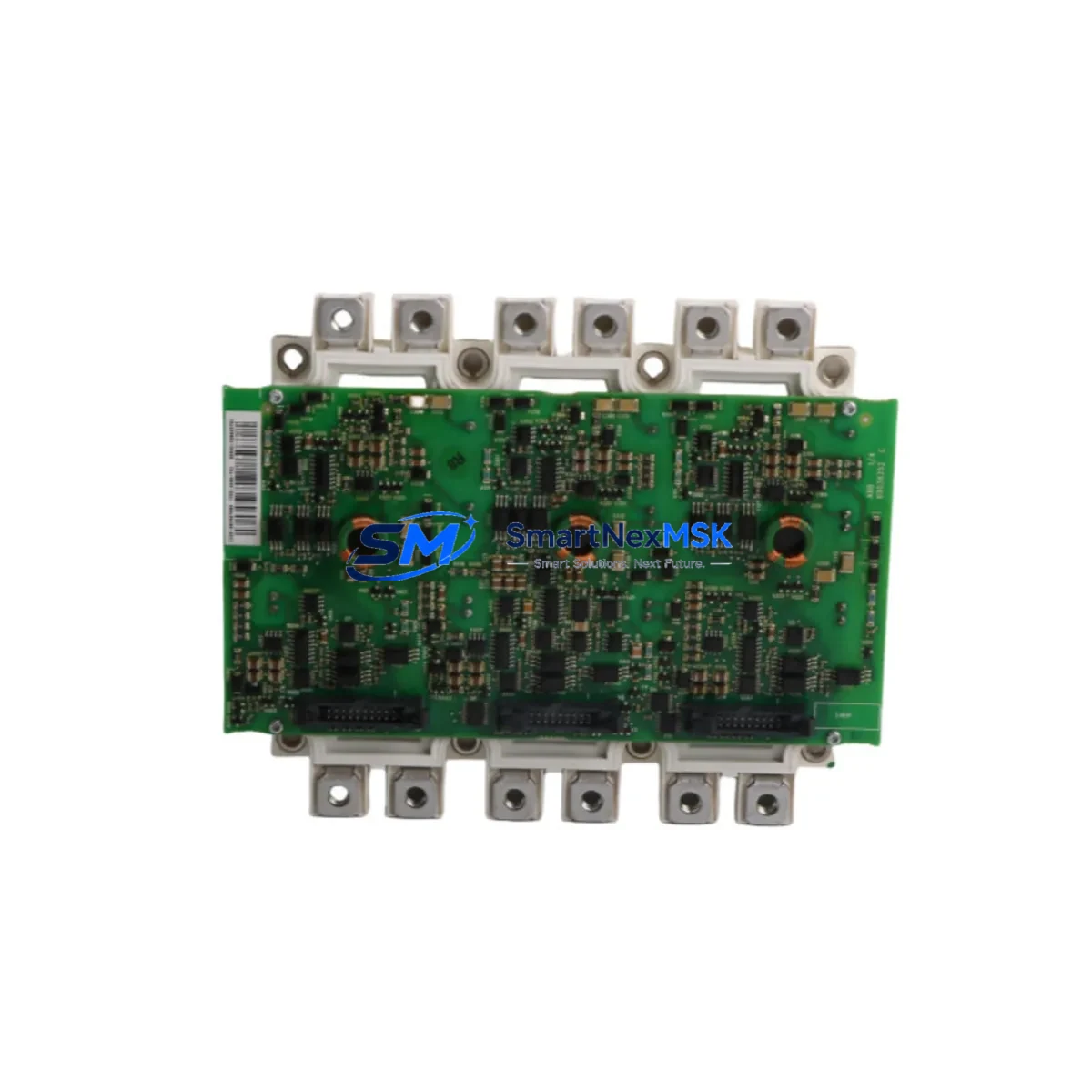

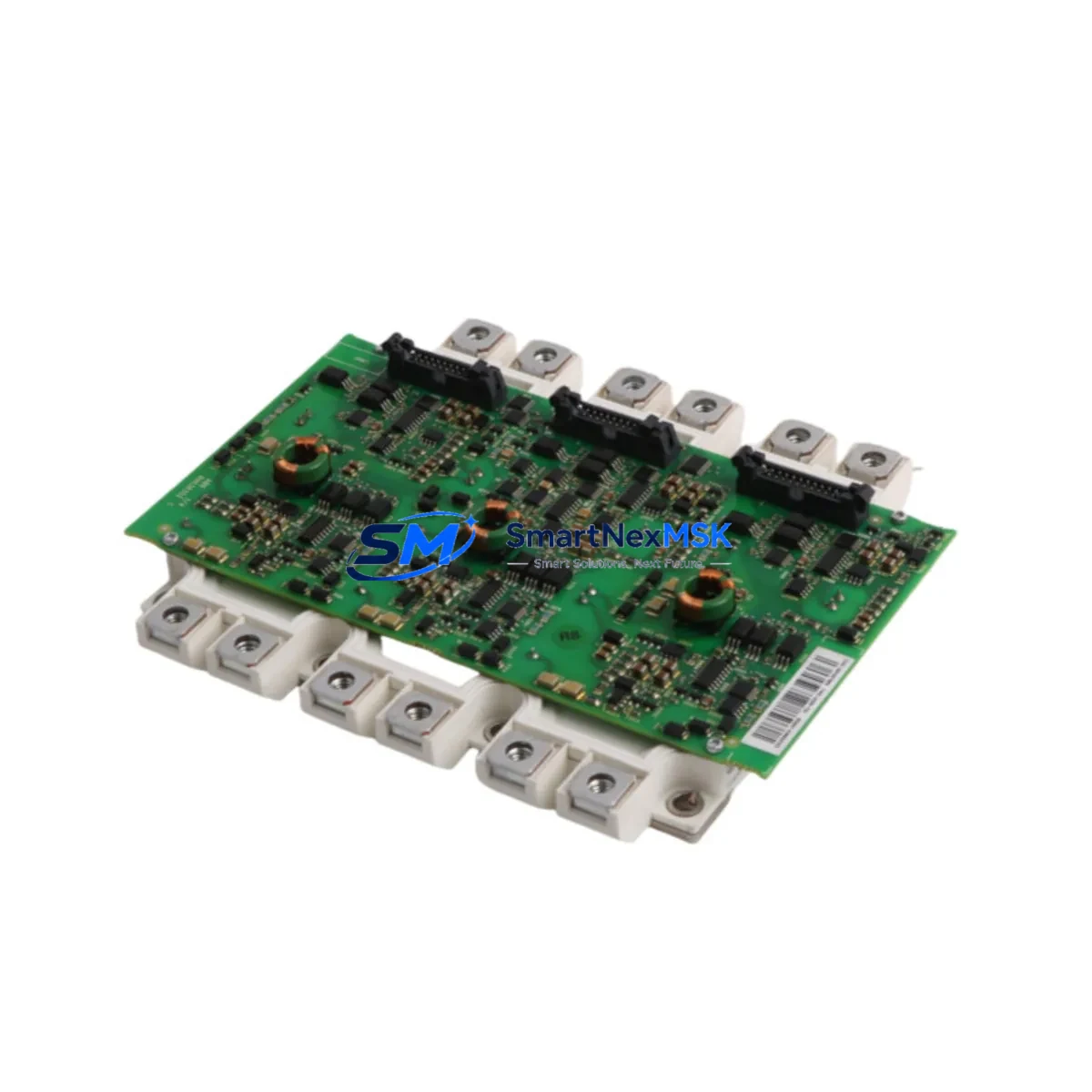

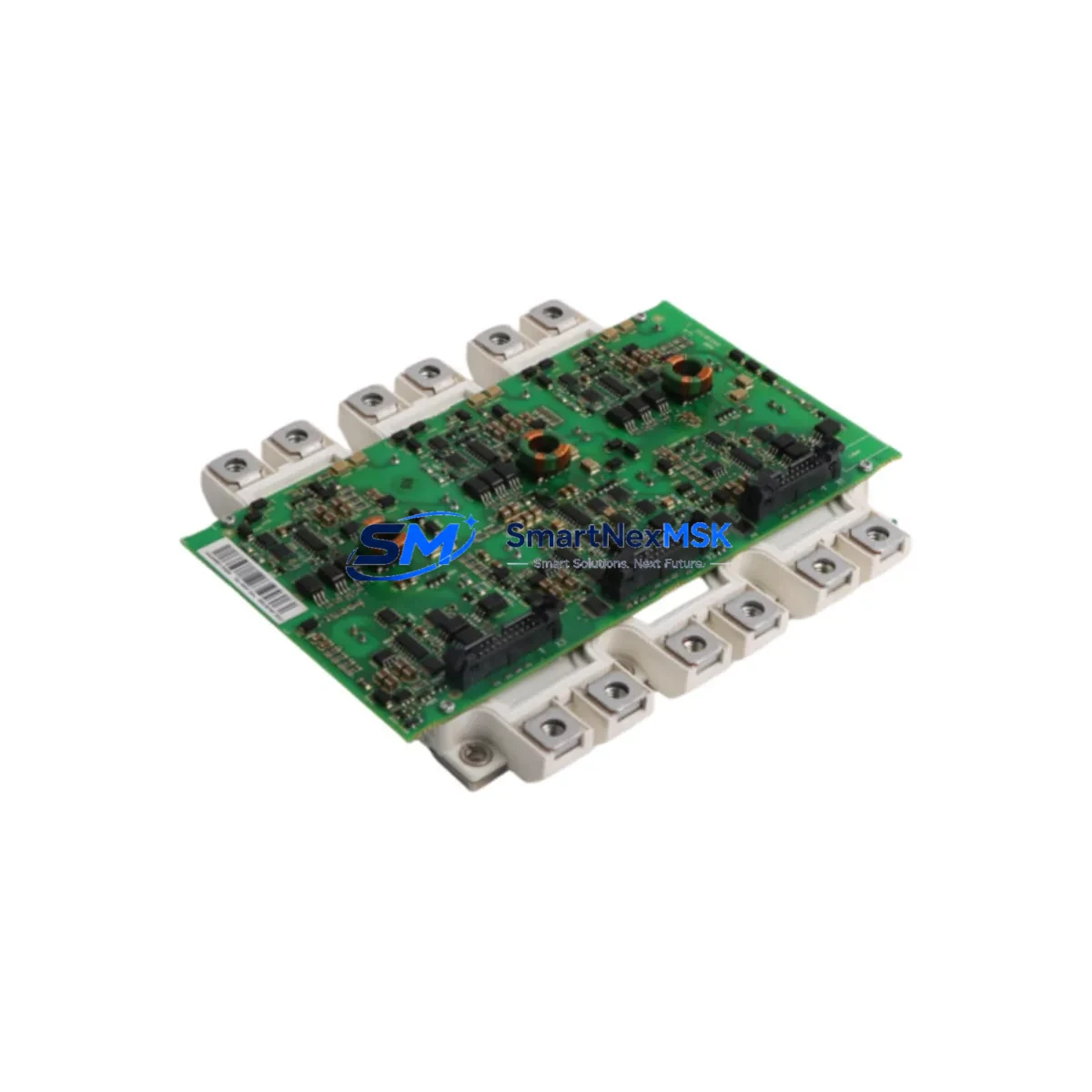

The ABB FS300R12KE3 AGDR-72C is a high-power IGBT module rated at 300A / 1200V, designed for use within ABB’s IHM-series medium-voltage drives and industrial power converters. As a critical switching element in the inverter bridge, this module directly governs the reliability of variable-speed drive systems across heavy industrial environments including steel mills, paper machines, water treatment plants, and offshore platforms. When this component fails or degrades, the result is immediate drive trip, unplanned production stoppage, and costly emergency maintenance windows.

Stocking a verified original ABB FS300R12KE3 AGDR-72C as a maintenance-ready spare is the single most effective measure a maintenance engineer can take to reduce mean time to repair (MTTR) for IHM-series drive cabinets. This listing provides a tested, original-specification module with full 12-month warranty coverage, pre-shipment electrical verification, and documented compatibility with the IHM drive platform.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the FS300R12KE3 AGDR-72C in an IHM drive cabinet is rarely an isolated task. Experienced maintenance engineers understand that an IGBT module failure is frequently symptomatic of broader stress conditions within the power stack. A structured inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure the replacement module operates within its rated parameters from day one.

During any planned or emergency replacement of this module, the following components and subsystems should be inspected or replaced as part of the same maintenance window:

• DC Bus Capacitor Bank: Electrolytic capacitors in the DC link (e.g., ABB SDCS-CON series or equivalent) degrade over time and can expose the IGBT module to voltage spikes beyond its VCES rating. Measure ESR and capacitance before re-energizing.
• Gate Drive Power Supply: The AGDR-72C gate driver board requires a stable ±15V isolated supply. Verify the auxiliary power supply module (e.g., APOW-01 or AINT-02 boards) output under load before installation.
• Fiber Optic Communication Links: IHM drives use fiber optic cables (NBOC-21 or RDCO-03 type) to transmit PWM gate signals. Inspect connectors and cable integrity — a degraded fiber link causes erratic switching and premature IGBT failure.
• Current Measurement Transducers (LEM modules): Hall-effect current sensors in the AC output phases must be verified for accuracy. A faulty LEM reading causes the drive controller to misinterpret load current, leading to overcurrent trips or undetected overloads.
• Snubber Capacitors and Clamp Diodes: These passive components absorb switching transients. Inspect for physical damage, discoloration, or capacitance drift, particularly on modules adjacent to the failed IGBT position.
• Thermal Interface Material (TIM): The liquid-cooled baseplate requires fresh thermal compound or phase-change pad upon reinstallation. Degraded TIM is a leading cause of thermal runaway in high-power IGBT modules.
• Coolant Flow and Temperature Sensors: Verify coolant inlet temperature (typically ≤40°C) and flow rate through the cold plate. Blocked or restricted coolant circuits will cause the replacement module to fail within hours of commissioning.
• I/O Interface Boards (AINT / AINP series): These boards handle analog and digital I/O between the drive controller and the power stage. Inspect for corrosion, loose connectors, and firmware version compatibility with the installed control software.
• Control Unit Firmware (ACS 6000 / ACS 5000 DDCS): Confirm that the drive control unit firmware supports the installed module variant. Mismatched firmware parameters (switching frequency, dead-time settings) can stress the new IGBT module immediately upon startup.
• Terminal Blocks and Bus Bar Connections: Inspect all power terminal connections for signs of arcing, oxidation, or loose torque. High-resistance connections generate localized heat that accelerates insulation breakdown and can damage the new module.

Procurement engineers should note that the FS300R12KE3 AGDR-72C has a long lead time from the OEM channel. Maintaining at least one spare unit per drive cabinet — alongside a matched set of gate driver boards and fiber optic links — is the industry-standard approach for critical process lines where unplanned downtime carries significant financial exposure.

Site Replacement Workflow

The following workflow is recommended for maintenance teams replacing the FS300R12KE3 AGDR-72C in an IHM-series drive cabinet:

1. Isolate and De-energize: Follow LOTO (Lockout/Tagout) procedures. Discharge the DC bus capacitors fully (verify with a calibrated voltmeter — wait until bus voltage is below 50V DC before proceeding).
2. Document Existing Configuration: Photograph all fiber optic connections, gate driver wiring, and bus bar positions before disassembly. Label each fiber cable with its corresponding IGBT position.
3. Remove Failed Module: Disconnect gate driver board connectors, fiber optic links, and power terminals in sequence. Unbolt the module from the cold plate. Note the torque values specified in the ABB IHM service manual.
4. Inspect Cold Plate and Bus Bars: Clean the cold plate surface, inspect for corrosion or erosion, and apply fresh thermal interface material. Inspect bus bar contact surfaces for arcing marks.
5. Install Replacement FS300R12KE3 AGDR-72C: Torque module bolts to specification. Reconnect gate driver board, fiber optic links, and power terminals in reverse order of disassembly. Verify all connections against the documented photographs.
6. Pre-Power Verification: With the drive isolated from the load, perform insulation resistance testing on the power circuit. Verify gate driver supply voltages before enabling PWM output.
7. Commissioning: Perform a no-load test run at reduced speed. Monitor IGBT junction temperature, DC bus voltage, and output current waveforms. Gradually increase to full load while monitoring thermal performance.
8. Documentation: Record the replacement date, module serial number, and post-commissioning test results in the equipment maintenance log. Update the spare parts inventory accordingly.

This structured approach minimizes the risk of repeat failures, ensures system compatibility, and provides a documented audit trail for maintenance compliance requirements.

Spare Parts Support FAQ

Q1: What is the expected service life of the FS300R12KE3 AGDR-72C, and when should it be proactively replaced?
Under normal operating conditions within rated parameters, ABB IGBT modules of this class are designed for 10–15 years of service life. However, in high-cycle applications (frequent starts/stops, regenerative braking, or high ambient temperatures), proactive replacement at 7–10 years is recommended. Power-on hours, thermal cycling count, and any history of overcurrent or overvoltage events should be reviewed when assessing replacement timing.

Q2: How do I verify compatibility between the FS300R12KE3 AGDR-72C and my specific drive cabinet configuration?
Compatibility is confirmed by cross-referencing the drive cabinet nameplate (ACS 6000 or ACS 5000 series), the existing module position label, and the ABB IHM spare parts list for your drive rating. The AGDR-72C gate driver board is specific to this module variant — do not substitute with AGDR-71C or AGDR-73C without consulting the ABB service documentation. Our technical team can assist with compatibility verification prior to order placement.

Q3: What pre-shipment testing is performed on each unit, and what does the 12-month warranty cover?
Every FS300R12KE3 AGDR-72C unit undergoes electrical verification prior to shipment, including gate threshold voltage check, collector-emitter leakage current measurement, and gate driver board functional test. The 12-month warranty covers manufacturing defects and electrical failure under normal operating conditions. It does not cover damage resulting from installation errors, operation outside rated parameters, or physical damage in transit. Warranty claims are processed with return shipment and replacement within 10 business days.

Q4: Can this module be used as a direct replacement for older or discontinued ABB IGBT variants in the same drive platform?
The FS300R12KE3 AGDR-72C is the current production variant for the 300A/1200V position in the IHM drive platform. It is a direct replacement for earlier variants in the same current/voltage class, provided the gate driver board and fiber optic interface are also updated to match. Cross-generation substitution without updating the gate driver board is not recommended and may result in incompatible switching characteristics. Contact our technical support team for cross-reference assistance before ordering.
