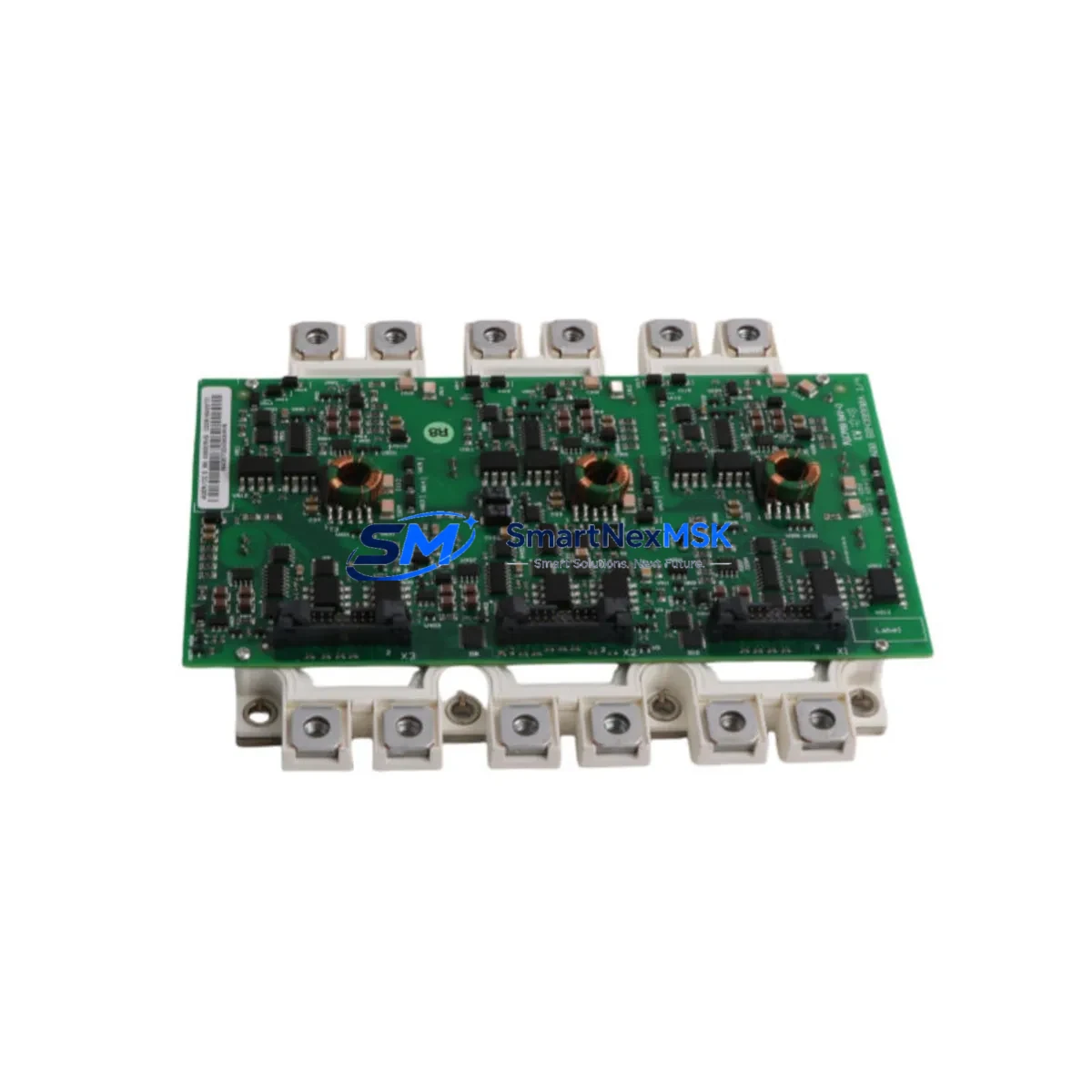

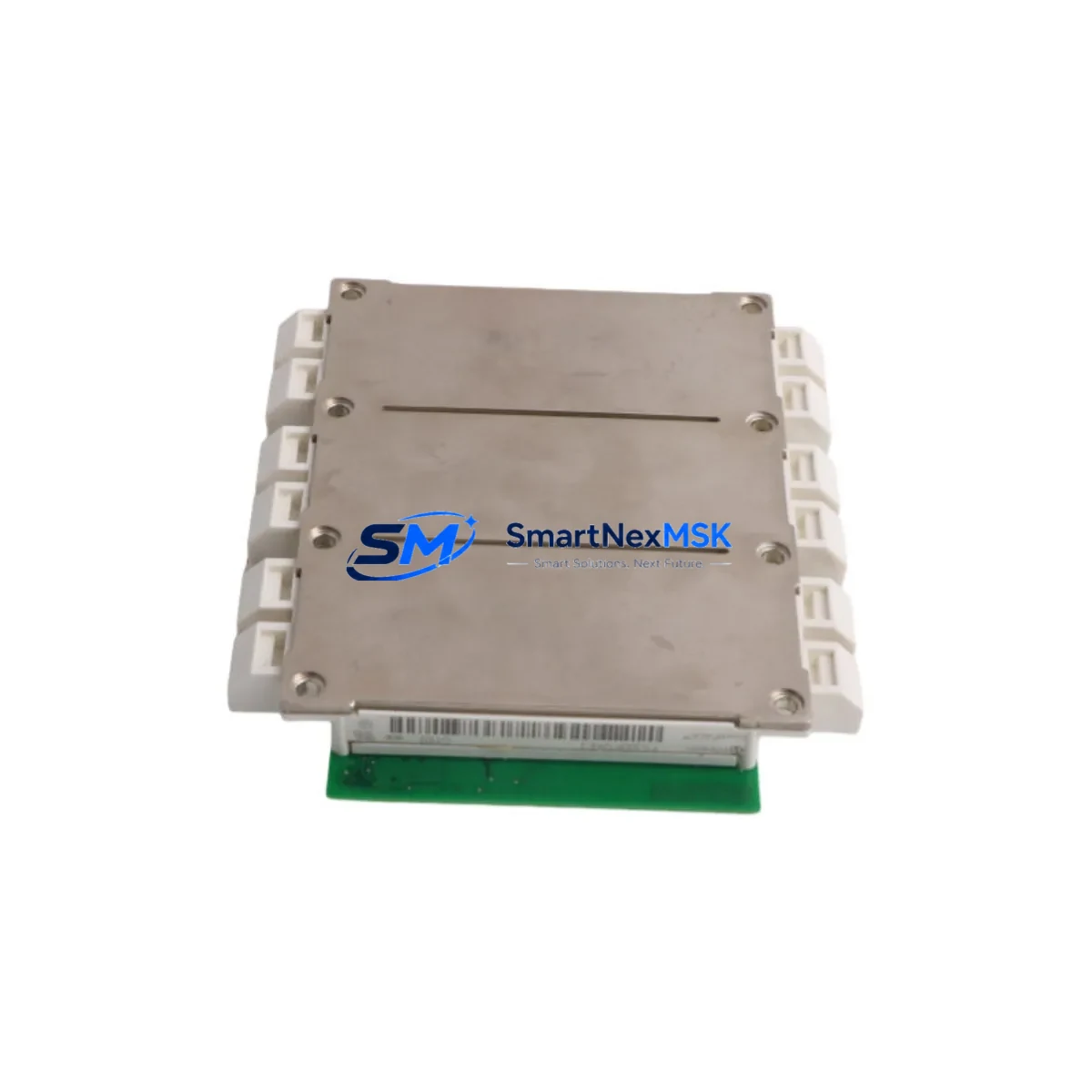

ABB FS300R12KE3/AGDR-72CS Retrofit-Ready IGBT Module for ACS800 Control Systems
The ABB FS300R12KE3/AGDR-72CS is a 300A / 1200V IGBT power module paired with the AGDR-72CS gate driver unit, engineered as a direct retrofit solution for ABB ACS800 series variable frequency drives. Whether you are replacing a failed module in an aging drive cabinet, upgrading a legacy production line, or restoring a discontinued spare part, this assembly delivers verified electrical compatibility, reduced commissioning time, and a 12-month warranty backed by pre-shipment functional testing.
Industrial facilities running ACS800-01, ACS800-02, ACS800-04, and ACS800-07 drive variants frequently encounter end-of-life IGBT failures that threaten continuous production. The FS300R12KE3 module — originally manufactured by Infineon and integrated into ABB’s drive platform — is no longer in active production through standard distribution channels, making verified replacement stock critical for maintenance engineers and system integrators managing aging automation infrastructure.
Upgrade Compatibility Table
| Parameter | FS300R12KE3/AGDR-72CS | Notes |
|---|---|---|
| Collector Current (Ic) | 300 A | Match drive rating before installation |
| Collector-Emitter Voltage (Vce) | 1200 V | Standard for 690V AC drive applications |
| Gate Driver | AGDR-72CS | Direct plug-in replacement for ACS800 gate driver board |
| Compatible Drive Series | ACS800-01 / -02 / -04 / -07 | Verify frame size and power rating |
| Mounting Interface | Standard baseplate, M6 terminals | Confirm heatsink torque spec: 3–4 Nm |
| Communication Compatibility | DDCS / RDCO fiber optic | No protocol migration required |
| Replacement Scope | Drop-in module + gate driver | No firmware change required in most cases |
| Commissioning Requirement | DC bus discharge, torque check, gate signal verification | Use DriveWindow or DriveStudio for parameter backup |
| Pre-Shipment Testing | Yes — functional gate drive and insulation test | Test report available on request |
| Warranty | 12 Months | Covers manufacturing defects and gate driver function |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the FS300R12KE3/AGDR-72CS begins well before the module arrives on site. Maintenance teams should first perform a full parameter backup using DriveWindow Light or DriveStudio software, capturing all application macros, motor data, and PID tuning values stored in the ACS800 control board. The RMIO-11C or RMIO-02C control board retains these parameters independently of the power stage, so a clean module swap does not require reprogramming from scratch in most installations.
Before removing the failed module, verify that the DC bus is fully discharged — typically below 50V — using a calibrated multimeter. The ACS800 intermediate DC circuit can retain dangerous charge for several minutes after mains disconnection. Confirm that the AGDR-72CS gate driver fiber optic connections to the RMIO board are labeled and photographed prior to removal, as the DDCS fiber links (TX/RX pairs) must be reconnected in the correct sequence to avoid gate signal inversion faults.
Terminal wiring on the FS300R12KE3 follows the standard Infineon module pinout: U, V, W AC output terminals and DC+ / DC- bus bars. If the existing installation uses NINT-02C or AINT-02C interface boards for multi-drive common DC bus configurations, verify that the new module’s gate timing is synchronized with the master inverter section. For drives equipped with RDCO-03C DDCS communication adapters connecting to an AC500 or AC800M DCS controller, no protocol reconfiguration is required — the ACS800 drive object model remains unchanged after a power module replacement.
I/O wiring connected to the RAIO-01 analog I/O extension or RDIO-01 digital I/O module does not need to be disturbed during a power module swap, as these modules interface exclusively with the RMIO control board. However, if the retrofit is part of a broader cabinet upgrade that includes replacing the APBU-44C branching unit or the NBRA-653C brake chopper module, coordinate the sequence carefully to avoid introducing ground faults during partial energization tests.
For installations where the ACS800 drives a high-inertia load such as a centrifuge, compressor, or large pump, confirm that the motor flux model and speed controller gains stored in parameter group 99 are restored correctly after the swap. A brief no-load test run at reduced speed (10–20 Hz) before returning to full production load is strongly recommended to verify gate signal integrity and thermal performance of the new module.
Downtime Control During System Migration
Minimizing unplanned downtime during an IGBT module replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, stage all replacement components — including the FS300R12KE3/AGDR-72CS assembly, thermal interface paste, M6 hardware, and fiber optic patch cables — at the work site. Confirm that a complete parameter backup has been saved to both the DriveStudio project file and a USB memory stick inserted into the ACS800 panel.
The physical module swap on an ACS800 frame R8 or R9 drive typically requires 45–90 minutes for an experienced technician. The most time-sensitive steps are DC bus discharge verification, heatsink surface preparation, and gate driver fiber reconnection. Using a torque wrench calibrated to the manufacturer’s specification (3–4 Nm for M6 power terminals) eliminates the risk of loose connections that could cause arcing during the first energization.
After module installation, perform an insulation resistance test between the DC bus and chassis ground before applying mains power. Power up the drive in local control mode with the motor disconnected, verify that the AGDR-72CS gate driver status LEDs indicate normal operation, and confirm that no fault codes appear on the ACS800 panel display. Restore the parameter backup, reconnect the motor, and perform a supervised test run before returning the drive to automatic process control. This structured sequence consistently achieves full production restoration within a 2–4 hour maintenance window, protecting process continuity and reducing the risk of secondary faults caused by rushed commissioning.
Retrofit Support FAQ
Q1: Is the FS300R12KE3/AGDR-72CS a direct drop-in replacement for the original ABB ACS800 IGBT assembly?
Yes. The FS300R12KE3 module and AGDR-72CS gate driver are the original components specified for ACS800 drives in the affected frame and power ratings. The assembly is a direct mechanical and electrical replacement requiring no modifications to the drive cabinet, control wiring, or firmware, provided the drive’s parameter set is backed up and restored correctly.
Q2: What commissioning steps are required after installation?
After physical installation, perform a DC bus insulation test, reconnect fiber optic gate driver cables in the correct TX/RX sequence, power up in local mode with motor disconnected, verify AGDR-72CS status indicators, restore the parameter backup via DriveStudio or DriveWindow, and conduct a supervised no-load test run before returning to process control.
Q3: How do I verify terminal wiring compatibility with my existing ACS800 installation?
The FS300R12KE3 uses the standard Infineon 62mm module footprint with M6 AC output terminals (U, V, W) and DC bus connections (DC+/DC−). Compare the terminal layout against your existing module before installation. Photograph all connections before removal and verify torque values with a calibrated torque wrench during reassembly.
Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every FS300R12KE3/AGDR-72CS unit undergoes functional gate drive signal testing and high-voltage insulation verification before shipment. The 12-month warranty covers manufacturing defects, gate driver malfunction, and insulation failure under normal operating conditions. A test report is available upon request. Contact sales@smartnexmsk.com for warranty claims or technical support.
