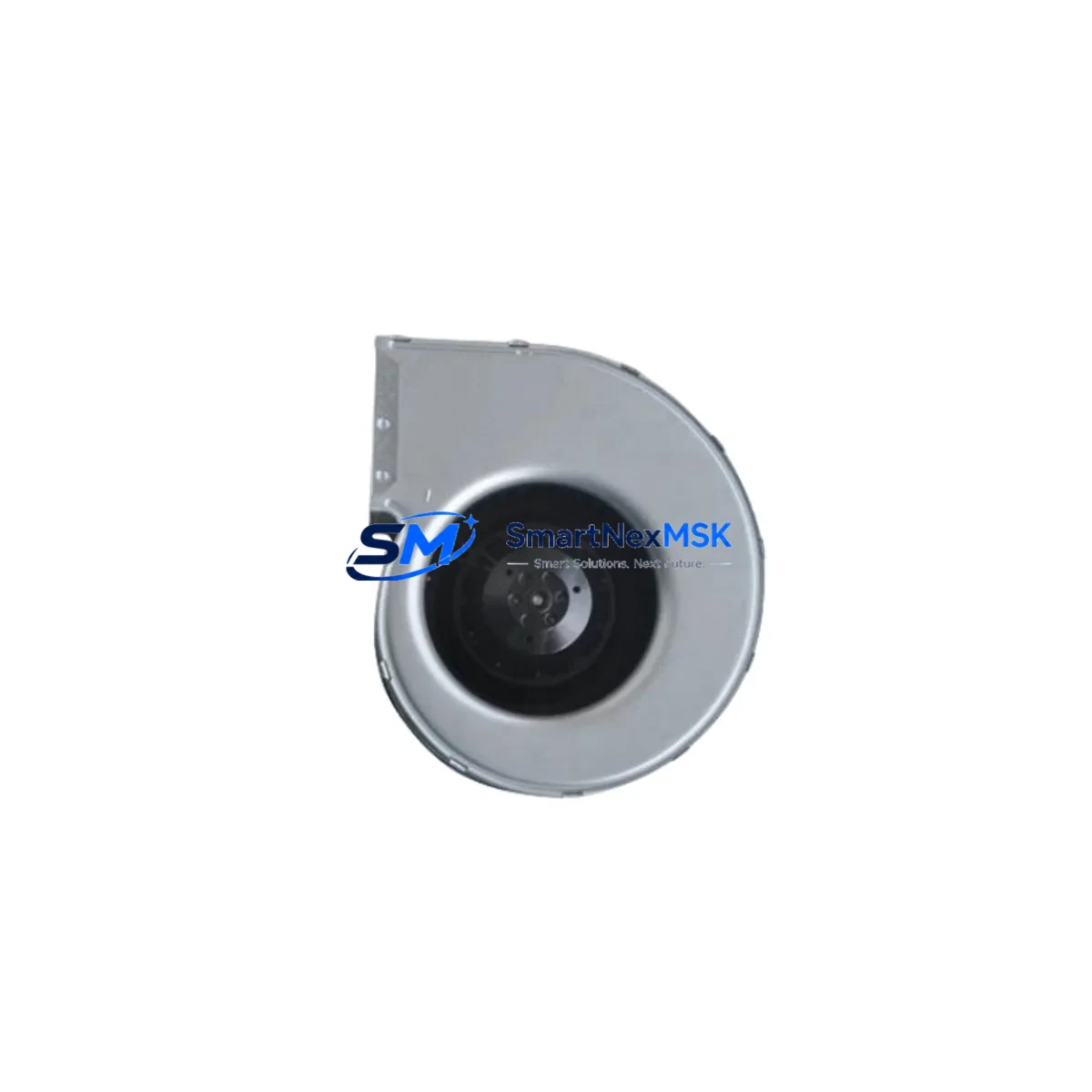

ABB G2E140-PI32-43 Retrofit-Ready Cooling Fan for ACS Drive Systems
The ABB G2E140-PI32-43 is an axial cooling fan originally manufactured by ebm-papst and OEM-integrated into ABB’s ACS series variable frequency drive (VFD) cabinets. As aging ACS550, ACS800, and ACS880 drive systems approach end-of-service life or require preventive maintenance, sourcing a verified drop-in replacement for this fan becomes a critical step in any retrofit or upgrade project. Our stock of G2E140-PI32-43 units is pre-tested, fully compatible, and backed by a 12-month warranty, ensuring your drive cabinet returns to full thermal performance with minimal downtime.
Drive cabinet cooling is not a peripheral concern — it is a core reliability factor. The G2E140-PI32-43 operates at 230V AC, delivering the airflow capacity required to maintain safe operating temperatures across the IGBT modules, DC bus capacitors, and control boards inside ACS-series enclosures. When this fan degrades or fails, thermal protection trips become frequent, output derating occurs, and in worst cases, unplanned shutdowns halt production lines. Replacing the fan with a verified G2E140-PI32-43 unit restores the original thermal envelope and eliminates the root cause of these fault conditions.
Upgrade Compatibility Table
| Parameter | Specification / Recommendation |
|---|---|
| Part Number | G2E140-PI32-43 |
| Manufacturer | ebm-papst (OEM for ABB) |
| Supply Voltage | 230V AC, 50/60 Hz |
| Fan Diameter | 140 mm |
| Compatible Drive Series | ACS550, ACS800, ACS880 (frame sizes R5–R9) |
| Mounting Interface | Direct bolt-on, original mounting holes retained |
| Connector Type | 2-pin or 3-pin Molex-style (verify against cabinet wiring harness) |
| Replacement Recommendation | Direct drop-in; no firmware or parameter changes required |
| Commissioning Notes | Verify airflow direction (exhaust vs. intake) before installation |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
A G2E140-PI32-43 replacement is rarely an isolated task. In most retrofit scenarios, the drive cabinet is being partially or fully modernized, and the cooling fan replacement is one step in a broader upgrade sequence. Engineers planning an ACS800 or ACS550 cabinet overhaul typically address the fan alongside other aging components to maximize the value of each planned maintenance window.
During a typical ACS880 cabinet retrofit, the replacement sequence often begins with the ACS880-01 drive module or its predecessor ACS800-01, followed by inspection of the RDCU-02C control unit and its fiber optic communication links. The AINT-02C inverter control board and APBU-44C pulse encoder interface unit are frequently flagged for replacement during the same outage window. On the power supply side, the SNAT 601 VAR power supply board and associated DC bus fuse assemblies should be inspected and replaced if capacitor ESR values are out of specification.
For systems using PROFIBUS or Modbus RTU communication, the RPBA-01 PROFIBUS adapter module or RMBA-01 Modbus adapter may require reconfiguration or replacement if the communication protocol is being migrated as part of the upgrade. HMI panels such as the ACS-CP-C control panel or the legacy CDP312R panel should be tested for compatibility with the upgraded drive firmware version before the cabinet is returned to service.
The cooling fan itself — the G2E140-PI32-43 — sits at the top of the thermal management chain. Before installation, confirm the wiring harness connector pinout against the original cabinet drawing. In some ACS800 frame R7 and R8 configurations, a fan contactor relay controls fan startup sequencing; verify this relay is functional and that its auxiliary contacts are correctly wired to the drive’s fan feedback input. If the cabinet uses a thermistor-based fan monitoring circuit, confirm the replacement fan’s thermistor resistance matches the original specification to avoid false thermal fault trips.
For larger ACS880 multi-drive cabinet systems, the cooling architecture may include both internal recirculation fans and external exhaust fans. The G2E140-PI32-43 typically serves the exhaust function. Coordinate its replacement with inspection of any internal air baffles and filter mats to ensure the full airflow path is restored after the retrofit.
Downtime Control During System Migration
Minimizing production downtime during a drive cabinet cooling fan replacement requires careful pre-staging and a disciplined commissioning sequence. Before the planned outage, confirm that the replacement G2E140-PI32-43 unit has been received, visually inspected, and bench-tested for correct rotation direction and current draw. Having the unit on-site and verified before the maintenance window eliminates the most common source of extended downtime: waiting for parts.
During the outage, follow a structured lockout/tagout (LOTO) procedure before opening the drive cabinet. Document the existing fan wiring connections with photographs before disconnecting. The G2E140-PI32-43 is a direct mechanical replacement, so no changes to the drive’s parameter set are required — the drive’s cooling fan control logic, fault thresholds, and thermal model remain unchanged. This means the original PLC program, HMI screen configurations, and SCADA tag mappings are fully preserved through the fan replacement.
After installation, perform a controlled power-up sequence: energize the cabinet auxiliary supply first to verify fan operation before enabling the main DC bus. Confirm the fan runs at correct speed, airflow direction is correct, and no vibration or bearing noise is present. Log the commissioning result and update the cabinet maintenance record. With a pre-staged, pre-tested G2E140-PI32-43 unit, the total replacement time from LOTO to cabinet back-online is typically under two hours for a single-fan configuration.
Retrofit Support FAQ
Q1: Is the G2E140-PI32-43 a direct replacement for all ACS550 and ACS800 frame sizes?
The G2E140-PI32-43 is compatible with ACS550 and ACS800 frame sizes R5 through R9 that use 140mm axial fans in the exhaust position. Always verify the original fan part number on the cabinet nameplate or wiring diagram before ordering. Some frame variants use different fan models; our technical team can confirm compatibility based on your drive serial number.
Q2: Does replacing the cooling fan require any drive parameter changes or re-commissioning?
No. The G2E140-PI32-43 is a mechanical and electrical drop-in replacement. The drive’s thermal model, fan fault detection logic, and all application parameters remain unchanged. No re-commissioning of the drive, PLC program, or HMI is required after fan replacement.
Q3: What pre-shipment testing is performed on each unit?
Every G2E140-PI32-43 unit undergoes electrical continuity testing, rotation direction verification, and current draw measurement at rated voltage before shipment. Units that do not meet specification are rejected. A test record is available upon request.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, premature bearing failure, and electrical faults under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, contamination, or operation outside the rated voltage and temperature range. Warranty claims are processed within 5 business days of receiving the returned unit.
