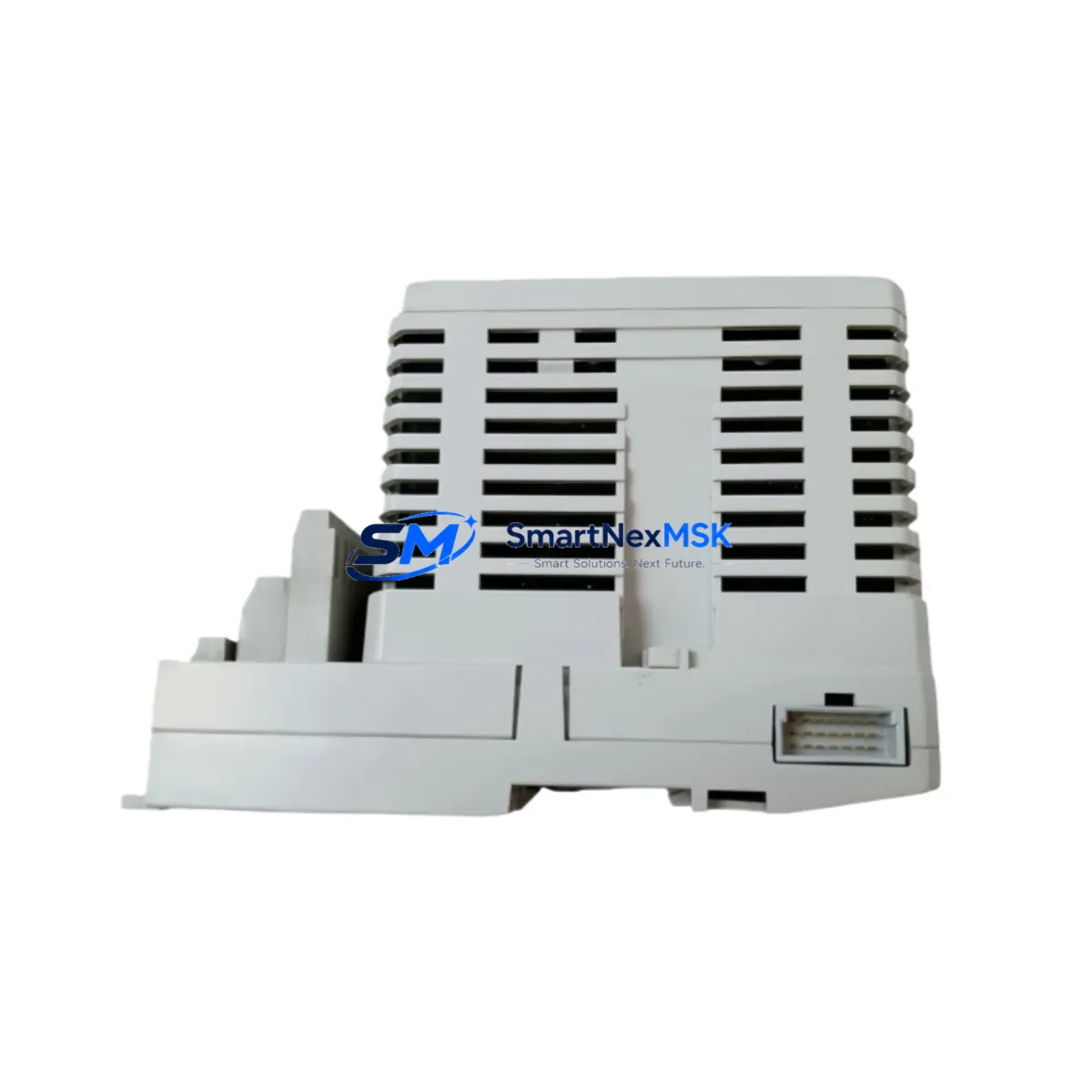

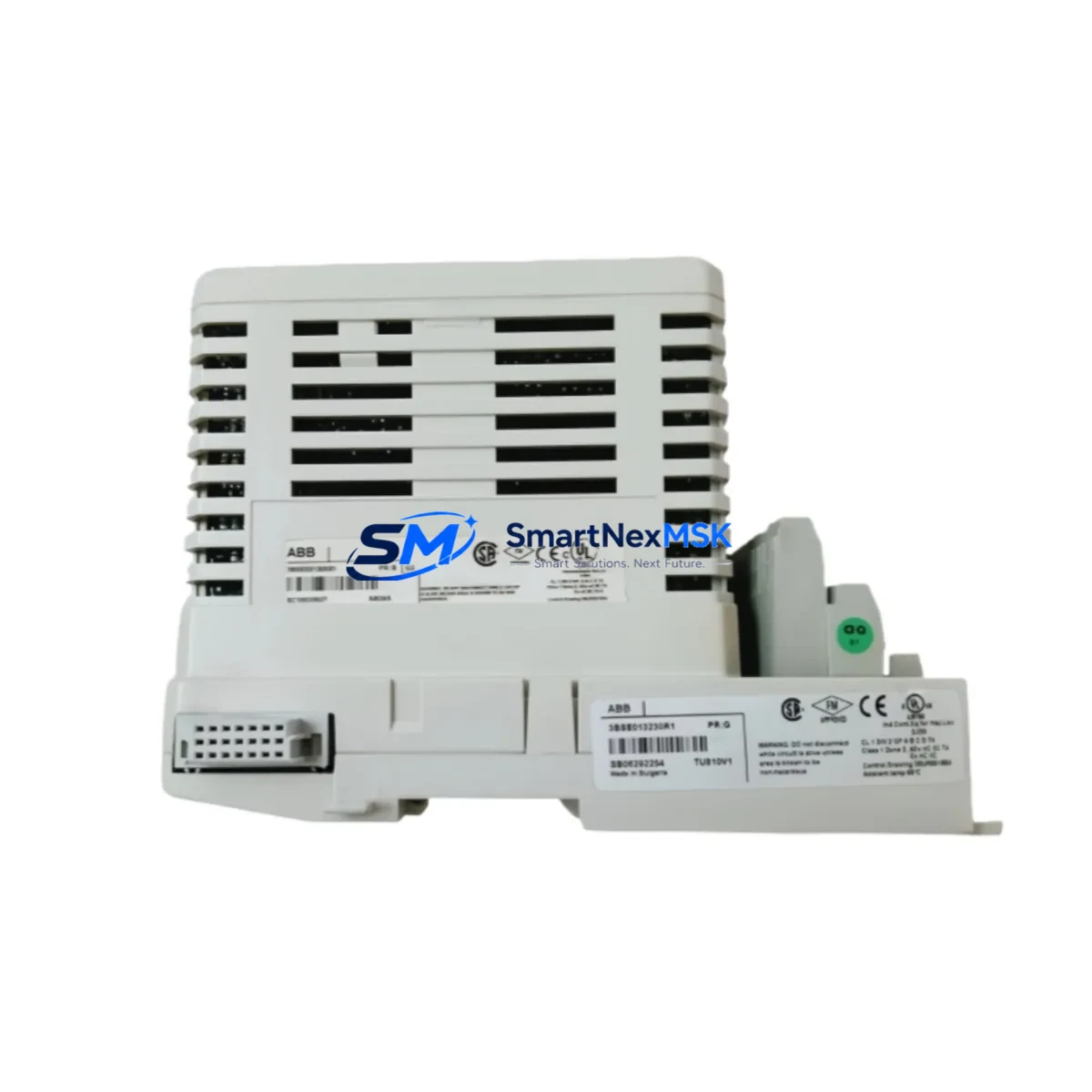

ABB GHV0360875R0035 Retrofit-Ready Drive Board ACS800

ABB GHV0360875R0035 Retrofit-Ready Control Power Drive Board for ACS800 Control Systems

The ABB GHV0360875R0035 is a control power drive board engineered for the ACS800 series variable frequency drive platform. As legacy ACS800 installations age and original spare parts become increasingly difficult to source, this retrofit-ready replacement board provides a verified, drop-in compatible solution for system integrators, maintenance engineers, and plant operators managing aging automation infrastructure. Whether you are replacing a failed board in an emergency shutdown scenario or proactively upgrading a control cabinet ahead of a planned maintenance window, the GHV0360875R0035 delivers the electrical compatibility and firmware alignment required for seamless integration into existing ACS800 drive assemblies.

This board is sourced, inspected, and dispatched from our Xiamen warehouse with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify power rail output, gate drive signal integrity, and communication interface continuity before leaving our facility. Stock is maintained on a rolling basis to support urgent retrofit and emergency replacement requirements across global industrial sites.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the GHV0360875R0035 into an existing ACS800 installation requires a structured retrofit assessment before the board is physically installed. Begin by auditing the drive cabinet’s power supply capacity: the ACS800 control section draws regulated 24 VDC from the internal APOW power supply module, and any degradation in the APOW output will affect the replacement board’s stability. If the APOW module shows signs of aging — evidenced by voltage ripple or intermittent fault codes — it is advisable to replace it concurrently with the control power drive board to avoid repeat failures.

Terminal wiring should be documented in full before the old board is removed. The ACS800 RMIO control board and the RDCO DDCS communication adapter board are typically mounted in close proximity to the control power drive section; their wiring harnesses must be carefully labeled and photographed to ensure correct reconnection. In multi-drive configurations using the NDBU-95 branching unit for DDCS fiber optic distribution, verify that the fiber optic cables connecting each drive to the master controller are undamaged and correctly routed before powering up the retrofitted drive.

For installations where the ACS800 communicates with a higher-level control system via a fieldbus adapter — such as the RPBA-01 PROFIBUS adapter or the RCAN-01 CANopen adapter — confirm that the fieldbus node address and baud rate settings stored in the drive parameters are preserved or re-entered after the board replacement. Parameter backup using DriveWindow or Drive Composer software is strongly recommended before any hardware intervention. If the site uses an ABB Panel Bus connection to an ACS-CP-D or ACS-CP-C control panel, verify that the panel communication link is re-established and that HMI screen data points are correctly mapped after commissioning.

In retrofit projects involving older ACS600 to ACS800 migration paths, the GHV0360875R0035 is frequently specified alongside updated I/O terminal modules and revised motor control parameter sets to accommodate differences in vector control algorithms between the two platforms. Engineers managing such migrations should also account for changes in the standard macro parameter structure between ACS600 and ACS800 firmware generations.

Downtime Control During System Migration

Minimizing production downtime during a control power drive board replacement on an ACS800 drive requires disciplined pre-work and a clear commissioning sequence. The most effective approach is to complete all parameter documentation, wiring photography, and spare parts staging before the planned maintenance window begins. Use DriveWindow or Drive Composer to export a full parameter backup to a laptop or USB drive; this backup can be reloaded directly after the new GHV0360875R0035 board is installed, eliminating the need to manually re-enter motor data, protection thresholds, and application macro settings.

Where the process cannot tolerate a full drive shutdown, consider whether a bypass contactor arrangement is in place that allows the motor to run across-the-line during the maintenance interval. If no bypass exists and the drive controls a critical process — such as a pump, compressor, or conveyor — coordinate the replacement during a scheduled production break or shift changeover to limit the impact on output continuity.

After the board is installed and the drive is powered up, perform a systematic commissioning check: verify that the drive recognizes the control board, that all I/O signals are correctly mapped, that the motor identification run completes without fault, and that the DDCS or fieldbus communication link is active and error-free. Document the commissioning result and retain the pre- and post-swap parameter files for the site maintenance record. This documentation supports warranty claims and provides a reference baseline for future maintenance cycles.

Retrofit Support FAQ

Q1: Is the GHV0360875R0035 a direct replacement for the original ABB part, or does it require additional adaptation?
A: The GHV0360875R0035 is a direct form-fit-function replacement for the original ABB control power drive board used in ACS800 series drives. No mechanical adaptation or wiring modification is required for standard ACS800 cabinet configurations. Verify the drive frame size and internal layout against the part number before ordering if your installation has been previously modified.

Q2: What commissioning steps are required after installing the replacement board?
A: After installation, restore the parameter backup using DriveWindow or Drive Composer. Verify motor data (nominal voltage, current, frequency, speed, power), re-run the motor identification routine if required, confirm I/O mapping, and test all fieldbus or DDCS communication links. Check that all protection functions — overcurrent, overvoltage, earth fault — are active and correctly set before returning the drive to service.

Q3: How do I verify wiring compatibility before installing the board?
A: Compare the connector layout and terminal designations on the replacement board against the wiring diagram in the ACS800 Hardware Manual for your specific drive frame size. Photograph all existing wiring before removal. Pay particular attention to the 24 VDC power input, gate drive signal connectors, and any fiber optic or ribbon cable connections to the RMIO or RDCO boards.

Q4: What does the 12-month warranty cover, and how is a warranty claim initiated?
A: The 12-month warranty covers manufacturing defects and functional failures occurring under normal operating conditions within 12 months of the shipment date. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental contamination. To initiate a warranty claim, contact sales@smartnexmsk.com with your order reference, a description of the fault, and any available fault log data from the drive. Replacement or repair will be arranged promptly upon verification.
