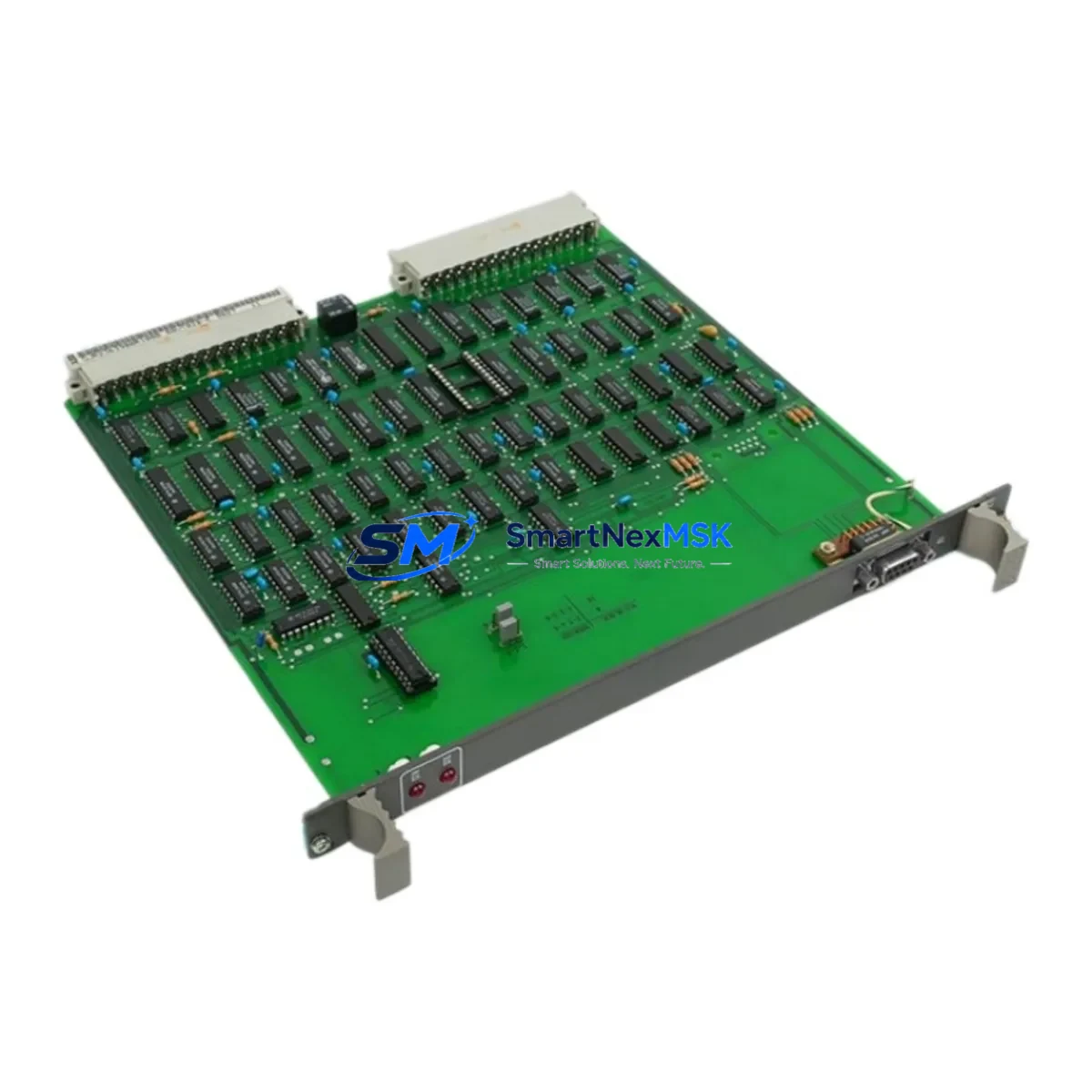

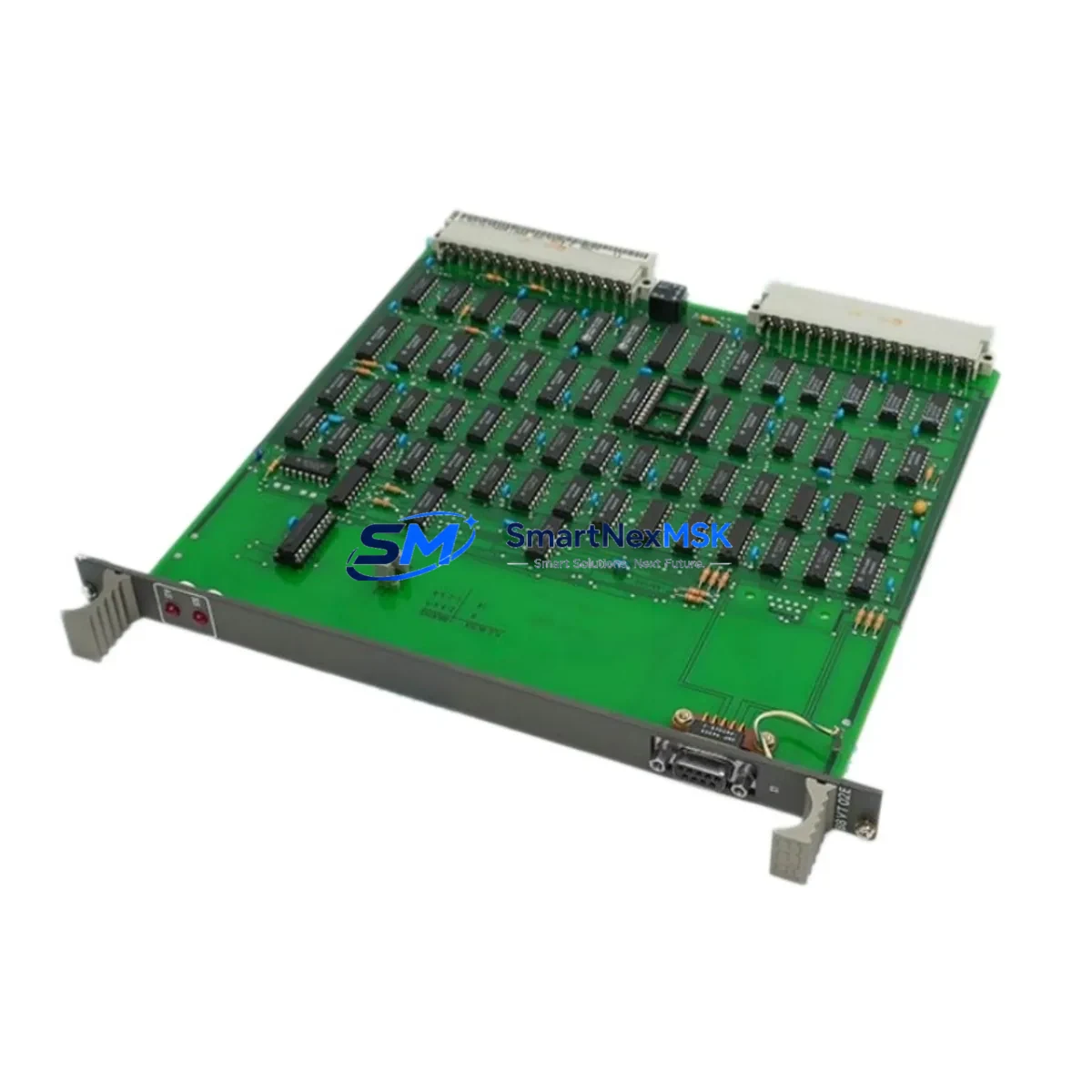

ABB GJR2363900R1000 88VT02A-E Safety-Enhanced I/O Module

ABB GJR2363900R1000 88VT02A-E Safety-Enhanced I/O Module: Reliable Control in Harsh Industrial Sites

The ABB GJR2363900R1000 (88VT02A-E) is a ruggedized digital I/O module engineered for the ABB AC500 PLC platform, purpose-built to sustain continuous, uninterrupted control in the most demanding industrial environments. Designed to operate reliably under high electrical noise, wide temperature swings, mechanical vibration, and aggressive duty cycles, this module is a cornerstone component for safety-critical automation architectures across heavy industry, process plants, and infrastructure facilities.

In high-stakes control cabinets where signal integrity directly determines process safety, the GJR2363900R1000 delivers consistent I/O performance without the signal drift, contact bounce, or communication timeouts that can trigger nuisance trips or — worse — mask genuine fault conditions. Its hardened design addresses the root causes of field failures: surge transients on I/O lines, ground loops from shared power rails, and EMI coupling from adjacent variable frequency drives or motor starters.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest I/O link. The ABB GJR2363900R1000 88VT02A-E is designed to integrate seamlessly into a layered protection architecture alongside complementary AC500 platform components. In a typical heavy-industry control cabinet, this module operates in conjunction with the ABB PM573-ETH CPU module, which handles the primary logic execution and Ethernet-based SCADA communication. The CPU’s deterministic scan cycle depends on stable, low-latency I/O data — exactly what the GJR2363900R1000 delivers even under high channel-count loading.

On the power supply side, the module draws from the AC500 backplane, which is typically fed by an ABB CP-E 24/10.0 stabilized 24 VDC power supply unit. Pairing this with an ABB SACE Tmax XT series circuit breaker on the incoming AC feed ensures that upstream faults are isolated before they can propagate into the I/O backplane and cause module brownout or data corruption. For applications with high inductive load switching — such as motor contactors or solenoid valves wired to the output channels — installing ABB RC snubber modules or surge suppressors directly at the load terminals prevents back-EMF spikes from coupling into the I/O circuitry.

In safety interlock loops, the GJR2363900R1000 is frequently deployed alongside ABB Pluto safety controllers or third-party safety relays such as the Pilz PNOZ X series, where its digital inputs monitor emergency stop circuits, guard door switches, and light curtain outputs. The module’s galvanic isolation ensures that a field-side fault — such as a wiring short or ground fault — does not propagate into the PLC logic bus and cause a system-wide shutdown. Communication integrity is further protected when the AC500 rack is networked via ABB CI592-CS31 communication interface modules, which extend the I/O bus over CS31 fieldbus to remote I/O stations without introducing latency or packet loss.

For installations in electrically noisy environments — such as those with ABB ACS880 variable speed drives operating nearby — proper cabinet grounding, shielded cable routing, and the use of ABB LFZX ferrite core filters on signal cables are recommended to complement the module’s built-in EMI immunity. This holistic approach to cabinet design ensures that the GJR2363900R1000 performs at its rated specification throughout its service life, minimizing unplanned downtime and reducing the risk of spurious output activations in safety-critical circuits.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units and hydrocracker control rooms, the GJR2363900R1000 monitors and controls valve actuators, pump motor starters, and pressure relief interlock circuits. Its wide operating temperature range and surge-hardened I/O channels allow it to function reliably in areas subject to heat radiation from process equipment and transient voltage events from large motor starts on shared power buses.

Electric Power Generation & Substation Automation: In coal-fired, gas turbine, and hydroelectric generating stations, this module is used within turbine governor control panels and excitation system interlocks. The galvanic isolation between field wiring and the PLC backplane is critical in these environments, where ground potential differences between control room and field equipment can reach tens of volts and induce common-mode noise on unprotected I/O channels.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide ambient temperature swings. The ruggedized construction of the 88VT02A-E variant makes it well-suited for conveyor belt safety interlock systems, crusher motor protection circuits, and ventilation fan control panels in these environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous, unattended operation of pumping stations, chemical dosing systems, and filtration controls. The GJR2363900R1000 provides the I/O reliability needed for 24/7 unmanned operation, with its extended temperature rating accommodating outdoor pump station enclosures subject to seasonal temperature extremes.

Metallurgy & Steel Production: Electric arc furnace control systems, rolling mill automation, and ladle handling cranes generate intense electromagnetic interference from high-current switching. The module’s EN 61000-6-2 industrial immunity rating ensures that I/O signal integrity is maintained even in close proximity to these high-power loads, preventing false trips of safety interlocks that could damage equipment or endanger personnel.

Port & Terminal Automation: Container crane PLC systems and automated guided vehicle (AGV) control architectures in port terminals require I/O modules that can withstand the mechanical shock and vibration of heavy lifting operations while maintaining communication with the central SCADA system. The AC500 platform’s high-speed backplane, served by modules like the GJR2363900R1000, supports the fast I/O update rates needed for precise crane positioning and anti-sway control.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions as specified in the ABB AC500 platform documentation. If a module fails within the warranty period, we provide a direct replacement from stock after receiving the defective unit. Warranty claims are processed within 3–5 business days of receipt of the returned module. Contact sales@smartnexmsk.com to initiate a claim.

Q2: What pre-shipment testing is performed on each unit?
Every GJR2363900R1000 unit undergoes a full functional test on a live ABB AC500 rack prior to dispatch. This includes I/O channel continuity verification, backplane communication handshake confirmation, and a power-on self-test cycle. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q3: Is this module compatible with all AC500 CPU variants and expansion racks?
The GJR2363900R1000 88VT02A-E is designed for the ABB AC500 platform and is compatible with the standard AC500 I/O bus. It is recommended to verify compatibility with your specific CPU generation (PM5xx or PM5xx-2) and rack configuration using the ABB AC500 system catalog or by contacting our technical team with your existing rack configuration details before ordering.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated buffer stock of the GJR2363900R1000 to support long-term spare parts programs for facilities with multi-year maintenance contracts. For customers requiring guaranteed availability over a 12–36 month horizon, we offer reserved stock agreements. This ensures that planned maintenance shutdowns and emergency replacements are not delayed by supply chain disruptions. Contact our sales team to discuss a supply agreement tailored to your facility’s maintenance schedule.
