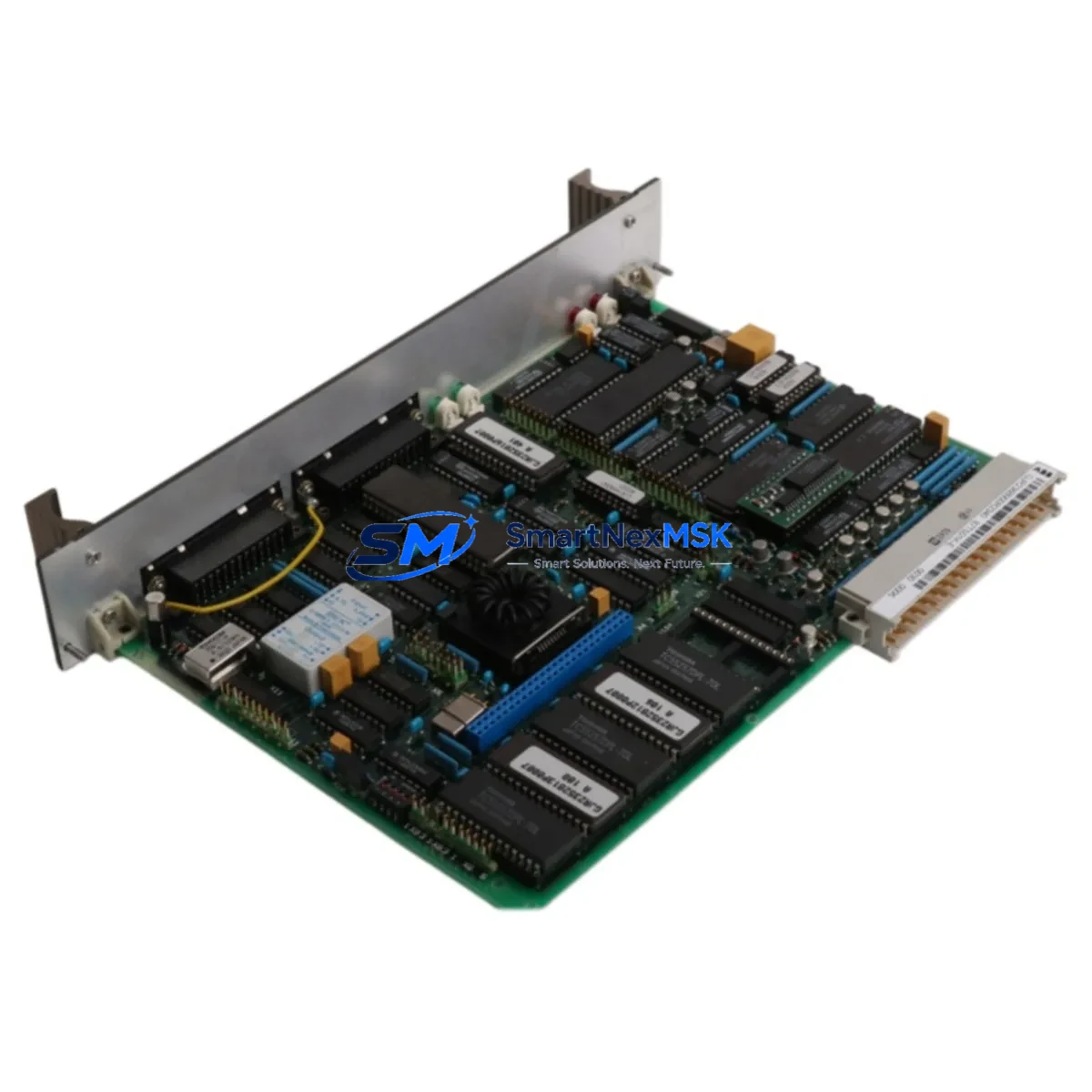

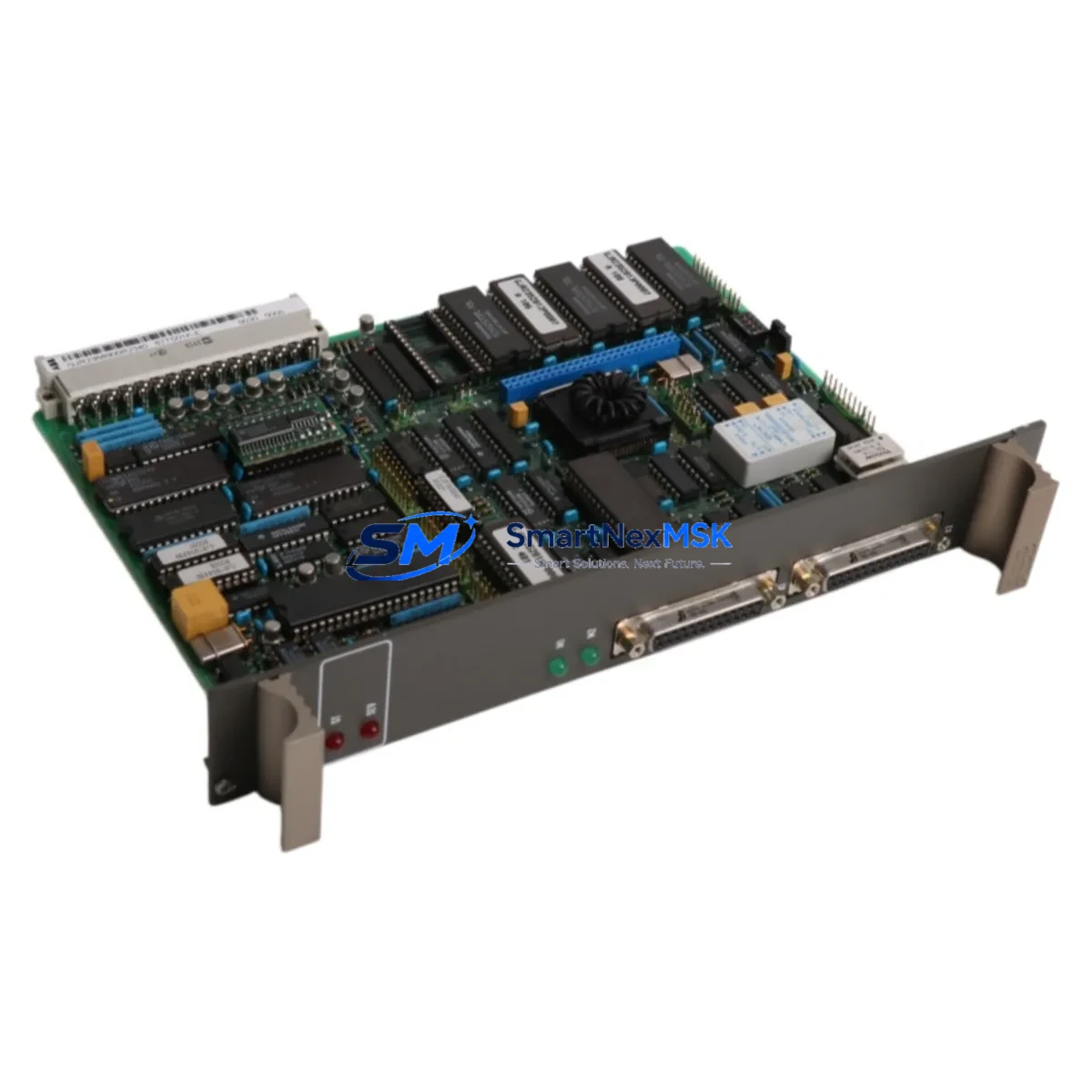

ABB GJR2368900R1550 87TS01K-E Retrofit-Ready Digital I/O for S800

ABB GJR2368900R1550 87TS01K-E Retrofit-Ready Digital I/O for S800 Control Systems

The ABB GJR2368900R1550 (87TS01K-E) is a digital I/O module engineered for the ABB S800 I/O platform, widely deployed in process automation, power generation, and continuous manufacturing environments. As legacy S800 installations age and original modules reach end-of-life, the GJR2368900R1550 serves as a verified retrofit solution — enabling engineers to restore full I/O capacity without redesigning the control architecture or replacing the entire rack assembly.

This module is compatible with the S800 I/O station infrastructure, including the TB820V2 ModuleBus modem, CI830 PROFIBUS adapter, and CI840A FOUNDATION Fieldbus linking device. It mounts directly onto standard S800 I/O carrier units such as the TB807 and TB811, preserving existing terminal wiring and DIN rail footprint. No mechanical modification to the control cabinet is required.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the GJR2368900R1550 into a running S800 I/O station begins with a thorough pre-retrofit audit. Engineers should document the existing module slot assignments across the S800 rack, verify the power budget of the TB820V2 ModuleBus modem, and confirm that the CI830 PROFIBUS adapter or CI840A Fieldbus linking device has sufficient node capacity to accommodate the replacement module without reconfiguring the network segment.

Terminal wiring on the TB807 or TB811 carrier does not need to be disturbed during module swap. The GJR2368900R1550 connects directly to the carrier’s ModuleBus backplane, and field signal cables remain secured to the carrier’s screw terminals throughout the exchange. Before removal of the original module, engineers should export the current hardware configuration from ABB Control Builder M and verify that the module’s I/O channel assignments, signal types, and force values are documented.

For installations using the CI854A redundant PROFIBUS adapter, the retrofit should be performed during a scheduled maintenance window with the redundant path active, ensuring that the primary communication link can be restored within seconds if the replacement module requires a re-scan of the ModuleBus. In systems where the AC800M controller manages multiple S800 I/O stations via an optical ModuleBus ring, the replacement module’s DIP switch address must be set to match the original before insertion — mismatched addresses will cause the controller to report a hardware mismatch fault and suspend I/O updates for that station.

Power supply verification is critical. The S800 I/O station’s SD821 or SD822 power supply unit should be checked for available headroom before adding or replacing modules, particularly in high-density racks where multiple AI810, AO810V2, DI810, or DO810 modules are installed alongside the GJR2368900R1550. Overloading the station power supply is a common cause of intermittent I/O faults during retrofit commissioning.

For sites migrating from older S100 or S400 I/O platforms to S800, the GJR2368900R1550 provides a compatible digital I/O footprint that integrates with the AC800M controller’s hardware library without requiring a new hardware type definition. The migration path typically involves installing a new S800 I/O station in parallel with the legacy rack, transferring I/O signals channel by channel, and validating each loop in the HMI before decommissioning the old hardware. ABB’s 800xA System or Freelance DCS operators should verify that HMI faceplates referencing the original I/O addresses are updated to reflect the new S800 station topology before cutover.

Downtime Control During System Migration

Minimizing unplanned downtime during a module replacement or platform migration requires a structured hot-swap protocol. For the GJR2368900R1550 in a non-redundant S800 I/O station, the recommended approach is to pre-configure the replacement module offline — setting the DIP switch address, verifying the module type label, and confirming the carrier compatibility — before the maintenance window begins.

During the swap, the AC800M controller should be placed in a controlled state with critical output channels forced to their safe values using Control Builder M’s force table. This preserves the process state and prevents unintended actuator movement while the module is physically absent from the rack. The swap itself typically takes under two minutes; the controller will automatically re-detect the module on the ModuleBus and resume normal I/O scanning without a full controller restart.

For systems where the GJR2368900R1550 is part of a larger migration from a legacy PROFIBUS DP network to PROFINET or FOUNDATION Fieldbus, the communication link transition should be staged: bring the new fieldbus segment online and verify all I/O signals in the HMI before disconnecting the legacy segment. This approach keeps the original program logic intact and allows operators to monitor both networks simultaneously during the transition period, reducing the risk of undetected signal loss.

All replacement modules supplied by SMARTNEXMSK are pre-tested against ABB S800 I/O functional specifications prior to shipment. Each unit undergoes power-on verification, ModuleBus communication check, and channel continuity testing. A 12-month warranty covers manufacturing defects and early-life failures, with advance replacement available for critical process applications.

Retrofit Support FAQ

Q: Is the GJR2368900R1550 a direct drop-in replacement for the original ABB 87TS01K-E module?
A: Yes. The GJR2368900R1550 is the ABB part number for the 87TS01K-E digital I/O module. It mounts on the same TB807 or TB811 carrier, uses the same ModuleBus interface, and requires no changes to the existing terminal wiring or Control Builder M hardware configuration, provided the DIP switch address matches the original module.

Q: What commissioning steps are required after installing the replacement module?
A: Set the module’s DIP switch to the correct ModuleBus address before insertion. After installation, the AC800M controller will automatically detect the module and resume I/O scanning. Verify all channel values in Control Builder M’s online hardware view and confirm that HMI displays reflect the expected signal states before releasing the process to normal operation.

Q: Can this module be used in an S800 I/O station connected via CI830 PROFIBUS DP?
A: Yes. The GJR2368900R1550 is compatible with S800 I/O stations using the CI830, CI840A, CI854A, and TB820V2 ModuleBus modem. The module communicates via the S800 internal ModuleBus and is transparent to the fieldbus adapter type. No PROFIBUS configuration changes are required when replacing a like-for-like module.

Q: What does the 12-month warranty cover, and what is the process for a warranty claim?
A: The 12-month warranty covers manufacturing defects, ModuleBus communication failures, and channel-level hardware faults under normal operating conditions. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, module serial number, and a description of the fault. SMARTNEXMSK will arrange advance replacement or repair within the warranty period.
