ABB GJR2371100R1040 Maintenance-Ready Spare AC800M DCS

ABB GJR2371100R1040 Maintenance-Ready Spare AC800M DCS: Spare Replacement & Industrial Downtime Risk Control

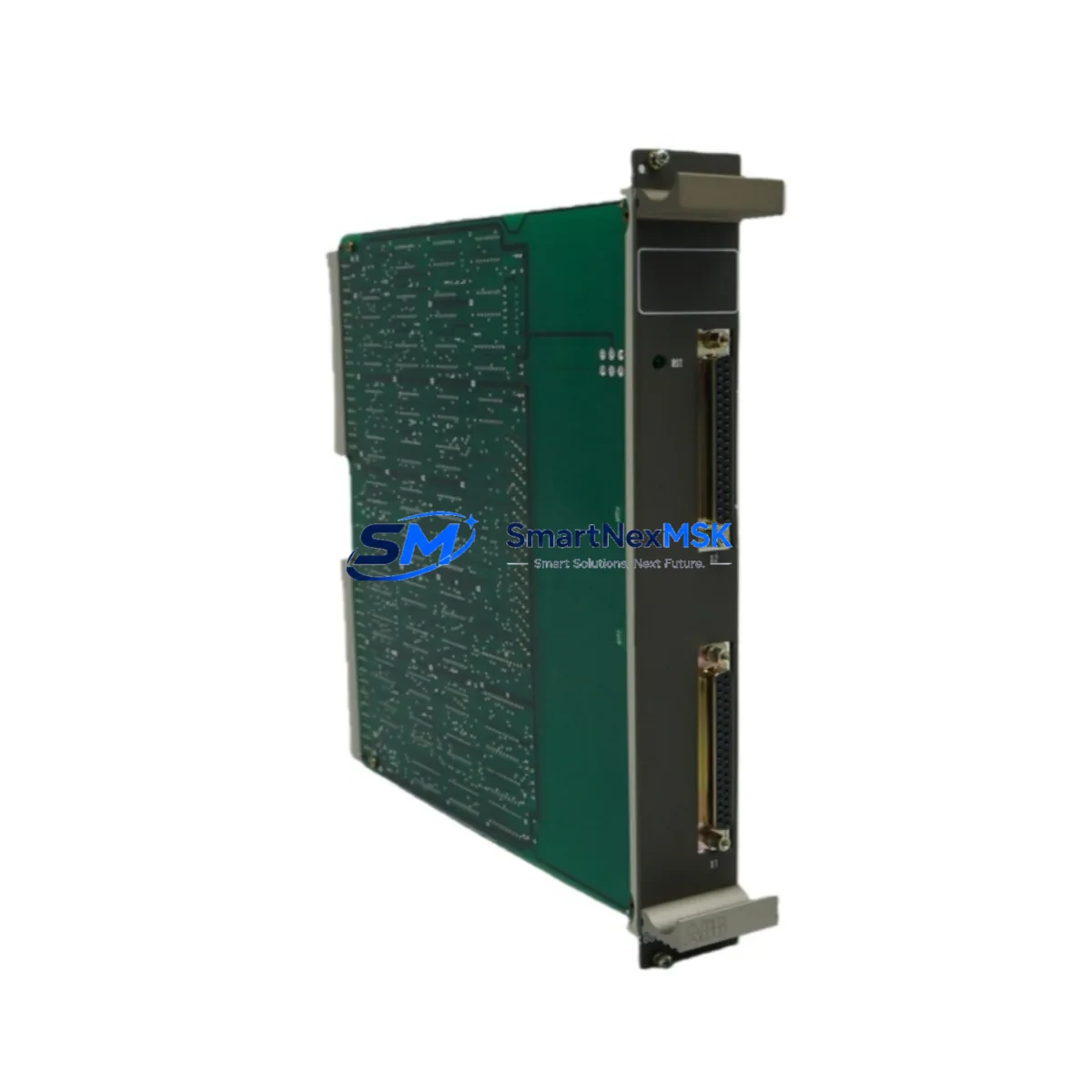

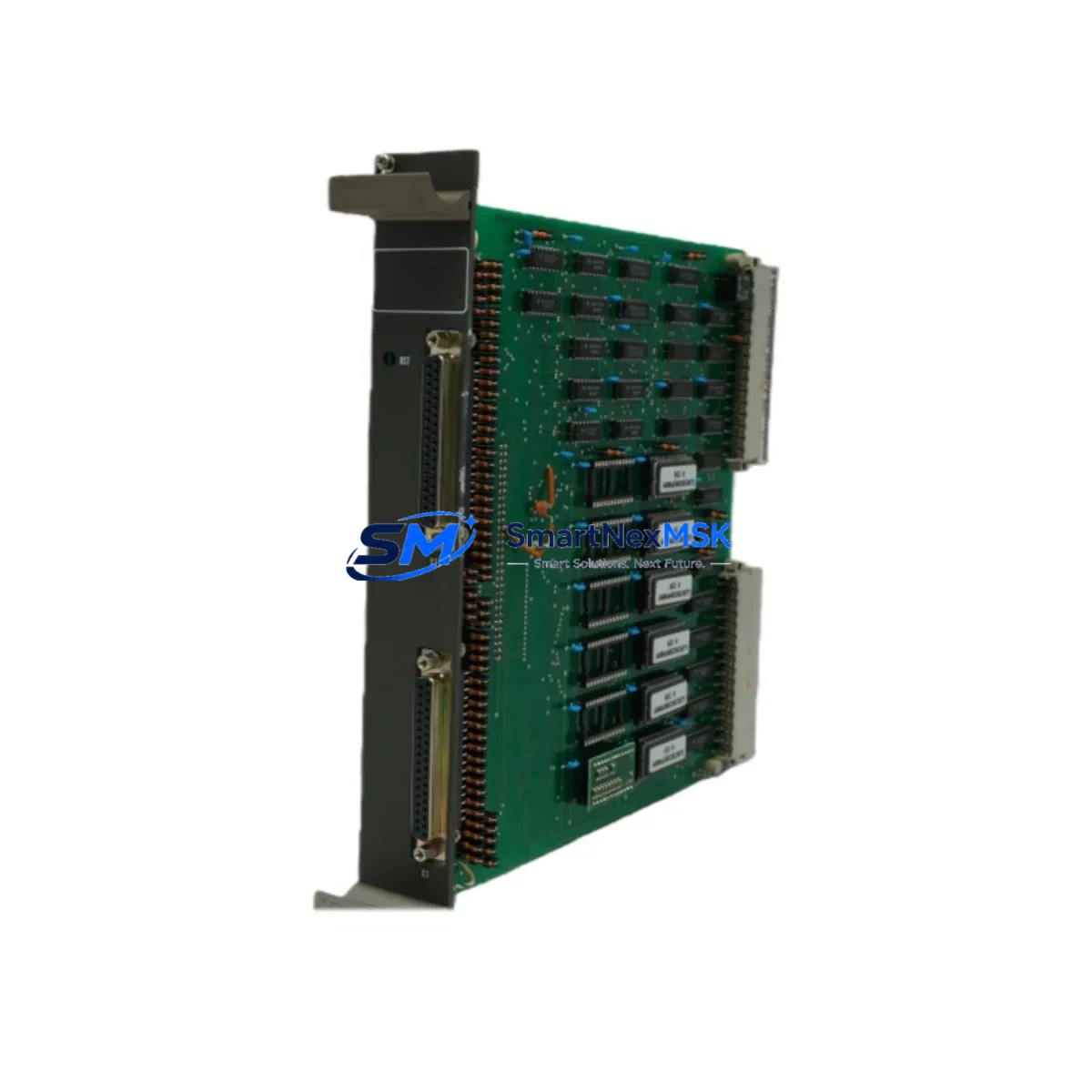

The ABB GJR2371100R1040 (88VP02-E) is a genuine control module for the AC800M Distributed Control System platform — one of ABB’s most widely deployed DCS architectures in power generation, oil & gas, chemical processing, and pulp & paper industries. When this module fails or reaches end-of-life, the consequences extend beyond a single I/O point: the entire controller node may go offline, triggering unplanned shutdowns that cost thousands per hour. Stocking a verified replacement unit is the most effective insurance against this risk.

This listing provides a maintenance-ready, original ABB GJR2371100R1040 88VP02-E spare module — inspected, function-tested, and shipped with a 12-month warranty. Whether you are executing a planned turnaround, responding to an emergency fault, or building out your critical spare inventory, this unit is ready for immediate deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the GJR2371100R1040 88VP02-E in an AC800M system is rarely an isolated task. Experienced maintenance engineers treat a controller module swap as an opportunity to audit the entire control cabinet. Before returning the system to service, the following components should be inspected or tested alongside the replacement module:

Power Supply Module (e.g., ABB SD821 or SD822): A degraded 24 VDC power supply is a leading cause of premature controller module failure. Verify output voltage stability and ripple under load before commissioning the new GJR2371100R1040.

Processor Module (PM861A / PM864A / PM866A): If the control module fault was accompanied by a processor watchdog alarm, the PM-series CPU should be evaluated for firmware integrity and memory health. A spare PM module in inventory prevents cascading downtime.

S800 I/O Modules (AI810, AO810, DI810, DO810): Confirm that all I/O modules on the associated backplane are reporting correctly after the swap. A faulty AI810 analog input card or DO810 digital output module can mask itself as a controller fault.

CI854 / CI857 Communication Interface Module: If the AC800M node communicates via PROFIBUS DP or Foundation Fieldbus, the CI854 or CI857 interface module should be checked for bus errors and termination resistance. Communication faults often surface after a controller restart.

TB820 / TB840 Termination Boards and Field Wiring: Loose or corroded terminal connections on the TB820 or TB840 termination boards are a common source of intermittent I/O faults that are incorrectly attributed to the controller module. Inspect all field wiring terminations during the maintenance window.

Backplane and Rack Assembly: Inspect the AC800M rack backplane for bent connector pins, oxidation, or mechanical damage. A damaged backplane can cause repeated module failures regardless of the replacement unit quality.

Fuses and Circuit Protection: Check all cabinet fuses and miniature circuit breakers (MCBs) supplying the controller rack. A blown fuse on the 24 VDC bus may have been the root cause of the original module fault.

Operator Interface / HMI Panel: After module replacement, verify that the connected HMI (e.g., ABB CP600 series or third-party SCADA) is receiving live process data and that all alarm acknowledgements are functioning correctly.

Signal Isolators and Barriers: For installations in hazardous areas, inspect Zener barriers or galvanic isolators on analog signal loops. A failed isolator can inject noise or ground faults that stress the controller module.

Maintaining a small buffer stock of these associated components — power supplies, I/O modules, communication cards, and termination boards — alongside the GJR2371100R1040 spare significantly reduces mean time to repair (MTTR) and supports a proactive maintenance culture.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the AC800M diagnostic tool (Control Builder M) to confirm the fault is isolated to the GJR2371100R1040 module. Record the fault code and timestamp for maintenance logs.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the controller rack via the appropriate MCB. Confirm zero-energy state before opening the cabinet.

Step 3 — Module Removal: Release the module locking lever, disconnect any field cables or bus connectors, and remove the faulty GJR2371100R1040 unit. Label and bag the removed module for failure analysis.

Step 4 — Replacement Installation: Insert the new GJR2371100R1040 88VP02-E into the correct rack slot. Ensure the backplane connector is fully seated. Reconnect all field cables and bus connectors per the original wiring diagram.

Step 5 — Power-Up and Diagnostics: Re-energize the rack. Monitor the module status LEDs and Control Builder M diagnostics for a clean startup. Confirm all I/O channels are reporting expected values before releasing the system to operations.

Step 6 — Documentation: Update the site maintenance record with the replacement date, new module serial number, and any observations noted during the swap. This supports future failure trend analysis and spare parts planning.

This workflow is compatible with both hot-standby and simplex AC800M configurations. For redundant controller setups, the replacement can often be performed with the redundant node maintaining process control, minimizing or eliminating process interruption.

Spare Parts Support FAQ

Q1: Is the GJR2371100R1040 88VP02-E compatible with all AC800M rack configurations?
The GJR2371100R1040 88VP02-E is designed for the ABB AC800M platform. Compatibility depends on the specific rack generation and firmware version in your installation. We recommend confirming your rack model and Control Builder M version before ordering. Our technical team can assist with compatibility verification based on your system documentation.

Q2: What testing is performed before shipment?
Every unit undergoes functional testing prior to dispatch, including power-on self-test verification and connector integrity inspection. Units are packed in anti-static ESD-safe packaging with protective foam inserts to prevent transit damage. A test report is available upon request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional failure of the module under normal operating conditions — correct supply voltage, ambient temperature within specification, and proper installation per ABB guidelines. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can you supply multiple units for a long-term spare parts agreement?
Yes. We support long-term supply agreements for critical spare modules including the GJR2371100R1040 and associated AC800M components. Volume pricing and reserved stock arrangements are available for maintenance teams managing large installed bases or multi-site operations. Contact our sales team to discuss your requirements.
