ABB GJR2390200R1411 83SR04AE Safety-Enhanced Control Module

ABB GJR2390200R1411 83SR04AE Safety-Enhanced Control Module: Reliable Control in Harsh Industrial Sites

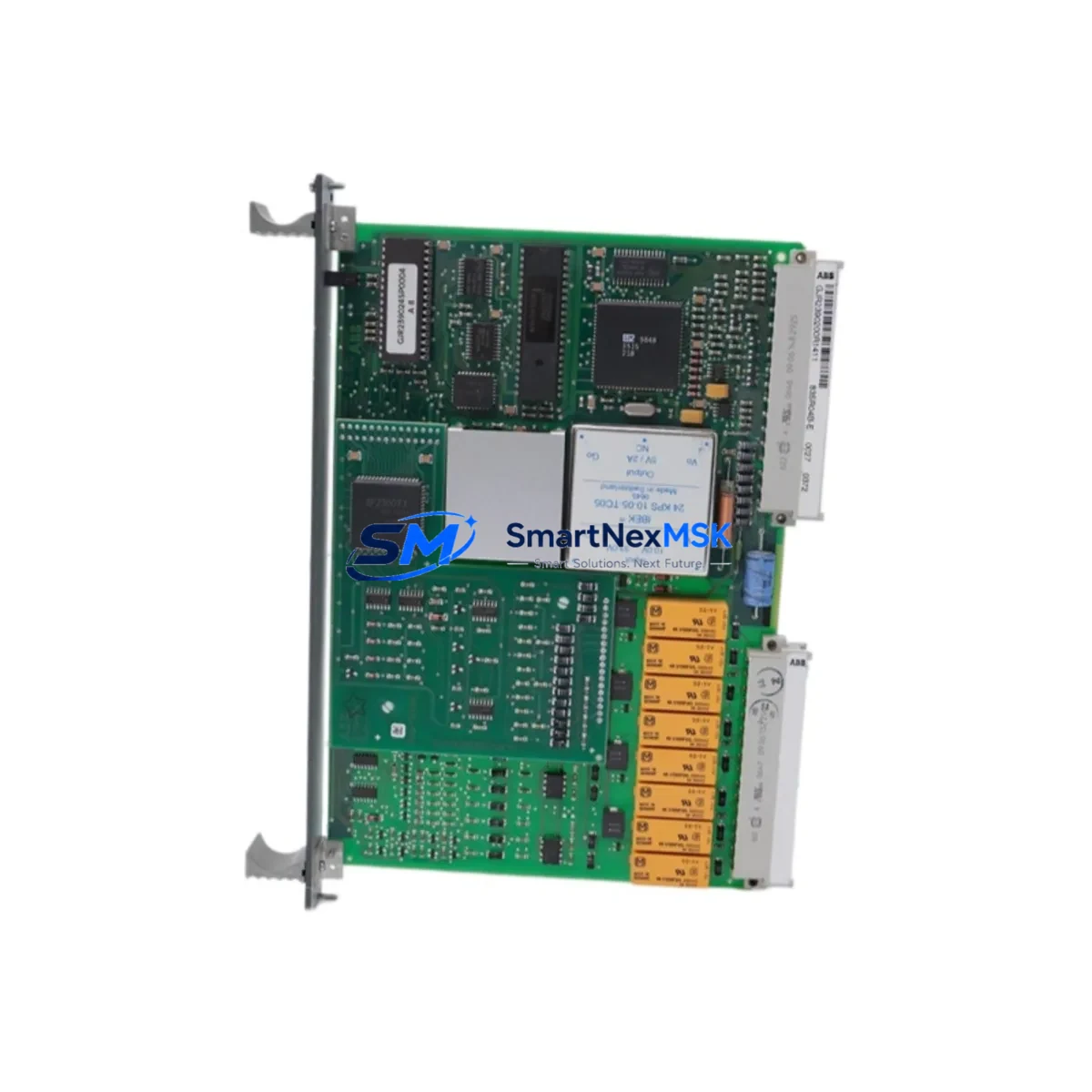

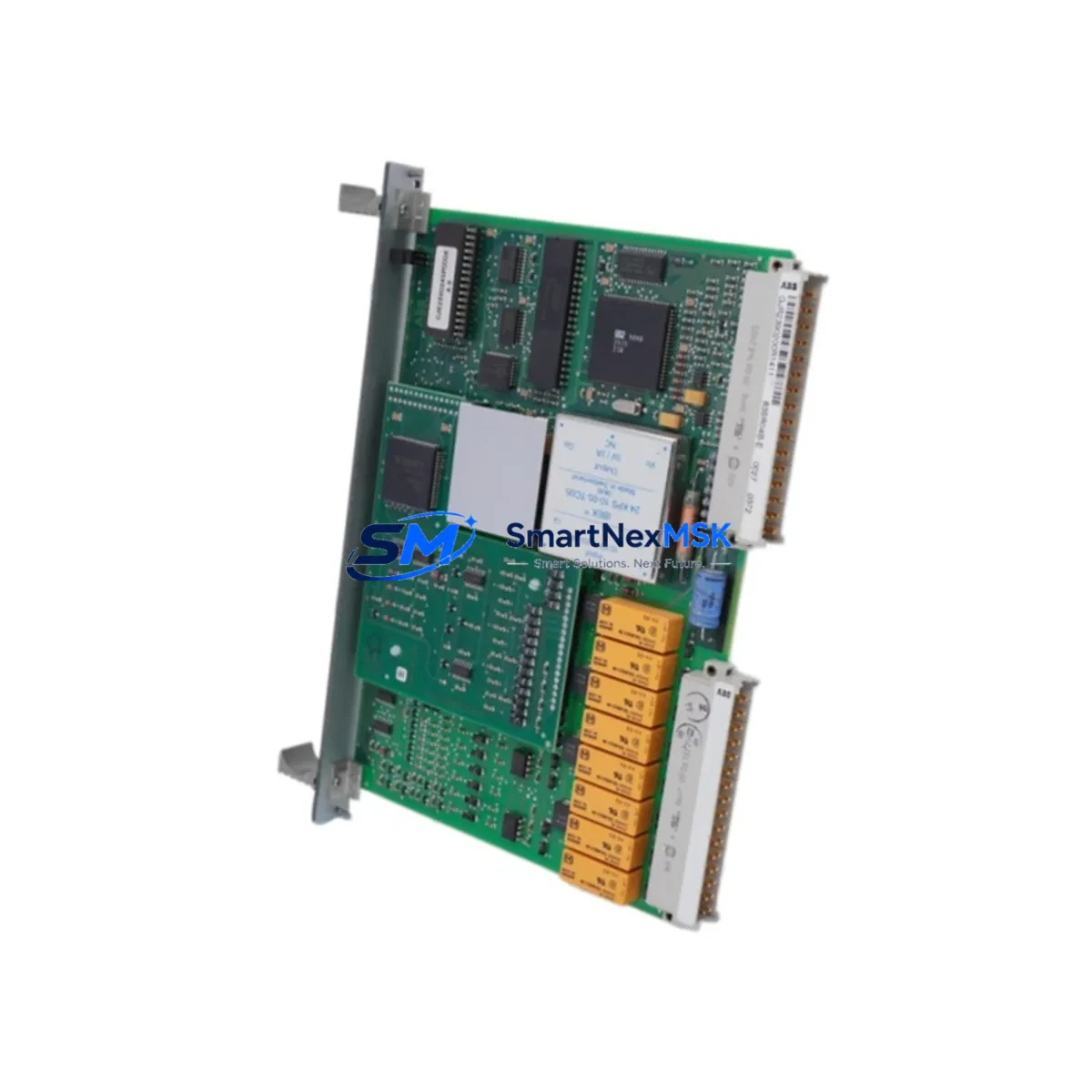

The ABB GJR2390200R1411 83SR04AE is a ruggedized PLC control module engineered for the ABB AC500 / S500 platform, purpose-built to sustain continuous, fault-free operation in high-load, high-interference industrial environments. Whether deployed in a critical interlock loop, a high-density control cabinet, or a hazardous-area automation panel, this module delivers the signal integrity, thermal resilience, and electrical immunity that modern industrial safety architectures demand.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and continuous-process manufacturing lines, control interruptions are not merely costly — they are dangerous. The GJR2390200R1411 83SR04AE is designed to eliminate the root causes of those interruptions: signal drift under electromagnetic interference, module mis-operation during power transients, surge-induced communication faults, and thermal degradation in confined cabinet enclosures.

Safety Reliability Table

Control Cabinet Protection Strategy

A single module failure in a critical control cabinet can cascade into a full-line shutdown. The ABB GJR2390200R1411 83SR04AE is engineered to be the stable core of a multi-layer cabinet protection strategy. In practice, it is most effective when paired with complementary components that address every vector of electrical and environmental risk.

On the power supply side, the ABB CP604 24VDC Power Supply Module provides regulated, low-ripple DC power that prevents voltage sag from triggering module resets during motor start sequences. Upstream, a Phoenix Contact QUINT-PS/1AC/24DC/20 or equivalent DIN-rail power conditioner adds active buffering against mains-side transients. For surge protection on field wiring entering the cabinet, ABB SACE Tmax XT series circuit breakers and dedicated surge protection devices on analog input terminals prevent surge energy from reaching the GJR2390200R1411 83SR04AE’s sensitive I/O circuitry.

Communication reliability is equally critical. When this module operates as part of a PROFIBUS-DP segment, pairing it with an ABB CI590-CS31-HA communication interface module ensures deterministic bus timing even under high cable capacitance conditions. For Modbus TCP architectures, a managed industrial Ethernet switch with port-level storm control — such as the Hirschmann RS20 series — prevents broadcast storms from saturating the control network. The ABB TB541-ETH Ethernet communication module further extends connectivity options within the AC500 rack without compromising scan-cycle determinism.

Within the same AC500 rack, the ABB AI523 analog input module and ABB DI524 digital input module are natural companions, sharing the same backplane bus and benefiting from the GJR2390200R1411 83SR04AE’s stable CPU arbitration. For safety interlock applications, integrating an ABB AC500-S Safety PLC CPU module alongside this standard control module creates a dual-channel architecture that satisfies SIL 2 / SIL 3 requirements without duplicating the entire control rack. Relay output modules such as the ABB DO531 digital output module handle high-current actuator switching, isolating inductive load transients from the control bus.

Finally, for cabinet thermal management — a frequently overlooked safety factor — pairing the installation with a Rittal SK 3105 cabinet cooling unit or equivalent maintains internal temperatures within the module’s rated operating range during peak summer ambient conditions in outdoor substations or rooftop MCC rooms.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous catalytic cracking units and distillation column control loops, the GJR2390200R1411 83SR04AE maintains stable PID output to control valves even during compressor surge events that generate severe electrical noise on shared grounding systems. Its surge-suppressed I/O prevents false ESD trips that would trigger unplanned flaring events.

Power Generation & Grid Substations: Deployed in turbine governor control panels and transformer protection relay cabinets, this module sustains reliable digital output switching during high-voltage switching transients. Its EMI immunity ensures that nearby 110kV bus operations do not induce signal errors in the control loop.

Mining & Mineral Processing: In underground conveyor drive control systems and surface crusher automation panels, the module’s vibration and shock resistance — combined with its conformal-coated PCB — ensures continuous operation in environments with constant mechanical vibration, coal dust ingress, and high-humidity condensation cycles.

Water & Wastewater Treatment: Pump station SCADA systems and chemical dosing control loops rely on this module’s stable analog I/O to maintain precise flow and pressure regulation. Its long-term supply availability supports 10–15 year plant lifecycle requirements without forced platform migrations.

Metallurgy & Steel Mills: In electric arc furnace (EAF) control systems and rolling mill automation, the module operates reliably despite extreme electromagnetic interference from high-current bus bars and thyristor drives. Its robust communication interface maintains data integrity on PROFIBUS segments running alongside high-power DC drives.

Port & Logistics Automation: Container crane PLC systems and automated stacking crane (ASC) control cabinets benefit from the module’s wide operating temperature range and vibration tolerance, ensuring uninterrupted operation during outdoor winter and summer extremes.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all functional failures under normal operating conditions, including I/O communication faults, power rail failures, and CPU processing errors not caused by external physical damage or incorrect installation. To initiate a claim, contact sales@smartnexmsk.com with the order reference and a fault description. Replacement or repair is dispatched within 5 business days of fault confirmation.

Q2: How is each GJR2390200R1411 83SR04AE unit tested before shipment?
Every unit undergoes a 100% functional test protocol that includes power-on self-test verification, I/O channel continuity checks, communication bus handshake confirmation, and a burn-in cycle to screen for early-life component failures. A test report is available upon request for critical project procurement.

Q3: Is this module compatible with existing ABB AC500 V2 and V3 racks without firmware changes?
Yes. The GJR2390200R1411 83SR04AE is designed for backward and forward compatibility within the ABB AC500 / S500 platform ecosystem. It integrates with both V2 and V3 CPU modules using the standard AC500 backplane bus protocol. No firmware modification is required for standard I/O operation; advanced feature sets may require PS501 Control Builder Plus configuration updates.

Q4: Can long-term spare parts supply be guaranteed for MRO and plant lifecycle support?
Yes. SMARTNEXMSK maintains dedicated inventory reserves for ABB AC500 series modules to support 10+ year plant lifecycle MRO requirements. Customers with critical spare parts programs can arrange blanket purchase orders or consignment stock agreements. Contact sales@smartnexmsk.com to discuss long-term supply contracts and lead-time commitments.
