ABB GJR2393200R1210 88TK05B-E AC500 PLC Spare

ABB GJR2393200R1210 88TK05B-E AC500 PLC Spare: Spare Replacement & Industrial Downtime Risk Control

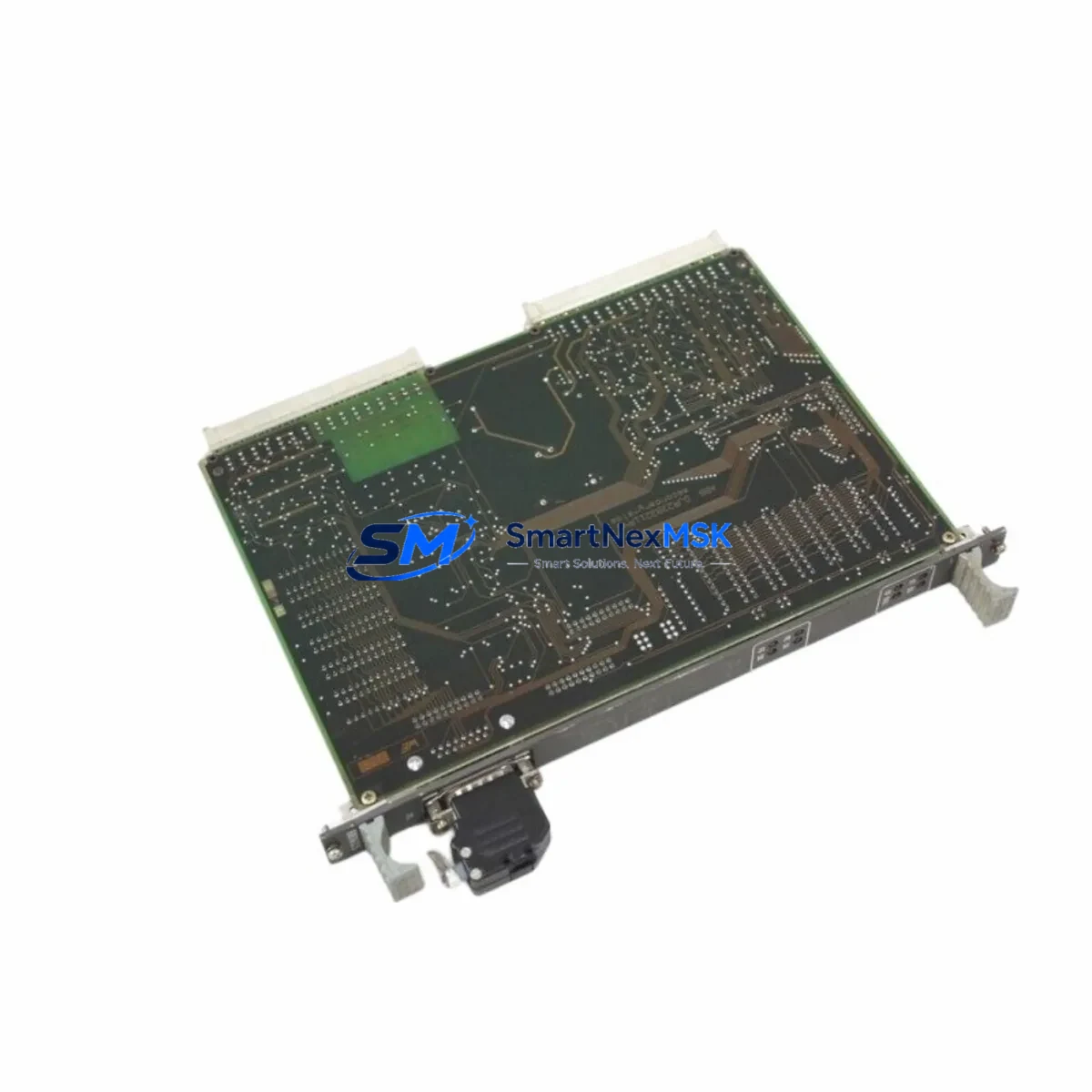

The ABB GJR2393200R1210 (firmware/hardware variant 88TK05B-E) is a central control board module within the ABB AC500 programmable logic controller platform — one of the most widely deployed modular PLC families in process automation, machine control, and critical infrastructure applications worldwide. When this board fails or degrades, the entire control loop it governs is at risk of unplanned shutdown. Sourcing a verified, tested replacement unit is the fastest path to restoring normal operation and protecting production continuity.

At SMARTNEXMSK, every GJR2393200R1210 88TK05B-E unit is inspected, functionally tested, and shipped with a 12-month warranty. We maintain long-term stock to support both emergency replacement and planned maintenance cycles, ensuring your procurement team can act quickly regardless of whether the need arises from a scheduled overhaul or an unexpected fault condition.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the GJR2393200R1210 88TK05B-E is rarely an isolated task. Experienced maintenance engineers know that a control board fault often signals stress across adjacent components in the same control cabinet. A thorough site inspection during the replacement window should include the following areas:

Power Supply Integrity: Verify the 24 VDC rail feeding the AC500 CPU rack. ABB’s CP-E 24/10.0 or equivalent power supply modules should be checked for output ripple and load capacity. An aging or undersized power supply is a common root cause of intermittent CPU board faults and should be replaced proactively if it shows signs of wear.

I/O Module Condition: Inspect all digital and analog I/O modules installed on the same AC500 backplane — particularly the DC532 digital input module and DA501 analog output module. Loose terminal connections, oxidized contacts, or blown channel fuses on I/O modules can cause diagnostic errors that are misattributed to the CPU board itself.

Communication Modules: If the system uses PROFIBUS DP or Modbus TCP, inspect the corresponding communication interface modules (e.g., CI590-CS31-HA or CI501-PNIO) for firmware compatibility with the replacement board. A firmware mismatch between the CPU board and communication modules can prevent the system from coming online after a board swap.

Terminal Blocks and Wiring: Check all terminal blocks on the I/O side for tightening torque and insulation condition. Phoenix Contact or Weidmüller-style terminal strips commonly used in AC500 panels can develop micro-arcing at loose connections, which introduces noise into signal lines and accelerates board-level component degradation.

Signal Isolation and Protection: For analog signal loops (4–20 mA or 0–10 V), verify that signal isolators are functioning correctly. Faulty isolators can allow ground loops to develop, which may damage the analog input circuitry on the control board. Replacing the board without addressing a ground loop will result in repeat failures.

Relay Output Modules: Inspect relay output modules (e.g., DO531 or equivalent) for contact wear, especially on high-cycle outputs controlling motors, solenoids, or contactors. Worn relay contacts generate voltage spikes that can propagate back into the CPU board through the backplane.

HMI and Operator Panel: If an ABB CP600 or CP400 HMI panel is connected to the AC500 CPU, verify that the communication cable and HMI firmware are compatible with the replacement board version. An incompatible HMI connection can prevent the operator from acknowledging alarms or loading the control program after restart.

Fuses and Circuit Protection: Replace any fuse elements in the 24 VDC distribution circuit that show signs of thermal stress or discoloration. A blown or weakened fuse in the CPU supply branch is a leading indicator of a prior overcurrent event that may have contributed to the board failure.

Addressing these components during the same maintenance window maximizes the value of the planned downtime and significantly reduces the probability of a repeat fault within the next 12–24 months.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the faulty GJR2393200R1210 88TK05B-E, record the current CPU firmware version, program checksum, and I/O configuration using ABB Automation Builder or the legacy PS501 Control Builder software. Save a full project backup to a USB drive or engineering workstation.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the control cabinet and confirm zero-voltage state on the 24 VDC bus before touching any backplane components. The AC500 backplane does not support hot-swap of the CPU board.

Step 3 — Board Removal: Release the DIN-rail locking tabs and carefully disconnect the backplane connector. Note the slot position and any jumper or DIP switch settings on the original board — these must be replicated on the replacement unit.

Step 4 — Replacement Installation: Insert the new GJR2393200R1210 88TK05B-E into the same backplane slot. Ensure the backplane connector is fully seated. Restore any jumper settings identified in Step 3.

Step 5 — Program Restore and Commissioning: Re-energize the cabinet and connect the engineering workstation. Download the saved project to the new CPU board. Verify that all I/O modules are recognized, communication links are established, and the HMI displays correctly. Run a functional test of all critical outputs before returning the system to automatic mode.

Step 6 — Documentation: Update the maintenance log with the replacement date, new board serial number, and any observations noted during the inspection. This record supports future fault analysis and warranty claims.

This workflow is applicable whether you are replacing a failed board on an emergency basis or performing a proactive swap during a scheduled plant shutdown. The same procedure applies when upgrading from an older AC500 CPU variant to the GJR2393200R1210 88TK05B-E as part of a system life-extension program.

Spare Parts Support FAQ

Q1: Is the GJR2393200R1210 88TK05B-E compatible with all AC500 backplanes?
The GJR2393200R1210 88TK05B-E is designed for the ABB AC500 PLC platform and is compatible with standard AC500 backplanes that support the PM5xx CPU family. Before installation, confirm the backplane model and slot configuration against the ABB AC500 hardware compatibility matrix. If you are unsure, contact our technical team with your existing backplane part number and we will verify compatibility before shipment.

Q2: What testing is performed before shipment?
Every GJR2393200R1210 88TK05B-E unit undergoes functional power-on testing and visual inspection prior to dispatch. We verify that the board initializes correctly, communication interfaces respond, and no fault codes are present. A test report is available upon request. All units are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or use outside the specified environmental parameters. In the event of a warranty claim, we provide a replacement unit or full refund after fault verification. Warranty period begins from the date of shipment.

Q4: Can you support long-term or recurring procurement for this part?
Yes. SMARTNEXMSK maintains ongoing stock of the GJR2393200R1210 88TK05B-E and other ABB AC500 spare parts to support both emergency and planned procurement cycles. We can arrange blanket purchase orders, reserved stock agreements, and scheduled delivery programs for maintenance teams managing multiple AC500 installations. Contact our sales team to discuss your annual spare parts requirements.
