ABB GJR2394100R1210 81AA03C-E Safety-Enhanced Analog Output

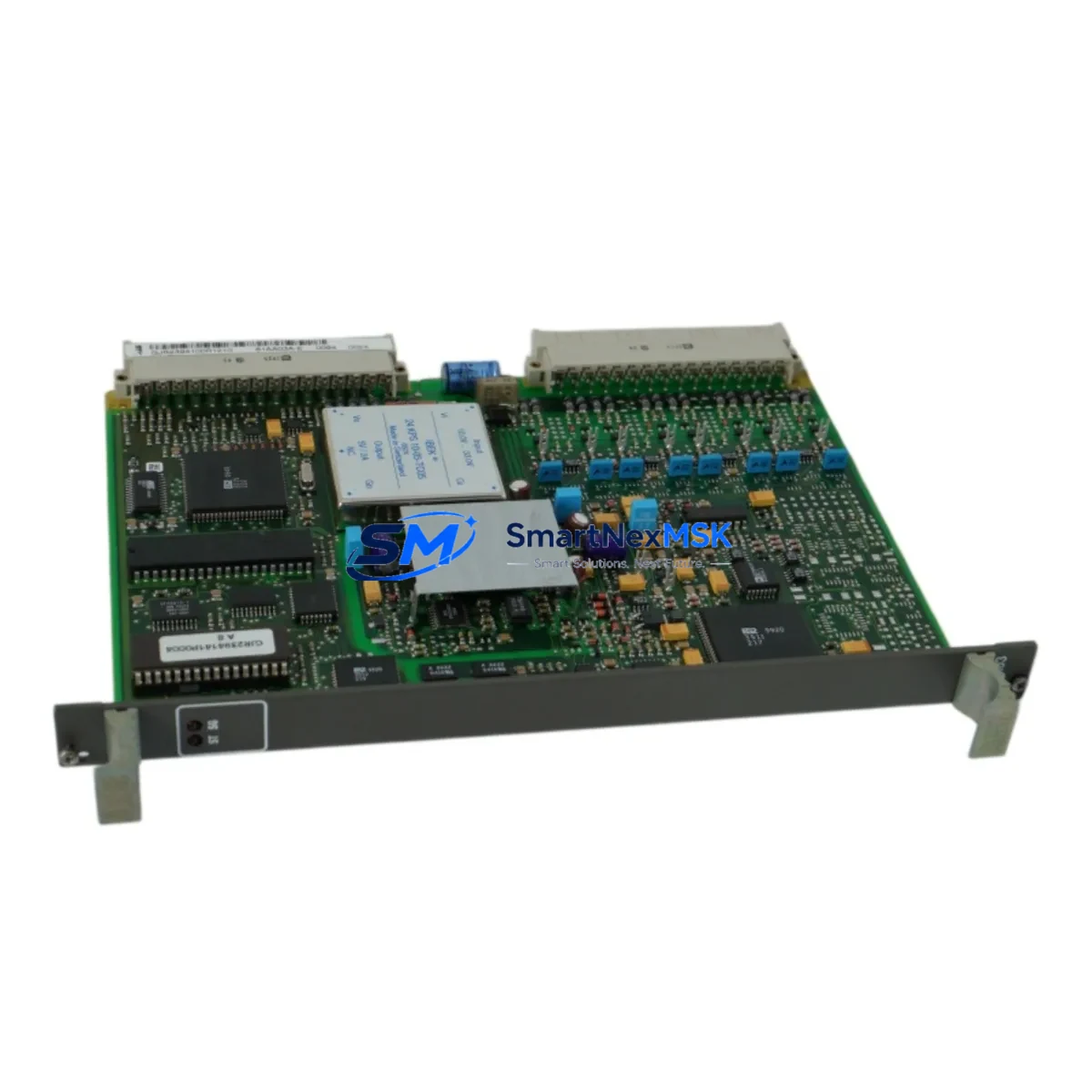

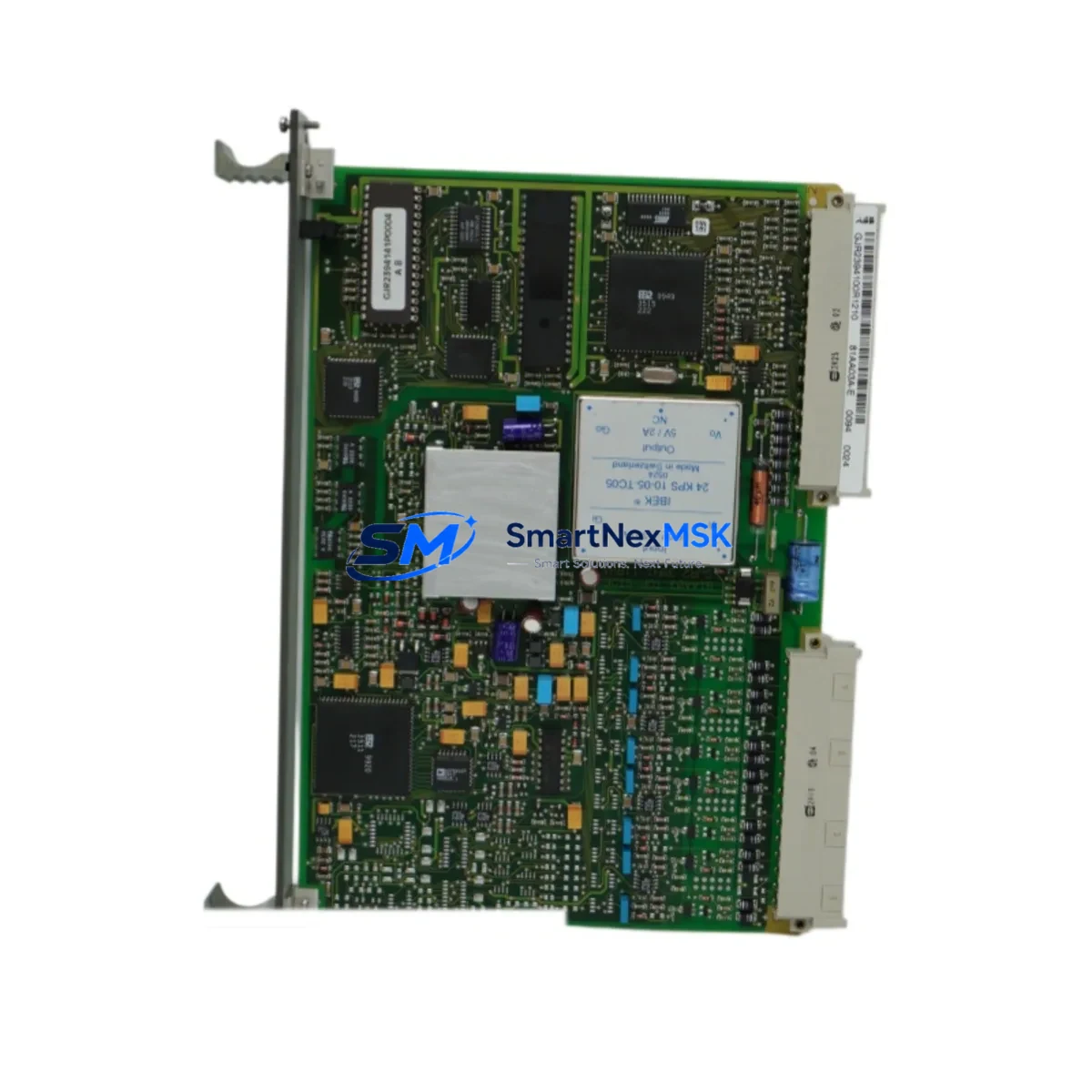

ABB GJR2394100R1210 81AA03C-E Safety-Enhanced Analog Output Module: Reliable Control in Harsh Industrial Sites

The ABB GJR2394100R1210 81AA03C-E is a ruggedized analog output module engineered for the ABB Advant OCS Master Series Distributed Control System (DCS). Designed to operate continuously in high-load, high-interference industrial environments, this module delivers stable, precision analog signal output across demanding process control applications — from petrochemical refineries and power generation facilities to metallurgical plants and continuous manufacturing lines.

In critical control cabinet installations where signal integrity is non-negotiable, the GJR2394100R1210 81AA03C-E provides the output accuracy and electrical robustness required to maintain safe process states. Its ruggedized design addresses the core failure modes that cause unplanned shutdowns: signal drift under thermal stress, output instability from electromagnetic interference (EMI), and module malfunction triggered by power supply transients or surge events. For engineers managing safety instrumented systems (SIS) or critical interlock loops, this module’s consistent output behavior is a foundational requirement.

Within the Advant OCS architecture, the 81AA03C-E analog output module operates in close coordination with companion modules including the ABB GJR2391400R0202 AI830 analog input module, the ABB GJR2391500R0100 AO810 analog output expansion, and the ABB GJR2390100R0200 PM810 processor module. Together, these components form a tightly integrated control loop capable of sustaining process stability even under abnormal field conditions. The module communicates over the Advant Controller backplane bus, and its signal chain integrity is further protected when paired with the ABB GJR2392500R0100 SC510 serial communication module for supervisory data exchange.

Power supply quality is a critical factor in analog output stability. The GJR2394100R1210 81AA03C-E is designed to tolerate the voltage fluctuations common in heavy industrial power distribution systems. When deployed alongside a dedicated ABB SD831 or SD832 power supply unit, the module benefits from regulated, filtered DC power that eliminates the micro-interruptions and ripple currents that can cause output deviation in less robust designs. For installations in hazardous areas or high-surge environments, supplementary surge protection devices (SPDs) on the field wiring terminals are recommended to extend module service life and protect downstream actuators and control valves.

In continuous process industries — including water treatment, pulp and paper, and port logistics automation — the 81AA03C-E supports the 4–20 mA current loop outputs required to drive proportional control valves, variable frequency drives (VFDs), and electro-pneumatic positioners. Its output channels maintain calibration accuracy over extended operating cycles, reducing the frequency of field calibration interventions and minimizing the risk of process deviation caused by output drift. For mining and mineral processing applications where vibration and dust ingress are constant concerns, the module’s sealed construction and conformal-coated PCB provide additional protection against environmental degradation.

Replacement and spare parts management is simplified by the module’s direct compatibility with the Advant OCS S100 I/O family. Facilities maintaining a strategic spare parts inventory can stock the GJR2394100R1210 81AA03C-E alongside related modules such as the ABB GJR2391200R0100 DI810 digital input module and the ABB GJR2391300R0100 DO810 digital output module to ensure rapid swap-out capability during unplanned maintenance events. Each unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing to verify output channel performance, communication integrity, and power consumption within specification — reducing commissioning time and eliminating the risk of installing a defective spare into a live control system.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust Advant OCS control cabinet deployment requires more than a single high-quality output module. The GJR2394100R1210 81AA03C-E is most effective when integrated into a complete protection architecture. On the input side, the ABB GJR2391400R0202 AI830 analog input module acquires field sensor signals with the same EMI-resistant design philosophy, ensuring that the full signal chain — from field transmitter to control output — maintains integrity under interference. The ABB GJR2391200R0100 DI810 digital input module handles discrete safety interlock signals, while the ABB GJR2391300R0100 DO810 digital output module drives relay-based safety actuators and alarm annunciators.

At the processor level, the ABB GJR2390100R0200 PM810 executes the control logic that drives the 81AA03C-E outputs, and its redundant configuration options allow hot-standby operation for critical process loops. Power integrity is maintained by the ABB SD831 24 VDC power supply, which provides the regulated, low-ripple power that analog output modules require for accurate D/A conversion. For facilities with stringent communication security requirements, the ABB GJR2392500R0100 SC510 serial communication module provides isolated, noise-immune data exchange between the Advant controller and supervisory SCADA systems. Collectively, these components form a layered protection strategy that addresses every major failure vector in a continuous process control cabinet.

Critical Industrial Safety Applications

The ABB GJR2394100R1210 81AA03C-E is deployed across a wide range of safety-critical industrial sectors. In petrochemical and refinery environments, it drives the control valves and flow regulators that maintain safe operating pressures and temperatures in distillation columns and reactor vessels — applications where output signal failure can trigger emergency shutdowns or safety system activations. In power generation facilities, the module controls turbine governor actuators and boiler feed systems where millisecond-level output response and long-term calibration stability are essential for grid stability.

In mining and mineral processing operations, the 81AA03C-E manages the variable speed drives and slurry pump controls that operate in high-vibration, dust-laden environments where lesser modules fail prematurely. Water and wastewater treatment plants rely on this module to regulate chemical dosing pumps and aeration blower speeds — processes where output accuracy directly affects effluent quality and regulatory compliance. In metallurgical and steel production facilities, the module controls furnace temperature profiles and rolling mill speed references, where thermal cycling and high electromagnetic noise from large motor drives create a severe operating environment. Port and bulk material handling automation systems use the 81AA03C-E to coordinate conveyor speed references and crane positioning systems in continuous, high-throughput operations where unplanned downtime carries significant financial penalties.

Safety and Quality FAQ

Q: What does the 12-Month Warranty cover?
A: The warranty covers all manufacturing defects and functional failures in the GJR2394100R1210 81AA03C-E under normal operating conditions. If the module fails to perform within its specified output accuracy and communication parameters during the warranty period, SMARTNEXMSK will provide a replacement unit. The warranty period begins from the date of shipment.

Q: What pre-shipment testing is performed on each unit?
A: Every GJR2394100R1210 81AA03C-E unit undergoes a full functional test prior to dispatch. This includes output channel signal verification across the 4–20 mA range, backplane communication integrity check, and power consumption measurement. Units that do not meet ABB’s original performance specifications are quarantined and not shipped.

Q: Is this module compatible with all Advant OCS Master Series configurations?
A: The 81AA03C-E is designed for the ABB Advant OCS S100 I/O family and is compatible with standard Advant Controller configurations using the S100 backplane. Compatibility with specific processor modules and firmware versions should be verified against your system’s engineering documentation. SMARTNEXMSK’s technical team can assist with compatibility verification prior to purchase.

Q: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
A: Yes. SMARTNEXMSK maintains stock of the GJR2394100R1210 81AA03C-E and related Advant OCS S100 I/O modules to support both planned maintenance programs and emergency replacement requirements. For facilities managing aging DCS infrastructure, we recommend establishing a qualified spare parts agreement to ensure rapid availability when critical modules require replacement.
