ABB HENF209568R0001 P3LB Retrofit-Ready Hybrid I/O for Advant

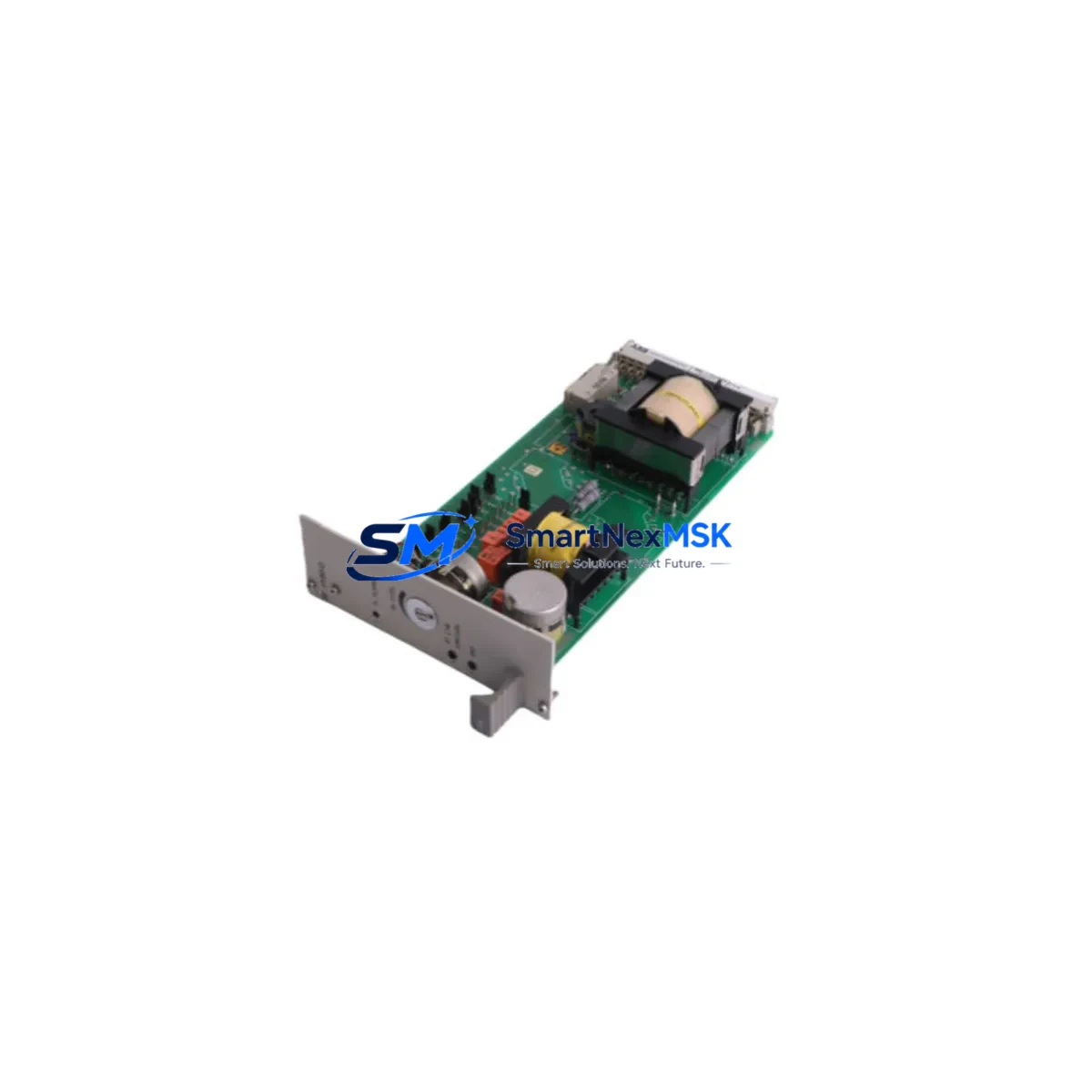

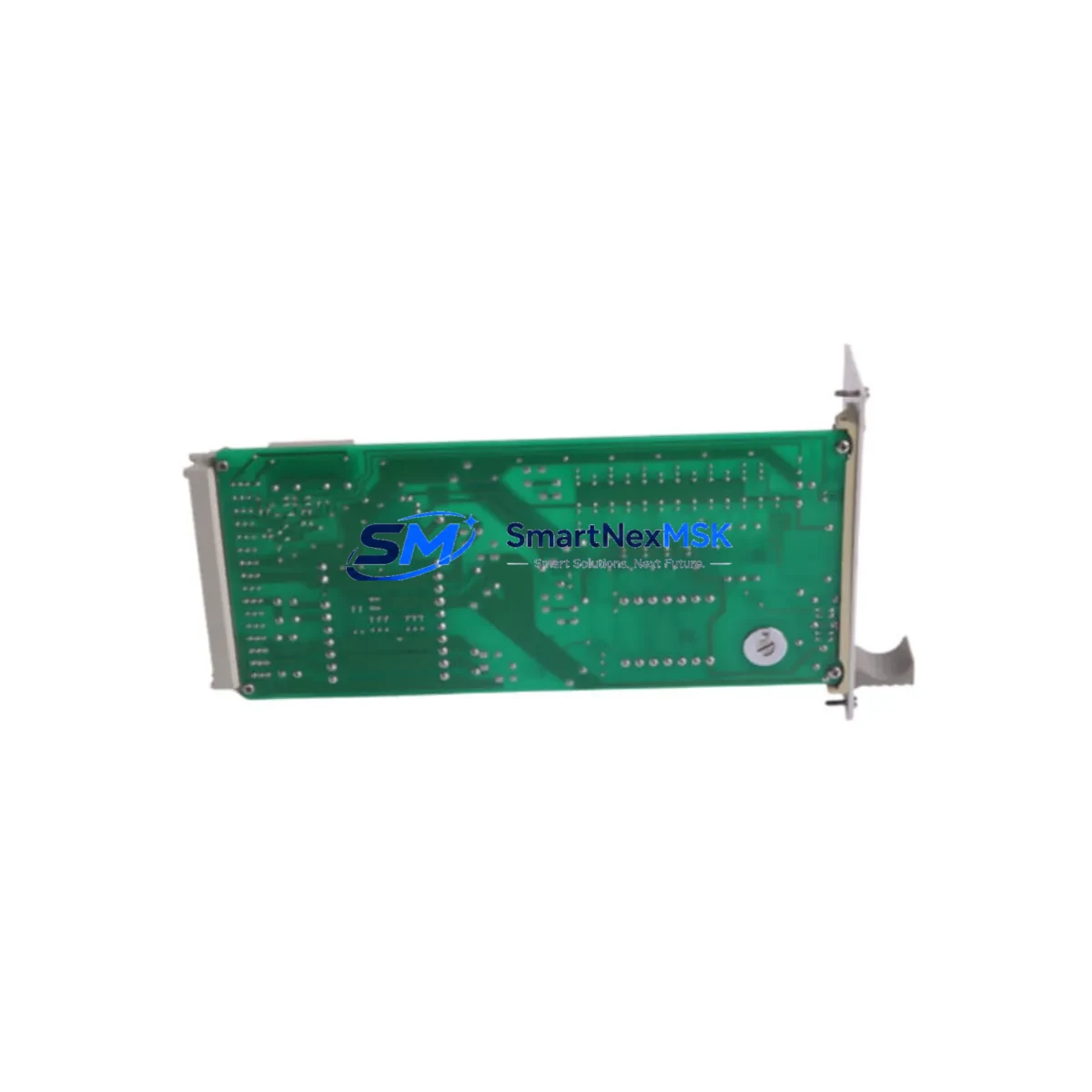

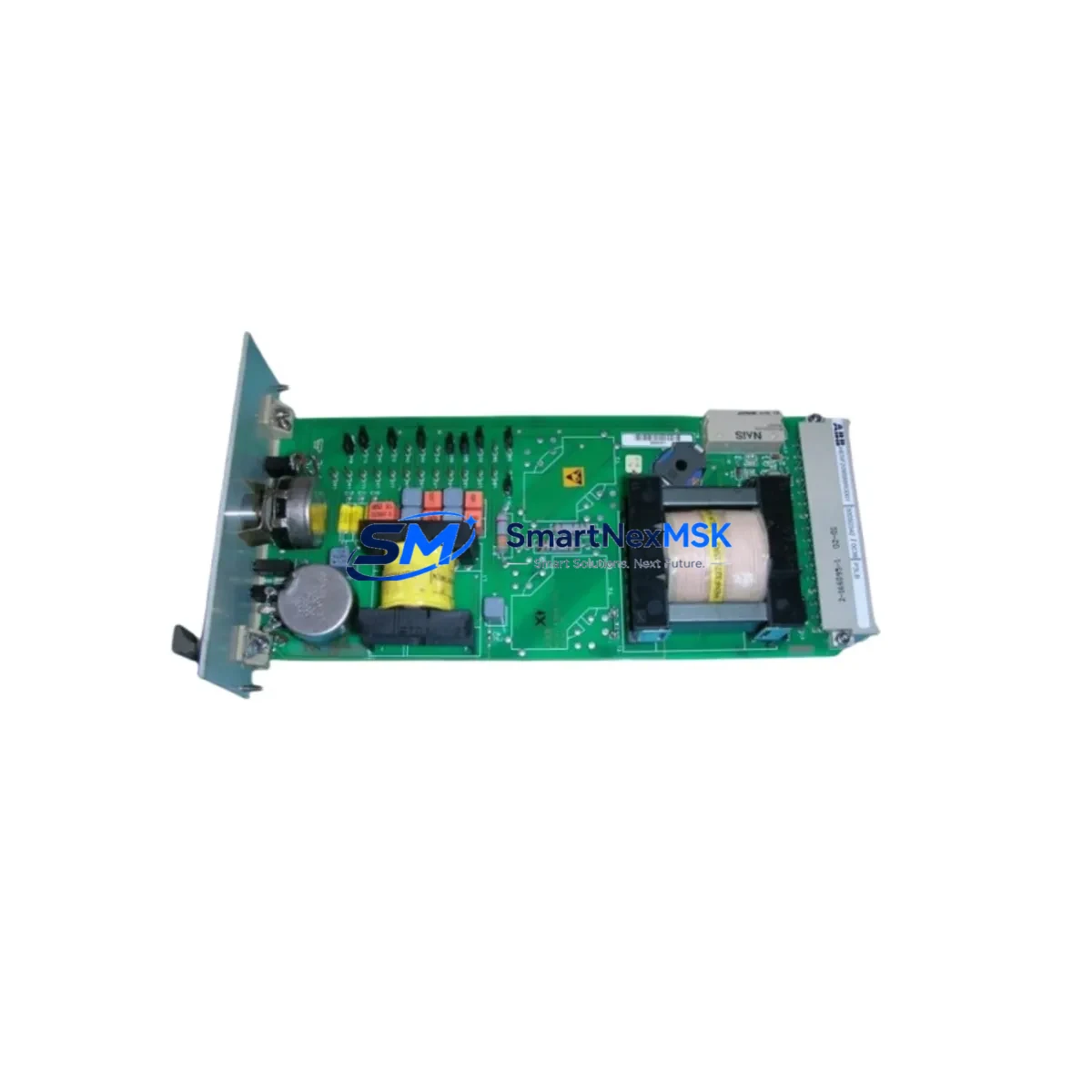

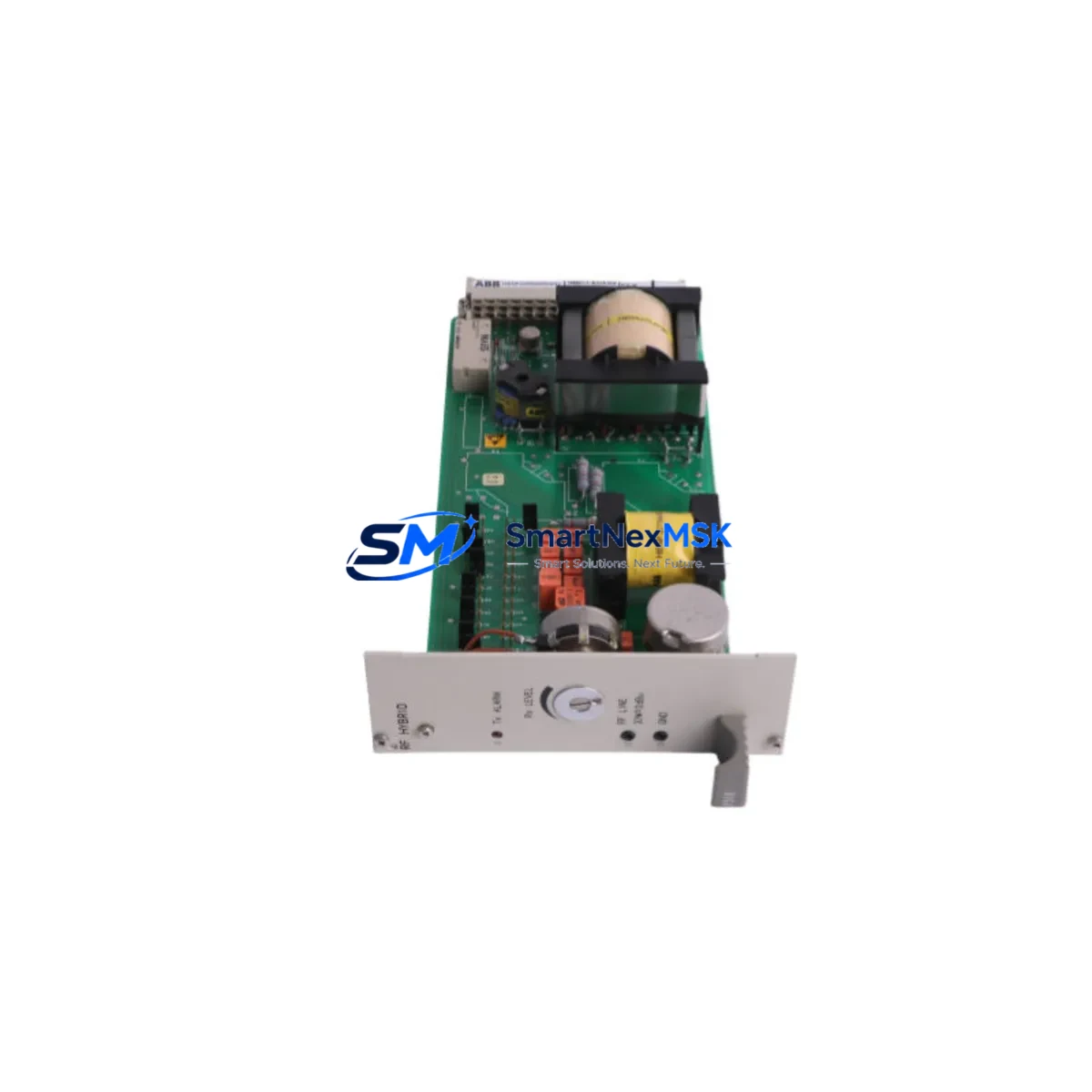

ABB HENF209568R0001 P3LB Retrofit-Ready Hybrid I/O Board for Advant DCS Control Systems

The ABB HENF209568R0001 P3LB is a Hybrid I/O Board engineered for the ABB Advant Controller series, including the AC450, AC410, and AC160 platforms. As legacy Advant DCS installations approach end-of-life, this module serves as a verified retrofit-ready replacement that enables plant engineers to extend system service life, restore discontinued spare parts, and execute controlled migration to modern control architectures — all while minimizing unplanned downtime.

Whether you are replacing a failed board in an active production line, upgrading a control cabinet during a scheduled turnaround, or migrating I/O infrastructure to a newer ABB System 800xA environment, the HENF209568R0001 P3LB provides the electrical and functional compatibility required for a smooth transition. Its hybrid I/O architecture supports both analog and digital signal types on a shared backplane, reducing the number of modules required per rack and simplifying cabinet layout during retrofit projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the HENF209568R0001 P3LB into an existing Advant DCS installation requires systematic pre-replacement planning. Before removing the legacy board, engineers should document the current terminal wiring layout using the existing I/O list and loop drawings. The P3LB occupies a standard module slot in the ABB S100 I/O rack or compatible Advant backplane — confirm slot addressing against the rack configuration file stored in the ABB Master Engineering Tool (MET) or Advant Builder software.

Power supply capacity is a critical checkpoint. The ABB DSQC 604 or equivalent 24 VDC rack power supply must be verified to support the additional load of the replacement module. In multi-rack configurations using the ABB DSBC 176 bus extender, confirm that the I/O bus signal integrity is maintained after module substitution.

For systems communicating over PROFIBUS-DP, the module’s GSD file and station address must be re-confirmed in the network configuration. If the plant is running a parallel MasterBus 300 segment for legacy Advant nodes, ensure the new board’s node address does not conflict with existing assignments. In hybrid environments where Advant Fieldbus 100 (AF 100) is still active alongside newer FOUNDATION Fieldbus or HART segments, the P3LB’s analog channels should be validated against the field instrument signal ranges before loop commissioning.

Terminal block compatibility should be verified against the existing ABB NTAI05 or NTAI09 termination units. In many Advant installations, the termination unit remains in place while only the I/O module is swapped — this approach preserves field wiring and significantly reduces replacement time. If the termination unit is also degraded, plan for simultaneous replacement using the appropriate NTAI series unit matched to the P3LB’s channel configuration.

For plants operating ABB Operator Station (OS) or a third-party HMI connected via OPC-DA to the Advant DCS, verify that the I/O tag database reflects the new module’s channel assignments after replacement. In some configurations, the ABB AC450 controller will automatically re-scan the I/O bus upon module insertion; in others, a manual I/O configuration download is required from the engineering workstation. Confirm this behavior in your site-specific system documentation before proceeding.

Where the retrofit scope extends beyond a single board replacement — for example, upgrading an entire I/O cabinet from Advant S100 to ABB System 800xA S800 I/O — the HENF209568R0001 P3LB can serve as a bridging module during phased migration, maintaining continuity on legacy loops while new S800 modules are commissioned in parallel racks.

Downtime Control During System Migration

Minimizing production downtime during I/O board replacement is the primary operational concern for any retrofit project. The recommended approach for replacing the HENF209568R0001 P3LB in a live Advant DCS environment is to execute the swap during a planned maintenance window, with the affected control loops placed in manual mode at the ABB Operator Station or local field panel prior to module removal.

Before powering down the rack slot, export the current I/O configuration and controller program backup from the AC450 or AC410 engineering tool. This ensures that if the replacement module requires a fresh configuration download, the original program logic — including PID tuning parameters, interlock conditions, and sequence logic — can be restored without relying on memory or paper records. Store the backup on a dedicated engineering laptop and verify the file integrity before beginning physical work.

The physical swap of the P3LB module typically takes under 15 minutes when the termination unit remains in place. After insertion, power up the rack and observe the module’s status LEDs. A solid green RUN indicator confirms successful backplane communication. If the module enters a fault state, check the module address DIP switch settings against the rack configuration file and re-download the I/O configuration from the engineering workstation.

Once the module is online, perform a point-by-point I/O verification: force each digital output channel and confirm field response; apply a known signal to each analog input and verify the engineering value displayed at the operator station. Only after all channels are verified should the affected control loops be returned to automatic mode. This structured commissioning sequence protects original program logic, maintains field control continuity, and ensures the replacement is fully validated before the maintenance window closes.

For multi-module replacements or full cabinet upgrades, consider staging the work across multiple maintenance windows to limit the scope of simultaneous loop interruptions. Pre-testing replacement modules on a bench using a portable ABB programming cable (e.g., NKTU01 or USB-to-serial adapter) before installation further reduces on-site commissioning time.

Retrofit Support FAQ

Q1: Is the HENF209568R0001 P3LB a direct replacement for the original ABB Advant P3LB board?
Yes. The HENF209568R0001 P3LB is the manufacturer part number for the P3LB Hybrid I/O Board used in ABB Advant DCS systems. It is a direct functional replacement for failed or discontinued units of the same designation. No hardware modification is required for like-for-like substitution in the same rack slot.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, verify the module address DIP switch settings match the original configuration. Power up the rack and confirm the RUN LED status. If required, re-download the I/O configuration from the AC450 or AC410 engineering tool. Perform a full point-by-point I/O check before returning loops to automatic control.

Q3: Can this module be used in a System 800xA migration project alongside S800 I/O modules?
Yes. During phased migration from Advant DCS to ABB System 800xA, the HENF209568R0001 P3LB can remain active in legacy Advant racks while new S800 I/O modules are commissioned in parallel. This allows a controlled, loop-by-loop migration without requiring a full cutover in a single maintenance window.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing before dispatch. Warranty claims are supported by our technical team — contact sales@smartnexmsk.com with your order reference and fault description for rapid resolution.
