ABB HENF209568R1 P3LB Spare for AC500 Automation

ABB HENF209568R1 P3LB Spare for AC500 Automation: Spare Replacement & Industrial Downtime Risk Control

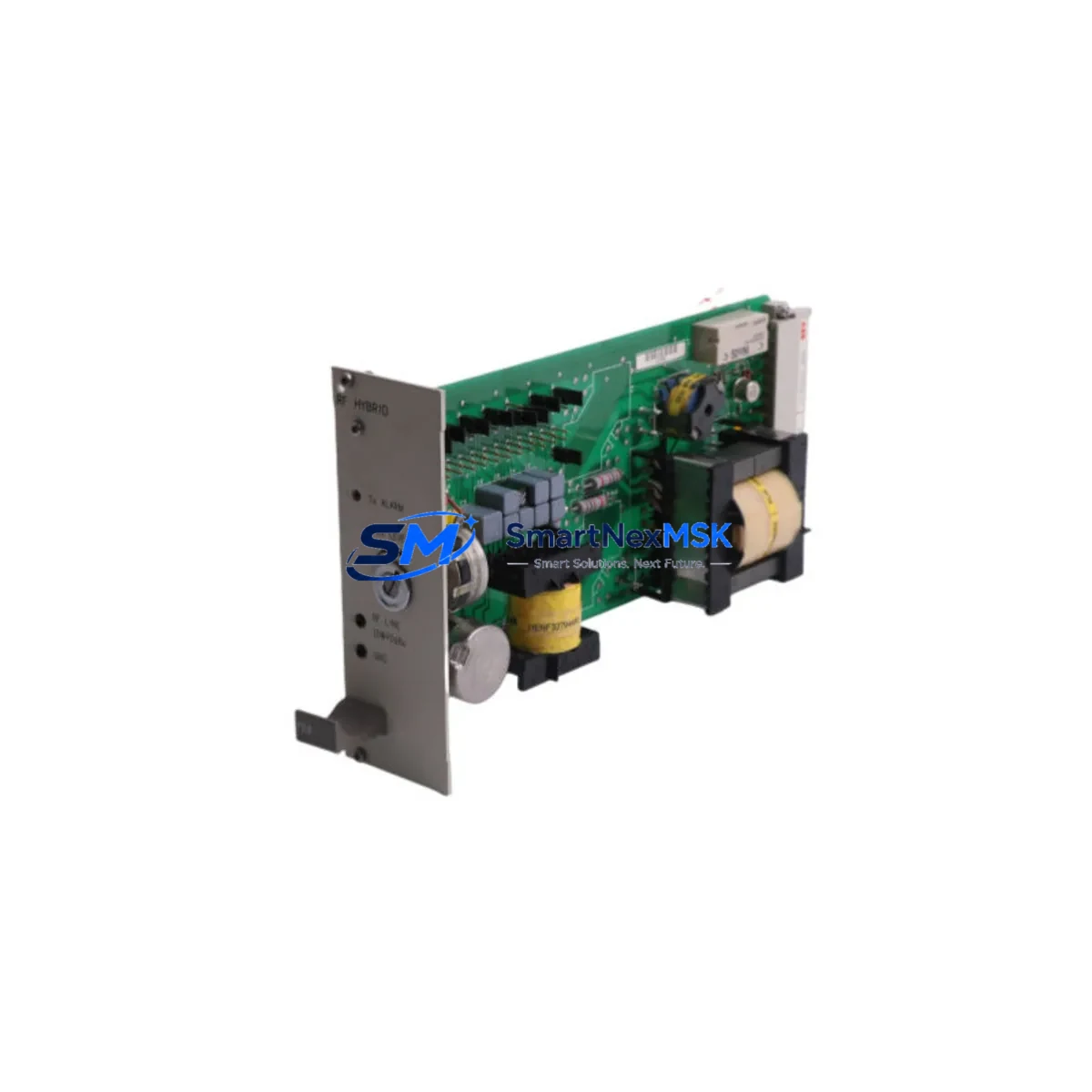

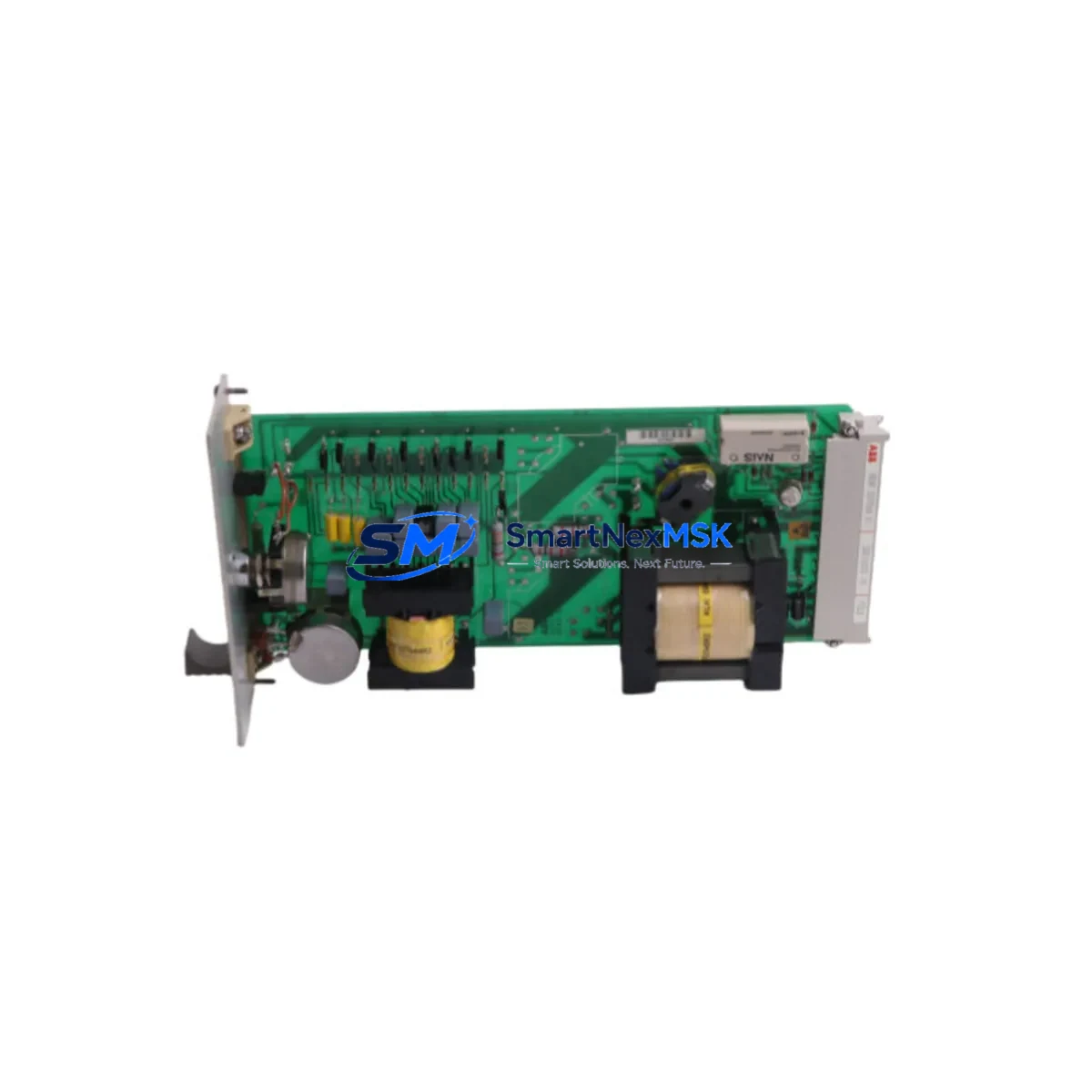

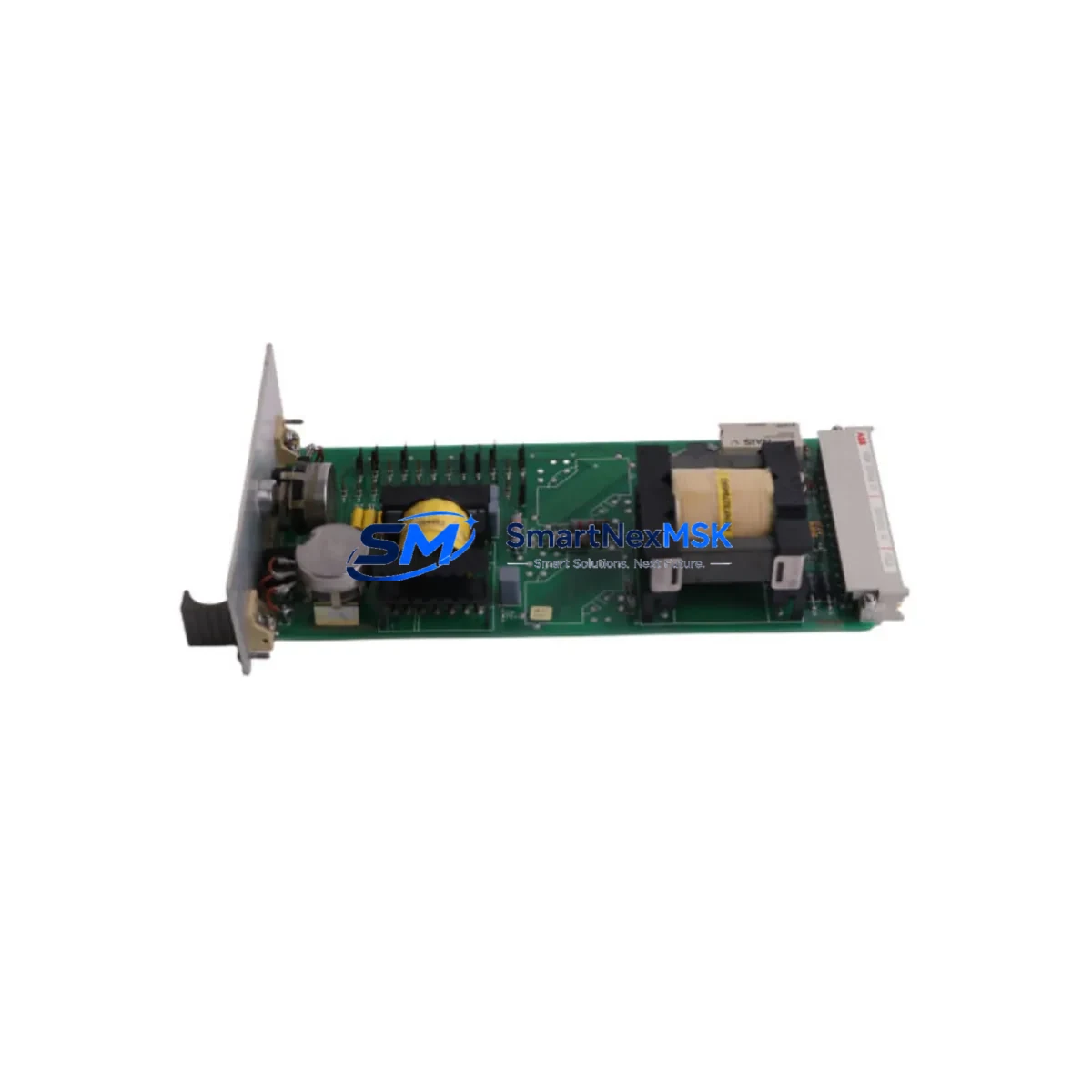

The ABB HENF209568R1 P3LB is a genuine circuit board module engineered for the ABB AC500 PLC platform — one of the most widely deployed programmable logic controller families in industrial automation, process control, and critical infrastructure applications worldwide. When this board fails or degrades, the downstream impact is immediate: unplanned downtime, halted production lines, and costly emergency procurement. Stocking a verified original HENF209568R1 P3LB spare is the single most effective measure a maintenance team can take to protect system uptime and reduce mean time to repair (MTTR).

This listing supplies the HENF209568R1 P3LB as a maintenance-ready original spare — sourced from authorized channels, function-tested prior to shipment, and backed by a 12-month warranty. Each unit is inspected for board integrity, connector condition, and firmware compatibility before dispatch. Whether you are managing a planned overhaul, responding to an unscheduled fault, or building a strategic spare parts inventory for aging AC500 installations, this module ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the HENF209568R1 P3LB in an AC500 system is rarely an isolated task. Experienced maintenance engineers know that a board-level fault in a PLC often signals stress across adjacent components in the same control cabinet or electrical loop. A thorough site inspection during replacement should include the following associated components:

Begin with the AC500 CPU module — such as the PM573-ETH or PM591-ETH — and verify that the processor is not logging persistent hardware faults that could indicate a deeper backplane issue. Check the AC500 backplane or bus coupler for secure seating and inspect the backplane connectors for oxidation or mechanical wear. If the system uses distributed I/O, inspect the TB511 or TB521 terminal base units for proper module engagement and terminal torque.

On the power supply side, confirm that the 24 VDC system power supply — commonly an ABB CP-E 24/10.0 or equivalent industrial SMPS — is delivering stable voltage within tolerance. Voltage ripple or brownout conditions are a leading cause of premature circuit board failure in PLC systems. Inspect the 24 VDC distribution fuse block and any miniature circuit breakers (MCBs) protecting the PLC rack supply rail.

For systems with communication-intensive architectures, check the PROFIBUS DP or Modbus RTU communication modules installed in the same rack. Noise on the fieldbus can corrupt board-level diagnostics and trigger false fault conditions. If the installation includes signal isolators or galvanic separators between field instruments and the PLC I/O, verify their output signal integrity — degraded isolators are a common but overlooked source of I/O board stress.

Inspect all digital and analog I/O modules in the AC500 rack — such as the DC532 digital input module or AX522 analog I/O module — for channel-level faults. A shorted field device connected to an I/O channel can cause localized board damage that propagates to adjacent modules over time. Review the relay output modules (e.g., DC505-FBP) for contact wear, especially in high-cycle applications such as motor starters or solenoid valve control. Finally, if the system includes an HMI panel — such as an ABB CP635 or CP651 touch panel — communicating with the AC500 CPU, verify the communication link is stable and that the HMI firmware is compatible with the current CPU version after the board replacement.

Building a structured spare parts kit around the HENF209568R1 P3LB — including at minimum one CPU module spare, one power supply spare, and a set of critical I/O module spares — is the foundation of a resilient maintenance strategy for long-running AC500 installations.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Before removing the faulty board, record the current PLC program version, I/O configuration, and any active fault codes from the AC500 engineering tool (Automation Builder or PS501 Control Builder). Export a backup of the CPU program to a secure location.

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the control cabinet and confirm zero-energy state with a calibrated voltage tester before opening the PLC rack.

Step 3 — Module removal: Release the HENF209568R1 P3LB from its slot using the module ejector levers. Handle the board by its edges only — avoid contact with PCB traces or connector pins. Place the removed module in an ESD-safe bag for return or failure analysis.

Step 4 — Spare installation: Insert the new HENF209568R1 P3LB into the correct slot, ensuring full engagement with the backplane connector. Secure any retention clips or screws per the AC500 hardware installation manual.

Step 5 — Power-up and verification: Re-energize the cabinet and observe the module status LEDs. Use Automation Builder to confirm the module is recognized, no hardware faults are active, and the I/O configuration matches the pre-replacement baseline. Perform a functional test of all associated I/O channels before returning the system to production.

Step 6 — Documentation update: Record the replacement in your CMMS, update the spare parts inventory, and reorder a replacement spare to restore your buffer stock.

Spare Parts Support FAQ

Q1: Is the HENF209568R1 P3LB a direct drop-in replacement for the original module in my AC500 system?
Yes — the HENF209568R1 P3LB is the original ABB part number for this board position in the AC500 platform. It is a direct replacement with no firmware modification required in most standard configurations. We recommend verifying your AC500 CPU firmware version against ABB’s compatibility matrix if your installation is running a non-standard or legacy firmware build.

Q2: How is the module tested before shipment?
Every HENF209568R1 P3LB unit undergoes a board-level functional inspection prior to dispatch. This includes power-on verification, connector integrity check, and visual PCB inspection for solder joint quality and component condition. Units that do not pass inspection are not shipped. A 12-month warranty covers any defects in materials or workmanship from the date of shipment.

Q3: Can I order multiple units for strategic spare parts inventory?
Yes. We support bulk and multi-unit orders for maintenance teams building structured spare parts programs. Long-term supply agreements are available for facilities managing multiple AC500 installations or operating in industries with strict uptime requirements. Contact our sales team to discuss volume pricing and reserved stock arrangements.

Q4: What should I do if the replacement module does not resolve the fault condition?
If installing the HENF209568R1 P3LB does not clear the fault, the root cause is likely in an adjacent component — most commonly the backplane, the CPU module, or the 24 VDC power supply. Review the AC500 system diagnostic log for fault codes that predate the board failure. Our technical support team can assist with fault isolation guidance. All returned modules are accepted for inspection under our 12-month warranty policy.
