ABB HESG330103R2 ES1613 Maintenance-Ready Spare Advant: Spare Replacement & Industrial Downtime Risk Control

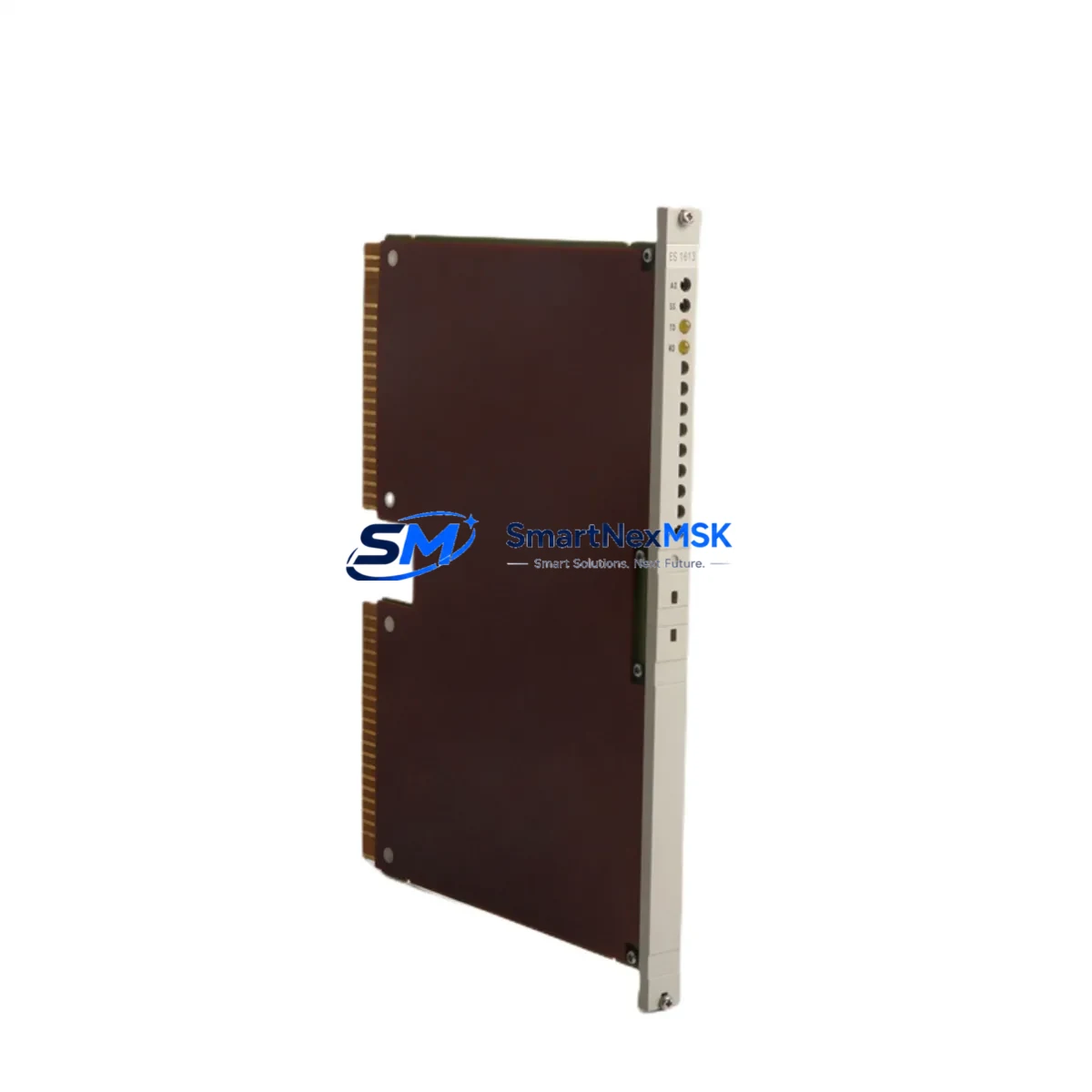

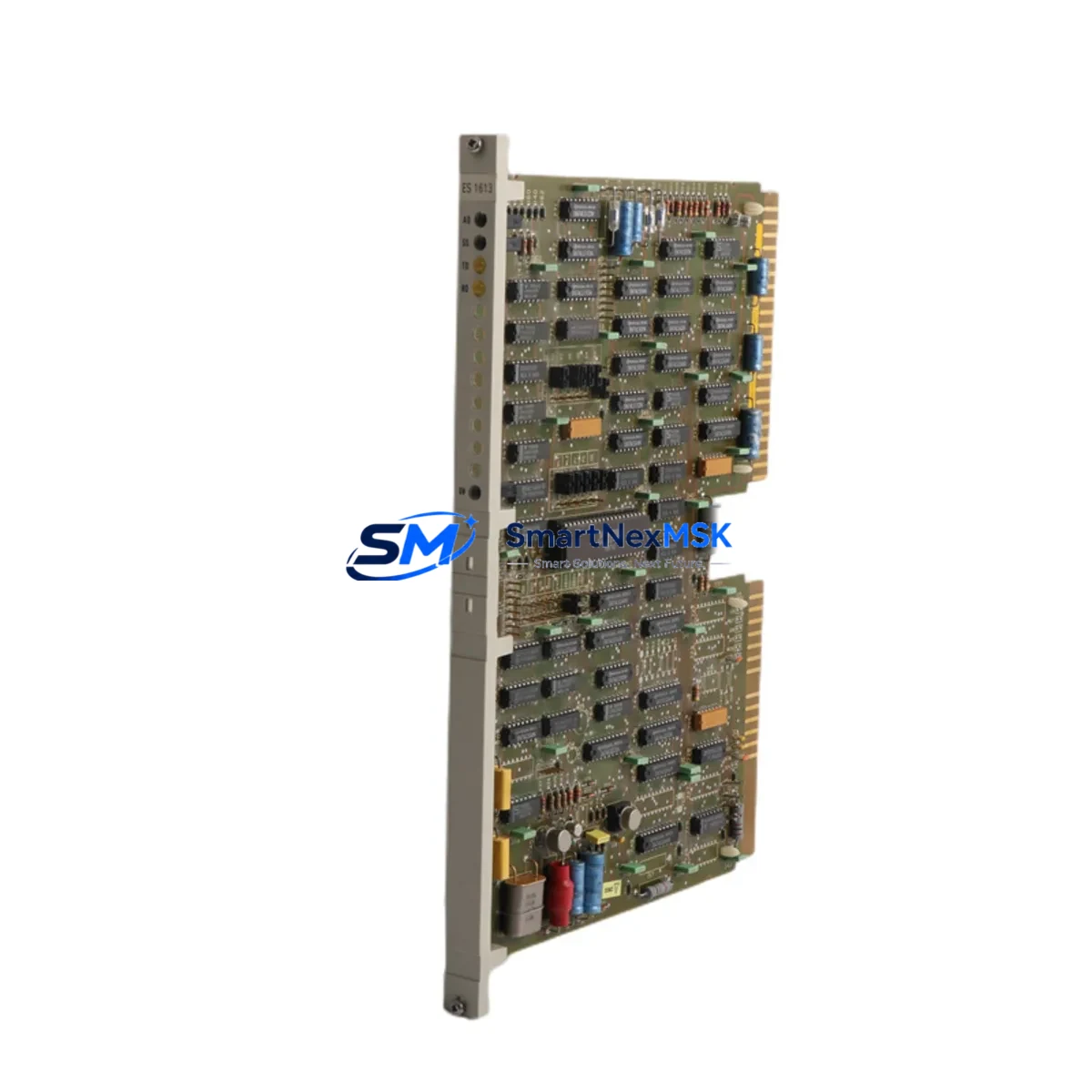

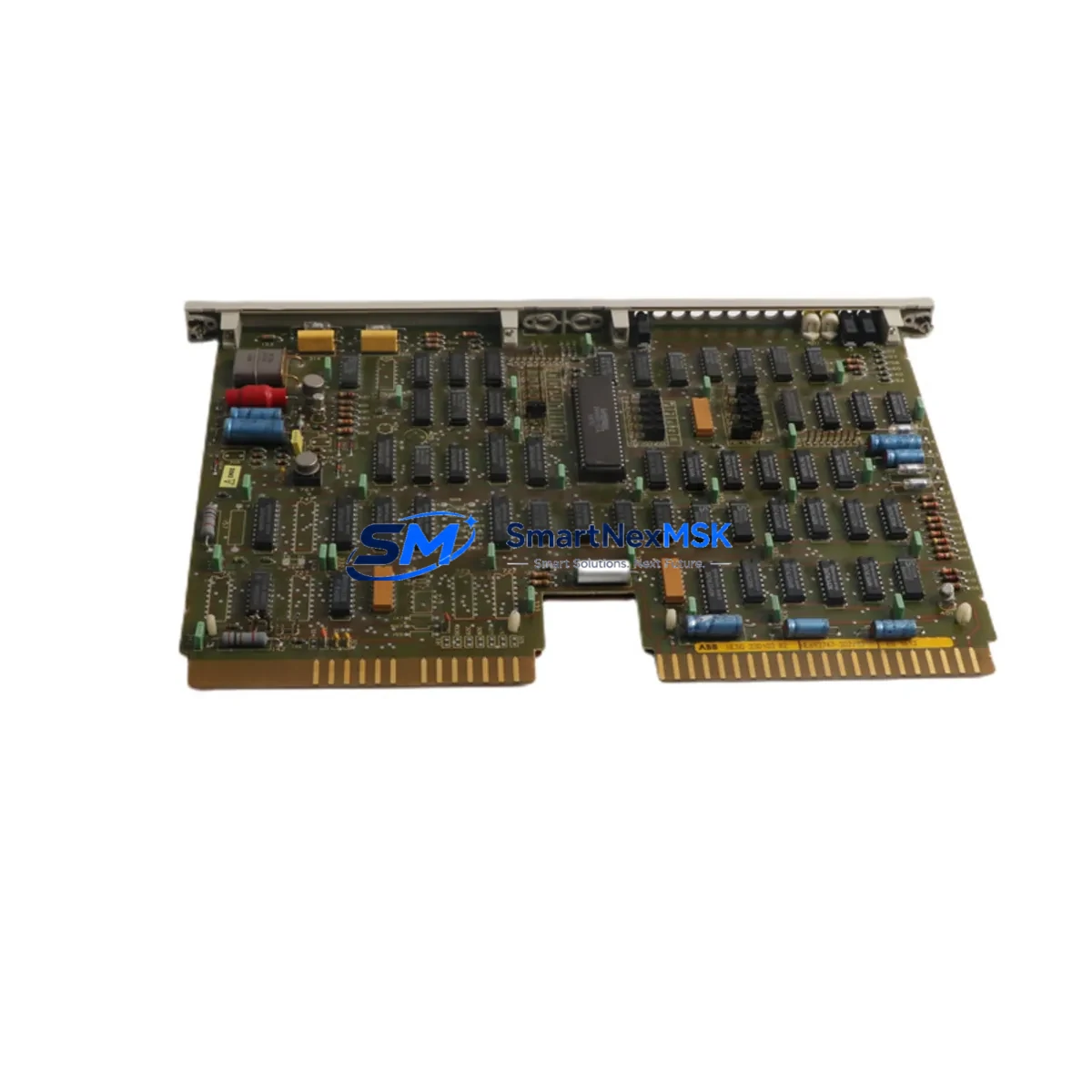

The ABB HESG330103R2 ES1613 is an original PC board module engineered for ABB Advant series Distributed Control Systems (DCS), including the AC 450 and AC 400 platforms widely deployed across power generation, pulp and paper, chemical processing, and heavy manufacturing facilities. As a critical signal processing and I/O interface board within the Advant controller cabinet, this module plays a central role in maintaining continuous process control. When this board fails or degrades, the consequences extend beyond a single loop — entire control segments can go offline, triggering unplanned shutdowns that cost thousands of dollars per hour in lost production.
Sourcing a verified, tested replacement unit of the HESG330103R2 ES1613 before a failure occurs is the single most effective strategy for reducing mean time to repair (MTTR) in Advant-based control systems. SMARTNEXMSK maintains ready stock of this module, fully inspected and tested prior to shipment, backed by a 12-month warranty and traceable to original ABB manufacturing specifications.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | HESG330103R2 ES1613 |
| Brand | ABB |
| Series / Platform | Advant DCS (AC 450 / AC 400) |
| Module Type | PC Board Module (Signal Processing / I/O Interface) |
| Country of Origin | Sweden |
| Compatibility | ABB Advant AC 450, AC 400 controller cabinets; compatible with HESG330103R1 predecessor revision in most configurations |
| Installation | Direct board-level replacement; observe ESD precautions; verify backplane connector alignment before seating |
| Operating Environment | Industrial control cabinet; temperature and humidity per ABB Advant system specifications |
| Maintenance Recommendation | Inspect annually; replace proactively at first sign of intermittent I/O faults or communication errors |
| Pre-Shipment Testing | Functional test performed on every unit before dispatch |
| Warranty | 12 Months from date of shipment |
| Lead Time | In stock — ships within 1–3 business days |
Maintenance Planning for Continuous Operation
Experienced maintenance engineers working on ABB Advant systems understand that the HESG330103R2 ES1613 does not operate in isolation. When planning a board replacement or responding to a fault condition, a thorough inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure stable system recovery.
Begin with the power supply module feeding the controller rack — units such as the ABB DSQC 604 or equivalent Advant rack PSU should be checked for output voltage stability and ripple, as an unstable supply is a leading cause of premature board failure. Next, inspect the backplane and rack bus connectors for oxidation, bent pins, or loose seating, particularly on adjacent slots that share the same I/O bus segment.
The HESG330103R2 ES1613 interfaces with field I/O through terminal blocks and marshalling panels — verify that all terminal strip connections (such as ABB XTCE or equivalent DIN-rail terminal assemblies) are torqued correctly and free of corrosion. Loose field wiring is frequently misdiagnosed as a board fault. Simultaneously, check the signal cables and shielded field wiring routed to the module; damaged cable insulation or improper shield grounding can introduce noise that corrupts I/O readings and accelerates board wear.
If the Advant system includes communication modules such as the HESG330103 series communication boards or PROFIBUS/Modbus interface cards, verify their firmware revision and connection integrity — a communication fault upstream can cascade into apparent I/O board errors. For systems with signal isolators between field instruments and the DCS I/O, inspect each isolator channel for drift or failure; a degraded isolator can deliver out-of-range signals that stress the input circuitry of the HESG330103R2 ES1613.
Relay output modules and interposing relays in the same control loop should be tested for contact resistance and coil integrity. Welded or high-resistance relay contacts can create feedback conditions that damage I/O boards. Additionally, review the fuse and circuit protection for each I/O channel — blown or weakened fuses are a direct indicator of field-side overcurrent events that may have already stressed the board being replaced.
For facilities running aging Advant systems, consider scheduling a parallel inspection of the HMI workstation and operator interface connections. Communication timeouts between the HMI and the controller often originate at the I/O board level, and replacing the HESG330103R2 ES1613 without verifying the HMI communication path may leave the root cause unresolved. Finally, document the firmware and hardware revision of the replacement board against the system’s existing configuration to confirm compatibility before returning the loop to service.
Site Replacement Workflow
Replacing the HESG330103R2 ES1613 in an active Advant DCS cabinet requires a structured approach to minimize downtime and avoid secondary faults:
1. Pre-Replacement Verification: Confirm the replacement unit’s part number and revision (R2) matches the installed board. Cross-reference the system’s hardware configuration database to verify slot assignment and I/O mapping. If the installed unit is a predecessor revision (R1), confirm backward compatibility with the site’s ABB system integrator or refer to the Advant hardware compatibility matrix.
2. Safe Isolation: Place the affected control loop in manual mode at the DCS operator station. Notify operations personnel of the planned maintenance window. De-energize the specific rack slot per ABB Advant hot-swap or cold-swap procedures as applicable to your system revision.
3. Board Extraction and Inspection: Remove the faulty HESG330103R2 ES1613 using proper ESD-safe handling. Inspect the board for visible damage — burnt components, cracked solder joints, or corrosion — to identify the root cause before installing the replacement.
4. Installation and Commissioning: Seat the replacement board firmly into the backplane connector. Restore power to the slot and observe the module’s status indicators during initialization. Verify I/O channel assignments in the DCS configuration tool and confirm field signal values match expected process readings before returning the loop to automatic control.
5. Post-Replacement Documentation: Record the replacement in the site’s maintenance management system (CMMS), including the old board’s serial number, failure mode, and the new unit’s part number and warranty start date. Retain the faulty board for failure analysis if required.
This workflow reduces average replacement time to under two hours for experienced technicians and ensures system compatibility is maintained throughout the Advant platform’s extended service life.
Spare Parts Support FAQ
Q1: Is the HESG330103R2 ES1613 still available as a new or tested original spare?
Yes. SMARTNEXMSK maintains stock of original ABB HESG330103R2 ES1613 units sourced from authorized channels and legacy inventory. Every unit undergoes functional testing before shipment. Given that ABB has transitioned newer installations to the System 800xA platform, original Advant spare parts are increasingly scarce — securing stock proactively is strongly recommended for facilities with long-term Advant system commitments.
Q2: How do I verify compatibility before ordering?
Provide your system’s hardware configuration report or the existing board’s full part number and revision code. Our technical team will confirm compatibility with your specific Advant rack and I/O configuration. For cross-revision compatibility (R1 vs R2), we recommend verification against your site’s ABB system documentation or a consultation with your ABB service representative.
Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional failure under normal operating conditions from the date of shipment. Each unit is tested prior to dispatch and ships with a test report. Warranty claims are supported by direct technical communication with our engineering team, with replacement or refund options available depending on the failure assessment.
Q4: What is the recommended spare parts inventory strategy for Advant DCS sites?
For facilities operating ABB Advant AC 450 or AC 400 systems, we recommend maintaining a minimum of one cold-spare HESG330103R2 ES1613 per controller cabinet, alongside spares for the power supply module, communication interface boards, and critical I/O modules. Given the discontinuation trajectory of Advant hardware, a 3–5 year forward stocking plan aligned with your planned system lifecycle or migration schedule is the most cost-effective approach to avoiding critical spare shortages during unplanned outages.
