ABB HESG447398R0020/70EA06A-E Retrofit-Ready Analog Input for Advant DCS: Compatible Modernization and Smooth System Upgrade

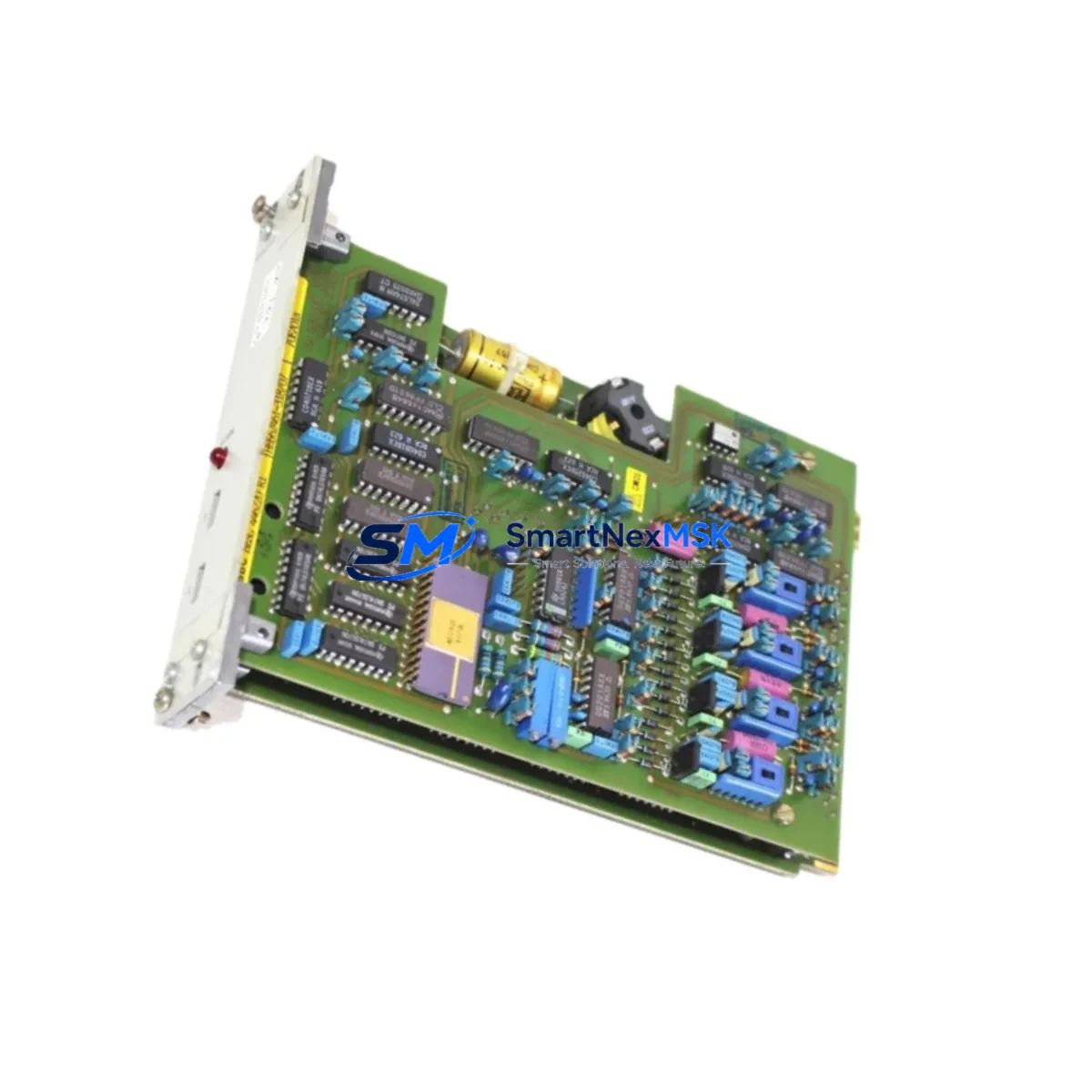

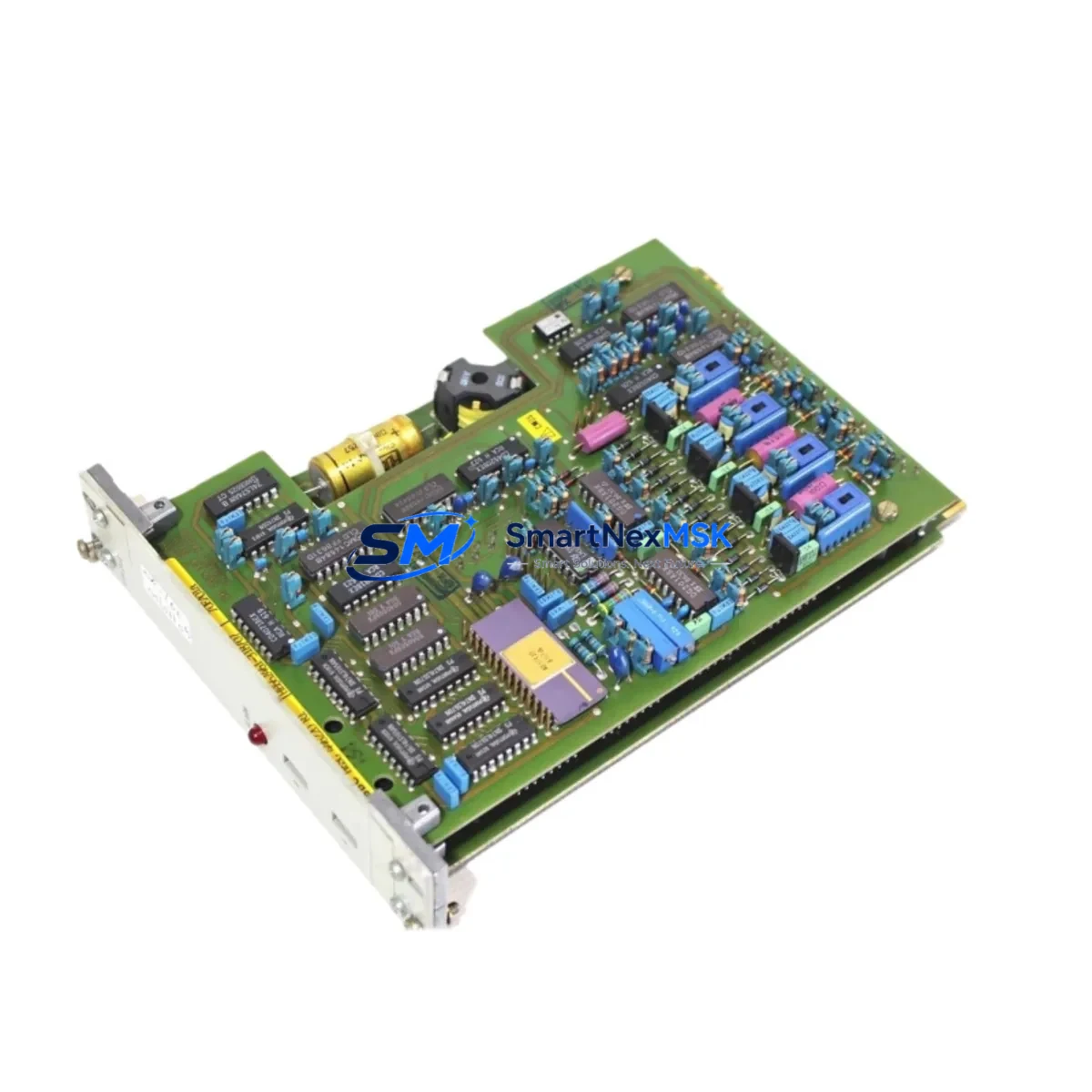

The ABB HESG447398R0020/70EA06A-E is a high-reliability analog input module originally designed for ABB’s Advant series Distributed Control Systems (DCS). As legacy Advant OCS and MOD 300 installations reach end-of-life, this module has become a critical retrofit component for engineers managing aging control infrastructure across power generation, pulp and paper, chemical processing, and oil and gas facilities. Whether you are replacing a failed unit, building a spare parts inventory, or executing a phased system modernization, the HESG447398R0020/70EA06A-E provides a direct, wiring-compatible solution that minimizes engineering rework and reduces unplanned downtime.
This module interfaces directly with the Advant Controller 450 (AC450) and Advant Controller 410 (AC410) platforms, slotting into the standard S100 I/O bus backplane without requiring hardware modification. Its analog input channels accept 4–20 mA and 0–10 V field signals, making it compatible with the majority of transmitters and sensors already installed in existing control cabinets. Engineers migrating from older HESG447398R0001 or HESG447398R0010 revisions will find the R0020/70EA06A-E electrically and mechanically interchangeable, with no changes required to terminal block wiring or field cable routing.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platforms | ABB Advant OCS, AC450, AC410, MOD 300 |
| Backplane Interface | S100 I/O Bus — direct slot replacement |
| Signal Types | 4–20 mA, 0–10 V analog input |
| Replaces | HESG447398R0001, HESG447398R0010, HESG447398R0020 |
| Terminal Wiring | Wiring-compatible; no re-termination required |
| Communication | S100 I/O bus protocol; compatible with DSBC 176 and DSBC 172 bus couplers |
| Installation Requirement | Standard DIN-rail or rack-mount S100 subrack |
| Module Address | Configured via DIP switch on module face; verify against existing I/O list |
| Commissioning Note | Confirm channel scaling in AC450 engineering tool before hot-swap |
| Warranty | 12 months from shipment date |
Retrofit Planning for Existing Automation Systems
Successful integration of the HESG447398R0020/70EA06A-E into an existing Advant DCS environment requires a structured pre-installation review. Begin by auditing the S100 subrack layout to confirm available slot positions and verify that the DSBC 176 bus coupler or DSBC 172 bus coupler connecting the subrack to the AC450 controller is functioning correctly. A faulty bus coupler is a common root cause of misdiagnosed module failures and should be tested independently before module replacement.
Review the existing I/O configuration in the AC450 engineering database. Each HESG447398R0020/70EA06A-E module is assigned a unique module address via DIP switch settings on the module face. Confirm that the replacement module’s address matches the original configuration exactly — an address mismatch will cause the controller to report a hardware fault and prevent the channel from being scanned. Cross-reference the I/O list with the field wiring schedule to verify that all terminal connections on the associated DSAI 130 or DSAI 155 terminal unit are correctly mapped before powering up.
For sites running ABB’s Master software suite or the Advant Builder engineering tool, verify that the function block assignments for each analog input channel are intact in the application program. In cases where the original program backup is unavailable, a channel-by-channel signal trace using a loop calibrator will be necessary to confirm correct scaling and engineering unit conversion. Pay particular attention to channels connected to pressure transmitters, flow meters, and temperature sensors, where incorrect scaling can trigger spurious process alarms or cause the control loop to operate outside its tuned parameters.
Power supply capacity is a critical consideration during any S100 subrack expansion or module replacement. The HESG447398R0020/70EA06A-E draws its operating power from the subrack backplane, which is fed by the DSPU 110 or DSPU 130 power supply unit. Before installing additional modules or replacing multiple units simultaneously, calculate the total current draw across all occupied slots and confirm that the installed power supply unit has sufficient headroom. Overloading the subrack power supply is a leading cause of intermittent module faults in aging Advant installations.
Sites that are executing a broader migration from Advant OCS to ABB System 800xA should plan the HESG447398R0020/70EA06A-E replacement as part of a phased I/O migration strategy. The S800 I/O platform used in System 800xA installations uses a different backplane architecture and communication protocol, so direct module reuse is not possible. However, maintaining a functional Advant S100 I/O layer during the transition period — using replacement modules such as the HESG447398R0020/70EA06A-E — allows the legacy control system to remain operational while the new 800xA engineering database is built and tested in parallel. This approach is strongly recommended to avoid a full cutover shutdown.
Downtime Control During System Migration
Minimizing production downtime during a DCS module replacement or system migration requires careful sequencing and pre-staging of all replacement hardware. For the HESG447398R0020/70EA06A-E, the recommended approach is a hot-standby swap procedure: confirm that the AC450 controller has placed the affected I/O channel in manual mode or that the associated control loop has been transferred to a backup regulatory path before removing the failed module from the subrack.
Before the maintenance window opens, pre-configure the replacement module’s DIP switch address settings on the bench and verify them against the I/O list. Label all field cables connected to the terminal unit with their channel assignments before disconnecting. This eliminates re-wiring errors during the time-pressured installation phase. If the site uses DSAI 130 or DSAI 155 terminal units, these can remain in place during the module swap, preserving all field wiring connections and reducing the replacement procedure to a single module extraction and insertion.
After installation, bring the channel back online in the AC450 engineering tool and perform a live signal check against a known reference — either a loop calibrator or a verified field transmitter reading. Confirm that the process value displayed on the operator station HMI matches the expected field reading within the instrument’s stated accuracy. For sites using ABB Operate IT or the System 800xA operator workplace, verify that the HMI faceplate for the affected loop is displaying correctly and that no unacknowledged alarms remain active on the channel before returning the loop to automatic control.
All units supplied by SMARTNEXMSK are subject to pre-shipment functional testing, including signal channel verification and backplane interface checks. Each module ships with a test report and is covered by a 12-month warranty from the date of shipment, providing assurance for both emergency replacement and planned maintenance scenarios.
Retrofit Support FAQ
Q: Is the HESG447398R0020/70EA06A-E a direct replacement for earlier HESG447398R revisions?
A: Yes. The R0020/70EA06A-E is electrically and mechanically compatible with HESG447398R0001 and HESG447398R0010 revisions. No changes to terminal wiring, backplane slot assignment, or module address configuration are required. Verify DIP switch settings match the original module before installation.
Q: What commissioning steps are required after installation?
A: After seating the module in the S100 subrack, confirm the module address via DIP switch, restore the I/O channel to automatic scan in the AC450 engineering tool, and perform a live signal verification using a loop calibrator or field transmitter. Check the HMI display for correct process value and clear any fault alarms before returning the loop to automatic control.
Q: Can this module be used in a System 800xA migration project?
A: The HESG447398R0020/70EA06A-E is designed for the S100 I/O bus architecture used in Advant OCS, AC450, and MOD 300 systems. It is not directly compatible with the S800 I/O platform used in System 800xA. However, it is an effective solution for maintaining Advant system availability during a phased migration, allowing legacy I/O to remain operational while the new platform is commissioned.
Q: What warranty and testing does SMARTNEXMSK provide?
A: All modules undergo pre-shipment functional testing including signal channel verification and backplane interface checks. A 12-month warranty is provided from the shipment date. A test report is included with each unit. Contact sales@smartnexmsk.com for warranty claims or technical support.
