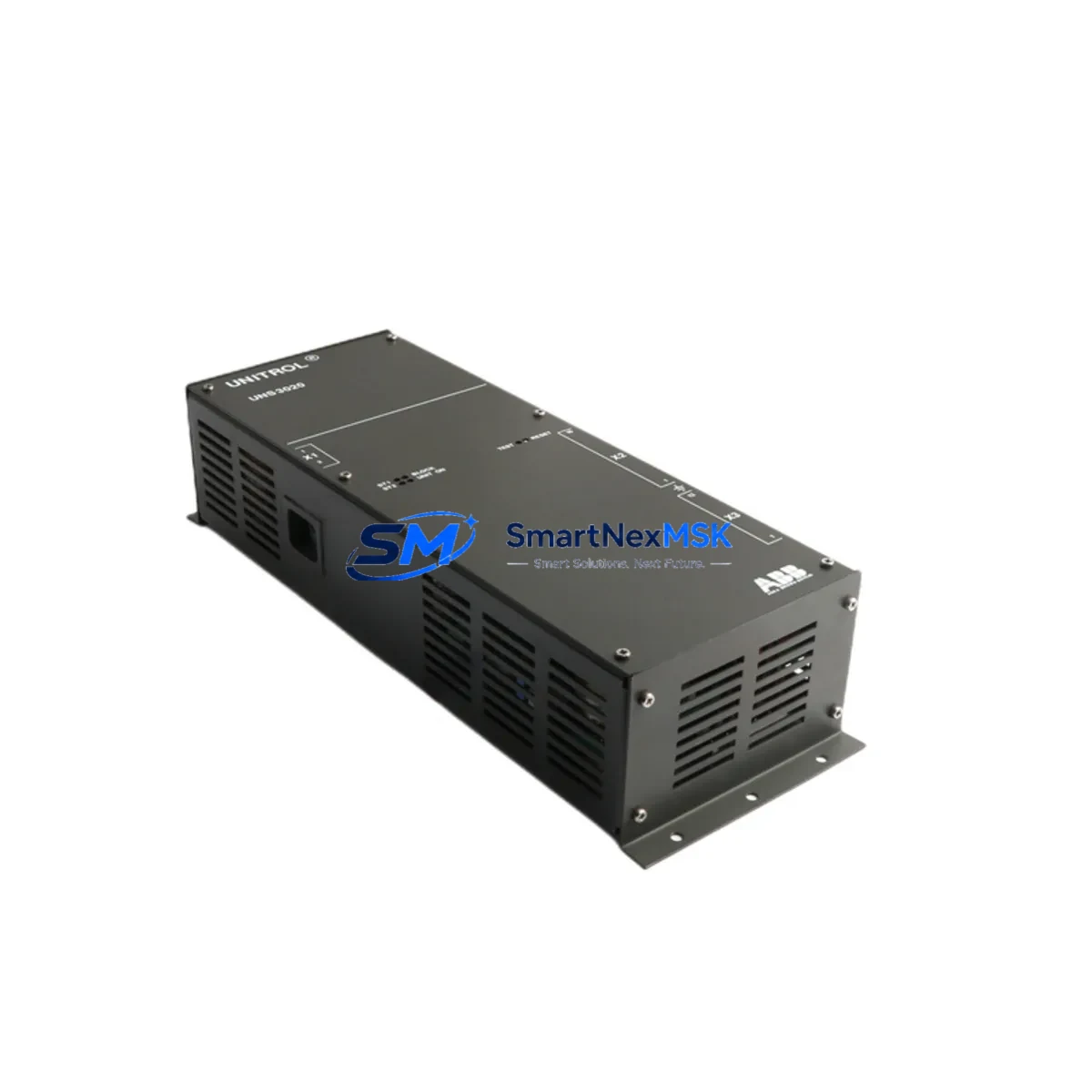

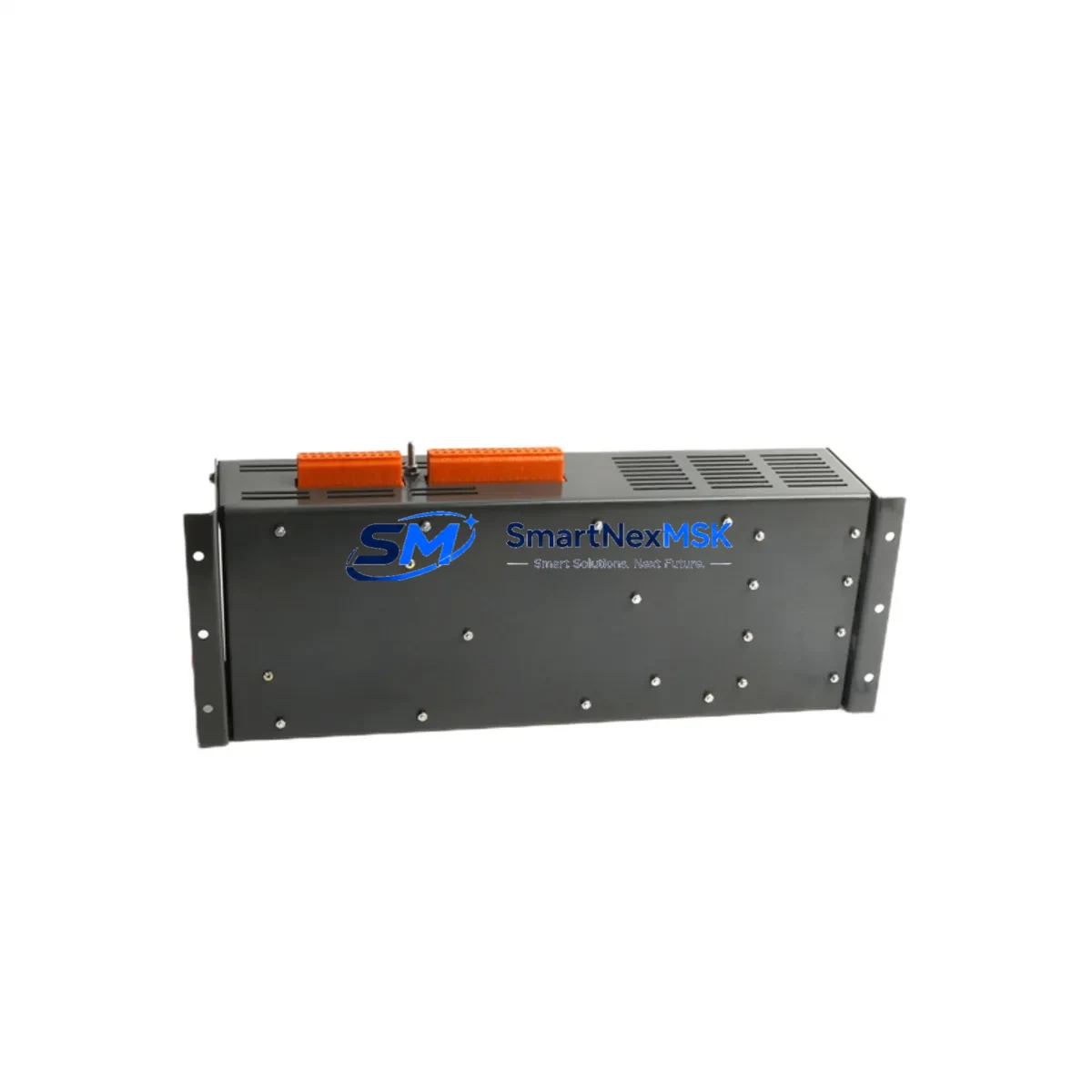

The ABB HIEE205010R0001 (UNS3020A-Z V1) is an original protection relay module designed for ABB Symphony Plus distributed control systems and UNITROL excitation platforms. For maintenance engineers managing aging power generation, utilities, or process automation infrastructure, this module represents a critical spare that directly impacts system uptime and fault response capability. Sourced from verified supply channels, each unit is inspected and tested prior to shipment, backed by a 12-month warranty, and available for fast worldwide delivery to minimize planned and unplanned downtime.

In industrial environments where Symphony Plus controllers govern turbine excitation, generator protection, or process loop control, the HIEE205010R0001 relay module sits at the intersection of protection logic and field I/O. Its failure — or the absence of a qualified spare — can cascade into extended outages, emergency procurement delays, and costly production losses. Stocking this module as part of a structured spare parts program is a recognized best practice in power plant maintenance, petrochemical facilities, and heavy manufacturing sites operating ABB DCS architectures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the HIEE205010R0001 relay module during a planned outage or responding to an unplanned fault, experienced maintenance engineers treat this as an opportunity to audit the surrounding control architecture. The relay module does not operate in isolation — its performance depends on the integrity of adjacent components throughout the same control cabinet and electrical loop.

Start with the ABB Symphony Plus power supply module (typically a 24 VDC or 48 VDC rail-mount unit) that feeds the relay rack. A degraded or undersized power supply is a common root cause of intermittent relay faults and should be load-tested during any relay replacement event. Alongside the power supply, inspect the Symphony Plus backplane and I/O bus connectors for oxidation, loose seating, or thermal stress marks — these are frequent failure points in systems that have operated for more than five years without a full cabinet inspection.

For the field wiring side, verify the condition of the terminal blocks and wiring harnesses connected to the relay’s input and output circuits. Loose or corroded terminals introduce resistance that can cause false trips or missed protection events. If the site uses signal isolators between field instruments and the relay inputs, check isolator output levels against the relay’s rated input range — a drifting isolator can mimic a relay fault and lead to misdiagnosis.

In UNITROL excitation applications, the HIEE205010R0001 often works in conjunction with ABB UNITROL field current measurement boards and excitation transformer protection circuits. During replacement, confirm that the AVR (Automatic Voltage Regulator) setpoints and protection thresholds are correctly re-entered or transferred from backup configuration files. Failure to restore correct setpoints after a relay swap is a documented cause of post-maintenance trips.

Communication integrity should also be verified. If the relay module interfaces with a Symphony Plus communication module or Modbus/PROFIBUS gateway, confirm that the node address, baud rate, and watchdog timeout settings are correctly configured after reinstallation. For sites using ABB HMI panels or Operate IT operator stations, verify that alarm and status tags associated with the relay are correctly mapped and responding after the replacement is complete.

Finally, for older Symphony Plus installations approaching end-of-support lifecycle, consider stocking companion spares such as ABB HIEE300936R0001 or equivalent analog I/O modules, UNITROL protection fuse assemblies, and relay output contact blocks. A well-structured spare parts kit — covering the relay module, its power feed, I/O interfaces, and communication path — reduces mean time to repair (MTTR) from days to hours and is the foundation of any effective predictive maintenance program for ABB DCS environments.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement unit’s part number (HIEE205010R0001) and version (UNS3020A-Z V1) match the installed module exactly. Check the Symphony Plus system documentation or cabinet label for the correct slot address and backplane position.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the relay rack section per the site electrical safety plan. Do not rely solely on software inhibit — physically isolate the field wiring terminals before removal.

Step 3 — Module extraction and inspection: Remove the faulty HIEE205010R0001 carefully, noting connector orientation and any field wiring labels. Inspect the backplane connector pins for damage before inserting the replacement unit.

Step 4 — Installation and configuration restore: Seat the new module firmly into the backplane. Reconnect field wiring per the original termination schedule. Restore configuration parameters from the site backup — do not rely on factory defaults for protection relay setpoints.

Step 5 — Functional test before re-energization: Use the Symphony Plus diagnostic tools or a portable relay test set to verify input signal response, output contact operation, and communication link status before returning the system to service.

Step 6 — Documentation update: Record the replacement in the site maintenance log, update the spare parts inventory, and flag the next scheduled inspection interval. If the failed module is repairable, initiate the repair/return process to rebuild your spare stock.

This structured workflow reduces the risk of post-replacement faults, ensures system compatibility is maintained, and supports audit trail requirements for regulated industries including power generation, oil and gas, and water treatment.

Spare Parts Support FAQ

Q1: Is the HIEE205010R0001 compatible with all Symphony Plus DCS versions?
The UNS3020A-Z V1 variant is designed for ABB Symphony Plus and UNITROL platforms. Compatibility should be confirmed against your specific system revision and backplane type. Our technical team can assist with cross-referencing your system documentation before order confirmation.

Q2: How is each unit tested before shipment?
Every HIEE205010R0001 unit undergoes functional inspection prior to dispatch, including visual inspection, connector integrity check, and where applicable, powered functional verification. A test report is available upon request. All units are shipped with anti-static packaging and export-compliant documentation.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with return authorization; replacement or repair is provided based on fault assessment.

Q4: Can I order multiple units for long-term spare stock?
Yes. We support multi-unit procurement for spare parts programs and can provide volume pricing, staggered delivery schedules, and long-term supply agreements. For critical ABB Symphony Plus and UNITROL installations, we recommend maintaining a minimum of one spare HIEE205010R0001 per control system cluster as part of your site’s critical spare inventory policy.
