ABB HIEE401091R0002 Retrofit-Ready Digital Input for Advant Master DCS

ABB HIEE401091R0002 Retrofit-Ready Digital Input for Advant Master DCS: Compatible Modernization & Smooth System Upgrade

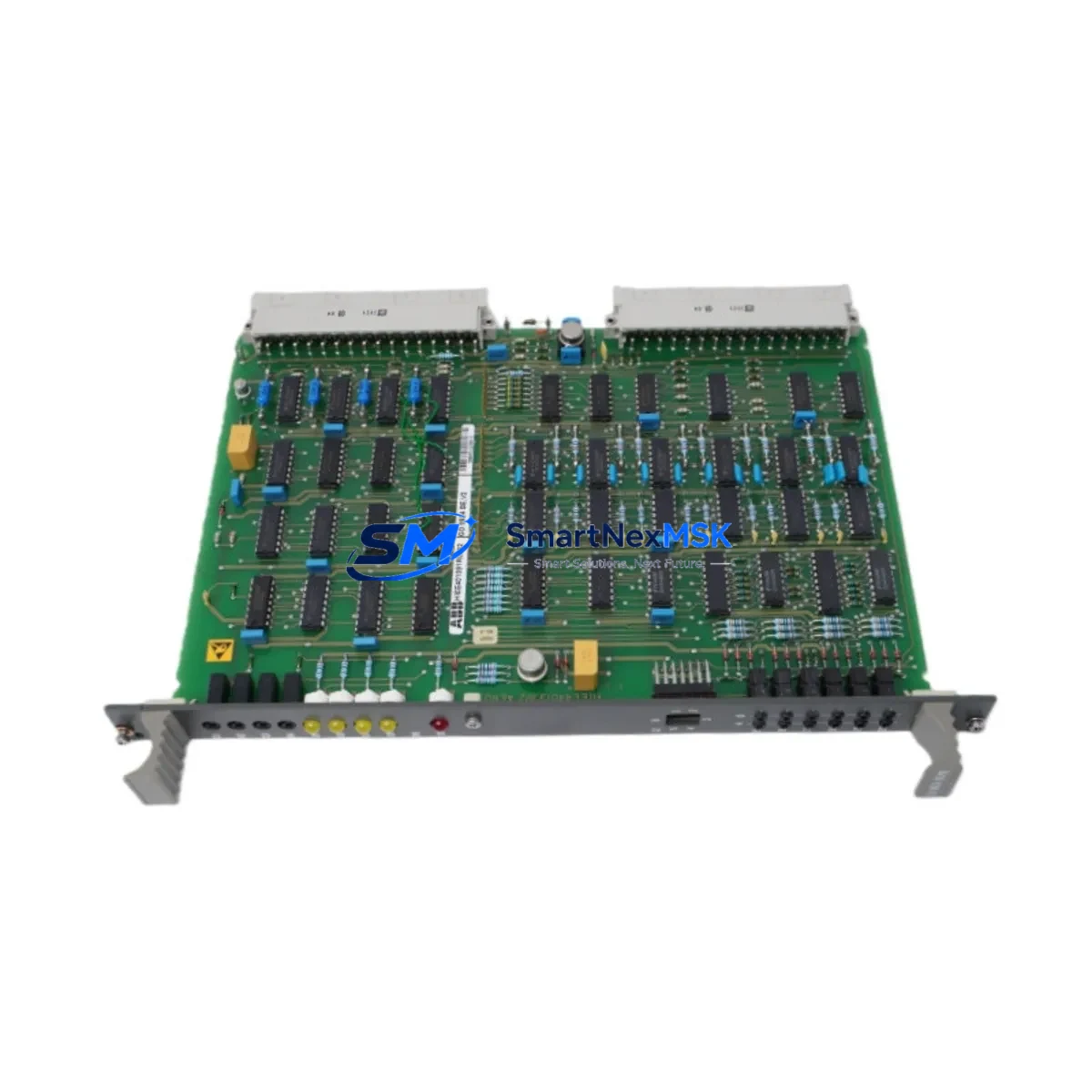

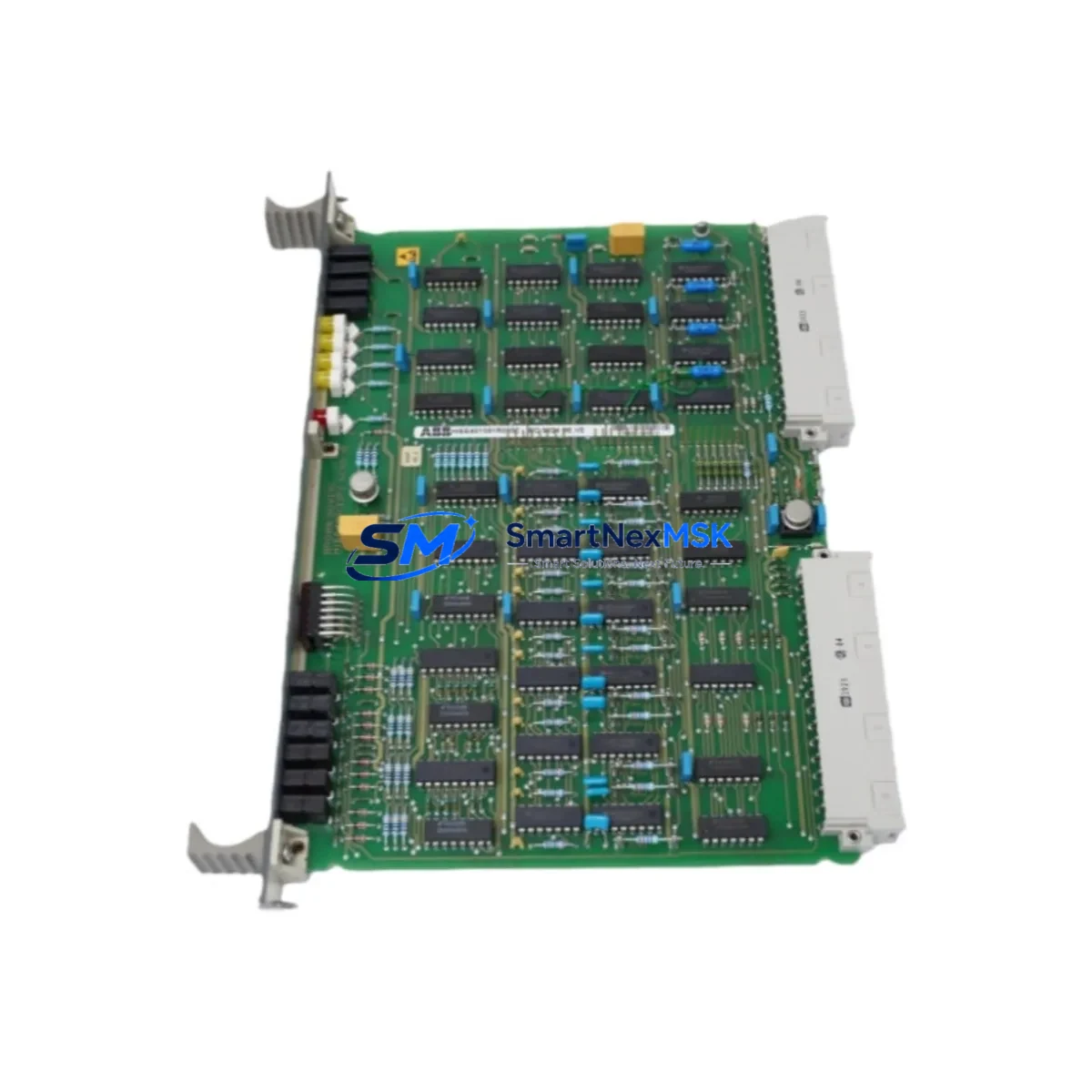

The ABB HIEE401091R0002 (GD9924BE) is a digital input module engineered for the ABB Advant Master Distributed Control System (DCS). As legacy Advant Master installations approach end-of-life and original spare parts become increasingly scarce, this module serves as a verified retrofit-ready replacement that preserves existing control logic, backplane compatibility, and field wiring — minimizing engineering rework and unplanned downtime during system modernization projects.

Whether you are managing a planned upgrade of an aging process control network, sourcing emergency replacement stock for a critical production line, or executing a phased migration from discontinued Advant Master hardware to a current-generation ABB control platform, the HIEE401091R0002 provides a reliable, tested, and immediately deployable solution backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the HIEE401091R0002 into an existing Advant Master installation requires a structured pre-commissioning review. Engineers should begin by auditing the subrack layout and confirming available slot positions within the Advant Master subrack (e.g., DSBC 176 or DSBC 174 backplane units). Power budget verification is critical — the DSPU 110 or DSDP 150 power supply modules feeding the subrack must have sufficient headroom to support the additional digital input load without triggering overcurrent protection.

Field terminal wiring should be mapped against the existing I/O list before removal of the legacy module. The HIEE401091R0002 uses the standard Advant Master terminal block interface, so existing field cables can typically be reconnected without re-termination, provided wire labeling is accurate. Where terminal blocks have aged or corroded, replacement with compatible DSTD 150 or DSTD 110 terminal unit assemblies is recommended to ensure signal integrity.

Module address configuration is performed via onboard DIP switches. The address must match the I/O configuration defined in the AC 450 or AC 410 controller application program. After physical installation, engineers should use MasterTool PM (AMPL programming environment) to verify the I/O map and confirm that all digital input channels are correctly assigned to their respective process variables. Any discrepancy between the hardware address and the software configuration will result in I/O communication faults that must be resolved before returning the loop to automatic control.

For sites migrating from older HIEE300xxx-series or DSDI 110-series digital input modules, a channel-by-channel signal verification test is recommended using a portable loop calibrator or field test switch. This confirms that each input channel correctly reflects the physical field device state — including limit switches, proximity sensors, and relay contacts — before the system is handed back to operations.

Where the retrofit scope extends beyond a single module replacement to a broader control system upgrade, the HIEE401091R0002 is commonly deployed alongside HIEE401090R0002 digital output modules, HIEE300888R0001 analog input modules, and DSBC 176 subrack backplanes to achieve a complete I/O shelf refresh. Communication continuity between the refreshed I/O shelf and the supervisory network is maintained through the existing MasterBus 300 or RCOM communication links, which do not require reconfiguration when module-level replacements are performed within the same subrack.

Downtime Control During System Migration

Minimizing production downtime is the primary operational constraint in any Advant Master retrofit project. The recommended approach is a hot-standby swap sequence: place the affected control loop in manual mode at the MasterView 800 operator station or equivalent HMI before removing the legacy module. This preserves the last known output state and prevents uncontrolled process excursions during the hardware exchange.

Before pulling the legacy HIEE401091R0001 or equivalent module, export the current I/O configuration and controller application from the AC 450 using MasterTool PM and store a timestamped backup. This ensures that if the replacement module requires a full I/O re-download, the correct program version is available without searching through revision archives.

Physical module swap on the Advant Master subrack is performed with the subrack powered, as the backplane supports live insertion for most DI module types. However, field wiring should be de-energized at the marshalling cabinet before disconnecting terminal blocks to protect both personnel and sensitive input circuitry. After re-termination and module insertion, power up the I/O shelf and monitor the module status LEDs — a steady green RUN indicator confirms successful backplane communication and I/O initialization.

Return the control loop to automatic mode only after verifying that all input channel states in the HMI match the physical field device states. Total swap time for a single HIEE401091R0002 module in a prepared environment is typically under 45 minutes, making it feasible to execute during a scheduled process pause without requiring a full plant shutdown.

Retrofit Support FAQ

Q1: Is the HIEE401091R0002 a direct replacement for the HIEE401091R0001?
Yes. The R0002 revision is the current production successor to the R0001 variant. It is mechanically and electrically compatible with the same Advant Master subrack slots and uses the same backplane connector pinout. No wiring or address changes are required when substituting R0002 for R0001 in an existing installation.

Q2: What commissioning steps are required after installation?
After physical installation, set the module address DIP switches to match the I/O configuration in the AC 450 or AC 410 controller program. Perform a forced I/O scan or controller restart to re-initialize the module. Verify all input channel states in MasterView 800 or your site HMI against known field device states before returning loops to automatic control.

Q3: Can this module be used in a PROFIBUS-DP or Modbus network?
The HIEE401091R0002 communicates natively over the Advant Master RCOM and MasterBus 300 backplane protocols. Integration into PROFIBUS-DP or Modbus networks requires a protocol gateway module (such as the ABB CI854 or equivalent communication interface) installed in the same or adjacent subrack. The DI module itself does not require reconfiguration for gateway-based protocol bridging.

Q4: What does the 12-month warranty cover?
All HIEE401091R0002 modules supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are processed via our sales team with a typical turnaround of 5–10 business days for replacement dispatch.
