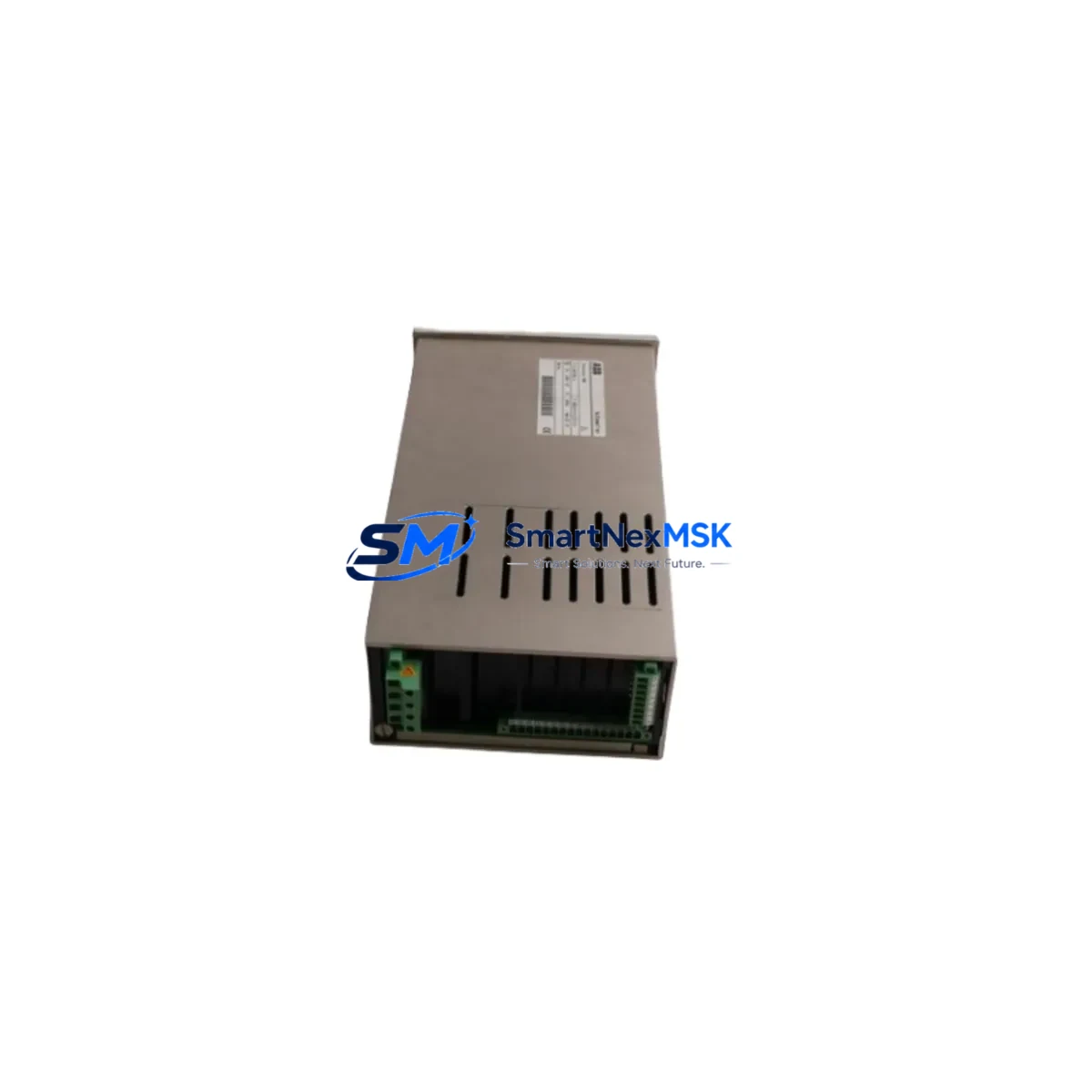

The ABB HIEE401782R0001 (sub-assembly LTC391AE01) is an original excitation monitoring module designed for ABB UNITROL automatic voltage regulator (AVR) systems deployed in generator excitation control applications. As a maintenance-ready spare, this module supports rapid field replacement to minimize unplanned downtime in power generation, heavy industry, and process automation environments. Each unit is sourced from verified supply channels, functionally tested prior to shipment, and backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Maintenance engineers and procurement specialists working on ABB UNITROL-based excitation systems will find this module essential for both planned overhaul schedules and emergency corrective maintenance. The LTC391AE01 board integrates directly into the UNITROL excitation cubicle backplane, interfacing with the AVR control loop to monitor field current, terminal voltage feedback, and protection relay logic. Stocking this spare eliminates the risk of extended lead times on obsolete or long-delivery ABB excitation components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned inspection or corrective replacement of the HIEE401782R0001 LTC391AE01 excitation monitoring module, a thorough review of the surrounding excitation circuit is strongly recommended. Maintenance engineers should treat this replacement as an opportunity to audit the full AVR control chain and associated power components.

Begin by inspecting the ABB UNITROL excitation power supply module (typically a dedicated 24 VDC or 48 VDC regulated supply within the cubicle) for output voltage stability and ripple. A degraded power supply is a common root cause of monitoring module faults and should be verified before commissioning the replacement board. Simultaneously, check the field current measurement shunt and associated signal conditioning board — if the LTC391AE01 has been reporting erratic field current readings, the shunt or its wiring may be the upstream fault source rather than the module itself.

Review the AVR firing pulse interface board and thyristor bridge gate driver cards for signs of thermal stress or insulation degradation, as these components share the same control bus and are subject to similar aging cycles. The terminal voltage transformer (VT) secondary wiring and burden resistors feeding the monitoring module should be checked for loose terminations at the DIN rail terminal blocks — vibration in generator environments frequently causes intermittent contact faults that mimic module failures.

For communication-enabled UNITROL configurations, inspect the UNITROL fieldbus communication card (PROFIBUS or Modbus RTU interface, depending on site configuration) and verify that the replacement module’s firmware revision is compatible with the site’s DCS or SCADA polling parameters. If the excitation system interfaces with a plant DCS via hardwired analog signals, confirm that the 4–20 mA output channels from the monitoring module are within calibration tolerance after replacement.

Additionally, check the protection relay output contacts wired from the UNITROL cubicle to the generator protection panel — specifically the loss-of-excitation (LOE) and over-excitation (OEL) relay outputs — to ensure correct operation after the module swap. Fuse holders and miniature circuit breakers (MCBs) within the excitation cubicle should be inspected for contact wear, and any signal isolators on the field current or voltage feedback loops should be tested for linearity. Completing this checklist during a single planned outage window maximizes the value of the maintenance event and reduces the probability of a repeat callout.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow site LOTO (Lockout/Tagout) procedures. De-energize the UNITROL excitation cubicle and verify zero-voltage on the field winding supply rails before opening the cabinet.

Step 2 — Documentation: Photograph the existing module’s wiring, connector positions, and any DIP switch or jumper settings on the LTC391AE01 board. Record the firmware label if visible. This documentation is critical for configuring the replacement unit to match the original site parameters.

Step 3 — Module Extraction: Release the backplane connector locking tabs and carefully extract the HIEE401782R0001 module. Inspect the backplane connector pins for corrosion or mechanical damage before inserting the replacement.

Step 4 — Replacement Configuration: Transfer any DIP switch or jumper settings from the removed module to the new HIEE401782R0001 LTC391AE01 unit. Confirm that hardware revision compatibility is maintained — consult the ABB UNITROL service manual for your cubicle generation if in doubt.

Step 5 — Re-energization and Verification: Re-energize the cubicle in stages. Verify that the AVR enters AUTO mode without fault alarms, that field current feedback is reading correctly on the HMI or operator panel, and that all protection relay outputs are in the expected state. Perform a no-load voltage regulation test before returning the generator to service.

Step 6 — Documentation Close-Out: Update the site maintenance log with the replaced part number, date, and post-replacement test results. Retain the removed module for failure analysis if required by site quality procedures.

Spare Parts Support FAQ

Q1: Is the HIEE401782R0001 LTC391AE01 compatible with all UNITROL excitation cubicle generations?
The LTC391AE01 board is designed for the ABB UNITROL 5000 and 6000 series excitation systems. Compatibility with earlier UNITROL generations (e.g., UNITROL-D or UNITROL-F) should be verified against the cubicle’s hardware revision documentation. Contact our technical team with your cubicle nameplate data for confirmation before ordering if you are unsure of your system generation.

Q2: What pre-shipment testing is performed on each unit?
Every HIEE401782R0001 LTC391AE01 module is functionally tested prior to dispatch. Testing covers power-on self-test, signal I/O verification, and communication interface checks where applicable. A test report is available upon request for quality-critical procurement requirements.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and operational failures arising under normal operating conditions as specified in the ABB UNITROL service documentation. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact [email protected] with the order reference, fault description, and site photographs. Replacement or repair will be arranged within the agreed service timeline.

Q4: Can you support long-term or blanket purchase orders for ongoing spare parts inventory programs?
Yes. We support scheduled delivery agreements and blanket PO arrangements for maintenance departments managing multi-site UNITROL excitation systems. Long-term supply contracts help ensure parts availability for aging ABB excitation infrastructure where OEM lead times may be extended. Contact our sales team to discuss volume pricing, consignment stock options, and delivery scheduling.
