ABB IMASI23 Safety-Enhanced Analog Input for Harsh Sites

ABB IMASI23 Safety-Enhanced Analog Input for Harsh Industrial Sites

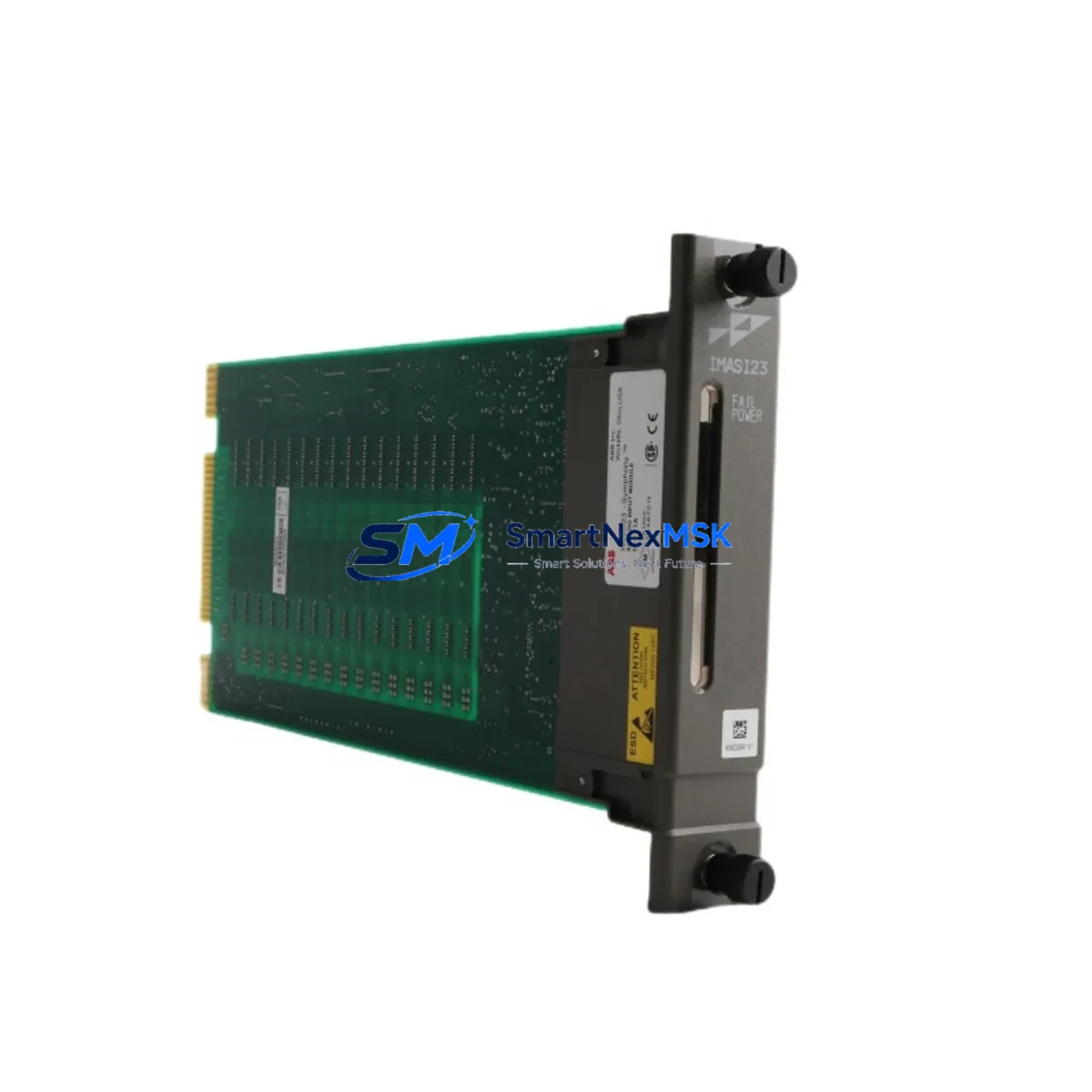

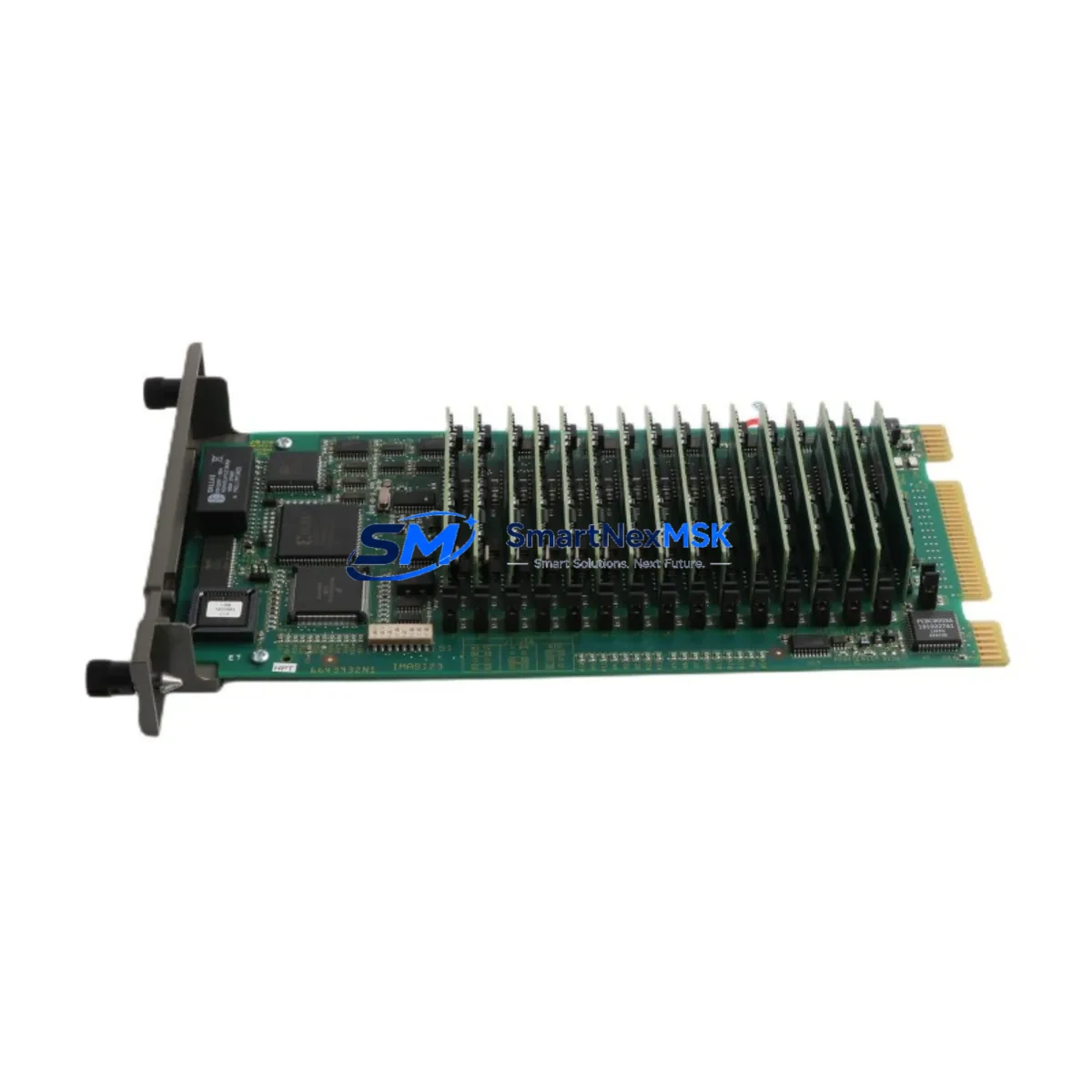

The ABB IMASI23 is an 8-channel analog input module engineered for the ABB AC500 PLC platform, purpose-built to deliver uncompromising signal integrity and control-loop protection in the most demanding industrial environments. Whether deployed in petrochemical processing units, power generation substations, metallurgical smelting lines, mining extraction controls, or continuous water treatment facilities, the IMASI23 provides the measurement accuracy and fault-tolerant architecture that safety-critical automation demands.

In high-load industrial sites where electromagnetic interference, ground loops, voltage transients, and thermal cycling are constant threats, analog signal chains are among the most vulnerable elements of a control system. A single channel drift or input module failure can cascade into process upsets, spurious shutdowns, or — in worst-case scenarios — undetected hazardous conditions. The IMASI23 addresses these risks through hardware-level channel isolation, wide common-mode rejection, and robust surge protection circuitry that guards against field-side transients before they can propagate into the AC500 backplane.

Designed to operate continuously within the AC500 system architecture, the IMASI23 integrates seamlessly with the ABB PM573 and PM591 CPU modules, sharing the same high-speed internal bus for deterministic scan-cycle performance. When paired with the ABB TB541 terminal base, field wiring is secured through vibration-resistant screw terminals rated for industrial cable gauges, eliminating intermittent contact failures that are a leading cause of nuisance alarms in harsh-environment installations. For applications requiring distributed I/O across large plant footprints, the IMASI23 can be deployed on remote I/O stations connected via PROFIBUS-DP or Modbus RTU communication adapters, maintaining signal fidelity over extended cable runs.

Power supply stability is a prerequisite for accurate analog measurement. The IMASI23 is designed to tolerate the supply ripple and micro-interruptions common in industrial power distribution systems. When used alongside a 24 VDC regulated SITOP or equivalent DIN-rail power supply and supplemented by Phoenix Contact or Weidmüller surge protection terminal blocks on field signal lines, the complete input chain achieves a level of resilience appropriate for SIL 2 safety instrumented system (SIS) support loops. For installations where the IMASI23 feeds into a safety interlock or emergency shutdown (ESD) circuit, it is recommended to pair it with a dedicated ABB F-series safety relay module or a Pilz PNOZ safety controller to enforce the required diagnostic coverage and safe-state logic.

Signal conditioning is handled internally per channel, supporting standard 4–20 mA current loop inputs and 0–10 V voltage inputs, with configurable input ranges accessible through the ABB Automation Builder engineering software. This eliminates the need for external signal conditioners in most field instrument loops, reducing panel wiring complexity and potential failure points. Transmitters such as pressure transducers, thermocouple transmitters, flow meters, and level sensors connect directly to the IMASI23 field terminals, with the module performing linearization and scaling within the AC500 CPU scan cycle.

For control cabinet builders and system integrators working on critical infrastructure projects, the IMASI23 supports hot-swap replacement procedures when used with compatible AC500 expansion racks, minimizing planned maintenance downtime. Spare module availability is maintained in our warehouse inventory, enabling rapid field replacement without extended lead times. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification including channel-by-channel input response testing, isolation resistance measurement, and firmware version confirmation, ensuring the module arrives ready for immediate commissioning.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet design for harsh industrial sites requires layered protection across power, signal, communication, and safety domains. The IMASI23 occupies the analog signal acquisition layer, but its reliable operation depends on the integrity of surrounding components. At the power entry point, a 24 VDC SITOP PSU100S power supply with active buffering prevents micro-interruptions from propagating to the AC500 backplane. Upstream of the IMASI23 field terminals, Phoenix Contact TRABTECH surge protection terminal blocks clamp transient voltages induced by nearby variable frequency drives (VFDs), motor starters, or lightning events on field cable runs.

Within the AC500 rack, the ABB CI590-CS31-HA communication interface module extends the I/O network to remote field panels, allowing IMASI23 units to be distributed across the plant without signal degradation. For digital interlock signals that complement the analog measurements from the IMASI23, the ABB IDSI14 digital input module provides the discrete channel capacity needed for limit switch, valve position, and emergency stop monitoring within the same rack assembly. On the output side, the ABB IDSO14 digital output module drives field actuators based on the control logic that processes IMASI23 analog values, completing the measurement-to-action loop.

For installations requiring functional safety compliance, the IMASI23 analog inputs feed into safety logic executed on a Pilz PSS 4000 or ABB AC500-S safety CPU, where the measured process values are compared against safety limits defined in the SIS design. A Weidmüller ACT20P signal conditioner may be inserted between field transmitters and the IMASI23 in applications where HART signal separation or galvanic isolation reinforcement is required. Cabinet thermal management — critical for maintaining IMASI23 accuracy in high-ambient-temperature enclosures — is addressed through Rittal TopTherm fan-and-filter units or heat exchangers that keep internal cabinet temperature within the module’s rated operating range.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units such as distillation columns, reactor temperature control loops, and pipeline pressure monitoring systems, the IMASI23 provides the analog measurement backbone for DCS integration. Its surge-protected inputs withstand the high electromagnetic noise generated by large motor loads and high-voltage switching equipment common in refinery electrical areas.

Power Generation and Substation Automation: Turbine control systems, boiler drum level monitoring, and generator excitation feedback loops rely on accurate, drift-free analog inputs. The IMASI23’s channel isolation prevents ground potential differences between field instruments and the control room from introducing measurement errors that could trigger false protective relay operations.

Mining and Mineral Processing: Conveyor load monitoring, crusher motor current feedback, and flotation cell level control in underground and open-pit mining environments expose analog modules to severe vibration, dust ingress, and wide temperature swings. The IMASI23’s industrial-grade construction and wide operating temperature range support reliable operation in these conditions.

Water and Wastewater Treatment: Flow measurement, pH monitoring, dissolved oxygen sensing, and pump pressure feedback in water treatment facilities require continuous, uninterrupted analog acquisition. The IMASI23 supports 4–20 mA transmitter loops standard in water industry instrumentation, with the AC500 platform providing the redundancy options needed for critical municipal infrastructure.

Metallurgy and Steel Production: Furnace temperature profiling, rolling mill tension control, and cooling water flow monitoring in steel plants demand analog modules capable of operating in high-temperature, high-vibration environments with strong electromagnetic fields from induction heating equipment. The IMASI23’s EMI immunity and robust isolation architecture make it a reliable choice for these applications.

Safety and Quality FAQ

Q1: What warranty coverage does the ABB IMASI23 carry when purchased from SMARTNEXMSK?
Every ABB IMASI23 module supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and firmware-related issues. Replacement or repair is arranged promptly to minimize any impact on your production continuity.

Q2: What pre-shipment testing is performed on each IMASI23 unit?
Each module undergoes a structured pre-shipment inspection that includes channel-by-channel analog input response verification across the full 4–20 mA and 0–10 V input ranges, isolation resistance testing between channels and between channels and the backplane bus, visual inspection for physical damage, and firmware version confirmation against the current ABB release. A test record is available upon request.

Q3: Is the IMASI23 compatible with existing AC500 installations running older firmware versions?
The IMASI23 is designed for backward compatibility within the AC500 platform. It is compatible with ABB PM573, PM591, and PM595 CPU modules and is supported by ABB Automation Builder engineering software. For installations running legacy firmware, we recommend confirming the minimum firmware version requirement with ABB’s compatibility matrix before deployment. Our technical team can assist with compatibility verification prior to order confirmation.

Q4: Can SMARTNEXMSK guarantee long-term supply availability for the IMASI23 as a spare part?
Yes. SMARTNEXMSK maintains dedicated inventory of ABB AC500 series modules including the IMASI23 to support both project commissioning and long-term spare parts programs. We serve industrial customers with planned maintenance schedules and can accommodate blanket purchase orders for multi-year supply agreements. Contact our sales team to discuss your spare parts strategy and volume pricing options.
