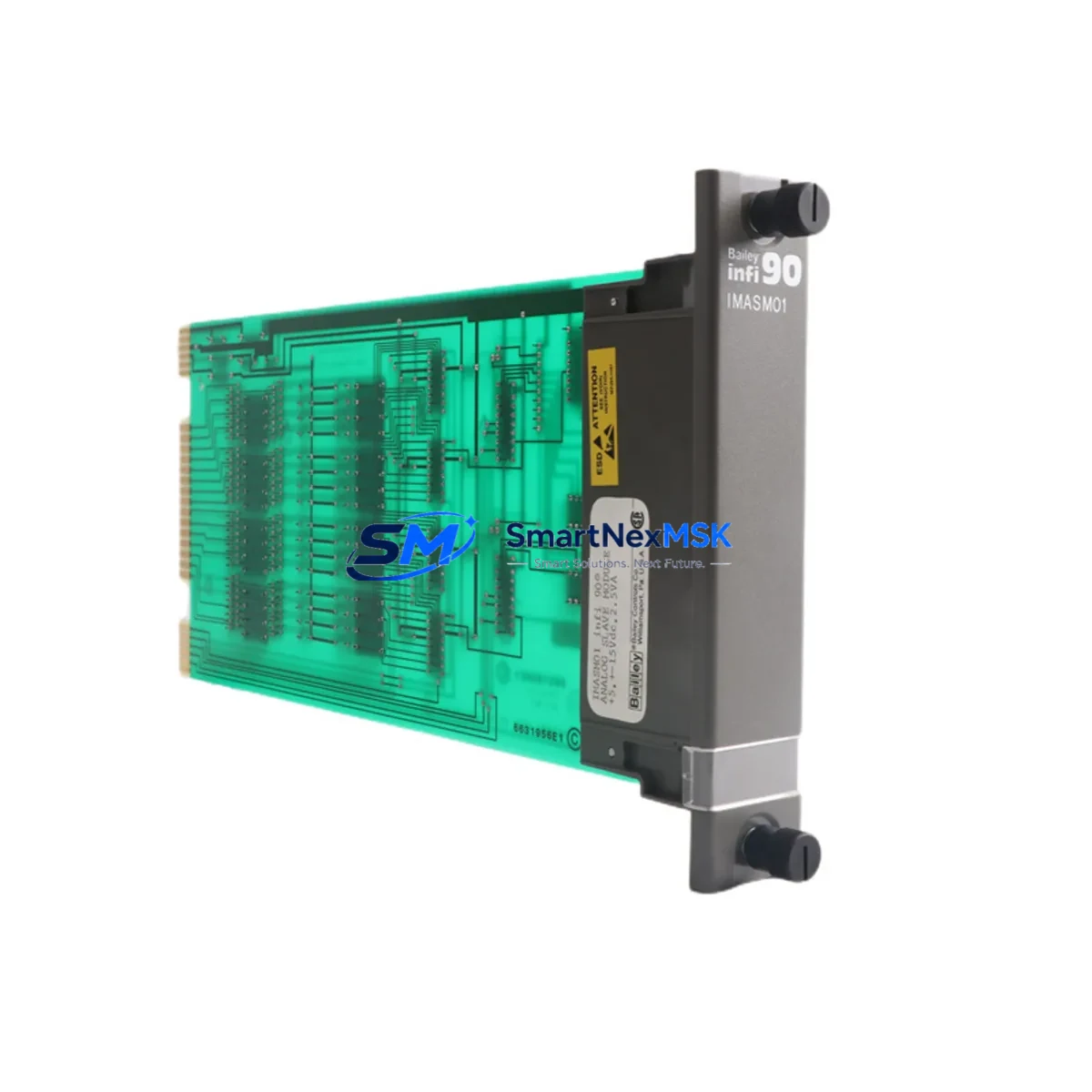

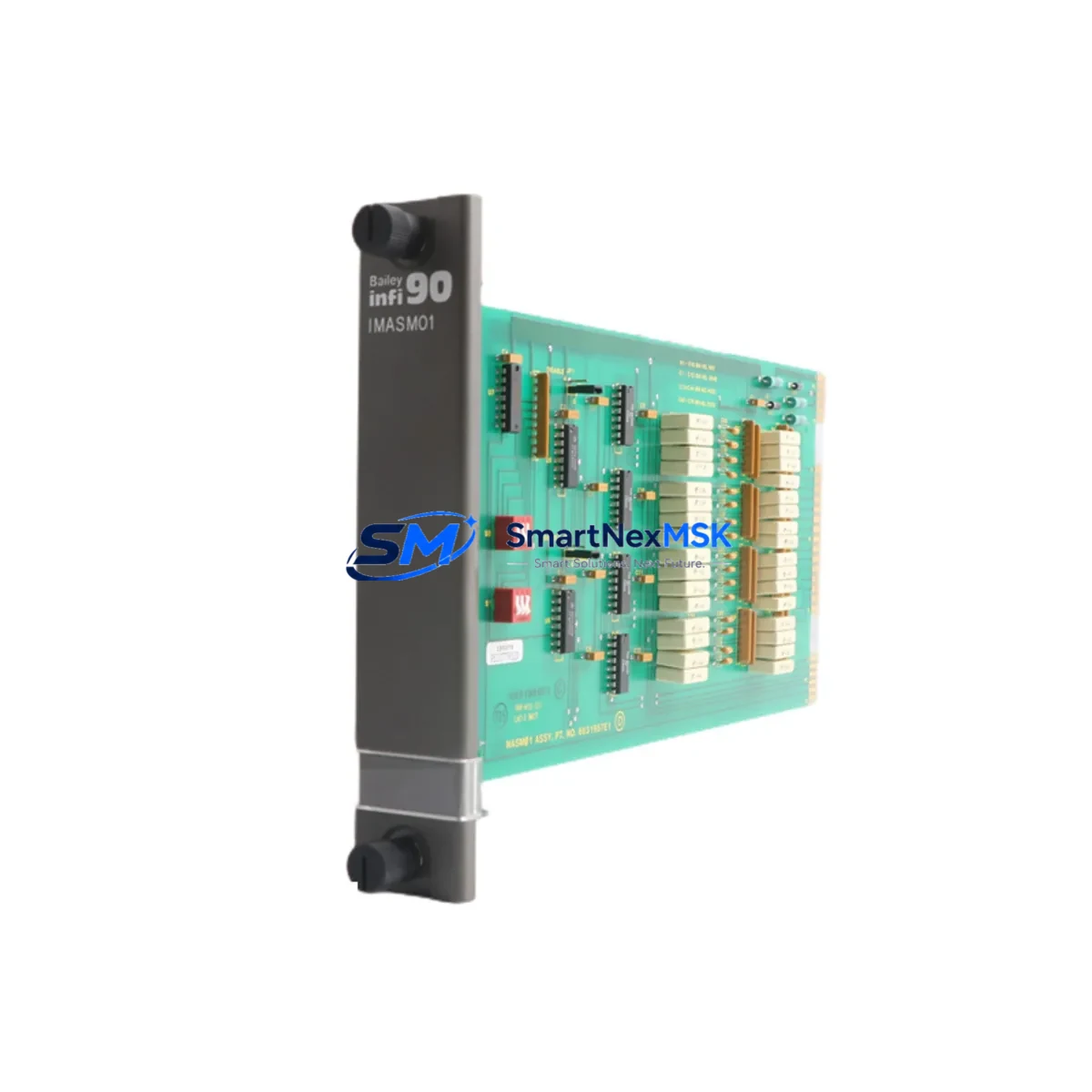

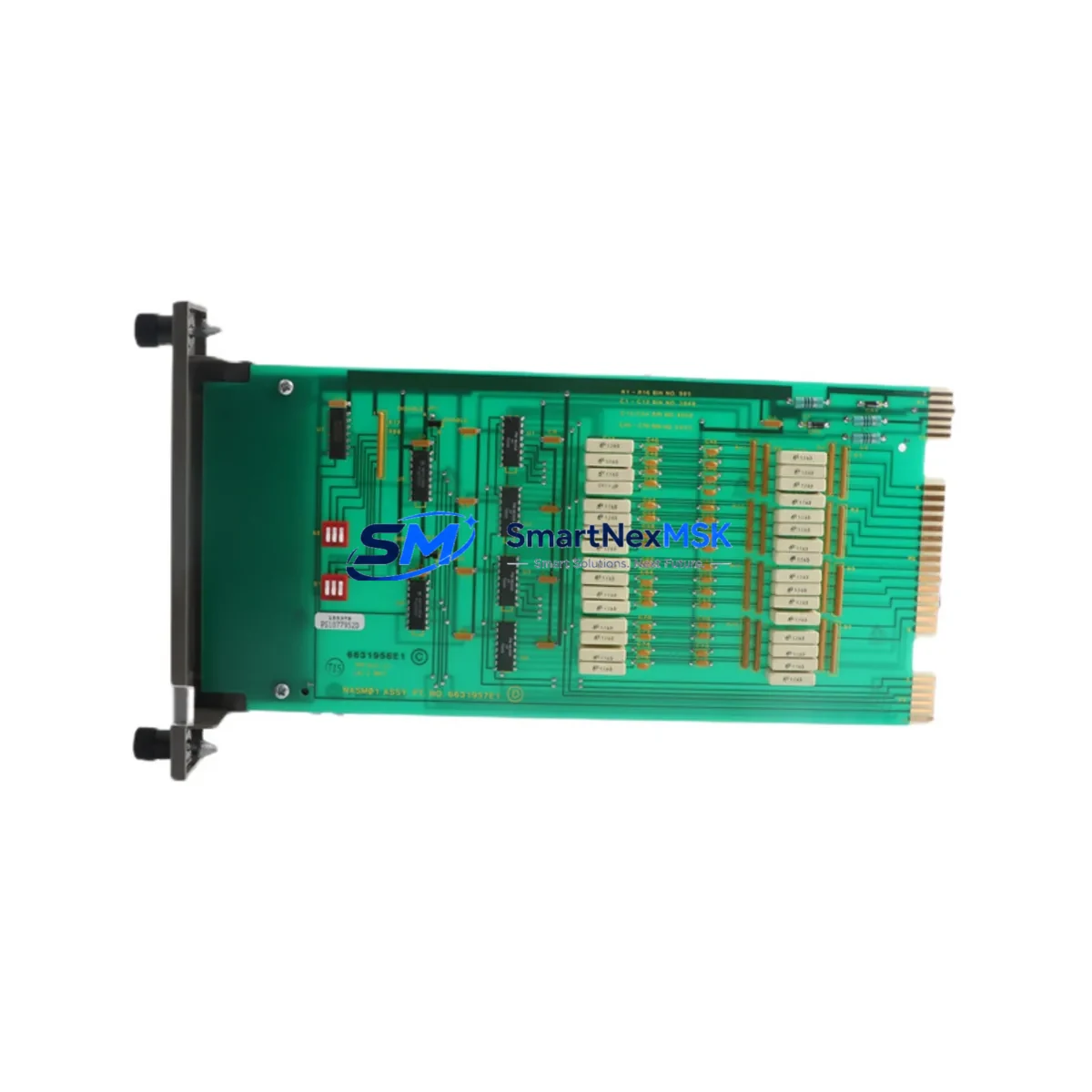

ABB IMASM01 Retrofit-Ready Analog Input Module for Advant Master DCS: Compatible Modernization & Smooth System Upgrade
The ABB IMASM01 is a high-reliability analog input slave module engineered for the ABB Advant Master Distributed Control System (DCS). As legacy Advant Master installations approach end-of-life and original spare parts become increasingly scarce, the IMASM01 remains one of the most sought-after retrofit components for engineers tasked with sustaining continuous process control without a full platform migration. Whether you are replacing a failed module in a running plant, upgrading a control cabinet to extend operational life, or executing a phased modernization of an aging DCS backbone, the IMASM01 provides a verified drop-in solution with documented compatibility across the Advant Master hardware family.
Each IMASM01 unit supplied by SMARTNEXMSK is sourced from controlled inventory channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty covering hardware defects under normal operating conditions. Our stock is maintained to support urgent replacement scenarios with short lead times and reliable global logistics.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Module Type | Analog Input Slave Module |
| Compatible Platform | ABB Advant Master DCS (AC 450 / AC 410 series) |
| Backplane Interface | Advant Master S-bus / MB300 communication bus |
| Signal Type | 4–20 mA / 0–10 V analog input channels |
| Installation Requirement | Standard Advant Master rack; no mechanical modification required |
| Communication Compatibility | MB300 MASTERBUS protocol; compatible with IMSAS01 master station |
| Replacement Recommendation | Direct replacement for failed or end-of-life IMASM01 units; verify firmware revision with engineering team |
| Commissioning Focus | Module address DIP switch setting, channel scaling, loop power verification, and MASTERBUS node assignment |
| Wiring Adaptation | Terminal block pinout is identical to original; no rewiring required for like-for-like swap |
| Warranty | 12 months from date of shipment; covers manufacturing defects under normal use |
Retrofit Planning for Existing Automation Systems
Successful integration of the IMASM01 into an existing Advant Master installation requires a structured pre-replacement assessment. Engineers should begin by auditing the current rack configuration, confirming available slot positions within the Advant Master S800 or equivalent rack assembly, and verifying that the IMSAS01 master station — which manages communication between the controller and slave modules — is operating within its rated channel capacity before adding or swapping analog input nodes.
Power budget verification is a critical first step. The Advant Master power supply unit (PSU) installed in the control cabinet must be confirmed to support the additional load introduced by the replacement module. In cabinets where multiple I/O expansions have been performed over the years, cumulative power draw can approach PSU limits, and an unplanned addition may cause instability across the entire rack. Review the PSU nameplate rating and compare against the documented current consumption of all installed modules, including the IMASM01.
Terminal wiring should be documented before removal of the existing module. Although the IMASM01 terminal block layout is standardized within the Advant Master family, field wiring in older installations may have been modified or re-labeled inconsistently. Photograph or transcribe all terminal assignments before disconnecting field cables. This is especially important in installations where the original engineering drawings are incomplete or unavailable.
Module address configuration is performed via DIP switches on the IMASM01 board. The address must match the node assignment defined in the Advant Master engineering database — typically managed through the ABB Master Engineering Tool (MET) or equivalent configuration software. Mismatched addresses will prevent the IMSAS01 from recognizing the new module and will generate communication fault alarms on the operator station, which may include an ABB Operator Station (OS) or a connected HMI panel running Advant HMI software.
For installations that also involve communication protocol migration — for example, transitioning from the legacy MB300 MASTERBUS to a modern PROFIBUS DP or MODBUS TCP backbone — the IMASM01 retrofit is typically performed as an interim measure to stabilize the existing analog I/O layer while the communication infrastructure is upgraded in parallel. In such scenarios, the IMASM01 works alongside components such as the IMDSI02 digital input module, IMDSO02 digital output module, and IMFEC12 field excitation card, all of which share the same rack and backplane architecture and may be candidates for simultaneous replacement or inspection.
I/O expansion projects that extend beyond the capacity of the existing rack may require the addition of an Advant Master expansion rack and associated rack interconnect cables. In these cases, the IMASM01 can be installed in the expansion rack provided that the IMSAS01 master station is configured to recognize the extended node range. Engineers should also verify that the MASTERBUS cable length between the master station and the expansion rack does not exceed the specified maximum to avoid signal integrity issues.
HMI screen updates are often overlooked during module replacement projects. If the IMASM01 is replacing a module that was mapped to specific analog input tags in the HMI database, the tag addresses must be verified after replacement to ensure that process values are displayed correctly on operator screens. In Advant HMI environments, this may require a partial database download or tag re-mapping exercise, which should be scheduled during the planned maintenance window to avoid operator confusion during live production.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational concern when replacing analog input modules in a live DCS environment. The recommended approach is to perform the IMASM01 swap during a scheduled maintenance window, with the affected process loop placed in manual control mode at the operator station before the module is removed. This preserves the last known output state of the control loop and prevents uncontrolled process excursions during the hardware exchange.
Before removing the existing module, the current program logic — including PID tuning parameters, alarm setpoints, and interlock conditions associated with the affected analog input channels — should be exported from the Advant Master engineering database and stored as a backup. This ensures that if the replacement module requires a fresh configuration download, the original control logic can be restored without manual re-entry.
The physical swap of the IMASM01 is typically completed in under 15 minutes for a trained technician familiar with the Advant Master rack system. After insertion, the module requires a brief initialization period during which the IMSAS01 master station performs a node discovery scan on the MASTERBUS. Once the module is recognized, channel scaling and loop calibration should be verified against the process transmitter signal range before returning the loop to automatic control.
For critical process applications where even a brief interruption is unacceptable, a parallel hot-standby configuration using a redundant IMSAS01 master station and mirrored rack assembly can be considered. In this architecture, the replacement IMASM01 is installed and configured in the standby rack while the primary rack continues to operate, and the switchover is performed as a controlled bumpless transfer. This approach requires additional hardware investment but effectively reduces the process impact of the module replacement to near zero.
Post-replacement commissioning should include a full channel-by-channel verification of analog input readings against calibrated reference signals, confirmation of MASTERBUS communication status on the engineering workstation, and a review of the alarm log to ensure no latent faults were introduced during the swap. All commissioning steps should be documented in the plant maintenance record for future reference.
Retrofit Support FAQ
Q1: Is the IMASM01 a direct drop-in replacement for the original ABB Advant Master analog input module?
Yes. The IMASM01 is designed as a direct replacement within the Advant Master rack system. The terminal block pinout, backplane connector, and MASTERBUS communication protocol are identical to the original specification. No mechanical modification or wiring adaptation is required for a like-for-like swap. Engineers should verify the DIP switch address setting matches the node assignment in the existing engineering database before powering up the replacement module.
Q2: What commissioning steps are required after installing the IMASM01?
After physical installation, confirm the module address DIP switches match the node assignment in the Advant Master configuration. Power up the rack and verify that the IMSAS01 master station recognizes the new module on the MASTERBUS. Perform a channel-by-channel analog input verification using a calibrated signal source. Check HMI tag mappings to confirm process values are displayed correctly. Review the engineering workstation alarm log for any communication or configuration faults before returning the loop to automatic control.
Q3: Can the IMASM01 be used in an expanded rack configuration alongside other Advant Master I/O modules?
Yes. The IMASM01 is fully compatible with Advant Master expansion rack configurations. It can be installed alongside other modules in the same family, including digital input modules such as the IMDSI02, digital output modules such as the IMDSO02, and field excitation cards such as the IMFEC12. Ensure that the total power consumption of all modules in the rack does not exceed the rated capacity of the installed power supply unit, and that the MASTERBUS cable length between the master station and the expansion rack is within the specified maximum.
Q4: What does the 12-month warranty cover, and what is the shipping lead time?
Each IMASM01 supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and hardware failures under normal operating conditions. All units undergo pre-shipment functional testing to verify analog input channel performance and MASTERBUS communication integrity before dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments. Expedited shipping options are available for urgent replacement requirements. Contact our sales team for current stock availability and lead time confirmation.
