ABB IMCPM02 Maintenance-Ready Spare for MOD 300 Automation

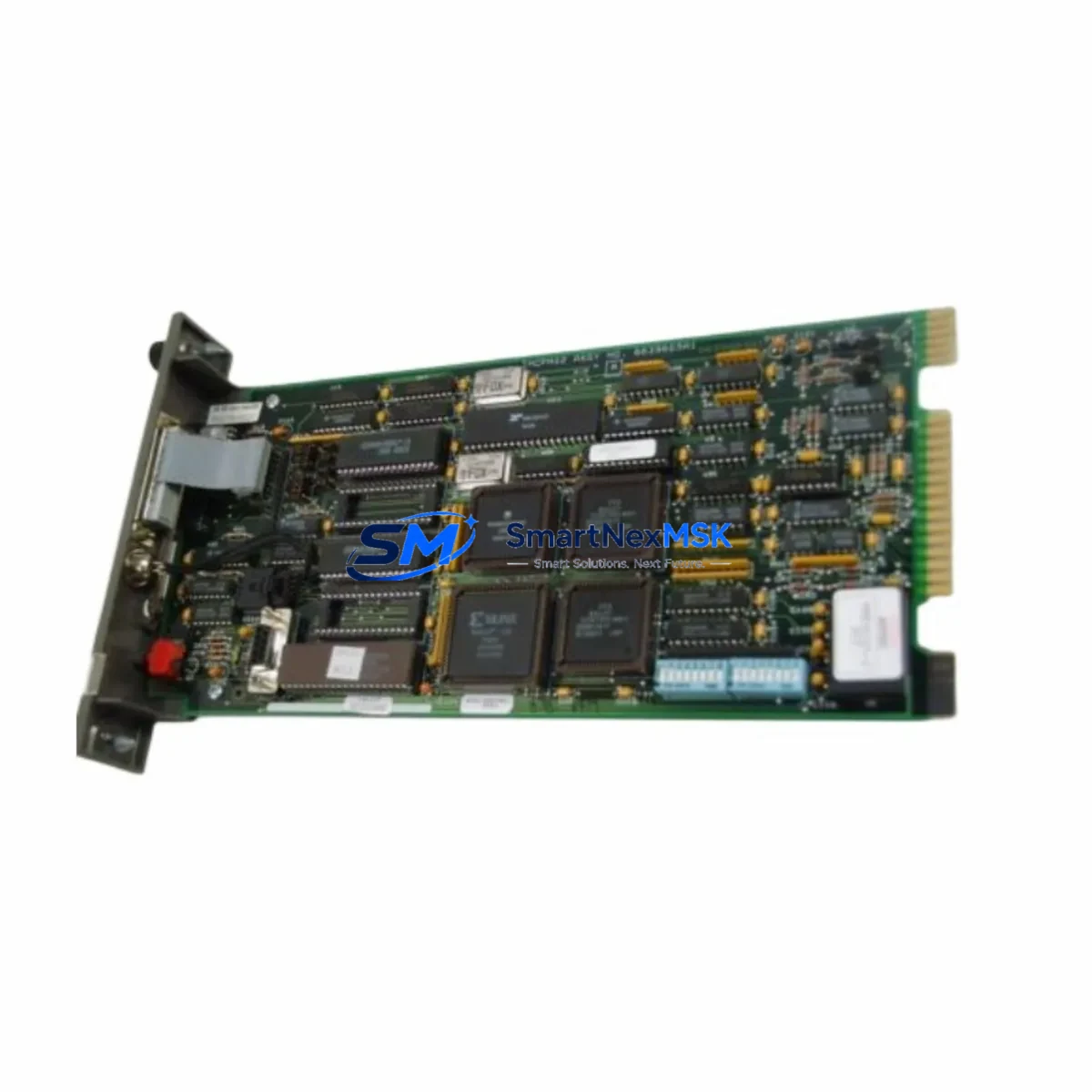

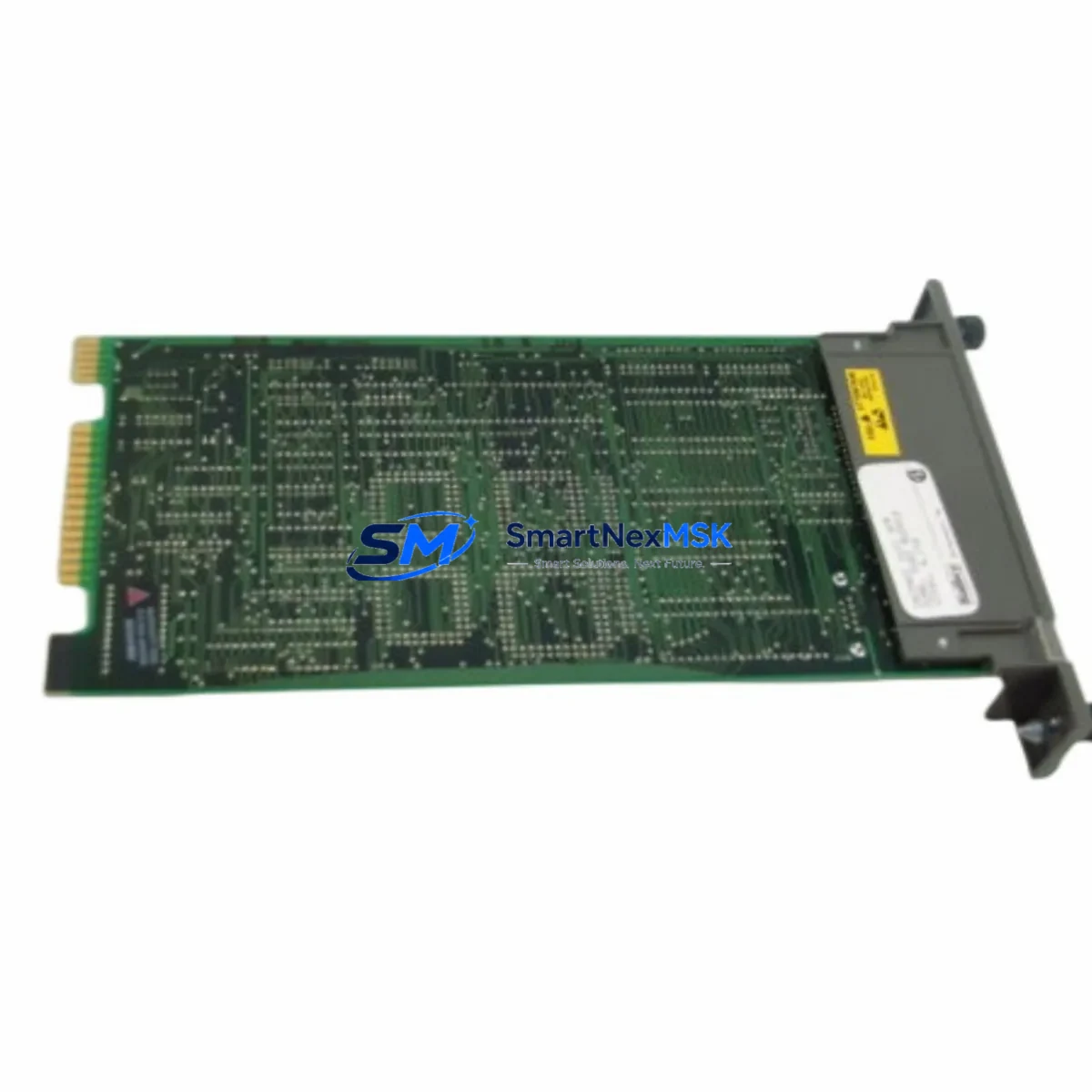

The ABB IMCPM02 is an original communication port module designed for the Advant MOD 300 Distributed Control System (DCS). For maintenance engineers managing aging process automation infrastructure, sourcing a verified, tested IMCPM02 spare is critical to minimizing unplanned downtime and sustaining continuous plant operation. This module serves as the communication backbone between the MOD 300 controller and field devices, making its availability in your spare parts inventory a non-negotiable element of any serious maintenance strategy.
Whether you are executing a planned shutdown, responding to a fault alarm, or conducting a routine control cabinet inspection, the IMCPM02 must be treated as a high-priority line item. Its failure can isolate entire process loops, disrupt HART or serial communication paths, and trigger cascading faults across connected I/O modules and field instruments. Procurement engineers should ensure at least one verified replacement unit is held on-site or available through a reliable industrial spare parts supplier with short lead times.
Each IMCPM02 unit supplied by SMARTNEXMSK is sourced from original ABB production runs, individually tested prior to shipment, and covered by a 12-month warranty. We support fast replacement logistics for both emergency and scheduled maintenance scenarios, with global delivery capability.
Spare Maintenance Table
| Part Number | IMCPM02 |
| Brand | ABB |
| Series | Advant MOD 300 DCS |
| Module Type | Communication Port Module |
| Origin | Germany (Original ABB Production) |
| Communication Interface | Serial / HART-compatible port interface for MOD 300 controller bus |
| Compatibility | ABB Advant MOD 300, AC 450, AC 410 controller families |
| Installation | Backplane-mounted; slot-specific per MOD 300 rack configuration |
| Operating Environment | Industrial control cabinet; 0–55°C, humidity ≤95% non-condensing |
| Maintenance Recommendation | Inspect communication LEDs and connector pins during scheduled cabinet checks; replace at first sign of intermittent communication faults |
| Pre-Shipment Testing | Functional test performed on each unit before dispatch |
| Warranty | 12 Months |
Maintenance Planning for Continuous Operation
When replacing the IMCPM02 in a MOD 300 control system, a thorough maintenance engineer will not stop at the module itself. The communication port module interfaces with multiple upstream and downstream components, and a fault in any of these can mimic or compound an IMCPM02 failure. During the same maintenance window, it is advisable to inspect and, where necessary, replace the following associated components:
The IMFEC08 and IMFEC11 field equipment controllers share the same controller rack and communicate over the same internal bus. If the IMCPM02 has shown intermittent faults, these modules should be checked for firmware integrity and connector wear. Similarly, the IMDSO14 digital output module and IMDSI22 digital input module should be verified for correct signal mapping, as communication disruptions can cause false I/O states that mask the root cause.
Power supply modules such as the IMPS10 or IMPS02 should be load-tested during the same inspection cycle. Voltage instability is a leading cause of communication module degradation in long-running MOD 300 installations. Inspect the backplane connectors and rack chassis for oxidation or mechanical stress, particularly in high-vibration or high-humidity environments.
Terminal blocks and field wiring connected to the communication loop should be checked for loose terminations, insulation breakdown, and ground faults. In systems where the IMCPM02 interfaces with HART field devices, the signal conditioners and isolators in the marshalling cabinet should also be inspected. If the plant uses a MOD 300 operator station or legacy HMI panel connected via the communication bus, verify that the HMI communication drivers are still correctly mapped after module replacement.
For sites running extended lifecycle programs on MOD 300 systems, maintaining a curated spare parts kit — including the IMCPM02, at least one power supply module, one digital I/O module, and a set of communication cables — is the most cost-effective strategy for avoiding multi-day outages caused by single-component failures.
Site Replacement Workflow
Step 1 — Fault Isolation: Confirm the IMCPM02 is the fault source by checking the MOD 300 diagnostic display and communication LED status. Document the slot address and rack position before removal.
Step 2 — Safe Shutdown: Follow the MOD 300 controller shutdown procedure. Do not hot-swap the IMCPM02 unless the system documentation explicitly permits it for your firmware revision.
Step 3 — Module Removal: Release the module locking mechanism, disconnect any external communication cables, and carefully extract the IMCPM02 from the backplane slot. Inspect the backplane connector for bent pins or contamination.
Step 4 — Replacement Installation: Insert the new IMCPM02 into the same slot position. Reconnect all communication cables in the original configuration. Verify DIP switch or jumper settings match the removed unit if applicable.
Step 5 — System Restart and Verification: Power up the controller and confirm communication status via the MOD 300 engineering workstation. Verify all connected field devices are responding correctly and that no new fault codes are present.
Step 6 — Documentation: Record the replacement in the plant maintenance log, including the new module serial number, date of installation, and technician sign-off. Update the spare parts inventory accordingly.
This workflow is compatible with both emergency replacement scenarios and planned maintenance shutdowns, and is designed to minimize total downtime from fault detection to system restoration.
Spare Parts Support FAQ
Q1: Is the IMCPM02 supplied by SMARTNEXMSK an original ABB part?
Yes. All IMCPM02 units are sourced from original ABB production and are not remanufactured or third-party clones. Each unit is individually tested before shipment to confirm functional integrity.
Q2: What is the warranty coverage and what does it include?
Every IMCPM02 carries a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions and includes replacement or refund. It does not cover damage caused by incorrect installation, overvoltage, or physical mishandling.
Q3: How do I confirm compatibility with my specific MOD 300 configuration before ordering?
Provide your controller rack model, firmware version, and slot configuration to our technical team at sales@smartnexmsk.com. We will confirm compatibility before processing your order. For most standard MOD 300 and AC 450 installations, the IMCPM02 is a direct drop-in replacement.
Q4: What is the typical lead time for emergency orders?
In-stock units are dispatched within 24–48 hours of order confirmation. For urgent plant shutdowns, contact us directly at +86 18259474341 to arrange priority shipment. We support both air freight and express courier options for global delivery.
