ABB IMDSI22 Safety-Enhanced Digital Input for Harsh Sites

ABB IMDSI22 Safety-Enhanced Digital Input for Harsh Industrial Sites

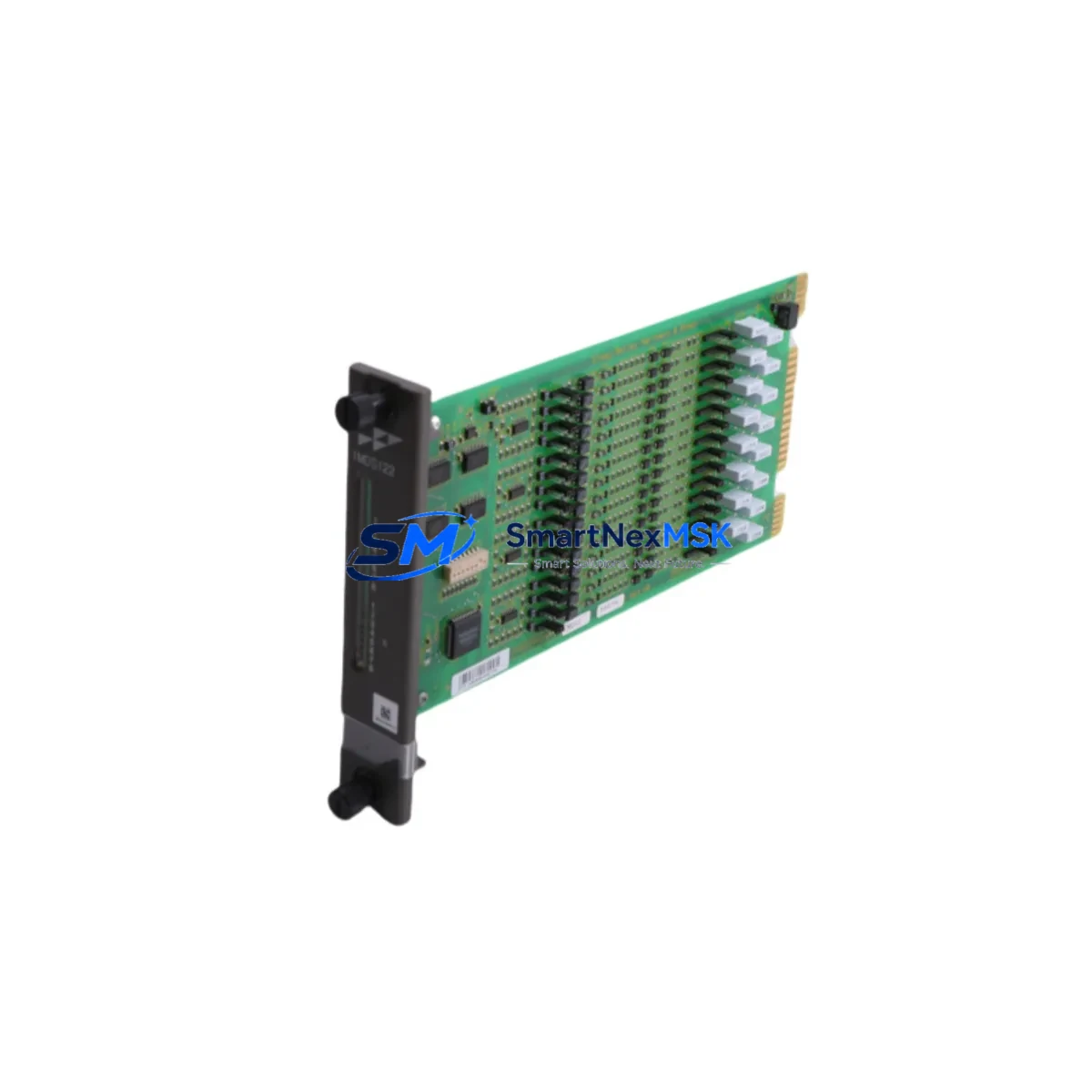

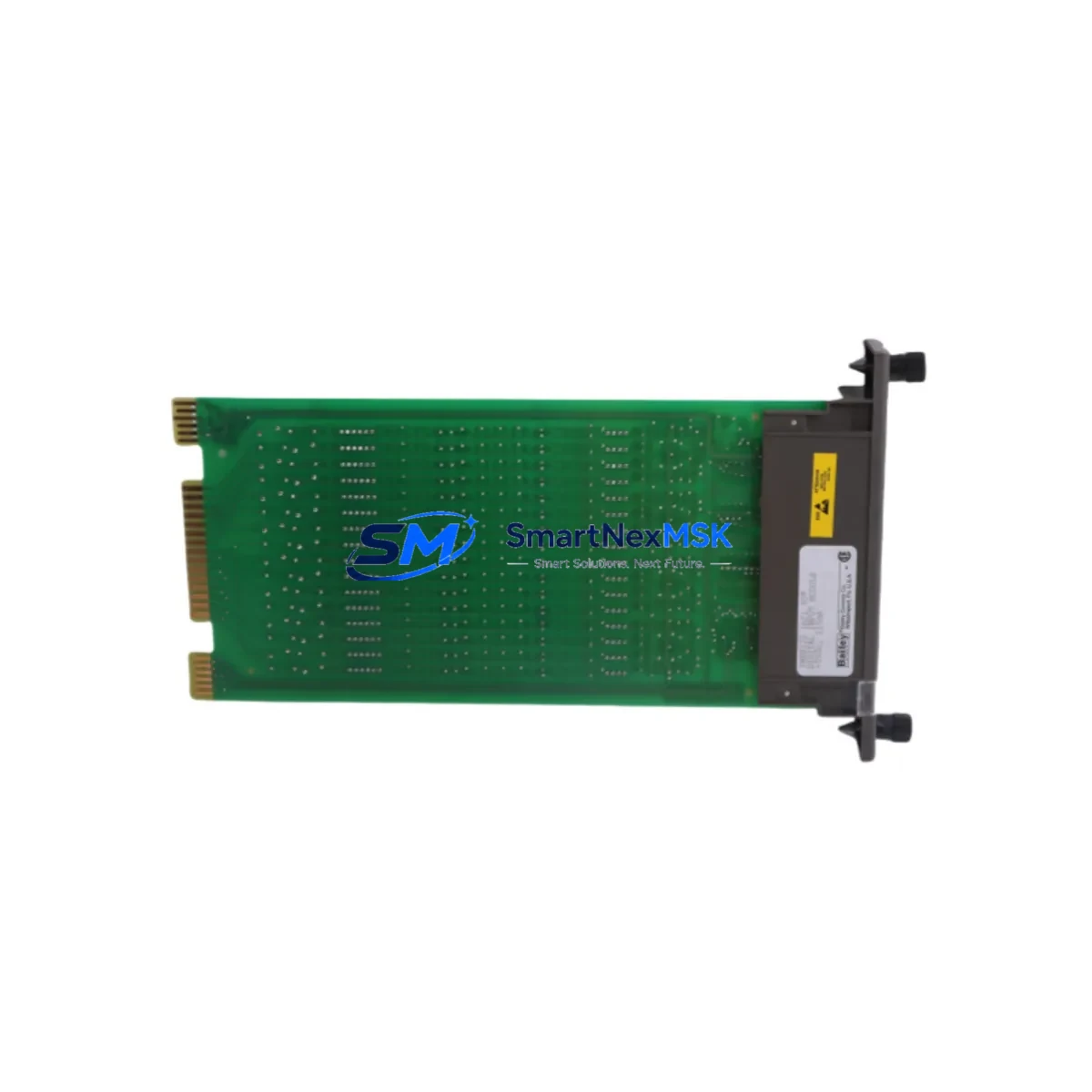

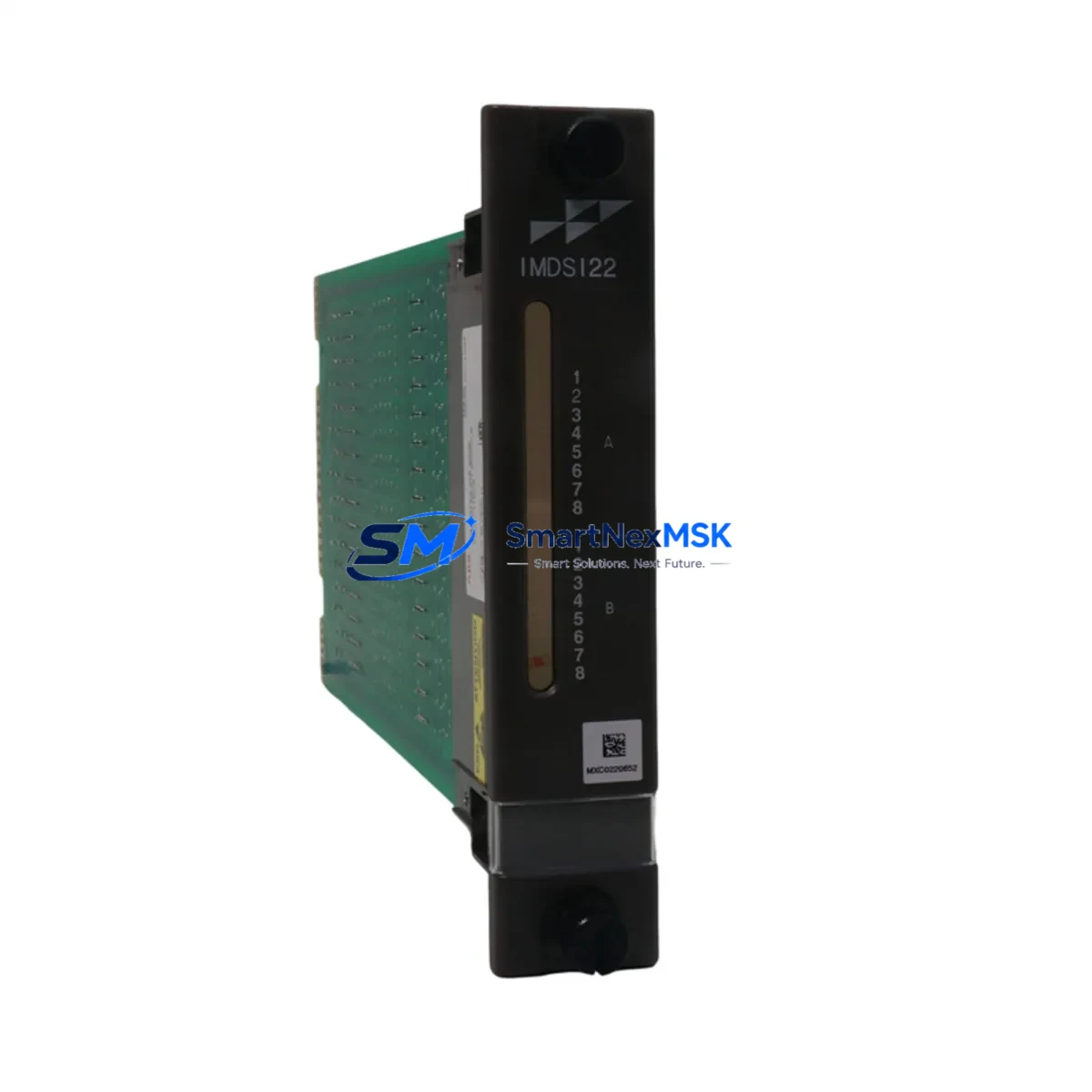

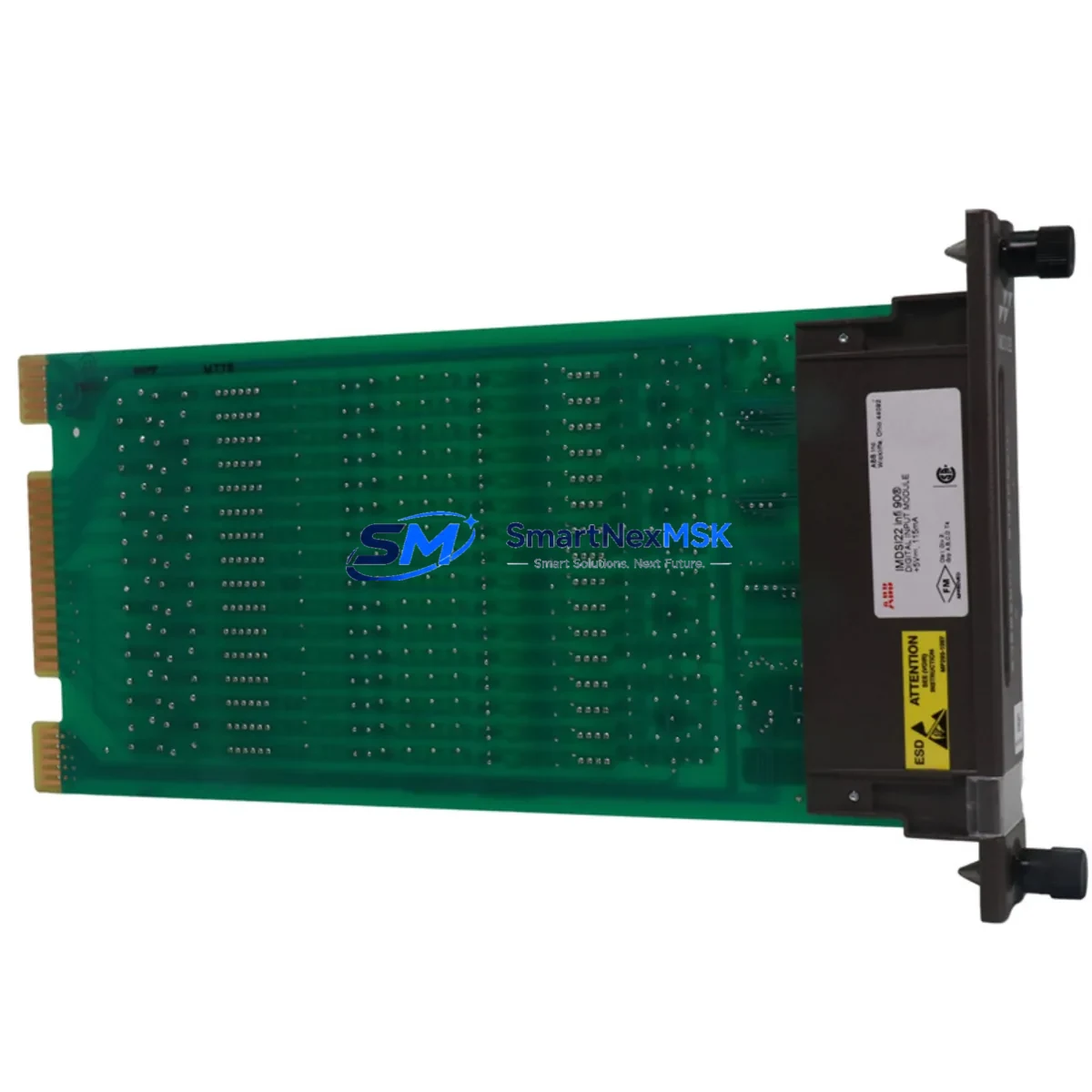

The ABB IMDSI22 is a 22-channel digital input module engineered for the S800 I/O platform, purpose-built to serve as a dependable front-end acquisition node within AC 800M Distributed Control System architectures. In high-stakes industrial environments — petrochemical complexes, power generation facilities, metallurgical plants, mining operations, and continuous-process manufacturing lines — the integrity of every digital input signal is a direct determinant of operational safety. The IMDSI22 addresses this requirement with a robust hardware design that minimizes the risk of control interruption, signal drift, and module misoperation even under the most demanding field conditions.

Designed to operate reliably across wide temperature ranges and in the presence of strong electromagnetic interference, the IMDSI22 provides stable 24 VDC digital signal acquisition with high common-mode noise rejection. Its galvanic isolation architecture protects the control backplane from field-side voltage transients and surge events — a critical safeguard in environments where inductive loads, motor starters, and high-power switching equipment operate in close proximity to the control cabinet. This isolation barrier prevents surge-induced latch-up and ensures that a fault on one input channel does not propagate to adjacent channels or upstream controller logic.

Within a properly engineered control cabinet, the IMDSI22 is typically deployed alongside the ABB IMDSO14 digital output module, forming a complementary I/O pair for interlock and permissive logic. The ABB PM866 or PM864A AC 800M controller processor module serves as the upstream command node, communicating with the IMDSI22 over the S800 I/O bus via the ABB TB820V2 ModuleBus modem. Redundant power supply configurations using the ABB SD833 or SD822 24 VDC power supply modules ensure that power fluctuations do not interrupt the module’s acquisition cycle. For applications requiring enhanced surge protection at the field terminal level, the ABB TU830V1 or TU831V1 termination unit provides the physical interface between field wiring and the IMDSI22, with built-in transient suppression.

In safety instrumented system (SIS) adjacent applications, the IMDSI22 is frequently used to monitor the status of emergency shutdown (ESD) pushbuttons, pressure switch contacts, level switch outputs, and valve position feedback signals. Its fast scan cycle and deterministic response time make it suitable for use in critical interlock loops where delayed signal recognition could result in process upsets or equipment damage. When integrated with the ABB CI854A PROFIBUS DP communication interface module, the IMDSI22 can also participate in distributed safety architectures spanning multiple control cabinets across a plant floor.

For installations in hazardous classified areas or where cable runs traverse electrically noisy environments, the IMDSI22’s input filtering and debounce characteristics suppress spurious transitions caused by contact bounce, cable capacitance, or induced interference — reducing nuisance trips and false alarms in the control system. This is particularly valuable in mining headframes, offshore platform control rooms, and chemical reactor interlock panels where false ESD activations carry significant operational and safety consequences.

Safety Reliability Table

Control Cabinet Protection Strategy

A resilient AC 800M control cabinet built around the IMDSI22 demands a layered protection strategy across power, communication, and I/O subsystems. At the power layer, redundant ABB SD833 24 VDC power supply modules with diode-ORing ensure uninterrupted supply to the I/O bus even during a single PSU failure. Upstream AC power conditioning through a dedicated UPS or line filter prevents voltage sags and harmonic disturbances from reaching the control backplane.

At the communication layer, the ABB TB820V2 ModuleBus modem provides the optical isolation interface between the controller and the S800 I/O cluster, eliminating ground loop currents that could corrupt digital signal states. Where PROFIBUS DP is used for extended I/O distribution, the ABB CI854A DP master module with proper cable termination resistors and shielded twisted-pair cabling maintains bus integrity across long cable runs in electrically noisy plant environments.

At the I/O layer, the IMDSI22 paired with the ABB TU830V1 termination unit provides a clean, surge-suppressed interface to field wiring. Complementary digital output control is handled by the ABB IMDSO14, while analog process variables are acquired through the ABB IMASI23 analog input module — together forming a complete mixed I/O cluster for a typical process control loop. For applications requiring analog output for valve positioners or variable speed drives, the ABB IMASO12 analog output module completes the signal chain.

Cabinet-level grounding, cable segregation between power and signal wiring, and proper ferrite bead installation on field cables further reduce the risk of EMI-induced signal errors on the IMDSI22 input channels.

Critical Industrial Safety Applications

The ABB IMDSI22 is deployed across a broad spectrum of critical industrial sectors where control system reliability is non-negotiable:

Petrochemical & Refining: Monitoring ESD valve position feedback, high-pressure switch contacts, and flame detector relay outputs in reactor interlock loops. The module’s surge immunity is essential in environments where large motor starts generate significant transient voltages on shared cable trays.

Power Generation: Acquiring turbine protection relay status, generator breaker position signals, and cooling system flow switch outputs. Deterministic scan times support fast-acting protection logic in combined-cycle and coal-fired power plants.

Mining & Minerals Processing: Monitoring conveyor belt alignment switches, crusher overload relay contacts, and ventilation fan status in underground and surface mining control systems. The wide operating temperature range supports installations in non-climate-controlled electrical rooms.

Water & Wastewater Treatment: Acquiring pump run/fail status, valve open/close confirmation, and level switch outputs in SCADA-integrated water treatment plants. The module’s noise rejection capability is critical in facilities with large submersible pump VFDs generating significant conducted EMI.

Metallurgy & Steel: Monitoring furnace door interlock switches, ladle transfer car position sensors, and cooling water flow confirmation signals in continuous casting and rolling mill control systems.

Port & Material Handling: Acquiring crane limit switch status, hoist overload relay outputs, and conveyor safety gate position signals in automated port terminal control systems.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB IMDSI22?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions as specified in the ABB S800 I/O product documentation. It includes free replacement or repair of confirmed defective units. Warranty claims are processed with a target response time of 3 business days from receipt of the returned module.

Q2: What pre-shipment testing is performed on each IMDSI22 unit?
Every IMDSI22 unit undergoes a full functional verification test prior to dispatch, including channel-by-channel digital input response testing, bus communication handshake verification, and visual inspection for physical integrity. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the IMDSI22 compatible with all AC 800M controller versions?
The IMDSI22 is compatible with the AC 800M controller family including PM864A, PM866, and PM891 processor modules, subject to the firmware version requirements specified in ABB’s S800 I/O compatibility matrix. It is recommended to verify the controller firmware version against ABB’s published compatibility tables prior to installation in existing systems.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated stock of the IMDSI22 and key S800 I/O family modules to support both new project builds and ongoing spare parts programs. For customers with critical installed bases, we offer reserved stock arrangements and priority dispatch to minimize the risk of extended downtime due to module failure.
