ABB IMDSO14 Safety-Enhanced Digital Output for Harsh Sites

ABB IMDSO14 Safety-Enhanced Digital Output for Harsh Industrial Sites

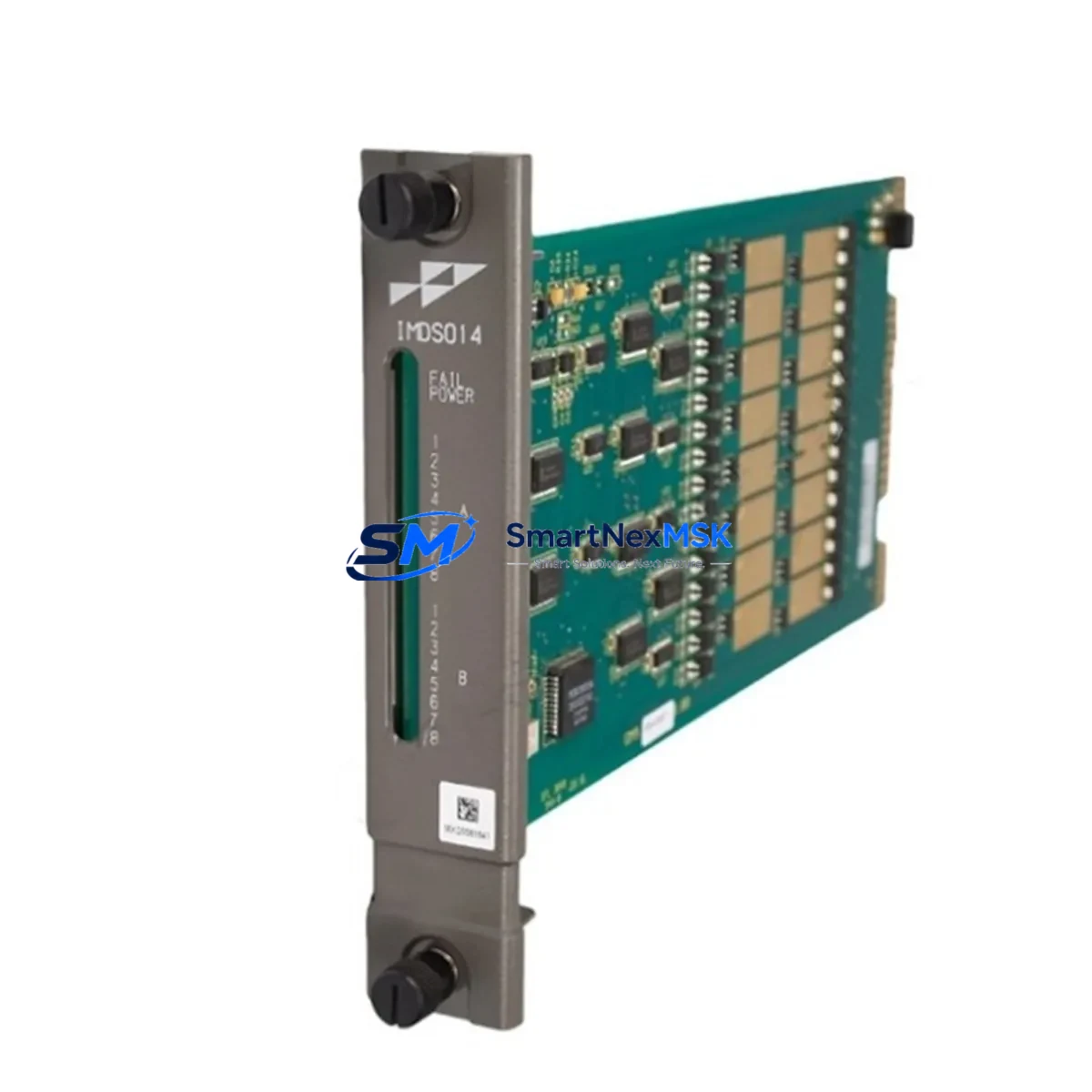

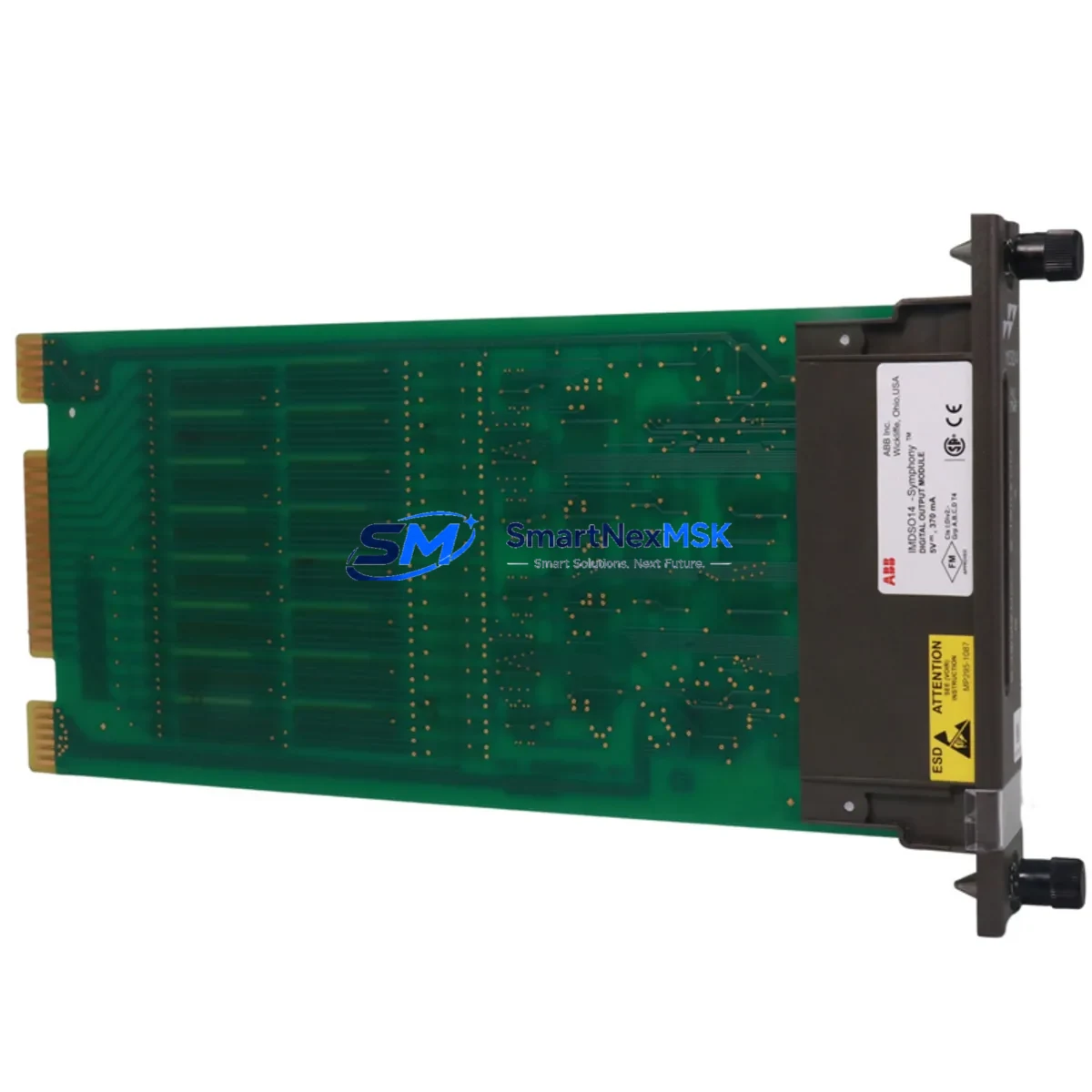

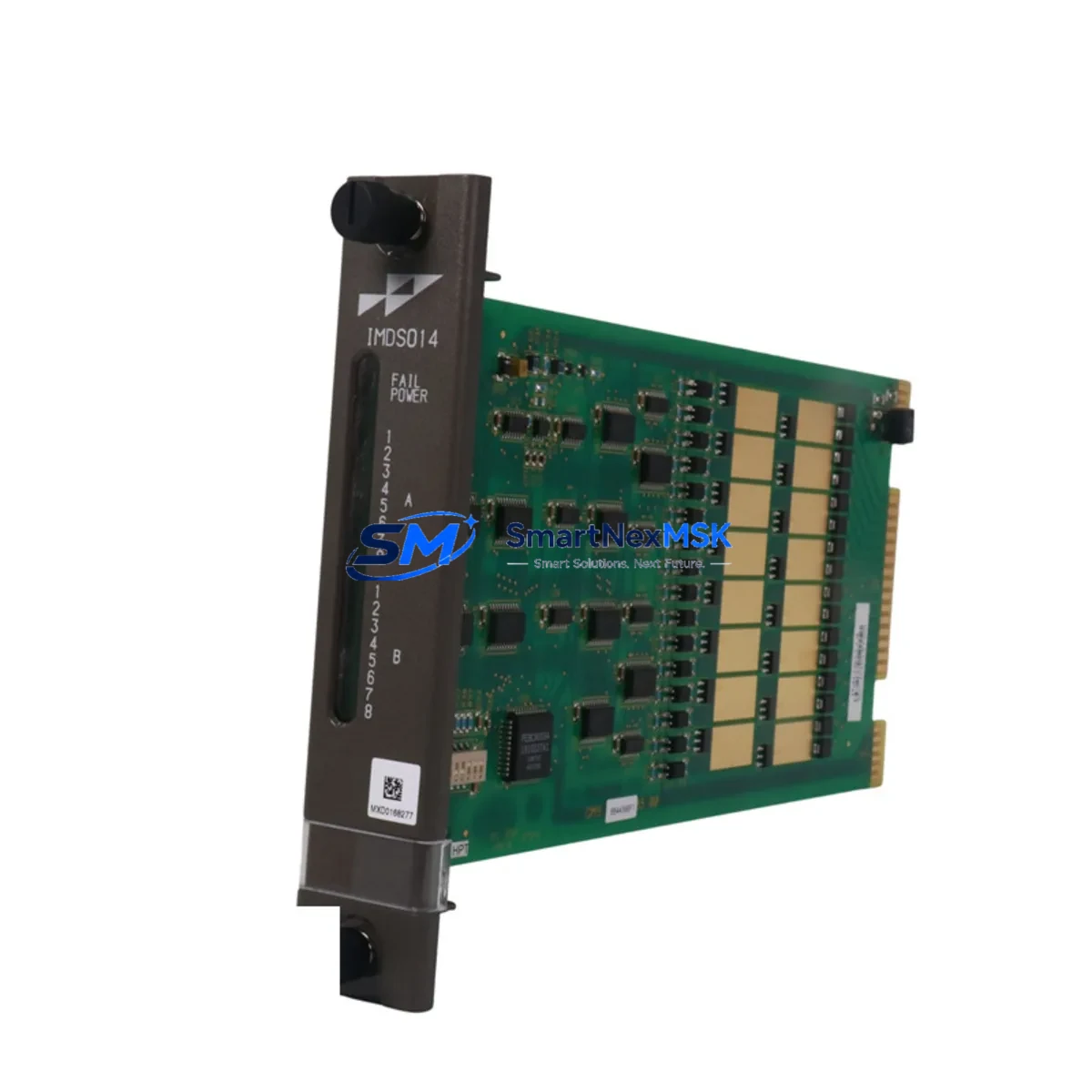

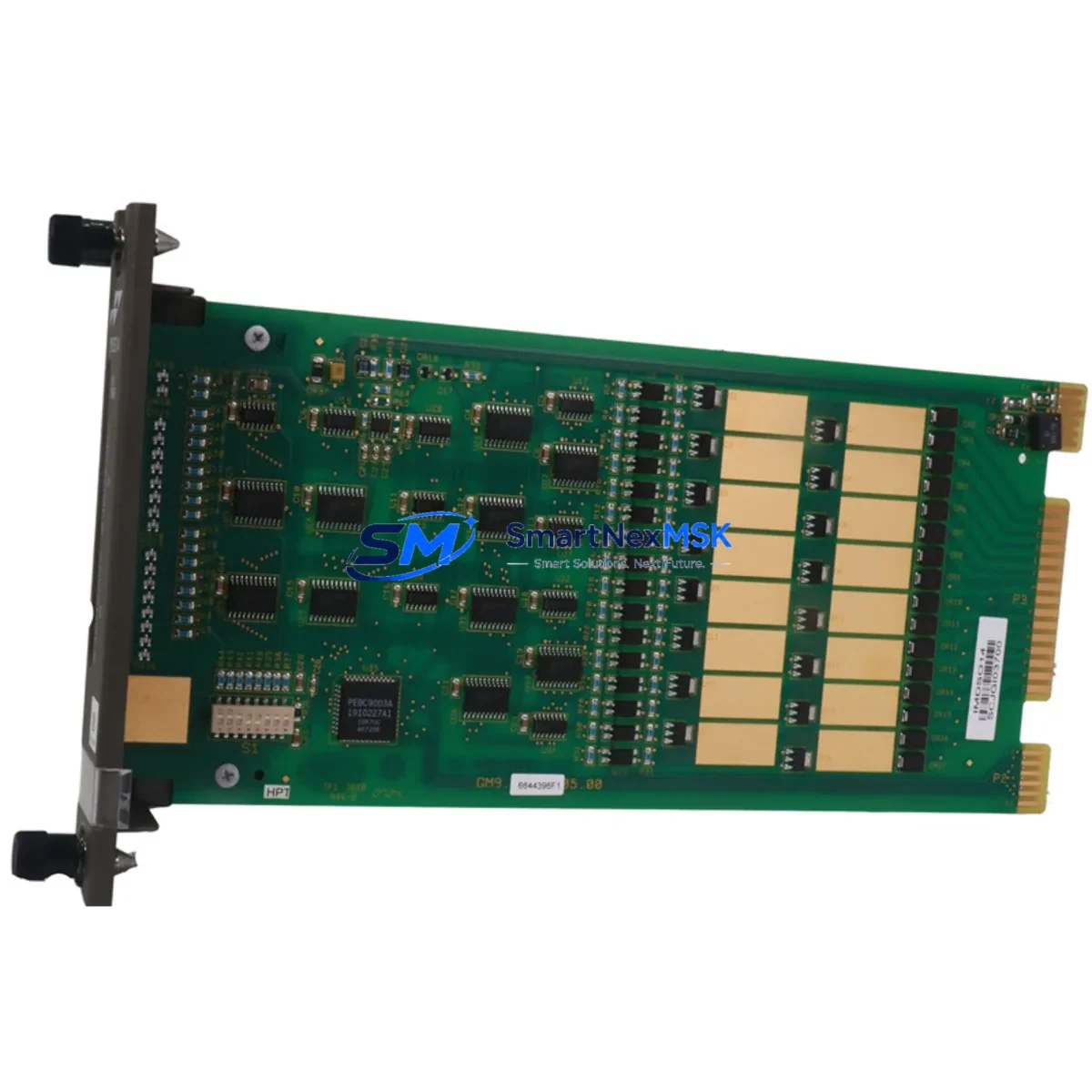

The ABB IMDSO14 is a 14-channel digital output slave module engineered for the ABB AC500 and S500 distributed I/O bus architecture. Designed to operate reliably in high-load, high-interference, and continuous-production industrial environments, the IMDSO14 delivers deterministic output switching with robust protection against the electrical and mechanical stresses common to heavy industry control cabinets, critical interlock loops, and hazardous-area automation panels.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and continuous-process manufacturing lines, unplanned control interruptions carry severe safety and financial consequences. The IMDSO14 addresses this risk directly: its hardened output drivers maintain stable switching states even under sustained surge events, ground-loop interference, and supply voltage fluctuations that would cause lesser modules to misoperate or latch into fault states. Each output channel is individually protected, ensuring that a single-channel fault cannot cascade into a broader control system failure—a critical requirement in safety-instrumented systems and emergency shutdown (ESD) circuits.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet in a heavy industrial environment is never built around a single module—it is an integrated system of mutually reinforcing components. The IMDSO14 performs at its best when paired with a well-engineered power and signal architecture. In a typical AC500-based control cabinet serving a continuous-process plant, the IMDSO14 digital output module works alongside the ABB IMDSDI22 digital input module to form a complete I/O layer, with the ABB PM564-ETH or PM573-ETH CPU providing deterministic scan-cycle control over the S500 bus.

Power integrity is foundational to output module reliability. Surges and micro-interruptions on the 24 V DC rail are among the leading causes of spurious output switching and module resets in field installations. Pairing the IMDSO14 with a Phoenix Contact QUINT-PS/1AC/24DC/20 or equivalent DIN-rail power supply with SFB (Selective Fuse Breaking) technology ensures that downstream load faults do not collapse the bus supply voltage. An ABB CP-E 24/10.0 buffer module can extend hold-up time during brief mains interruptions, preventing nuisance trips in critical interlock circuits.

Signal integrity on the output side is protected by proper load-side wiring discipline and, where inductive loads such as solenoid valves or relay coils are driven, by the use of freewheeling diodes or Weidmüller WTR 4/U terminal blocks with integrated surge suppression. For cabinets installed near variable-frequency drives (VFDs) or large motor starters—common in mining, water treatment, and metallurgical applications—shielded cable runs and ferrite cores on output wiring reduce radiated EMI coupling that can cause false output states.

On the communication side, the AC500 system’s ABB TB521-ETH bus coupler enables PROFINET or Modbus TCP integration, allowing the IMDSO14’s output states to be monitored and logged by SCADA systems for safety audit trails. Where functional safety requirements apply, the ABB AC500-S Safety PLC platform and its associated IMDSO14-compatible safe output modules provide SIL 2/3 certified control paths. For installations requiring local HMI visibility, the ABB CP600 series operator panels integrate natively with the AC500 bus, providing real-time output status without additional gateways.

Surge protection at the cabinet entry point—using Phoenix Contact PT 2X2-24DC-ST or equivalent Type 3 SPD modules on signal lines—further reduces the risk of transient damage to the IMDSO14’s output drivers, particularly in outdoor substations, port crane control panels, and open-pit mining environments where lightning exposure is significant.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous-process hydrocarbon facilities, the IMDSO14 controls solenoid valves, motor contactors, and alarm annunciators within emergency shutdown (ESD) and process safety management (PSM) systems. Its channel-level short-circuit protection prevents a valve driver fault from disabling adjacent safety outputs, maintaining the integrity of the interlock matrix during abnormal process conditions.

Power Generation & Substation Automation: Thermal and hydroelectric power plants rely on deterministic digital output switching for turbine governor control, excitation system commands, and protection relay trip circuits. The IMDSO14’s galvanic isolation between the S500 bus and field outputs prevents ground-loop currents—prevalent in large generator halls—from corrupting control signals or damaging the CPU backplane.

Mining & Mineral Processing: Underground and open-pit mining environments subject control hardware to extreme vibration, dust ingress, and wide temperature swings. The IMDSO14’s IEC 60068-compliant mechanical ratings and wide operating temperature range make it suitable for conveyor drive control, ventilation fan management, and dewatering pump automation in these demanding conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate 24/7 with minimal tolerance for control system downtime. The IMDSO14 drives pump contactors, valve actuators, and dosing system relays within SCADA-integrated AC500 architectures, with per-channel diagnostics enabling rapid fault isolation without full system shutdown.

Metallurgy & Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate severe electromagnetic interference and power quality disturbances. The IMDSO14’s IEC 61000-4 immunity ratings ensure stable output switching in these high-EMI environments, supporting cooling water valve control, hydraulic press sequencing, and furnace electrode positioning systems.

Port & Logistics Automation: Ship-to-shore cranes, automated stacking cranes, and conveyor sorting systems in port terminals demand high-cycle-rate digital output switching with minimal latency. The IMDSO14’s solid-state output drivers support the rapid, repetitive switching cycles required by these applications without the contact wear associated with relay-based output modules.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, we provide a replacement unit or full refund after fault verification. Customers are required to return the defective module; return shipping costs are covered for confirmed warranty cases. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each IMDSO14 unit?
Every IMDSO14 unit undergoes a full functional test on an ABB-compatible S500 I/O bus test rig prior to shipment. Testing includes channel-by-channel output activation and verification, bus communication integrity check, and visual inspection for physical damage. A test report is available upon request. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the IMDSO14 compatible with all AC500 CPU generations and bus couplers?
The IMDSO14 is compatible with the full range of ABB AC500 CPUs (PM5xx series) and S500 bus terminals (TB5xx series), including Ethernet-enabled variants. It is also compatible with third-party S500 bus couplers supporting the standard S500 I/O bus protocol. For specific firmware version compatibility or mixed-generation rack configurations, our technical team can provide application-specific guidance prior to purchase.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated stock of the IMDSO14 and related AC500/S500 I/O modules to support long-term spare parts programs for operating plants. For customers with multi-year maintenance contracts or large installed bases, we offer reserved stock agreements to ensure availability independent of market supply fluctuations. Lead times and stock levels are confirmed at the time of inquiry.
