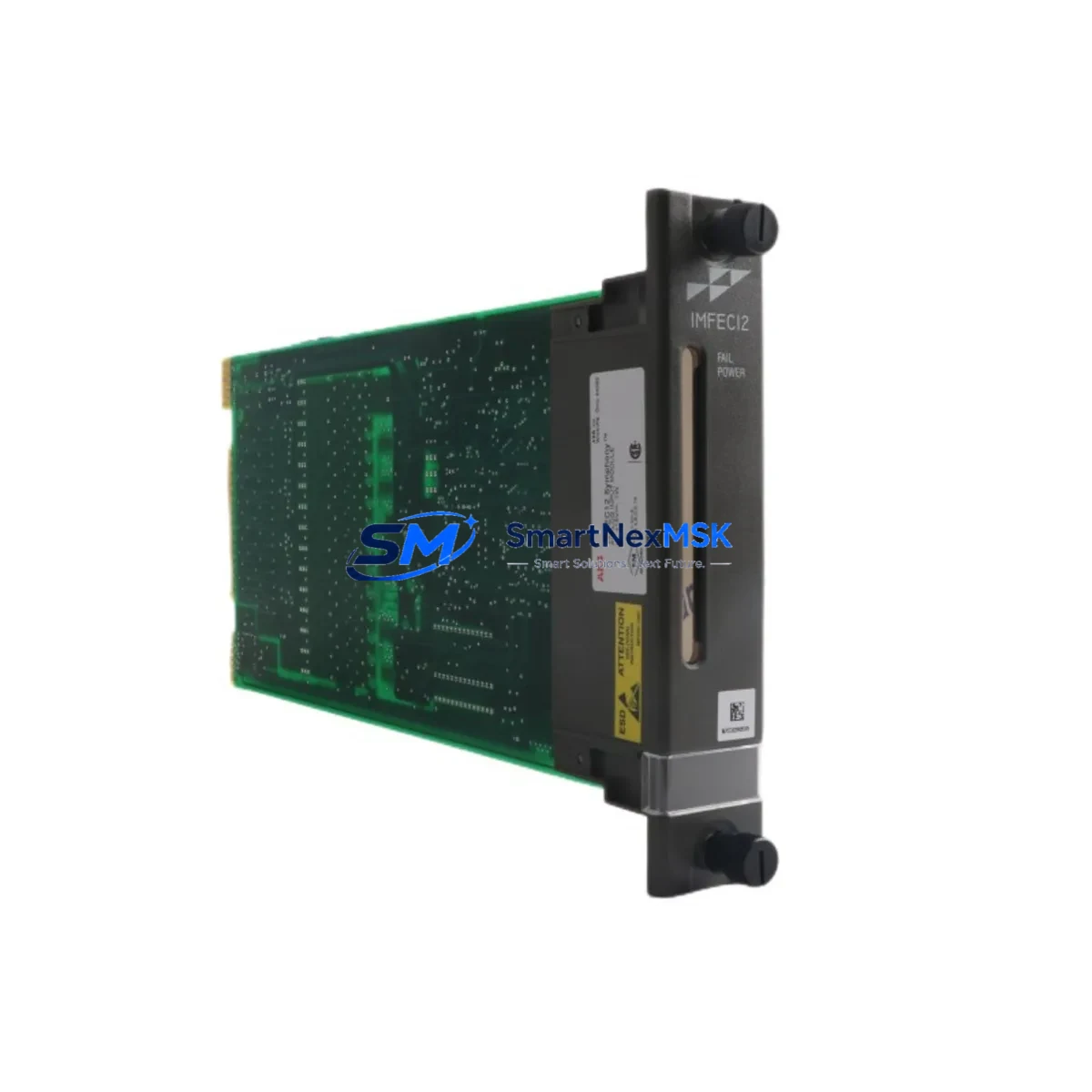

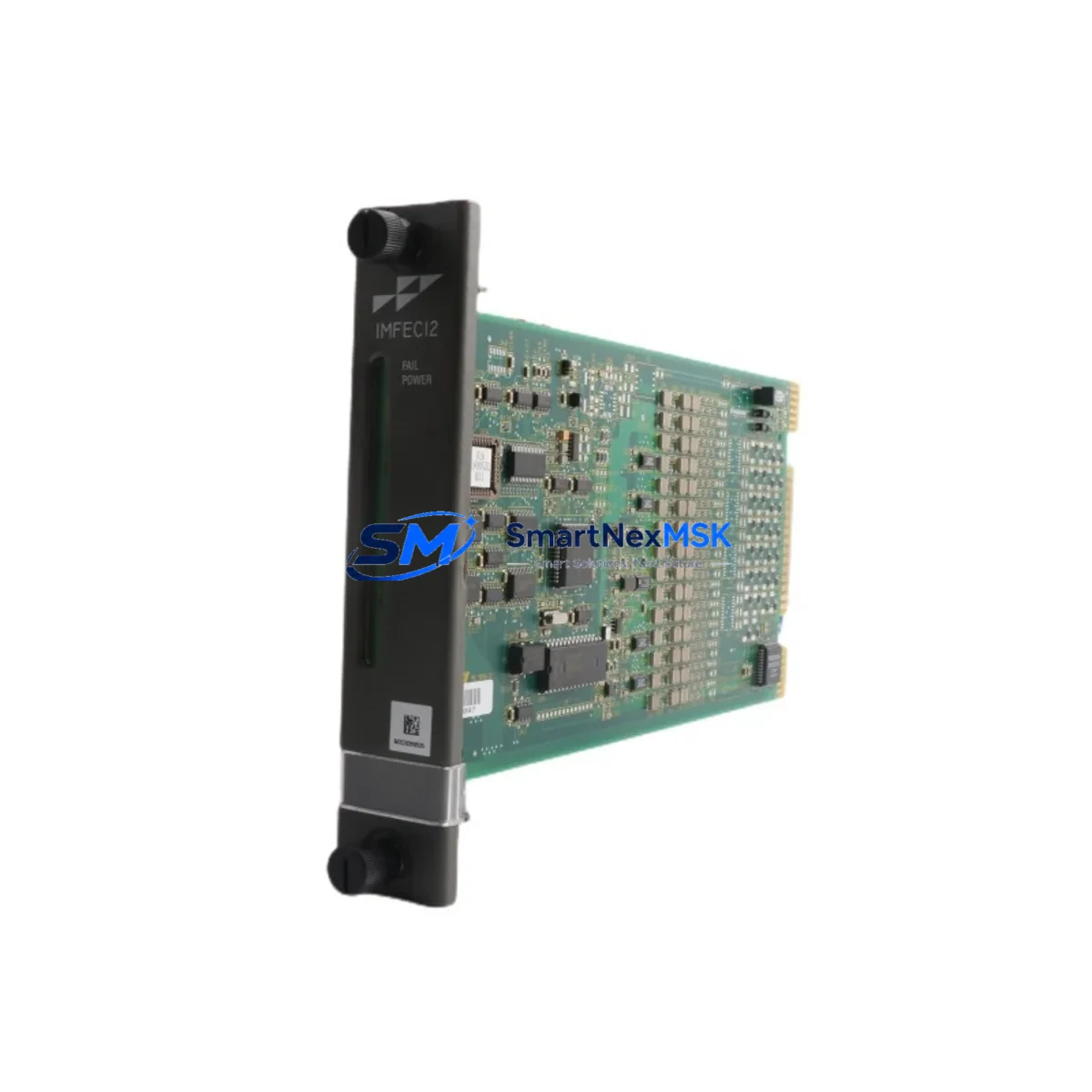

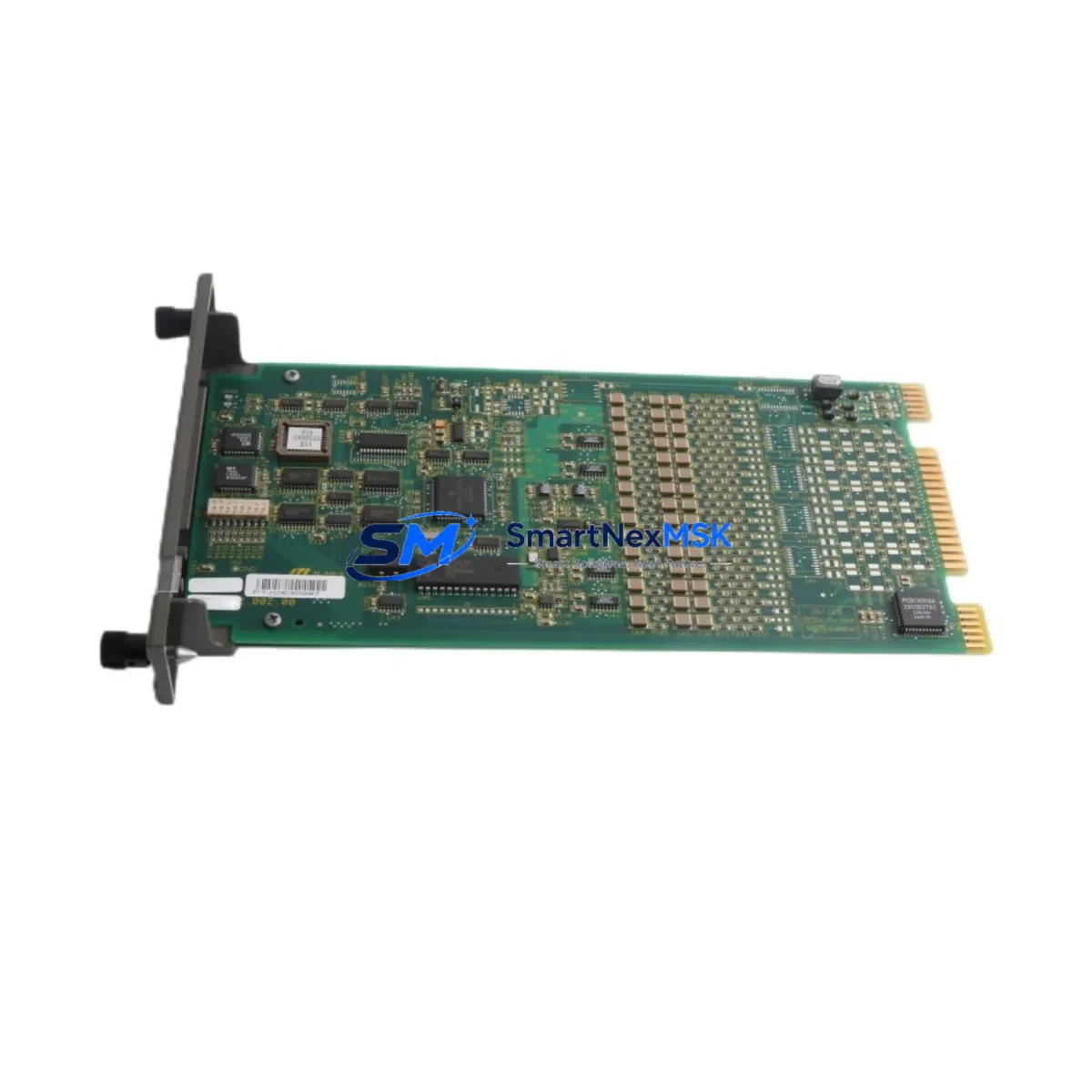

ABB IMFEC12 Safety-Enhanced Analog Input Module

ABB IMFEC12 Safety-Enhanced Analog Input Module: Reliable Control in Harsh Industrial Sites

The ABB IMFEC12 is a ruggedized analog input module engineered for the ABB S800 I/O system, fully compatible with the ABB AC800M Distributed Control System (DCS). Designed to operate reliably in high-load, high-interference, and continuous-production industrial environments, the IMFEC12 delivers stable, accurate signal acquisition where control integrity is non-negotiable. Whether deployed in a critical interlock loop, a hazardous-area control cabinet, or a high-availability process line, this module is built to maintain signal fidelity and system uptime under the most demanding field conditions.

In heavy industrial applications — petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical smelters, port automation, and continuous manufacturing lines — analog input accuracy is a direct safety parameter. Signal drift, ground loops, electromagnetic interference, and power transients are constant threats to control loop integrity. The IMFEC12 addresses these risks through its robust hardware design, tight channel isolation, and compatibility with ABB’s proven redundancy and diagnostics architecture.

Each unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing, ensuring that the module performs to ABB factory specifications before it reaches your site. With a 12-month warranty and maintained inventory stock, the IMFEC12 is a dependable spare-part solution for both planned maintenance and emergency replacement scenarios.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the ABB IMFEC12 does not operate in isolation — it functions as part of a layered protection and signal-conditioning architecture. Upstream of the IMFEC12, field signals typically pass through ABB ICSM-series signal conditioners or equivalent isolating barriers that strip common-mode noise before the signal reaches the module’s input terminals. This is especially critical in petrochemical and mining environments where cable runs exceed 200 meters and are routed near high-voltage power cables.

The IMFEC12 connects to the ABB S800 I/O ModuleBus backplane, which is powered by a dedicated ABB SD831 or SD832 power supply module. Maintaining clean, regulated 24 VDC to the I/O bus is essential — power ripple or micro-interruptions at the bus level can cause false analog readings or module resets. In redundant configurations, a second power supply module operates in parallel, with automatic switchover managed by the ABB TB840A ModuleBus Modem, ensuring that a single power supply failure does not interrupt process measurement.

For process safety applications, the IMFEC12 is often paired with the ABB PM864A or PM866A processor module, which executes the control logic and interlock functions. The processor’s built-in watchdog and self-diagnostic routines continuously verify the integrity of analog input data received from the IMFEC12. If a channel reports an out-of-range value or a wire-break condition, the AC800M system can trigger a safe-state output through paired ABB DO820 or DO821 digital output modules, activating shutdown valves or safety relays in the interlock circuit.

Communication integrity between the AC800M controller and the supervisory SCADA layer is maintained through ABB CI854A or CI857 communication interface modules, which handle PROFIBUS DP or IEC 61850 protocols respectively. Any disruption in the communication chain — whether caused by cable faults, protocol errors, or module failure — is immediately flagged at the HMI level, allowing operators to respond before a process deviation escalates into a safety event. The IMFEC12’s role in this architecture is foundational: accurate, stable analog input data is the basis on which all downstream control and safety decisions are made.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation and reaction processes, the IMFEC12 monitors temperature, pressure, and flow transmitter signals in real time. Accurate analog input is essential for maintaining safe operating envelopes and triggering emergency shutdown (ESD) sequences when process variables exceed safe limits. The module’s surge protection and channel isolation prevent false trips caused by electrical noise from large motor drives and switching equipment common in refinery environments.

Power Generation & Substation Control: In thermal and hydroelectric power plants, the IMFEC12 acquires analog signals from turbine speed sensors, generator excitation systems, and cooling water flow meters. Its compatibility with the AC800M’s redundant processor architecture ensures that a single module failure does not interrupt power generation control, supporting N+1 redundancy strategies required by grid operators.

Mining & Mineral Processing: Underground and open-pit mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The IMFEC12’s robust construction and rail-mount design allow it to be installed in sealed, climate-controlled marshalling cabinets close to the process, minimizing signal cable length and reducing noise pickup from conveyor drives and crusher motors.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous analog monitoring of pH, dissolved oxygen, turbidity, and chemical dosing flow rates. The IMFEC12 provides the reliable, drift-free signal acquisition needed to maintain regulatory compliance and prevent chemical overdosing events that could pose environmental or public health risks.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting operations, the electromagnetic environment is exceptionally hostile. The IMFEC12’s EMC-hardened design and galvanic isolation allow it to maintain signal integrity in close proximity to high-current bus bars and induction heating equipment, supporting precise temperature and flow control in molten metal handling processes.

Port Automation & Heavy Lifting: Crane and ship-loader control systems require precise load cell and position sensor signal acquisition. The IMFEC12 supports these applications by providing stable analog input under the dynamic electrical loads generated by large variable-frequency drives (VFDs) used in port machinery.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the ABB IMFEC12?
Every IMFEC12 unit supplied by SMARTNEXMSK carries a 12-month warranty covering functional defects under normal operating conditions. If a unit fails within the warranty period due to a manufacturing or component defect, we provide replacement or repair support. The warranty period begins from the date of shipment.

Q2: How is each unit tested before shipment?
All IMFEC12 modules undergo a full pre-shipment functional test. This includes power-on verification, channel response testing, communication interface check on the ModuleBus protocol, and visual inspection for physical integrity. Only units that pass all test criteria are released for shipment, ensuring that you receive a field-ready module.

Q3: Is the IMFEC12 compatible with my existing ABB AC800M and S800 I/O configuration?
Yes. The IMFEC12 is a standard ABB S800 I/O family module and is fully compatible with all AC800M processor variants (PM860A, PM864A, PM866A) and S800 I/O ModuleBus configurations. It supports hot-swap replacement in redundant I/O configurations without requiring a controller restart, minimizing process interruption during maintenance.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. We maintain standing inventory of the IMFEC12 and related ABB S800 I/O family modules to support both planned maintenance schedules and unplanned emergency replacements. Our supply chain is structured to provide fast dispatch for critical spare-part orders, with global shipping options available. For sites with high-availability requirements, we recommend establishing a consignment or buffer stock arrangement — contact our sales team to discuss options.
