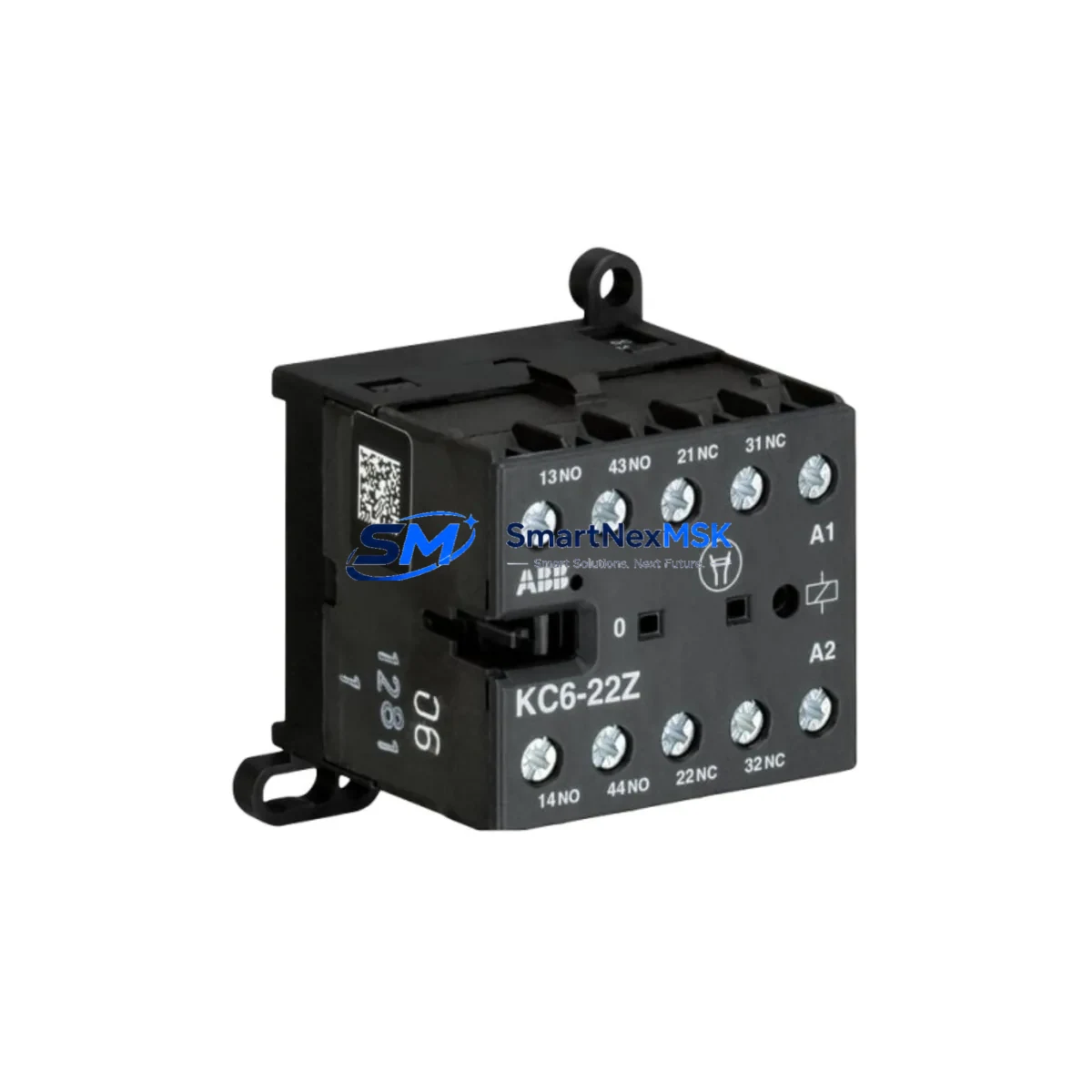

ABB KC6-22Z Retrofit-Ready Auxiliary Contactor for K Series Control Systems
The ABB KC6-22Z is a 2NO+2NC auxiliary contactor relay engineered for seamless integration into legacy K Series control architectures. Whether you are replacing a discontinued ABB KC6-22 or upgrading an aging control cabinet, the KC6-22Z delivers drop-in mechanical and electrical compatibility with minimal re-engineering. Its compact DIN-rail footprint and standardized screw terminal layout make it the preferred choice for engineers managing brownfield retrofit projects, partial panel upgrades, and emergency spare replacements across industrial automation environments.
In retrofit scenarios, the KC6-22Z is commonly deployed alongside the ABB AF09 and AF12 contactors, where auxiliary contact expansion is required to extend the signaling capacity of the main power contactor. When migrating from older K Series relay logic to a modern PLC-based control scheme — such as systems built around the ABB AC500 controller platform — the KC6-22Z serves as a reliable interface relay between the PLC digital output module and field devices, preserving the original wiring topology while enabling protocol-level upgrades.
Control cabinet integrators frequently pair the KC6-22Z with the ABB S200 series miniature circuit breakers for upstream protection, and with the ABB CM-EFS.2 monitoring relay for phase and voltage supervision. In multi-axis drive panels, the KC6-22Z is used to interlock ABB ACS580 variable frequency drives, providing hardwired safety feedback to the control system without modifying the drive’s internal parameter logic.
Upgrade Compatibility Table
| Parameter | KC6-22Z Specification | Retrofit Notes |
|---|---|---|
| Contact Configuration | 2NO + 2NC | Direct replacement for KC6-22; verify NC contact wiring polarity |
| Mounting | DIN-rail / direct mount on K Series contactor | Compatible with 35mm DIN rail; no adapter required |
| Terminal Type | Screw terminals | Retain existing wire ferrules; re-torque to 0.8 Nm |
| Communication Compatibility | Hardwired (potential-free contacts) | Compatible with PLC digital inputs (24VDC/120VAC); no protocol change required |
| Replacement Recommendation | Replaces KC6-22, KC6-20, KC6-02 | Confirm coil voltage of host contactor before installation |
| Commissioning Focus | Contact continuity test, interlock logic verification | Use multimeter to verify NO/NC state before energizing |
| Warranty | 12 Months | Covered from date of dispatch; includes functional test certificate |
Retrofit Planning for Existing Automation Systems
Successful retrofit planning begins with a thorough audit of the existing control cabinet. When replacing the KC6-22Z in a legacy system, engineers should document the current terminal assignments on the host contactor — typically an ABB B6, B9, or B12 series contactor — and verify that the auxiliary contact block mounting interface has not been modified. In systems where the original KC6-22 was used to provide feedback signals to a SIMATIC S7-300 or S7-400 PLC digital input module, the replacement KC6-22Z can be installed without any changes to the PLC program, as the contact ratings and terminal numbering are preserved.
For panels incorporating ABB CP600 HMI terminals, the auxiliary contact status is typically mapped to a discrete input tag in the HMI project. After replacing the KC6-22Z, verify that the HMI display correctly reflects the contactor state by forcing the input in the PLC and observing the HMI screen response before returning the system to automatic mode. If the panel uses an ABB PROFIBUS DP communication module for remote I/O, ensure that the digital input card assigned to the KC6-22Z feedback signal is correctly addressed in the GSD file and that the module address has not shifted due to rack reconfiguration.
In systems undergoing a broader migration from relay logic to PLC control, the KC6-22Z is often retained as a hardwired interlock element even after the main control logic is transferred to the PLC. This hybrid approach reduces retrofit risk by maintaining proven hardwired safety circuits while allowing the PLC to handle sequencing and diagnostics. The KC6-22Z’s 10A contact rating supports both 24VDC control circuits and 230VAC signaling loops, making it suitable for mixed-voltage panels common in older European-standard installations.
When the retrofit scope includes replacing the main power contactor — for example, upgrading from an ABB B16 to an AF16 series contactor — the KC6-22Z mounting interface must be re-evaluated, as the AF series uses a different auxiliary contact block attachment mechanism. In such cases, the ABB CAL4-11 or CAL6-11 auxiliary contact block may be required instead of the KC6-22Z. Always cross-reference the contactor series before ordering auxiliary contact blocks to avoid installation delays.
Downtime Control During System Migration
Minimizing unplanned downtime during a KC6-22Z replacement requires preparation before the maintenance window begins. Pre-stage the replacement unit and verify its contact configuration with a continuity tester before entering the panel. Photograph the existing wiring layout and label all terminals before disconnecting any conductors. If the system uses a PLC with online monitoring capability — such as an ABB AC500 with a PM573 CPU — use the PLC’s diagnostic buffer to capture the last known state of all I/O signals before de-energizing the panel. This record serves as a baseline for post-replacement verification.
During the replacement, work with the main contactor de-energized and the upstream MCB locked out. Remove the KC6-22Z by releasing the snap-fit latch on the host contactor body, transfer the wiring to the new unit using the documented terminal layout, and re-engage the auxiliary block until it clicks into position. After re-energizing, perform a functional test by manually actuating the contactor and verifying that all NO and NC contacts switch correctly. Confirm that the PLC input status matches the expected contact state before releasing the system to production. Total replacement time for a prepared technician is typically under 15 minutes, making the KC6-22Z one of the lowest-risk components to replace in a live control cabinet upgrade.
Retrofit Support FAQ
Q: Is the KC6-22Z a direct replacement for the discontinued KC6-22?
A: Yes. The KC6-22Z is the current production successor to the KC6-22 and KC6-20. It shares the same 2NO+2NC contact configuration, DIN-rail mounting interface, and terminal numbering. No wiring changes are required for a direct swap on ABB B and K Series contactors.
Q: Does the KC6-22Z require any PLC program changes after installation?
A: No program changes are required if the replacement is like-for-like. The contact ratings and terminal assignments are identical to the predecessor model. If the retrofit also involves changing the host contactor model or expanding the I/O count, verify the PLC input address mapping and update the HMI tag database accordingly.
Q: What pre-shipment testing is performed on the KC6-22Z?
A: Each unit undergoes contact continuity verification, insulation resistance testing, and mechanical actuation cycling before dispatch. A functional test certificate is included with every shipment. The 12-month warranty covers manufacturing defects and contact failure under rated load conditions.
Q: Can the KC6-22Z be used in a 120VAC control circuit?
A: Yes. The KC6-22Z contacts are rated for both 24VDC and up to 250VAC signaling circuits at 10A. Confirm the host contactor coil voltage separately, as the auxiliary contact block is voltage-independent and operates mechanically regardless of the coil supply voltage.
