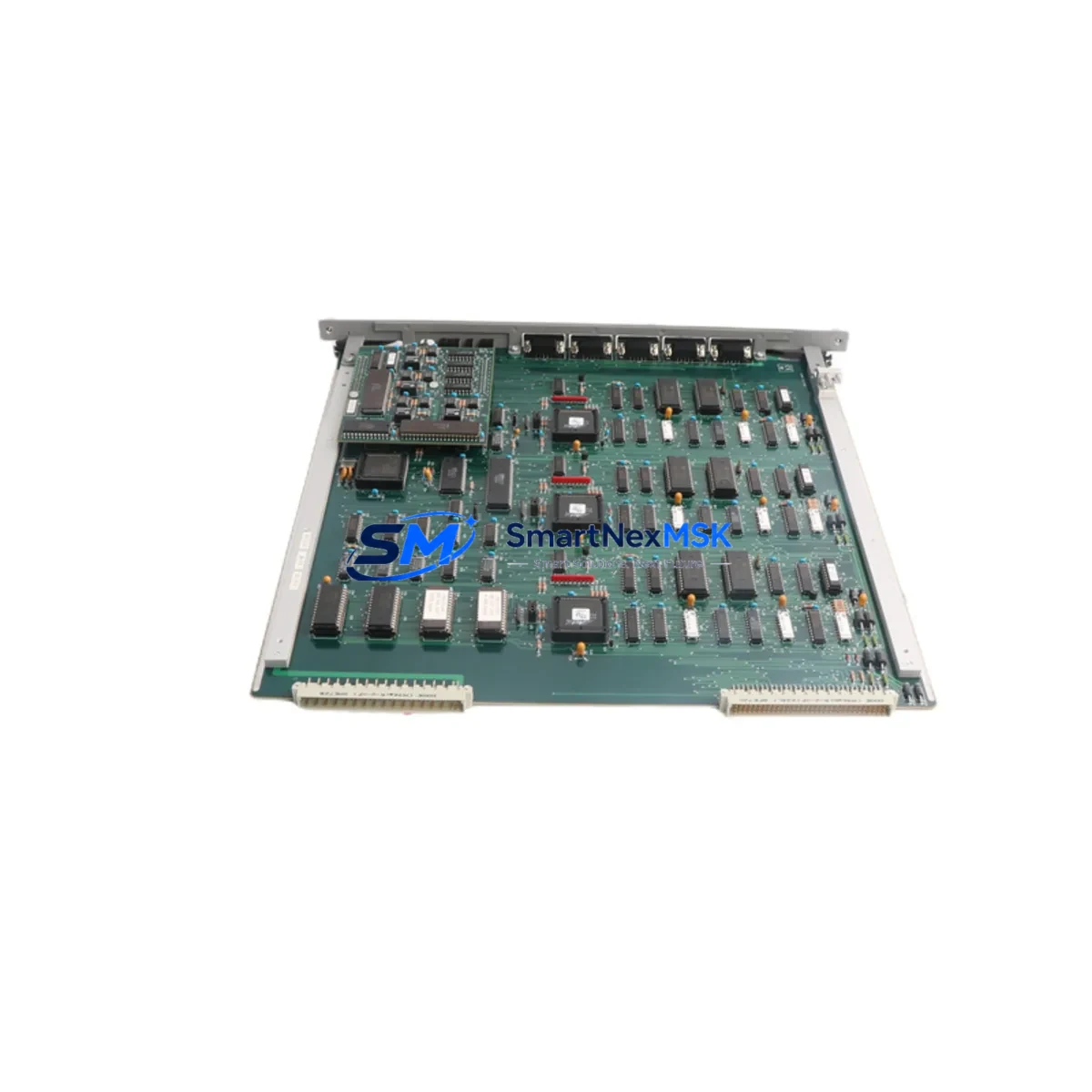

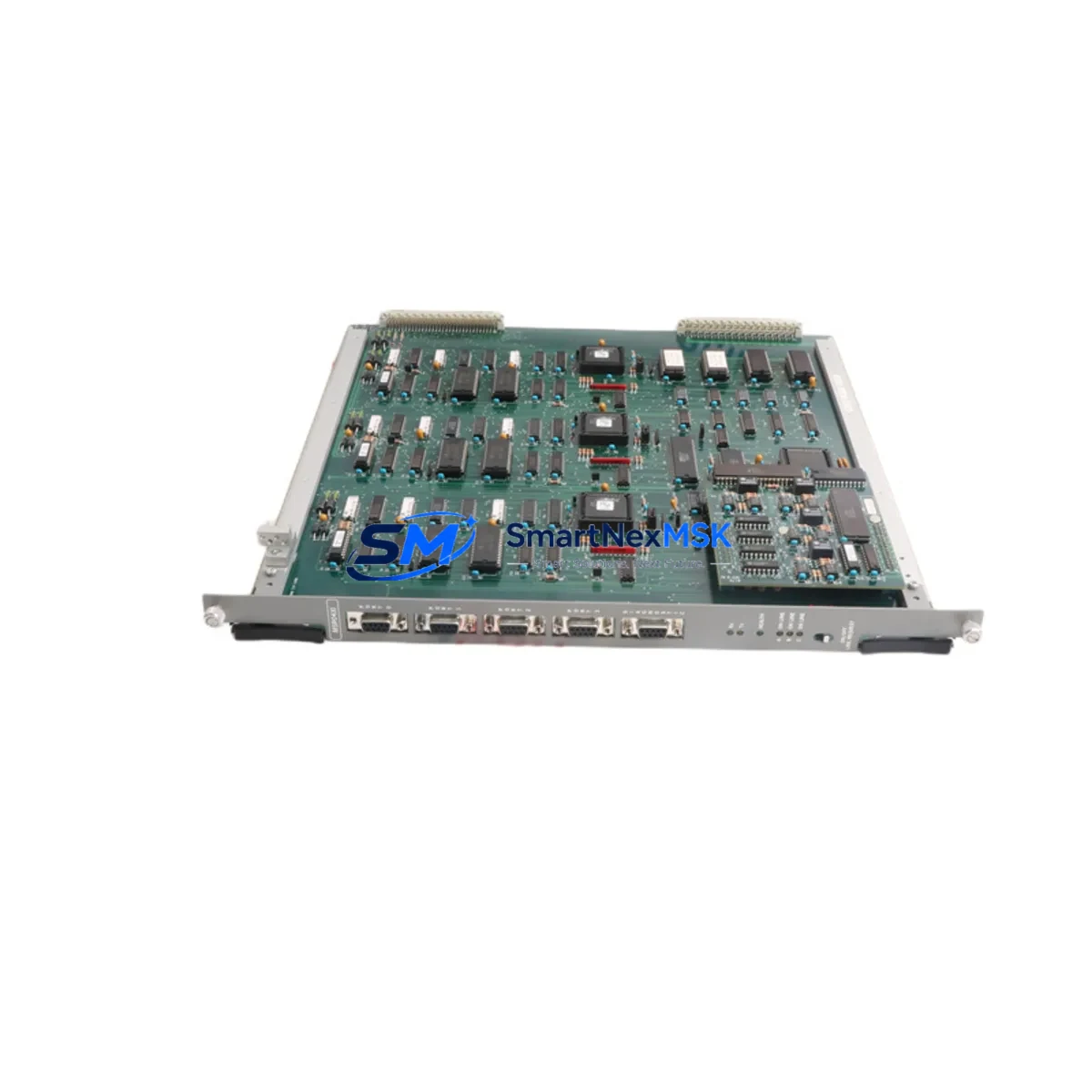

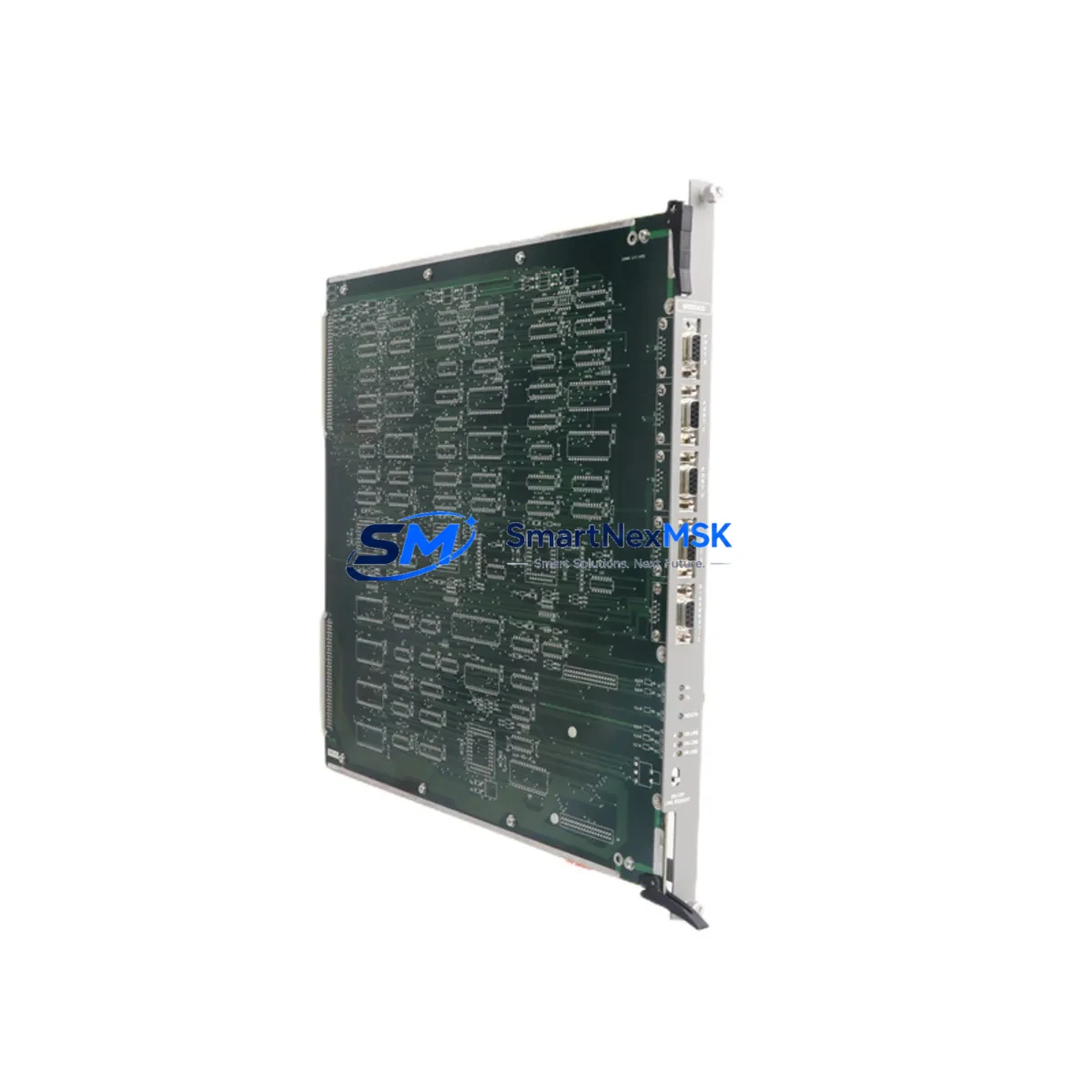

ABB MSR04XI Safety-Enhanced Serial Interface Module

ABB MSR04XI Safety-Enhanced Serial Interface Module: Reliable Serial Control for Harsh Industrial Sites

The ABB MSR04XI is a ruggedized serial interface module engineered for the ABB S800 I/O system, purpose-built to maintain uninterrupted serial communications in high-load, high-interference, and safety-critical industrial environments. In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment systems, and metallurgical complexes — communication integrity between field devices and the control system is not optional. A single serial link failure can cascade into process shutdowns, safety interlock failures, or uncontrolled equipment states. The MSR04XI is designed to prevent exactly that.

Supporting both RS-232 and RS-485 physical layers with full Modbus RTU protocol capability, the MSR04XI provides the communication backbone for connecting intelligent field instruments, motor drives, valve positioners, and remote I/O nodes to ABB AC800M or AC800F controllers. Its ruggedized construction ensures stable signal transmission even in environments subject to strong electromagnetic interference, ground potential differences, and power supply fluctuations — conditions that routinely degrade standard serial modules.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the MSR04XI does not operate in isolation — it functions as a critical node within a layered protection architecture. When integrated alongside the ABB TB820V2 media converter module and ABB CI854A PROFIBUS DP communication interface, the MSR04XI ensures that serial field devices remain continuously visible to the control system even during bus disturbances or partial network faults. This redundancy is essential in safety instrumented systems where loss of field device feedback can trigger spurious shutdowns or, worse, mask a genuine process hazard.

Power quality is a persistent threat to serial communication stability. Voltage sags, switching transients, and ground loops introduced by large motor starters or variable frequency drives — such as the ABB ACS880 series — can induce noise on RS-485 lines, causing framing errors, CRC failures, and communication timeouts. The MSR04XI’s galvanically isolated serial ports break these ground loops at the module level, preventing noise from propagating into the controller backplane. Pairing the MSR04XI with a dedicated ABB SDCS-CON-4 or equivalent DC drive control board in the same cabinet further isolates high-current switching from the signal wiring domain.

For cabinets housing ABB S800 AI810 analog input modules or ABB DI810 digital input modules alongside the MSR04XI, proper cable segregation and shielding practices are critical. The MSR04XI’s RS-485 ports support twisted-pair shielded cable runs of up to 1,200 meters, making it suitable for connecting remote field junction boxes, intelligent transmitters, and Modbus-enabled analyzers without signal degradation. In surge-prone environments — outdoor substations, port crane control systems, or open-pit mining sites — installing ABB SACE surge protective devices upstream of the serial cable entry points provides an additional layer of transient protection that preserves the MSR04XI’s long-term reliability.

When the MSR04XI is deployed in a safety interlock loop alongside ABB Ability™ Safety Manager or a third-party SIL-rated safety PLC, its role is to relay status data from non-safety field instruments into the control layer for monitoring purposes, while the hardwired safety circuit remains independent. This architecture satisfies IEC 61511 requirements for separation of safety and control functions while still providing operators with real-time serial device diagnostics through the standard DCS HMI.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous hydrocarbon processing, the MSR04XI connects Modbus RTU-enabled flow computers, gas analyzers, and custody transfer meters to the ABB AC800M DCS. Loss of communication with these devices can result in incorrect mass balance calculations, missed leak detection alerts, or failure to actuate emergency isolation valves. The module’s isolated RS-485 ports prevent ground faults in the field wiring from corrupting controller data, a critical safeguard in classified hazardous areas where intrinsically safe barriers are used at the field device end.

Power Generation and Substation Automation: Grid-connected power plants rely on serial communication for protection relay coordination, transformer monitoring, and generator excitation control. The MSR04XI provides a stable Modbus RTU link between legacy protection relays and modern SCADA systems, enabling condition monitoring without replacing existing relay infrastructure. Its wide operating temperature range ensures reliable performance in outdoor relay houses and substation control buildings subject to seasonal temperature extremes.

Mining and Mineral Processing: Underground and surface mining operations expose control equipment to vibration, dust, humidity, and electromagnetic interference from large electric shovels and conveyor drives. The MSR04XI’s ruggedized design and industrial EMC compliance make it suitable for deployment in mine control rooms and remote I/O panels, where it maintains serial links to belt scale controllers, crusher automation systems, and ventilation fan drives.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use Modbus RTU extensively for pump station monitoring, chemical dosing control, and effluent quality measurement. The MSR04XI enables reliable integration of these field devices into centralized SCADA systems, supporting unattended remote operation and alarm management. Its long RS-485 cable support is particularly valuable in large treatment plants where field devices may be hundreds of meters from the control room.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate extreme electromagnetic interference. The MSR04XI’s galvanic isolation and industrial EMC design allow it to maintain stable serial communications in these environments, supporting process data collection from pyrometers, thickness gauges, and tension measurement systems that feed into quality control and safety shutdown logic.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the ABB MSR04XI?
A: The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified serial communication functions within the warranty period, we will provide a replacement or repair at no additional cost. Warranty claims are processed promptly to minimize your downtime.

Q: How is the MSR04XI tested before shipment?
A: Every ABB MSR04XI unit undergoes a full functional test prior to dispatch. This includes verification of all serial port communications, protocol response, power consumption within specification, and physical inspection for connector integrity. A test report is available upon request for quality documentation purposes.

Q: Is the MSR04XI compatible with my existing ABB S800 I/O system and AC800M controller?
A: Yes. The MSR04XI is a native S800 I/O module and is fully compatible with ABB AC800M and AC800F controllers running Control Builder M software. It integrates directly into the S800 I/O rail without additional adapters. If you are running an older firmware version, we recommend confirming the minimum compatible controller firmware version with your ABB system documentation before installation.

Q: Can you guarantee long-term supply of the MSR04XI for ongoing maintenance and spare parts programs?
A: We maintain dedicated stock of the ABB MSR04XI and other S800 I/O series modules to support long-term spare parts programs for industrial facilities. We understand that production-critical systems require assured spare parts availability, and we work with customers to reserve stock for planned maintenance shutdowns and emergency replacement needs. Contact our team to discuss a supply agreement tailored to your facility’s requirements.
