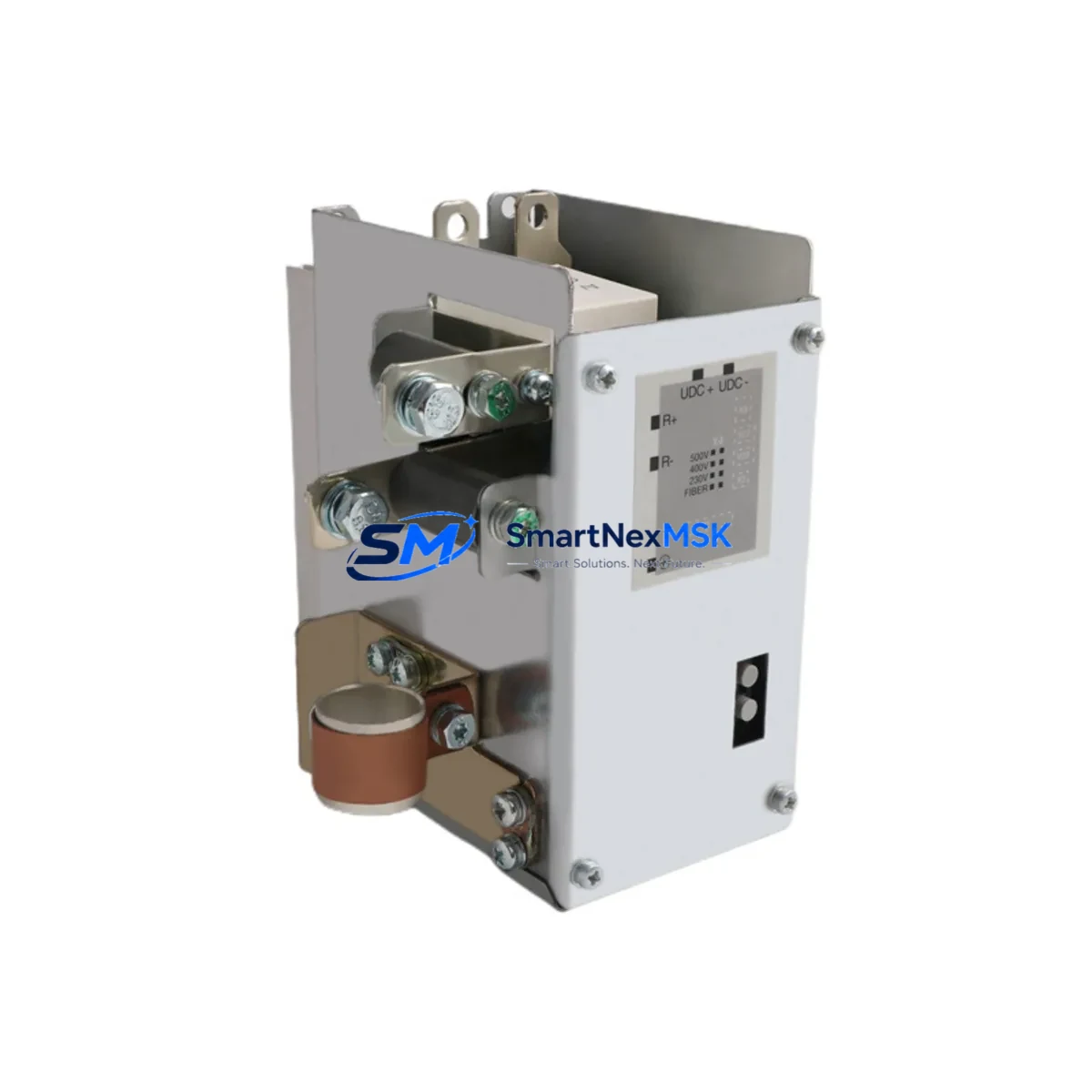

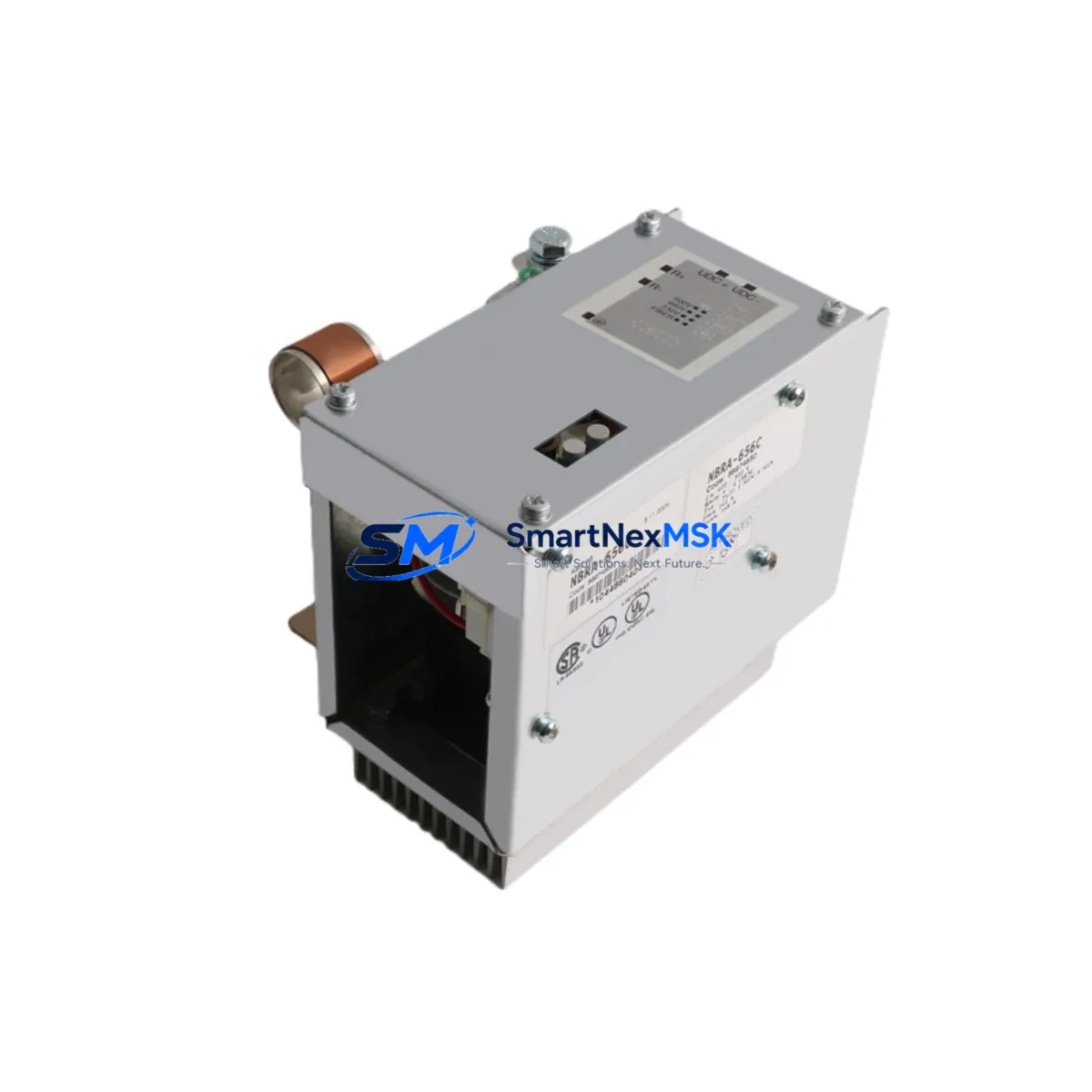

The ABB NBRA-656C is a ruggedized DC bus brake chopper module engineered for the ABB DCS800 series DC drive platform. Designed to operate reliably in high-load, high-interference, and continuous-production industrial environments, the NBRA-656C dissipates regenerative braking energy through an external braking resistor, preventing dangerous DC bus overvoltage conditions that can trigger drive trips, damage power electronics, or cause unplanned production shutdowns. In critical control loops — including motor deceleration interlocks, emergency stop circuits, and safety-rated drive systems — the NBRA-656C serves as a frontline protection component that keeps the entire drive chain stable under dynamic load reversals and sudden stop commands.

In heavy industrial settings such as steel rolling mills, mining hoists, port crane drives, chemical reactor agitators, and paper machine sections, the DC bus voltage spike generated during rapid deceleration is one of the most common causes of drive failure and unplanned downtime. The NBRA-656C addresses this directly by providing a fast-response chopper circuit that activates within microseconds of detecting an overvoltage threshold, clamping the bus voltage and protecting the DCS800 drive’s IGBT bridge, DC capacitor bank, and connected field excitation circuits. This protection is especially critical in applications where the DCS800 is paired with components such as the SDCS-CON-4 control board, SDCS-POW-4 power supply board, and SDCS-PIN-51 pulse encoder interface, all of which are sensitive to voltage transients on the DC bus.

The NBRA-656C is fully compatible with the DCS800 drive family across its standard current ratings and integrates directly into the drive’s internal bus architecture without requiring additional signal wiring. When deployed alongside the ABB DCS800-S02-0060-05 or similar DCS800 base drive units, the brake chopper ensures that the drive’s internal protection logic does not need to intervene with a fault trip, maintaining motor control continuity in processes where stopping is not an option. In applications using the RDCO-03 DDCS communication adapter for fieldbus integration or the RAIO-01 analog I/O extension module for process signal conditioning, the NBRA-656C’s passive protection role means that communication integrity and analog signal accuracy are preserved even during aggressive braking cycles.

For installations in electrically noisy environments — including those with large variable-frequency drives, arc furnaces, resistance welding equipment, or high-power transformer switching — the NBRA-656C’s EMC-compliant design reduces the risk of conducted and radiated interference affecting the DCS800’s control electronics. When the control cabinet also houses components such as the ABB NINT-41 inverter control board or NAMC-11 motor control board, maintaining a clean DC bus through proper brake chopper sizing and installation is a fundamental cabinet protection strategy. The NBRA-656C supports this strategy by ensuring that braking energy is routed safely to the external resistor rather than being reflected back into the bus or dissipated as heat within the drive enclosure.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust DCS800-based control cabinet requires coordinated protection across multiple layers. The NBRA-656C brake chopper is the energy management anchor of this strategy, but its effectiveness depends on the quality of the surrounding components. The SDCS-POW-4 power supply board provides stable auxiliary power to the control electronics, ensuring that the chopper’s gate drive signals remain accurate even during grid disturbances. The SDCS-CON-4 control board manages the drive’s closed-loop speed and current regulation, and its reliable operation depends on a stable DC bus — exactly what the NBRA-656C delivers during deceleration transients.

In cabinets where the DCS800 is integrated into a larger safety architecture, the RDCO-03 DDCS fiber-optic communication adapter maintains high-speed, noise-immune communication between the drive and the plant control system, while the RAIO-01 analog I/O module handles process feedback signals that must remain accurate throughout braking events. For motor field control, the SDCS-FEX-2 field exciter board regulates DC motor field current, and its stability is directly linked to the absence of bus voltage spikes — a condition the NBRA-656C actively maintains. In multi-drive systems, the NBRA-12C or NBRA-22C brake chopper variants may be used in parallel configurations for higher power ratings, while the NBRA-656C serves mid-range drive units. Surge protection devices and EMC line filters installed at the cabinet input further complement the NBRA-656C’s internal protection role, creating a defense-in-depth approach to drive system reliability.

Critical Industrial Safety Applications

The ABB NBRA-656C is deployed across a wide range of safety-critical and continuous-process industrial applications. In petrochemical and refinery facilities, it protects DCS800 drives controlling compressor trains, pump stations, and agitator motors where an unplanned drive trip can trigger process upsets or safety system activations. In electric power generation and transmission, it supports excitation and auxiliary drive systems where voltage stability is a grid reliability requirement. In underground and open-pit mining, the NBRA-656C protects hoist and conveyor drives that operate under heavy regenerative loads during loaded descents, where DC bus overvoltage is a constant risk.

In water and wastewater treatment plants, it ensures that pump and blower drives continue operating through load changes without nuisance trips that could compromise treatment process continuity. In metallurgical and steel production environments — including rolling mills, continuous casting lines, and ladle crane drives — the NBRA-656C handles the high-frequency braking cycles inherent to these processes. In port and bulk material handling applications, crane hoist drives regularly regenerate energy during lowering operations, and the NBRA-656C provides the overvoltage protection that keeps these safety-critical lifts operating without drive faults. Across all these applications, the 12-month warranty, pre-shipment functional testing, and maintained stock availability ensure that replacement units can be sourced and installed rapidly to minimize mean time to repair (MTTR).

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the NBRA-656C?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform its designed brake chopper function within the warranty period, we provide a replacement or full refund. Warranty claims are processed with priority to minimize your site downtime.

Q2: What pre-shipment testing is performed on each NBRA-656C unit?
Every NBRA-656C undergoes a full functional inspection before dispatch, including visual inspection for physical integrity, verification of key electrical parameters, and confirmation of compatibility markings against the DCS800 drive specification. Units that do not pass inspection are not shipped.

Q3: Is the NBRA-656C compatible with all DCS800 drive variants, and can it replace an existing failed unit directly?
The NBRA-656C is designed for the ABB DCS800 DC drive series and is a direct replacement for failed or degraded brake chopper modules within compatible drive frames. Based on the drive’s current rating and frame size, compatibility should be confirmed against the DCS800 hardware manual or by contacting our technical team before installation.

Q4: Can you guarantee long-term supply availability for ongoing maintenance and spare parts programs?
Yes. We maintain stock of the NBRA-656C and related DCS800 spare components to support planned maintenance schedules, emergency replacements, and multi-unit spare parts programs. For customers requiring guaranteed allocation or scheduled delivery, we offer advance reservation arrangements. Contact our sales team to discuss your site’s long-term supply requirements.
