ABB NETA-21 3AUA0000094517 Spare for ACS Series Automation

ABB NETA-21 3AUA0000094517 Spare for ACS Series Automation: Spare Replacement & Industrial Downtime Risk Control

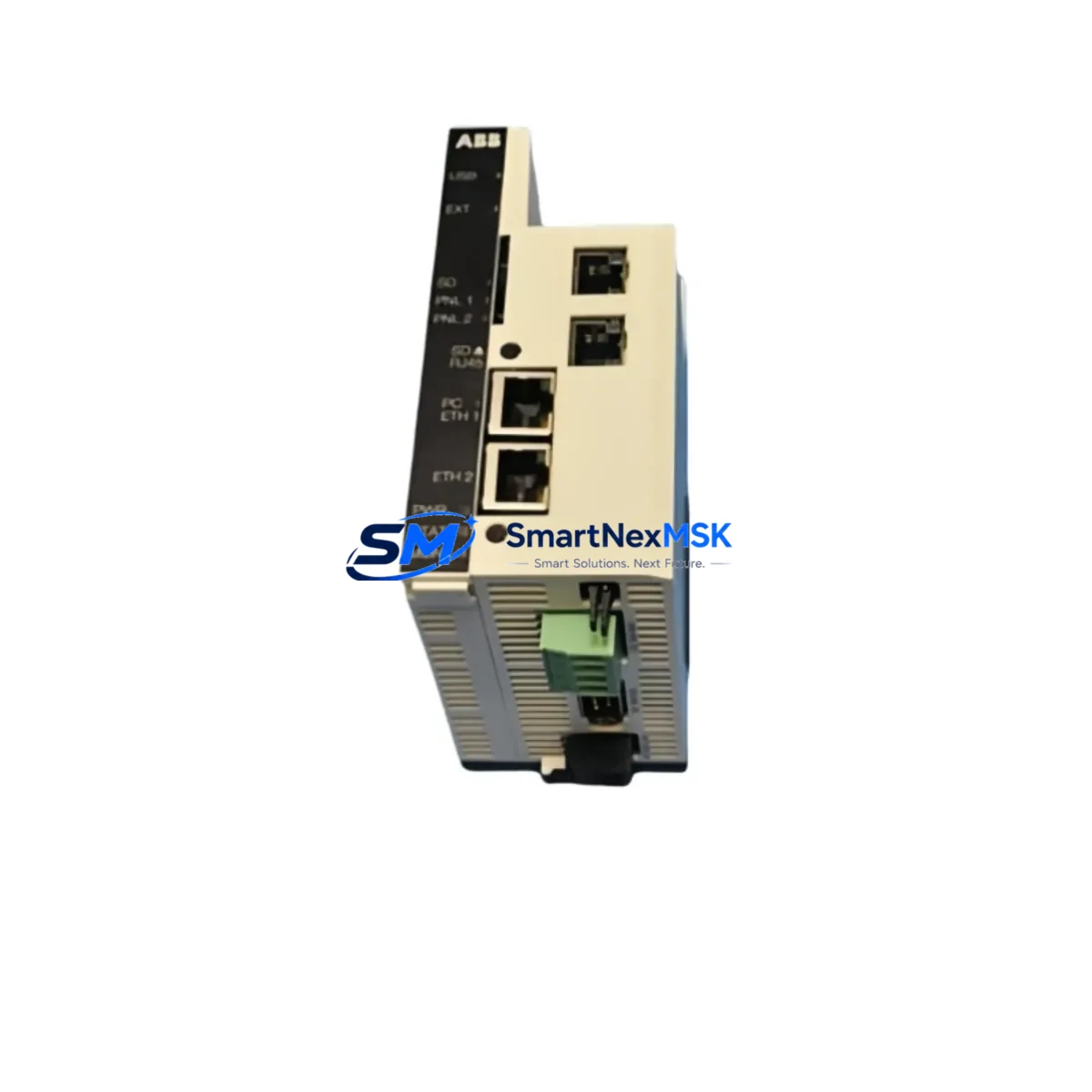

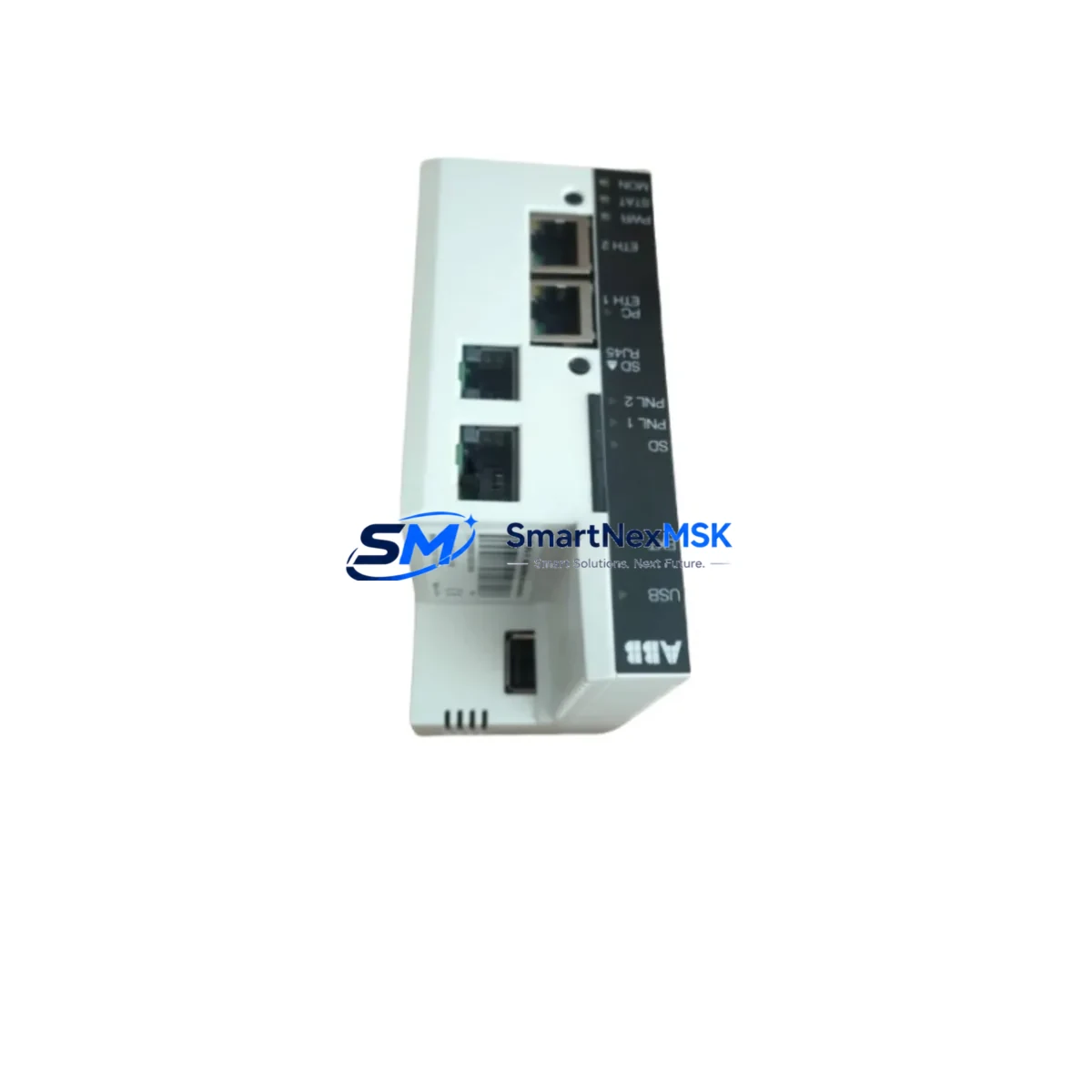

The ABB NETA-21 (part number 3AUA0000094517) is an original DriveAP remote monitoring and diagnostics adapter designed for integration with ABB ACS series variable frequency drives, including the ACS800, ACS550, and ACS355 platforms. In industrial automation environments where continuous motor control is mission-critical, the NETA-21 serves as the communication backbone between the drive system and remote monitoring infrastructure — enabling real-time parameter access, fault logging, and predictive maintenance over Ethernet. When this adapter fails or reaches end-of-life, the entire remote visibility layer of the drive system is compromised, making rapid spare replacement essential to maintaining operational continuity.

At SMARTNEXMSK, we supply the NETA-21 3AUA0000094517 as a tested, original spare part with a 12-month warranty, ready for immediate dispatch to maintenance teams and procurement engineers managing ABB drive fleets in manufacturing, water treatment, HVAC, and process automation facilities.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies a failed or degraded NETA-21 adapter in an ACS800 drive cabinet, the replacement scope should extend beyond the adapter itself. A thorough cabinet inspection during the same maintenance window significantly reduces the risk of repeat downtime. Engineers should verify the integrity of the RDCO-02 or RDCO-03 communication option boards, which handle DDCS fiber-optic communication between the drive and external controllers — a failed RDCO board can mimic NETA-21 symptoms and is frequently replaced in the same service cycle.

The RMIO-02 main control board of the ACS800 should be inspected for firmware version compatibility with the replacement NETA-21, as older RMIO firmware may not fully support the adapter’s DriveAP feature set. Similarly, the AINT-02 or AINT-14 inverter control boards in multi-drive configurations should be checked for communication integrity before the new adapter is commissioned.

Power supply stability is critical for the NETA-21’s Ethernet interface. The APBU-44 or APBU-12 branching units, if present in the drive system, should be inspected for voltage ripple and connector corrosion. The 24 VDC auxiliary power supply feeding the drive’s control section — often an ABB PSR or PST series unit — should be load-tested to confirm it can sustain the additional current draw of the new adapter without voltage sag.

On the I/O side, the AIMA-01 or AI/O extension modules connected to the ACS800 should be verified for correct signal mapping after the NETA-21 replacement, as parameter re-mapping is sometimes required when swapping adapters. Terminal blocks and cable shields in the control wiring harness should be inspected for looseness or oxidation, particularly in high-vibration or high-humidity environments. If the drive cabinet includes an NPBA-12 PROFIBUS adapter or NCAN-01 CANopen module alongside the NETA-21, their communication status should be confirmed post-replacement to rule out bus conflicts introduced during the swap.

For facilities running legacy ACS800 systems beyond their standard service life, stocking a NETA-21 3AUA0000094517 as a cold spare — alongside the RMIO-02 control board and RDCO-03 communication board — is a recognized best practice for extending system life by 5–10 years without full drive replacement.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the ACS800 drive and lock out / tag out (LOTO) the incoming power. Allow the DC bus to discharge fully (minimum 5 minutes after power-off) before opening the cabinet door.

Step 2 — Document Existing Configuration: Before removing the old NETA-21, connect a laptop via USB and export the current DriveAP configuration, IP address settings, and monitored parameter list using the Drive Composer or DriveAP web interface. This ensures zero-loss reconfiguration on the replacement unit.

Step 3 — Physical Removal: Disconnect the Ethernet cable and the 24 VDC power connector from the existing NETA-21. Release the DIN rail clip or option slot retaining screw and remove the adapter. Inspect the mounting slot and connector pins for corrosion or mechanical damage.

Step 4 — Install Replacement Unit: Mount the new NETA-21 3AUA0000094517 into the option slot or DIN rail position. Reconnect the 24 VDC supply and Ethernet cable. Confirm the LED status indicators show normal boot sequence (green power LED, amber Ethernet activity).

Step 5 — Restore Configuration: Upload the previously exported configuration via the DriveAP web interface or Drive Composer. Verify all monitored parameters are correctly mapped and that remote access is restored from the SCADA or DCS host system.

Step 6 — Functional Test: Re-energize the drive in local control mode and confirm the NETA-21 is logging drive status, fault history, and energy data correctly. Verify Ethernet connectivity from the control room before returning the drive to automatic operation.

This workflow minimizes downtime to under 2 hours for a trained maintenance engineer and eliminates the need for full drive replacement in the vast majority of NETA-21 failure scenarios.

Spare Parts Support FAQ

Q1: Is the NETA-21 3AUA0000094517 compatible with all ACS800 variants?
The NETA-21 is compatible with the full ACS800 single-drive range and most ACS800 multidrive configurations. Compatibility with ACS550 and ACS355 drives requires firmware version verification — contact our technical team with your drive’s nameplate data for confirmation before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every NETA-21 3AUA0000094517 supplied by SMARTNEXMSK undergoes power-on functional verification, Ethernet port continuity testing, and visual inspection for connector and PCB integrity. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q3: How should the NETA-21 be stored as a cold spare?
Store in original anti-static packaging in a dry environment at 10°C–40°C with relative humidity below 75% (non-condensing). Avoid proximity to strong magnetic fields or high-voltage equipment. Inspect the unit annually for connector oxidation and replace anti-static packaging if damaged. Properly stored units maintain full functionality for 5+ years.

Q4: What is the lead time and shipping arrangement for urgent orders?
In-stock units ship within 24–48 hours of order confirmation. Express international shipping (DHL / FedEx) is available for urgent maintenance requirements. For large-volume procurement or long-term supply agreements covering multiple NETA-21 units and associated ACS800 spare parts, contact our sales team for a dedicated supply plan.
