ABB NGDR-03C 61353364D Maintenance-Ready Spare for ACS800 Automation

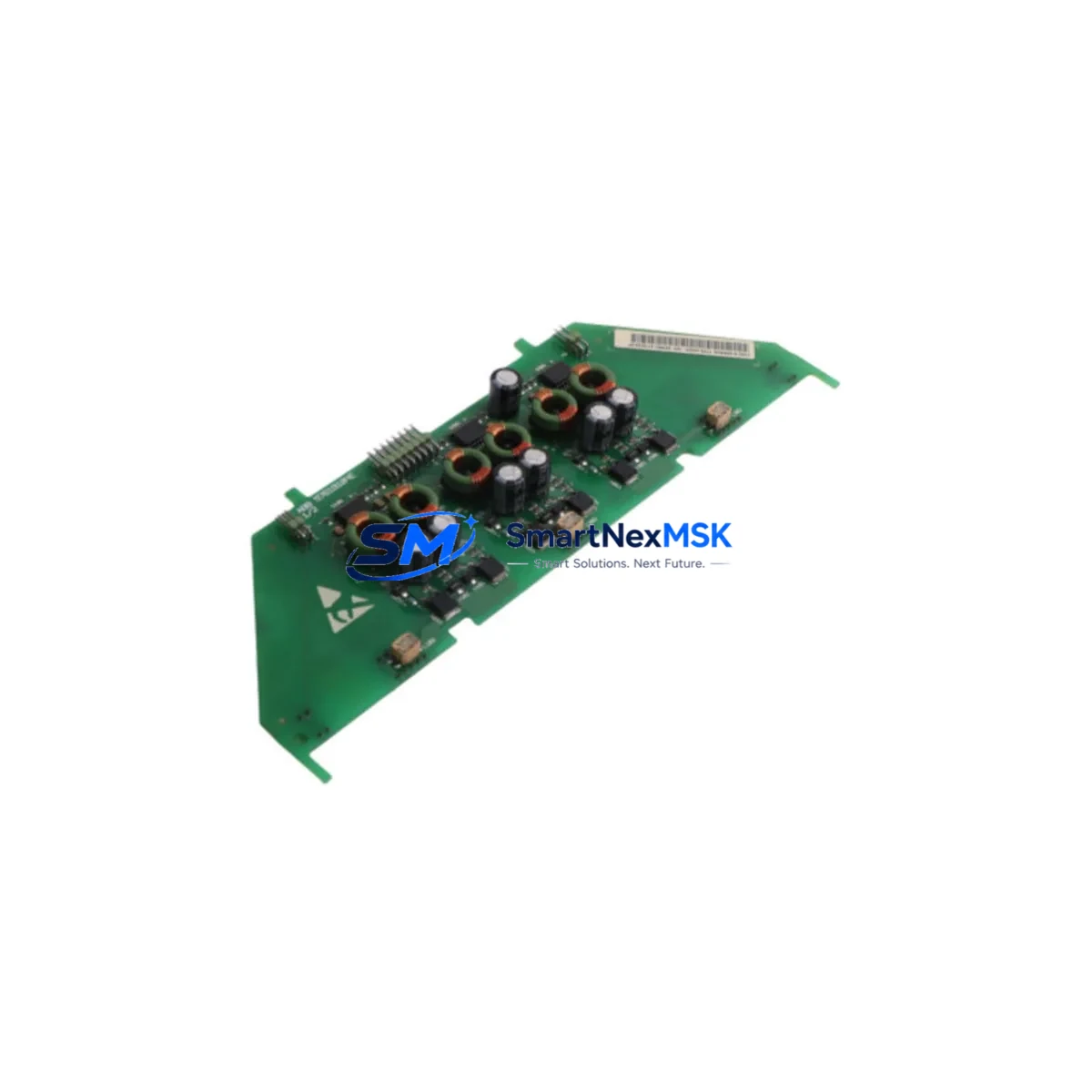

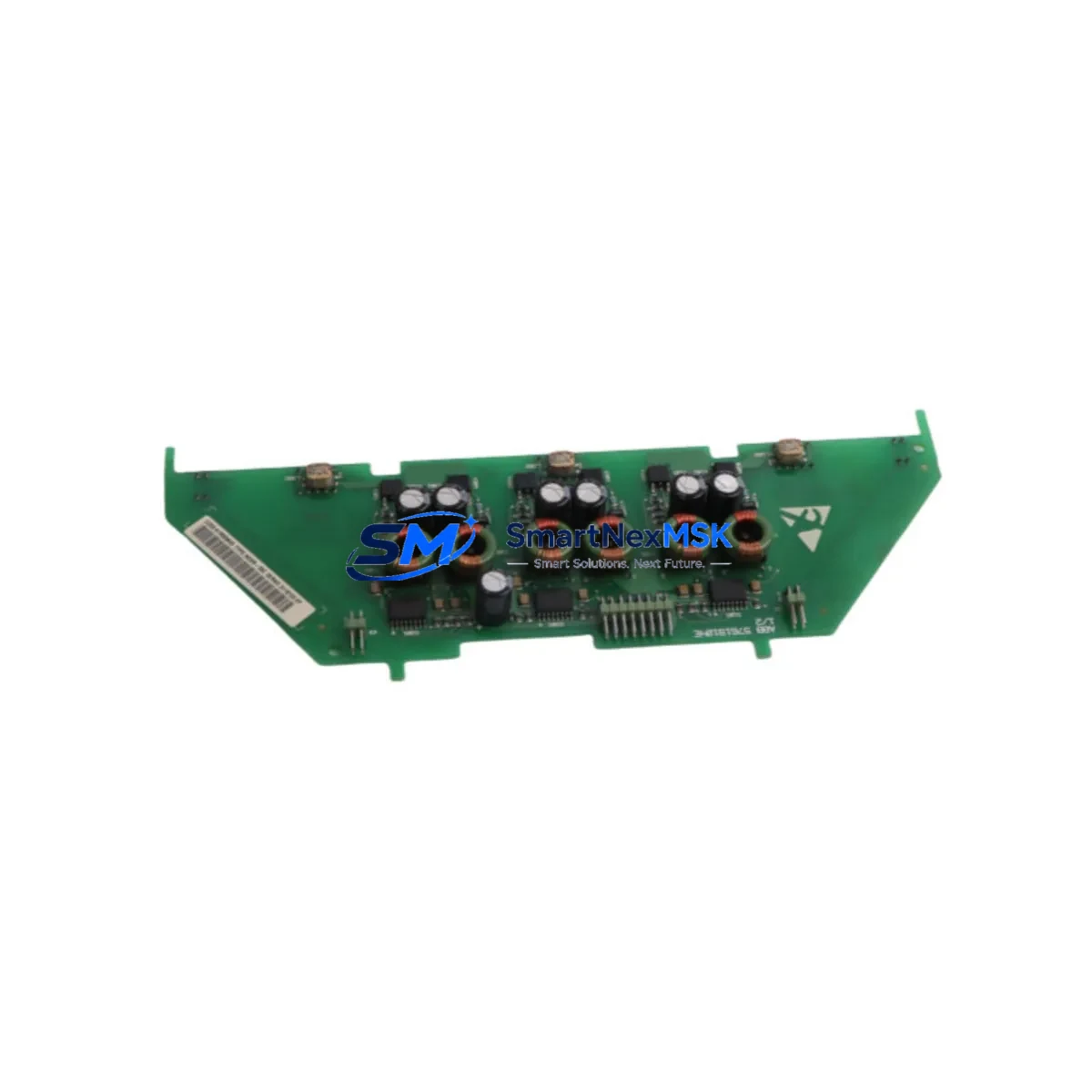

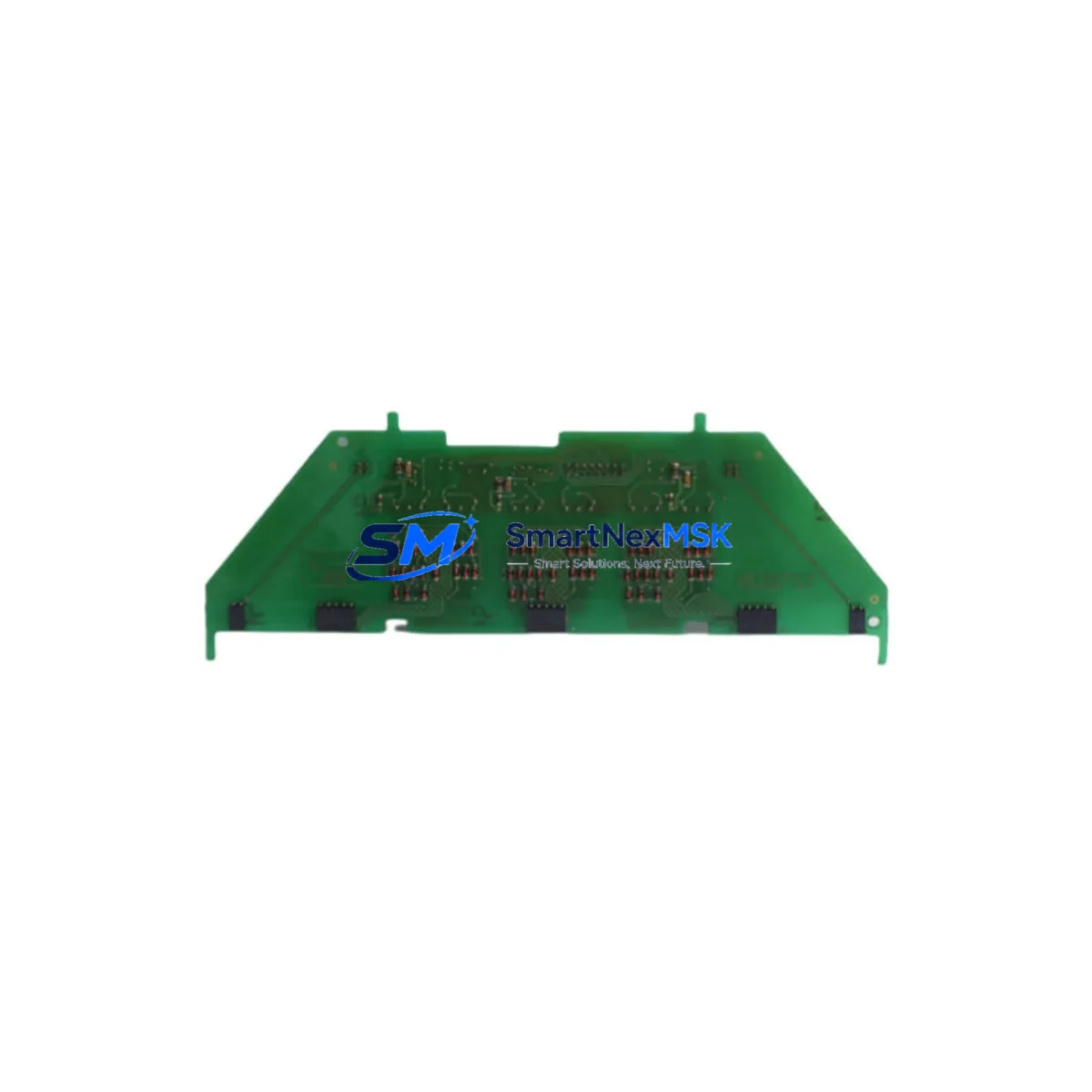

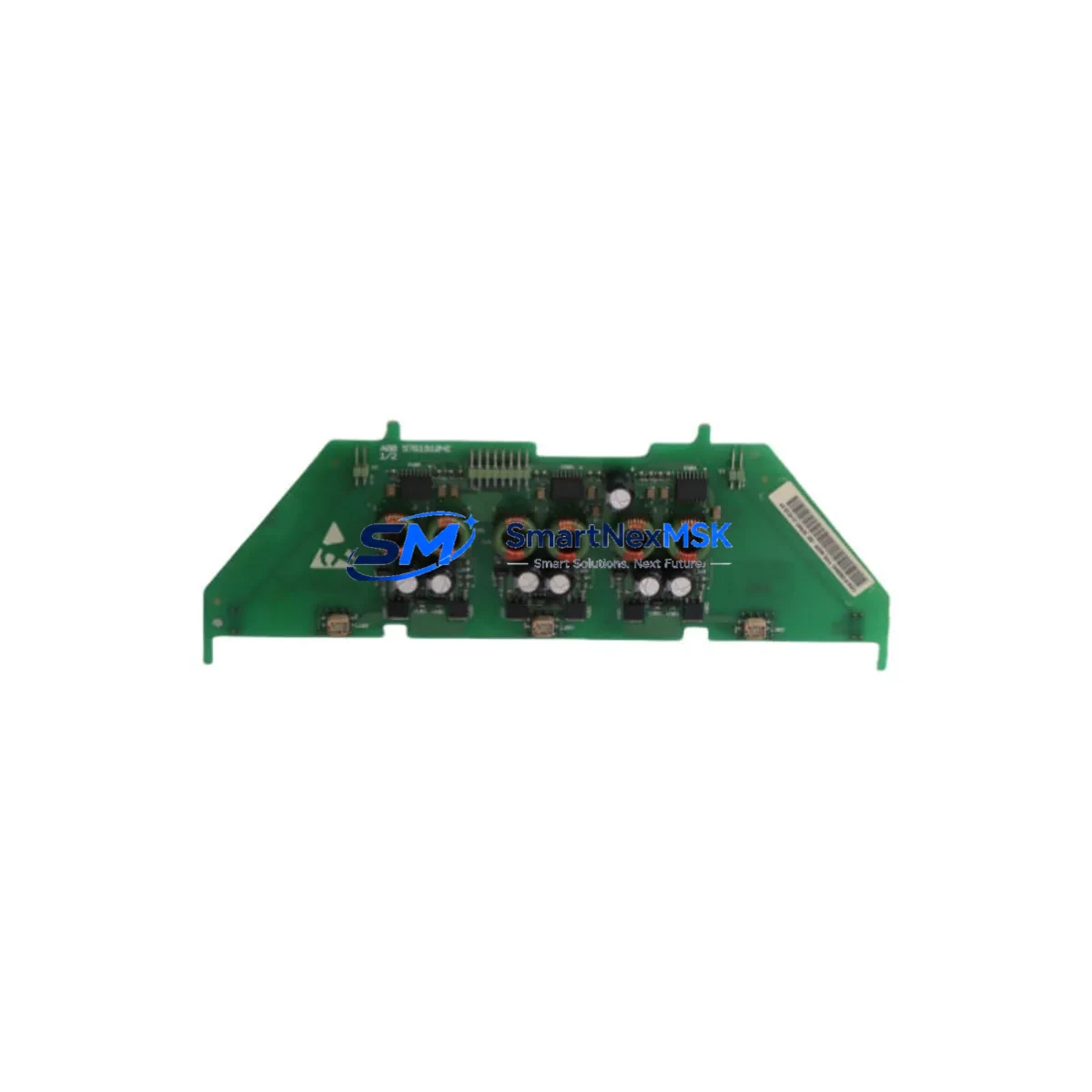

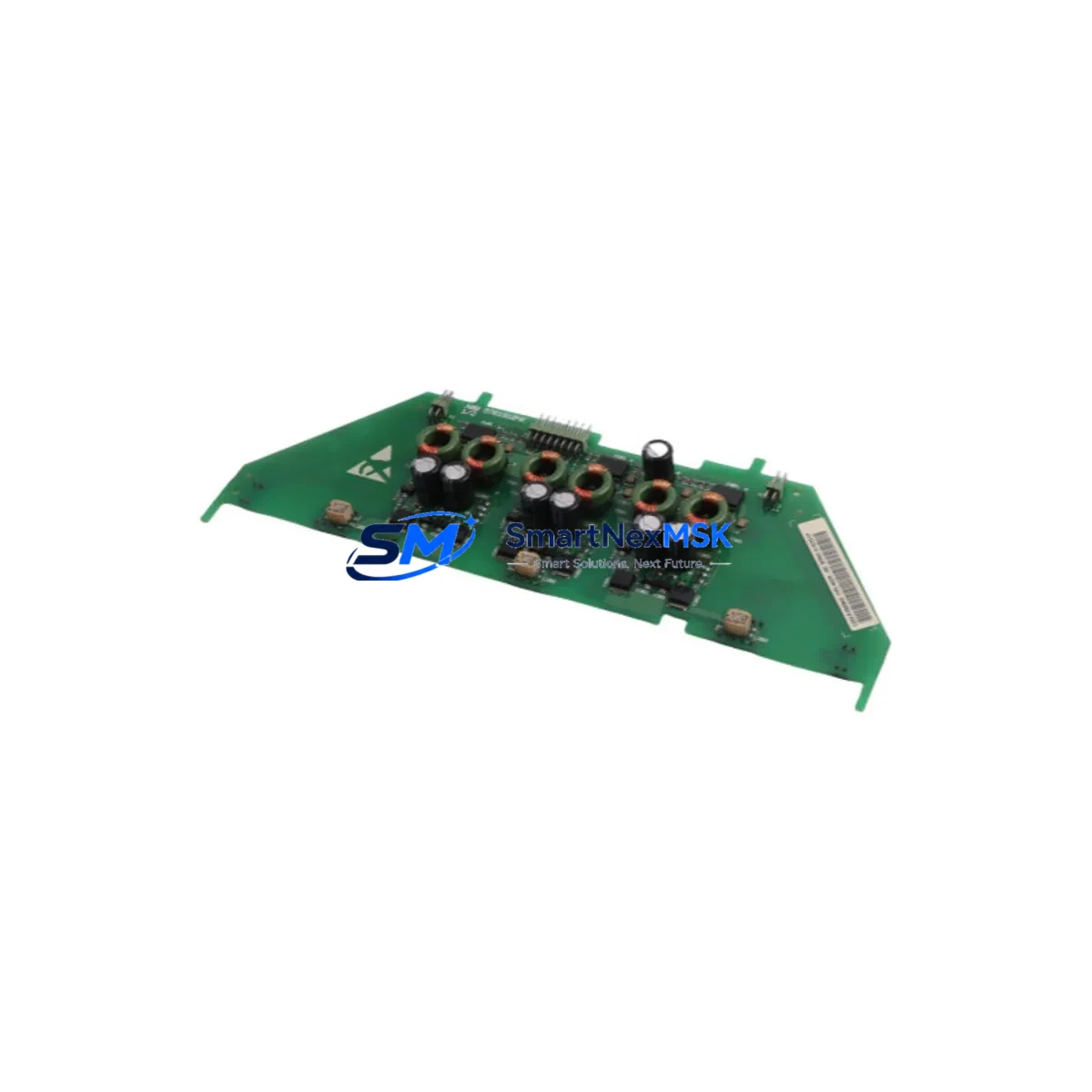

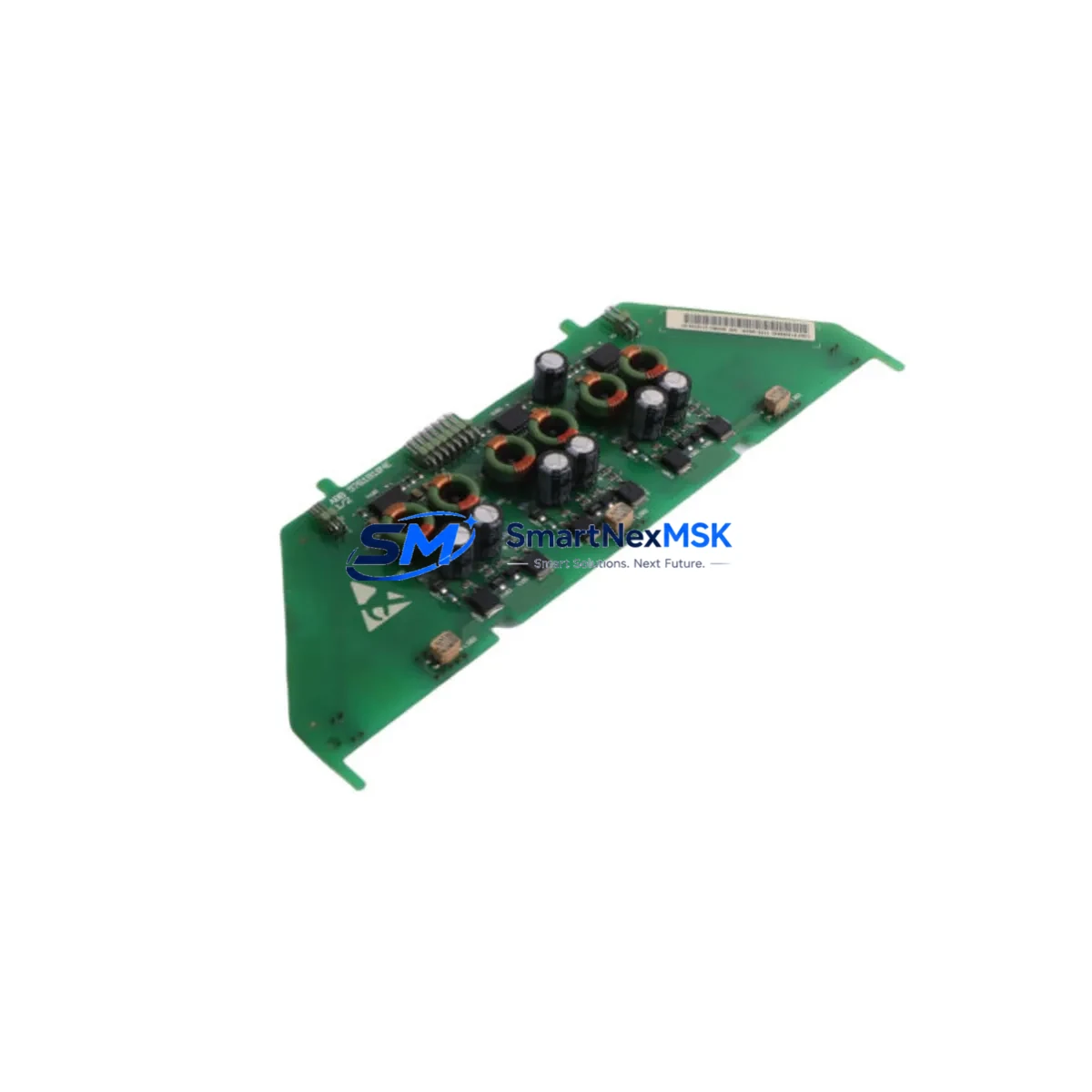

The ABB NGDR-03C (part number 61353364D) is an original gate driver board designed for the ABB ACS800 series variable frequency drives. In industrial automation environments where unplanned downtime translates directly into production loss, having a verified, tested spare of this board on hand is a fundamental element of any proactive maintenance strategy. This listing provides a genuine, original ABB gate driver board — not a clone or aftermarket substitute — backed by a 12-month warranty and pre-shipment functional testing.
The NGDR-03C serves as the critical interface between the drive’s control logic and its IGBT power module stack. It generates and transmits the gate pulses that switch the IGBTs in precise sequence, enabling accurate motor speed and torque control. Failure of this board typically manifests as drive fault codes related to gate drive undervoltage, IGBT overcurrent, or asymmetric phase output — all of which result in immediate drive shutdown and process interruption. Rapid replacement with a pre-verified spare is the fastest path to restoring operation.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | NGDR-03C / 61353364D |
| Brand | ABB (Original) |
| Compatible Series | ACS800 Variable Frequency Drives |
| Board Function | IGBT Gate Driver Board |
| Origin | Germany (DE) |
| Condition | Original, New or Refurbished-Tested |
| Pre-Shipment Test | Yes — functional verification before dispatch |
| Warranty | 12 Months |
| Mounting | Direct replacement, OEM form factor |
| Application Environment | Industrial automation, motor drive control cabinets |
| Maintenance Recommendation | Inspect gate drive signals and IGBT health at scheduled intervals; replace at first sign of asymmetric output or fault recurrence |
| Lead Time | In-stock items ship within 1–3 business days |
Maintenance Planning for Continuous Operation
When a maintenance or procurement engineer identifies the NGDR-03C as a replacement requirement, the scope of inspection should extend beyond the gate driver board itself. The ACS800 drive is a tightly integrated system, and a gate driver failure is frequently symptomatic of stress across adjacent components. A thorough site assessment should include the following:
The APOW-01C power supply board provides the isolated auxiliary voltages that the NGDR-03C depends on for gate drive bias. If the power supply has degraded capacitors or voltage ripple, a new gate driver board will be stressed from the moment of installation. Always verify APOW-01C output rails before commissioning a replacement NGDR-03C.
The IGBT power module (typically an ABB or compatible three-phase bridge module) is the load that the gate driver directly switches. A shorted or degraded IGBT can destroy a gate driver board within seconds of power-up. Perform a diode-mode check on all six IGBT junctions before installing the replacement board.
The AINT-02C or AINT-14C inverter control board communicates drive commands to the gate driver. Inspect fiber-optic connections and verify signal integrity, as corrupted gate pulse signals can cause erratic drive behavior even with a healthy NGDR-03C installed.
The RDCO-03C DDCS communication module and associated fieldbus adapter (such as the RPBA-01 PROFIBUS adapter or RCAN-01 CANopen module) should be checked for firmware version compatibility if the drive is being returned to a networked control system after board replacement.
Inspect the DC bus capacitor bank for bulging, leakage, or elevated ESR. Capacitor degradation increases voltage ripple on the DC bus, which directly stresses gate driver circuitry during switching transients.
The NTC thermistor and thermal protection circuit associated with the IGBT module should be verified to ensure the drive’s thermal shutdown logic is functioning correctly — protecting the new gate driver from overtemperature damage.
For drives installed in control cabinets with NINT-41C or NINT-72C interface boards, confirm that all ribbon cable and fiber connections are reseated and undamaged during the board swap procedure.
Finally, review the main contactor, input fuses, and EMC filter on the incoming supply side. A loose connection or degraded fuse can introduce voltage spikes that accelerate gate driver wear. Documenting these checks as part of a standard replacement checklist ensures the repaired drive returns to service with full system integrity.
Site Replacement Workflow
Replacing the NGDR-03C on-site follows a structured sequence to minimize downtime and avoid secondary damage:
1. Isolate and de-energize. Open the main isolator and wait for the DC bus to fully discharge (verify with a calibrated multimeter — typically below 50 VDC before safe access). The ACS800 drive stores significant energy in its DC bus capacitors; do not rush this step.
2. Document the existing configuration. Before removing any boards, photograph all fiber-optic connections, ribbon cables, and connector positions. Note the drive’s parameter set — upload a parameter backup via DriveWindow or DriveStudio if possible, as some parameter data may be stored on the control board.
3. Remove the faulty NGDR-03C. Disconnect all gate drive fiber cables and power connectors. Handle the board by its edges to avoid ESD damage. Place the removed board in an anti-static bag for return or failure analysis.
4. Install the replacement NGDR-03C 61353364D. Seat the board firmly, reconnect all fiber-optic cables in the correct sequence (refer to the ACS800 hardware manual for fiber routing), and verify all power connectors are fully engaged.
5. Power-up and verify. Apply power in stages if possible. Monitor the drive’s startup sequence for any fault codes. Verify gate drive status via the drive’s diagnostic panel or connected HMI (such as an ACS-CP-C control panel or CDP312R panel). Confirm symmetrical output voltage on all three phases under no-load conditions before reconnecting the motor.
6. Return to service. Restore the parameter set if a backup was taken, reconnect the load, and perform a supervised test run. Log the replacement in the site maintenance record with the board serial number and date.
This workflow applies equally to planned maintenance replacements and emergency breakdown recovery, and is compatible with all ACS800 frame sizes that use the NGDR-03C gate driver architecture.
Spare Parts Support FAQ
Q: Is this NGDR-03C 61353364D a genuine ABB original part?
A: Yes. All boards supplied under this listing are original ABB components, not aftermarket or cloned substitutes. Each unit undergoes pre-shipment functional verification. A 12-month warranty is provided from the date of delivery.
Q: How do I confirm compatibility with my specific ACS800 drive frame size?
A: The NGDR-03C is used across multiple ACS800 frame sizes. Compatibility is confirmed by matching the part number 61353364D against your drive’s hardware manual or the label on the existing gate driver board. If you provide your drive’s full type designation (e.g., ACS800-01-0016-3), our technical team can verify compatibility before shipment.
Q: What is your lead time and shipping process?
A: In-stock units ship within 1–3 business days. Each board is tested before dispatch and packed in anti-static, shock-protected packaging. Express shipping options are available for emergency breakdown situations. Tracking information is provided upon dispatch.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the delivery date. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s rated parameters. Our support team is available to assist with installation guidance and post-installation troubleshooting.
