ABB NI0C01 3BSE005735R1 Maintenance-Ready Spare for MOD 300 Automation

ABB NI0C01 3BSE005735R1 Maintenance-Ready Spare for MOD 300 Automation

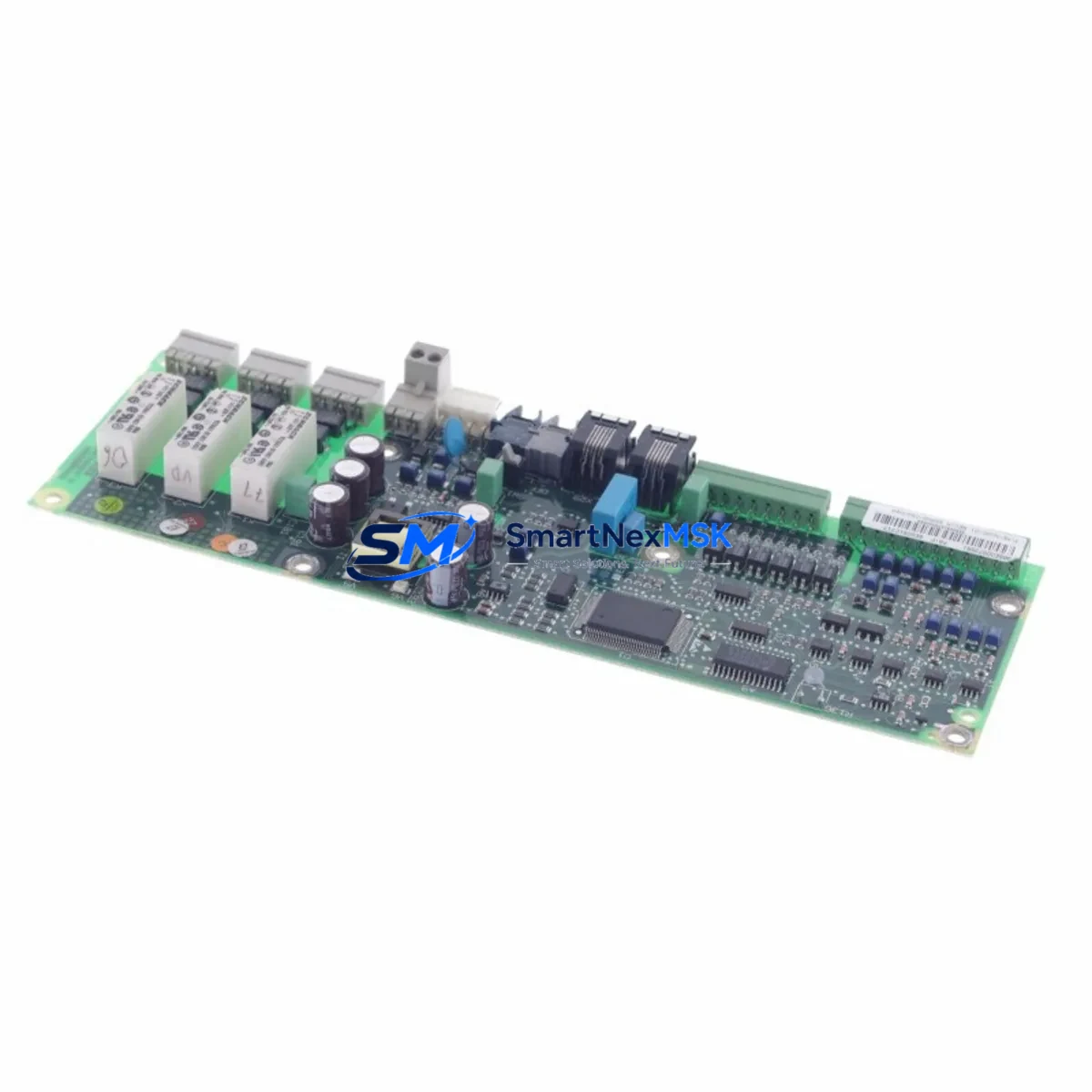

The ABB NI0C01 (3BSE005735R1) is an original I/O base board designed for the Advant OCS MOD 300 distributed control system — one of ABB’s most widely deployed DCS platforms in process industries including oil & gas, pulp & paper, power generation, and chemical manufacturing. As a critical interface component between field signals and the controller backplane, the NI0C01 base board is a high-priority spare that maintenance teams must keep on hand to minimize unplanned downtime and protect continuous production cycles.

At SMARTNEXMSK, every NI0C01 3BSE005735R1 unit is sourced from verified supply channels, individually inspected, and functionally tested prior to shipment. Each unit ships with a 12-month warranty and full traceability documentation, giving maintenance engineers and procurement teams the confidence to plan replacements without risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a MOD 300 I/O base board such as the NI0C01 3BSE005735R1 fails or degrades, the impact extends well beyond a single channel. Maintenance engineers performing fault isolation on an Advant OCS system should treat the NI0C01 replacement as part of a broader cabinet inspection — not a standalone swap. A structured approach significantly reduces the risk of repeat failures and secondary faults.

During planned maintenance or emergency replacement of the NI0C01, engineers should simultaneously inspect the following components within the same I/O subrack and control cabinet:

• AI810 / AI820 Analog Input Modules — verify channel calibration and signal integrity after base board replacement; a degraded base board can mask upstream analog faults.
• DO810 / DO820 Digital Output Modules — check output relay contacts and load switching behavior; worn contacts may have been masked by base board communication errors.
• DI810 / DI820 Digital Input Modules — confirm input filtering and signal threshold settings remain within spec after the base board is reseated.
• PM511 / PM510 Processor Modules — review diagnostic logs for any controller-side communication faults that may have been triggered by the failing NI0C01; a processor module nearing end-of-life may exhibit similar symptoms.
SA811 / SA801 Power Supply Modules — measure output voltage rails (24 VDC, 5 VDC) under load; an unstable power supply is a leading cause of I/O base board degradation in aging MOD 300 cabinets.
• TB820 / TB825 Termination Boards — inspect field wiring terminations for corrosion, loose screws, and insulation breakdown; poor termination quality accelerates base board wear.
• DSTD 150 / DSTD 108 Signal Cables — check ribbon cable connectors between the base board and I/O modules for bent pins, oxidation, or mechanical stress damage.
• DSDI 110A / DSDO 115A I/O Boards — if the system includes legacy Advant Master I/O boards in the same cabinet, verify their communication status with the MOD 300 controller after the base board swap.
• Fuse Blocks and Circuit Protection — inspect field-side fuses and miniature circuit breakers (MCBs) protecting I/O loops; a blown fuse can cause symptoms identical to a failed base board.
• OP7 / TP177 HMI Panels — after restoring I/O communication, confirm that HMI alarm displays and process variable readings update correctly; residual alarm states may require manual acknowledgment.

Maintaining a minimum stock of one NI0C01 3BSE005735R1 per active MOD 300 subrack is a widely adopted practice in facilities running continuous processes. For plants with multiple MOD 300 cabinets, a recommended spare parts inventory includes at least one base board per cabinet cluster, supported by a documented inspection cycle of 12–18 months.

Site Replacement Workflow

Replacing the NI0C01 3BSE005735R1 in a live MOD 300 system requires careful sequencing to avoid process disruption and ensure full signal restoration. The following workflow reflects best practices for maintenance engineers performing this replacement in the field:

1. Pre-replacement verification: Confirm the NI0C01 is the root cause by reviewing MOD 300 diagnostic codes and checking for I/O communication faults on the affected subrack address. Cross-reference with the PM511 processor module event log.
2. Safe isolation: Place the affected I/O subrack in manual override or bypass mode at the DCS workstation. Notify the control room operator before proceeding. De-energize the subrack using the SA811 power supply isolation switch.
3. Module extraction: Remove all plug-in I/O modules (AI810, DO810, DI810, etc.) from the base board slots in sequence, labeling each slot position. Disconnect field wiring from the TB820 termination board.
4. Base board removal and replacement: Unscrew the NI0C01 from the subrack mounting rails. Install the replacement 3BSE005735R1 unit, ensuring correct seating of the backplane connector. Torque mounting screws to specification.
5. Reconnection and power-up: Reconnect the TB820 termination board field wiring. Reinstall I/O modules in their original slot positions. Re-energize the subrack via the SA811 power supply and observe the base board status LEDs for normal initialization.
6. System verification: From the MOD 300 engineering workstation, confirm all I/O channels report correctly. Verify analog signal values against field instruments. Clear any residual fault codes from the PM511 processor module.
7. Return to automatic control: Coordinate with the control room to return the affected loops to automatic mode. Document the replacement in the maintenance management system with the new unit’s serial number and test report reference.

This workflow is compatible with both hot-standby and simplex MOD 300 configurations. For redundant controller architectures, the replacement can typically be performed without a full process shutdown, provided the standby controller remains healthy throughout the procedure.

Spare Parts Support FAQ

Q1: Is the NI0C01 3BSE005735R1 still available as a new original part, or only as refurbished stock?
A: Both new original and professionally refurbished units are available depending on current stock. All refurbished units are restored to original specification, functionally tested, and covered by the same 12-month warranty as new stock. Availability is confirmed at the time of inquiry — contact our team for a real-time stock check.

Q2: How do I verify compatibility between the NI0C01 and my specific MOD 300 subrack revision?
A: The NI0C01 3BSE005735R1 is compatible with standard MOD 300 I/O subracks across all major hardware revisions. To confirm compatibility with your specific cabinet configuration, provide your subrack part number and MOD 300 system revision when placing your inquiry. Our technical team will cross-reference against ABB’s compatibility matrix before shipment.

Q3: What testing is performed before the NI0C01 ships?
A: Each unit undergoes a multi-point inspection covering physical condition, backplane connector integrity, onboard component verification, and functional communication testing using MOD 300-compatible test equipment. A test report is available upon request and can be included with the shipment for your maintenance records.

Q4: What is the recommended spare parts strategy for a facility running multiple MOD 300 cabinets?
A: For facilities with 3 or more active MOD 300 subracks, we recommend maintaining a minimum of 2 NI0C01 base boards in local inventory, supplemented by a standing supply agreement for priority replenishment within 5–7 business days. This strategy, combined with annual cabinet inspections covering power supply modules, I/O boards, and termination assemblies, provides effective protection against unplanned downtime in aging Advant OCS installations.

---
