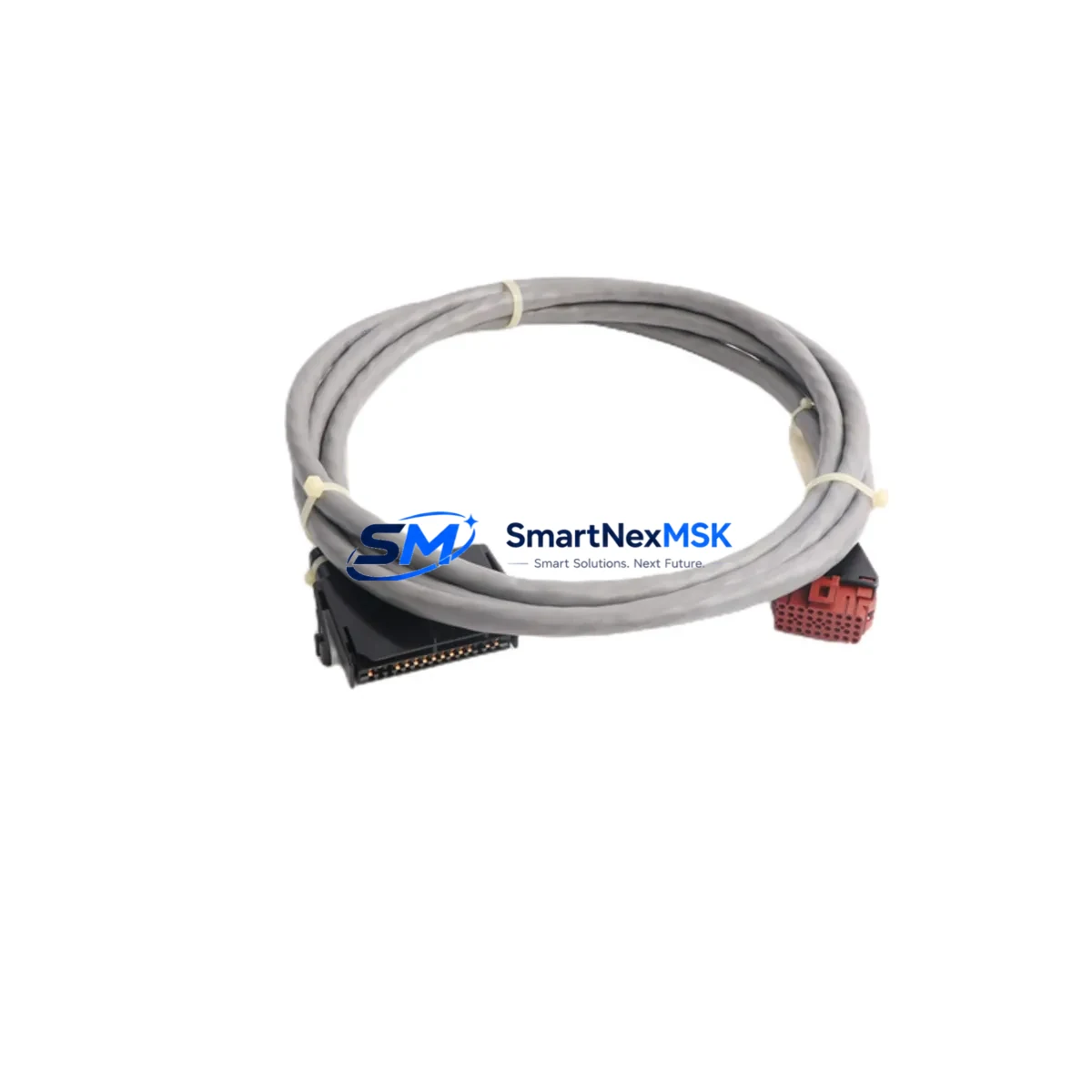

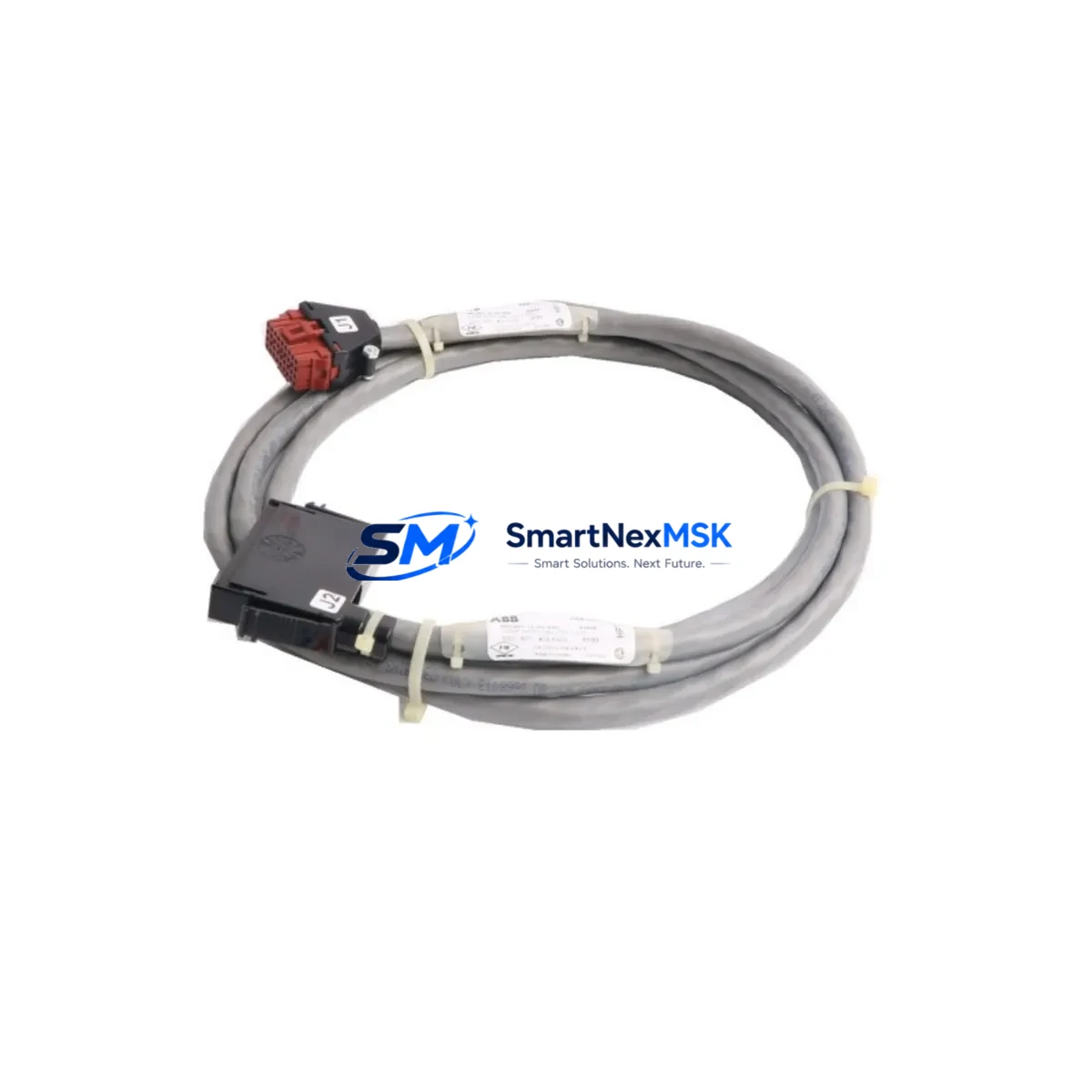

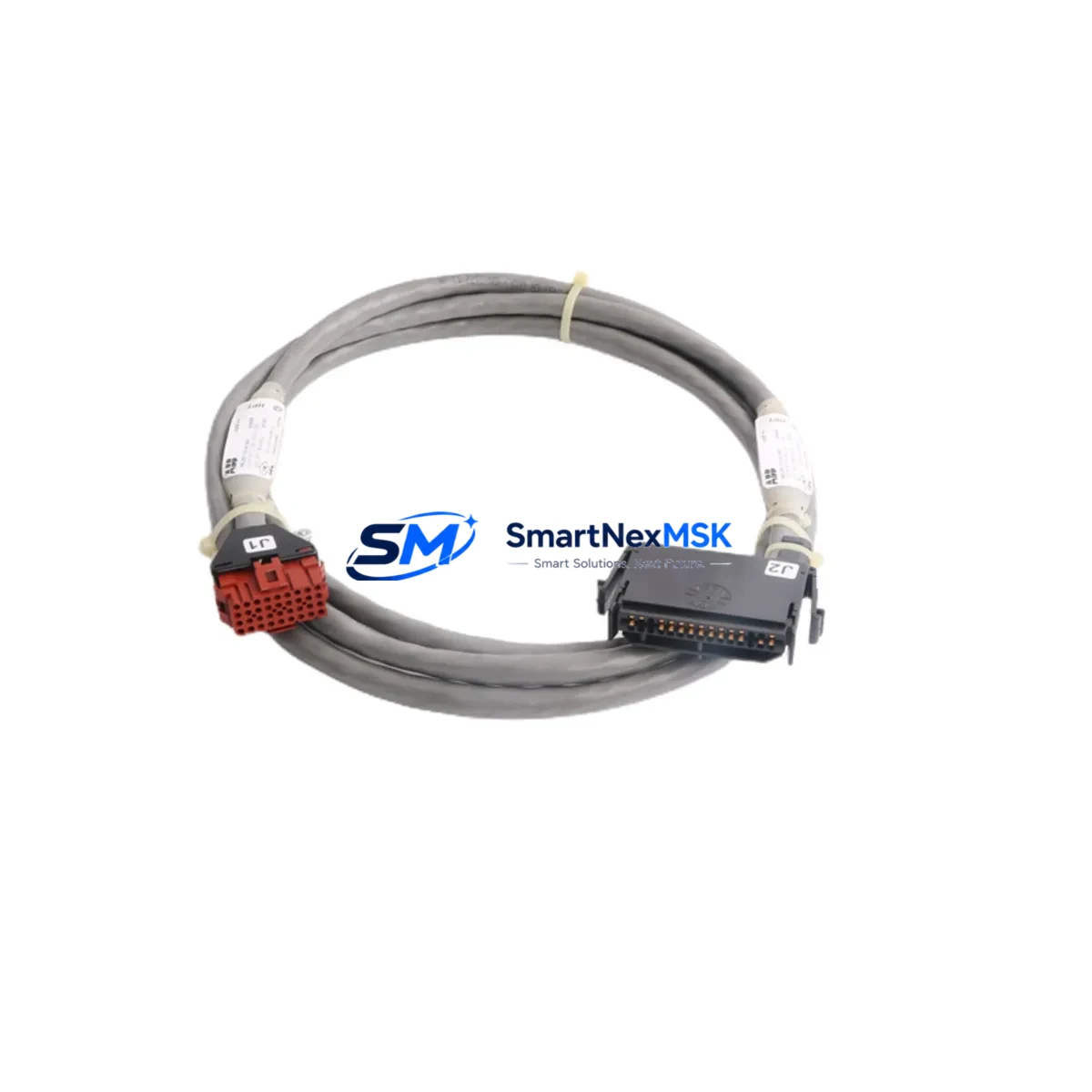

The ABB NKLS01-10 is a shielded communications cable engineered specifically for the ABB AC500 PLC series — one of the most widely deployed modular programmable logic controller platforms in industrial automation. For maintenance engineers managing continuous production lines, process control systems, or utility infrastructure, the NKLS01-10 represents a critical link in the control architecture. Cable degradation, connector fatigue, or EMI-induced signal loss on this component can trigger communication faults between the CPU module and peripheral I/O stations, leading to unplanned downtime that is both costly and operationally disruptive.

Sourced as an original ABB spare, each NKLS01-10 unit is inspected and tested prior to dispatch. Our inventory is maintained specifically to support MRO (Maintenance, Repair & Operations) procurement cycles, emergency replacement orders, and planned shutdown restocking. Whether you are managing a single AC500 cabinet or a multi-rack distributed control system, having a verified NKLS01-10 on your spare parts shelf eliminates one of the most common causes of communication-layer failures in ABB PLC environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the NKLS01-10 during a planned or emergency maintenance event, experienced maintenance engineers treat the cable swap as an opportunity to audit the surrounding control architecture. The AC500 communication bus connects the CPU module — typically a PM554, PM564, or PM595 variant — to downstream I/O expansion modules such as the DC532 digital input module, DA502 analog output module, or AI523 analog input module. A degraded communications cable can mask underlying issues in these I/O modules, so functional verification of each connected station after cable replacement is strongly recommended.

Beyond the I/O layer, the AC500 cabinet typically houses a 24 VDC power supply module (such as the CP502 or a third-party DIN-rail PSU) that feeds both the CPU and the I/O bus. Voltage ripple or marginal power supply output can accelerate connector wear on communication cables, so the power supply should be load-tested during the same maintenance window. Terminal blocks and DIN-rail mounted relay modules within the same cabinet should also be inspected for loose terminations, which are a common source of intermittent communication errors that are incorrectly attributed to cable failure.

For systems using the AC500’s built-in PROFIBUS or Modbus RTU communication ports, the NKLS01-10 cable interfaces directly with the communication master/slave topology. In these configurations, it is advisable to simultaneously inspect the PROFIBUS termination resistors, the CS31 bus coupler modules, and any signal isolators or repeaters in the communication chain. Fuse holders and miniature circuit breakers protecting the 24 VDC control circuit should be checked for contact resistance, as high-resistance fuse contacts can introduce noise into the communication signal path. If the system includes an HMI panel — such as an ABB CP600 series operator panel — the HMI communication link should be verified independently after the cable replacement to confirm end-to-end data integrity.

For facilities running legacy AC500 installations alongside newer AC500-eCo or AC500-S safety PLC variants, maintaining a standardized spare parts kit that includes the NKLS01-10 alongside compatible CPU backup batteries, SD memory cards for program backup, and spare I/O module fuses ensures that the maintenance team can address the most common failure modes within a single planned downtime window.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before disconnecting the existing cable, document the current communication status via the AC500 programming tool (Automation Builder or PS501 Control Builder). Note any active diagnostic flags on the CPU or I/O bus that may indicate pre-existing faults beyond the cable itself.

Step 2 — Safe isolation: Follow your site LOTO (Lockout/Tagout) procedure. The AC500 CPU should be placed in STOP mode before disconnecting any communication cable to prevent spurious I/O state changes that could affect connected field devices.

Step 3 — Cable removal and inspection: Remove the NKLS01-10 and inspect both the cable and the mating connectors on the CPU and I/O modules. Clean connector pins with appropriate contact cleaner if oxidation is present. If connector pins on the module side show deformation or corrosion, the module itself may require replacement — a common scenario in high-humidity or coastal industrial environments.

Step 4 — Installation of replacement NKLS01-10: Route the new cable following the original cable path, maintaining separation from power conductors. Seat connectors firmly and verify locking clips engage fully. Avoid sharp bends near connector bodies.

Step 5 — System restart and verification: Return the CPU to RUN mode and monitor the communication bus status for a minimum of 5 minutes. Verify all I/O stations report online in the Automation Builder I/O configuration view. Confirm HMI data refresh is operating normally if applicable.

Step 6 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System) with the part number, date, technician ID, and post-replacement test results. Update your spare parts inventory to trigger reorder of a replacement NKLS01-10 for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is the NKLS01-10 compatible with all AC500 CPU variants?
The NKLS01-10 is designed for the ABB AC500 PLC family and is compatible with the PM5xx series CPU modules that use the standard AC500 communication port interface. For AC500-eCo (PM5xx-ETH compact variants) or AC500-S safety CPUs, verify the specific communication port type against the module datasheet before ordering, as connector formats may differ between sub-families.

Q2: What is included in the 12-month warranty and how does it apply to spare parts?
Each NKLS01-10 shipped from our inventory carries a 12-month warranty from the date of shipment. This covers manufacturing defects, connector integrity, and shielding continuity. The warranty does not cover damage resulting from incorrect installation, over-bending, or exposure to chemicals outside the rated operating environment. Warranty claims are processed with return shipping support and priority replacement dispatch.

Q3: How do I verify the NKLS01-10 is the correct cable before installation?
Cross-reference the part number printed on the cable label with the ABB AC500 system documentation or the existing cable being replaced. The NKLS01-10 designation encodes the cable family (NKL = communications cable), shield specification (S), and nominal length (01-10 = 1.0 m). If your system documentation specifies a different length variant, contact our technical team before installation.

Q4: Can I order multiple units for long-term spare parts inventory?
Yes. We support bulk spare parts orders for MRO inventory programs, planned shutdown kits, and multi-site maintenance contracts. Volume pricing is available for orders of 5 units or more. We maintain ongoing stock of the NKLS01-10 to support long-term supply continuity for facilities running ABB AC500 systems beyond the standard product lifecycle.
