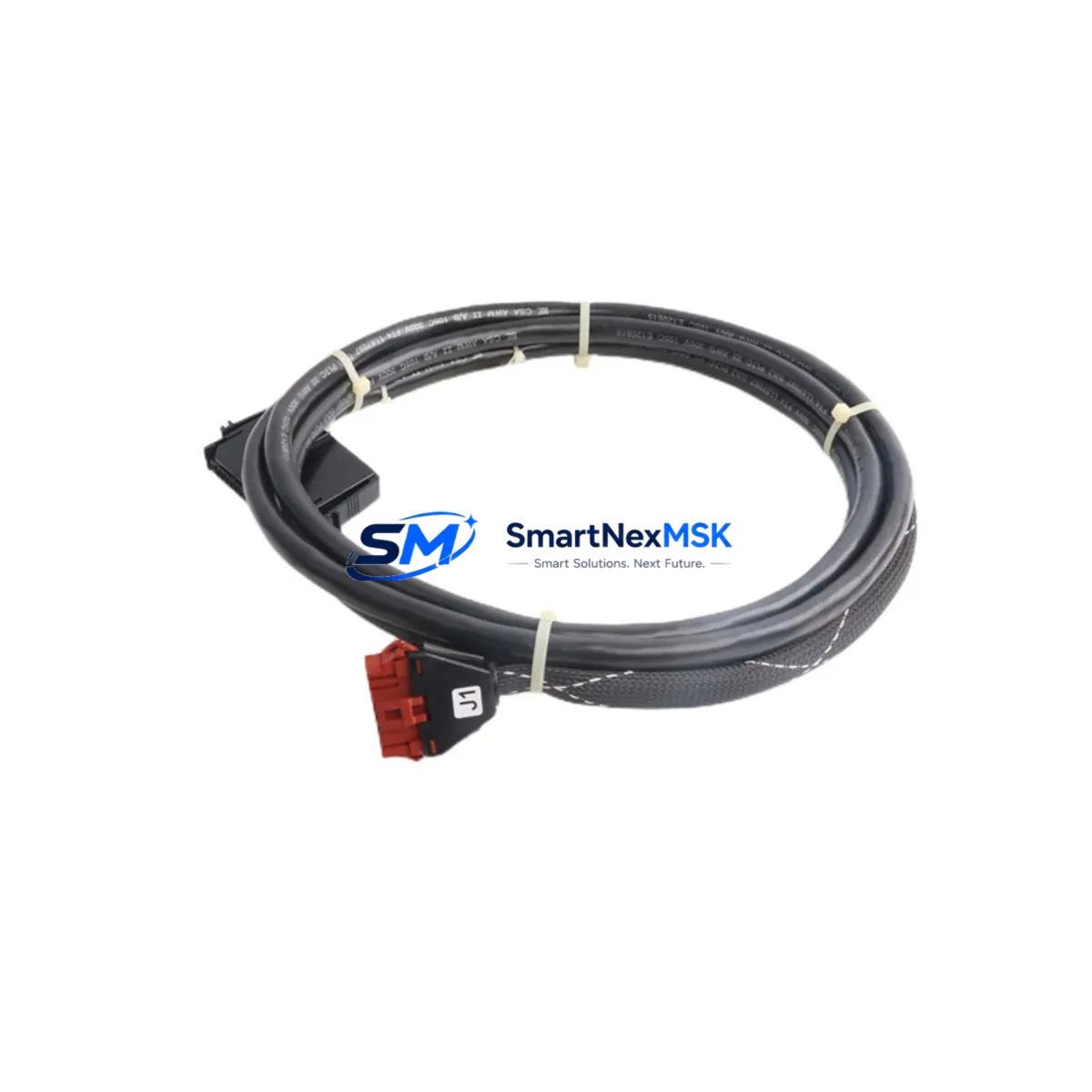

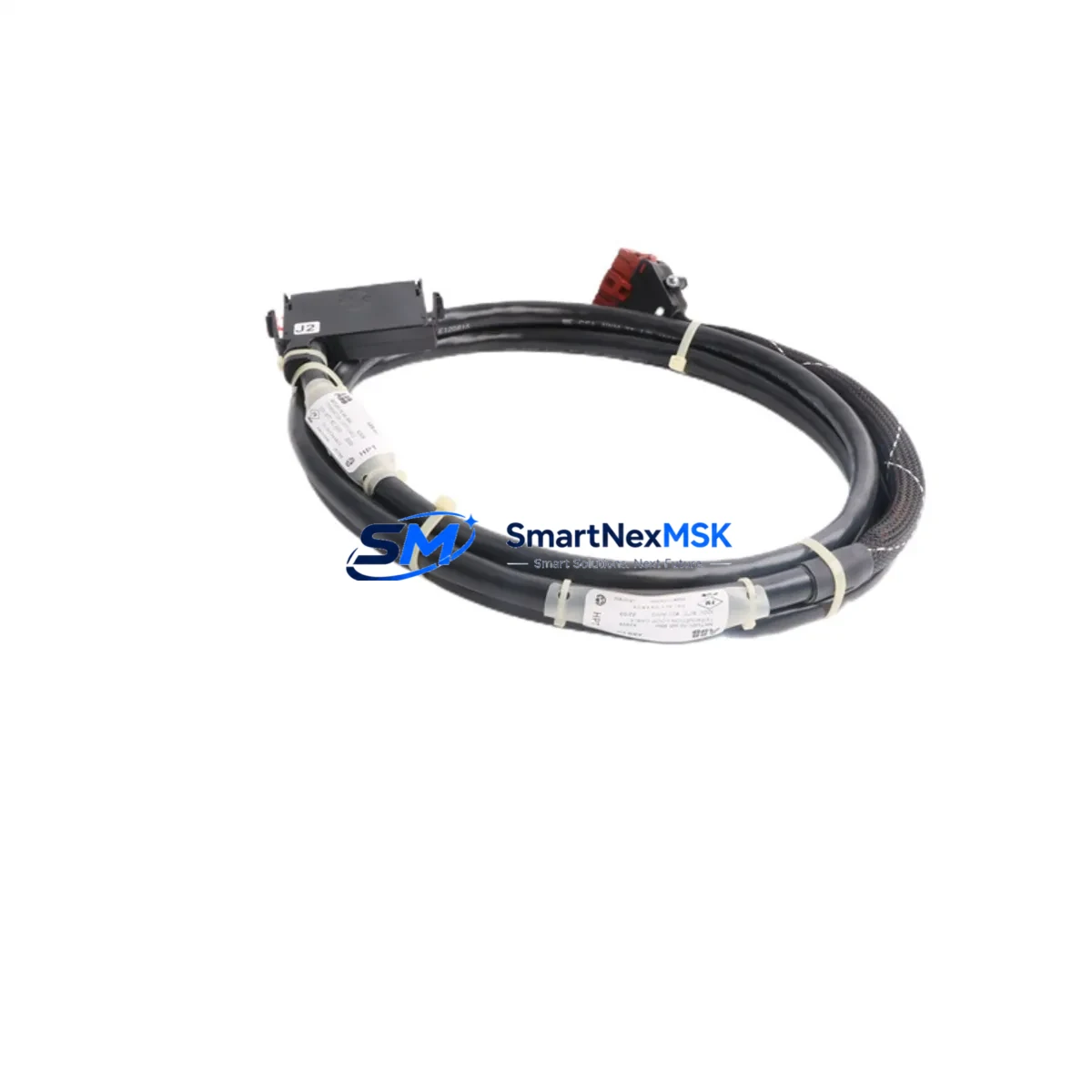

ABB NKTU01-10 Retrofit-Ready I/O Termination Cable for S800 Control Systems
The ABB NKTU01-10 is a field-proven I/O termination cable engineered for seamless integration within the ABB S800 I/O platform — one of the most widely deployed distributed I/O architectures in process automation and continuous manufacturing environments. As legacy control infrastructure ages and OEM support windows close, the NKTU01-10 has become a critical retrofit component for engineers tasked with extending the operational life of existing S800-based control systems without triggering a full platform migration.
Whether you are replacing a failed cable assembly, upgrading a control cabinet that has been in service for over a decade, or migrating from an earlier S800 I/O revision to a current-generation module set, the NKTU01-10 provides the physical and electrical interface continuity required to maintain system integrity. Its standardized 10-position termination layout is compatible with the full range of S800 I/O modules, including AI810, AO810, DI810, DO810, and their successor variants, allowing engineers to swap termination assemblies without rewiring field cables or modifying marshalling panels.
Each unit shipped from our inventory undergoes pre-delivery functional verification, and all NKTU01-10 cables are covered by a 12-month warranty against manufacturing defects and electrical failure under normal operating conditions.
Upgrade Compatibility Table
| Parameter | NKTU01-10 Specification | Retrofit Notes |
|---|---|---|
| Compatible Platform | ABB S800 I/O Series | Verified with AC800M, AC800F, and Symphony Plus DCS controllers |
| Termination Positions | 10-position | Matches standard S800 module footprint; no adapter required |
| Module Compatibility | AI810, AO810, DI810, DO810, DI811, AI820, AO820 | Confirm module revision before installation; check backplane slot addressing |
| Backplane Interface | S800 ModuleBus | Ensure ModuleBus segment addressing is preserved during cable swap |
| Communication Protocol | ModuleBus (optical/electrical) | No protocol reconfiguration required for direct replacement |
| Installation Method | DIN rail / panel mount | Verify cabinet rail spacing matches existing TB820 or TB840 termination board layout |
| Replacement Recommendation | Direct drop-in for NKTU01-10 variants | Cross-reference with NKTU01-12 if extended termination count is required |
| Commissioning Focus | Field wiring continuity, module address verification | Perform loop check on all I/O channels after installation; validate in Control Builder M |
| Warranty | 12 Months | Covers manufacturing defects and electrical failure under rated operating conditions |
Retrofit Planning for Existing Automation Systems
Successful integration of the NKTU01-10 into an aging control system begins well before the physical cable is installed. Engineers should start by auditing the existing S800 I/O rack configuration, documenting the current TB820V termination board positions, and confirming that the replacement cable’s pin-out matches the field wiring schedule recorded during original commissioning. In many retrofit projects, the original wiring documentation is incomplete or reflects undocumented field changes — a thorough point-to-point continuity check before disconnecting the old assembly is essential.
Power supply capacity is a frequent oversight in S800 retrofit projects. The SA811F or SA812F power supply modules feeding the I/O cluster must be verified to have sufficient headroom to support any additional modules introduced during the upgrade. If the retrofit scope includes adding new AI820 analog input modules or expanding the DI811 digital input count, recalculate the total current draw against the power supply’s rated output before finalizing the bill of materials.
For systems where the NKTU01-10 interfaces with a TB840A termination board, confirm that the board’s screw terminal torque specifications are met during reconnection — loose terminations are a leading cause of intermittent signal faults in retrofitted cabinets. If the existing TB840A shows signs of corrosion or mechanical wear, replacing it concurrently with the NKTU01-10 cable is strongly recommended to avoid a repeat intervention.
Communication link integrity must be validated after any S800 I/O cable replacement. The ModuleBus segment connecting the CI854 or CI858 communication interface module to the I/O cluster should be tested for optical power margin (for fiber-based segments) or signal integrity (for electrical segments). If the system uses a redundant ModuleBus configuration, verify that both primary and secondary paths are operational before returning the loop to automatic control.
HMI screen validation is a step that is frequently deferred but should be completed before sign-off. After restoring the I/O module addresses and confirming that the AC800M controller has re-established communication with all S800 modules, verify that all process values are updating correctly in the operator station — whether running ABB’s 800xA System or a third-party SCADA platform. Pay particular attention to analog scaling, alarm limits, and any calculated tags that reference the affected I/O channels.
For projects involving I/O expansion alongside the cable replacement, the NTDI01 digital input module and NTAO01 analog output module are commonly added to the same rack during the retrofit window. Coordinate module address assignments in Control Builder M before the maintenance window to minimize on-site configuration time.
Downtime Control During System Migration
Minimizing unplanned downtime during an S800 I/O cable replacement requires a structured pre-outage preparation protocol. Begin by exporting a full backup of the AC800M application program from Control Builder M, including all task configurations, function block parameters, and communication object mappings. Store this backup on an isolated engineering workstation — not on the controller’s local memory alone — so that program restoration can proceed immediately if the controller requires a cold restart during the maintenance window.
Where process conditions permit, place the affected control loops in manual mode at the DCS operator station before initiating any physical work in the cabinet. This preserves field device positions at their last commanded values and prevents the control system from responding to the momentary signal interruptions that occur during cable disconnection and reconnection. For critical loops where manual operation is not feasible, coordinate with the process team to establish a safe hold condition before the maintenance window opens.
Label all field cables before disconnection using the original wiring schedule reference numbers. If the existing labels are degraded or absent, apply new heat-shrink labels before removing the NKTU01-10 from service. This step alone eliminates the most common source of extended downtime in termination cable replacement projects — incorrect reconnection sequence.
After installing the replacement NKTU01-10 and reconnecting field wiring, perform a structured recommissioning sequence: restore power to the I/O rack, confirm that the CI854 or CI858 interface module re-establishes ModuleBus communication, verify that all module status LEDs indicate normal operation, and execute a channel-by-channel loop check before returning loops to automatic. Target total outage duration for a single-rack NKTU01-10 replacement at under four hours with adequate pre-outage preparation.
Retrofit Support FAQ
Q: Is the NKTU01-10 a direct replacement for all S800 I/O termination cable variants?
A: The NKTU01-10 is a direct replacement for units with the same 10-position termination configuration. If your existing installation uses a 12-position variant (NKTU01-12) or a different cable length, confirm the part number before ordering. Our technical team can cross-reference your existing assembly against current ABB catalog data to confirm compatibility.
Q: Does replacing the NKTU01-10 require changes to the controller program or module addressing?
A: No program changes are required for a like-for-like NKTU01-10 replacement. Module addresses are stored in the AC800M application and in the CI854/CI858 communication interface configuration — these are not affected by a physical cable swap. However, if the replacement is accompanied by a module type change (e.g., substituting an AI810 with an AI820), address and scaling parameters must be updated in Control Builder M before the new module is brought online.
Q: What pre-shipment testing is performed on NKTU01-10 units?
A: Each NKTU01-10 unit undergoes continuity testing across all termination positions and insulation resistance verification before dispatch. Units are packaged in anti-static materials and shipped with a test record. The 12-month warranty covers electrical and mechanical defects identified under normal operating conditions from the date of delivery.
Q: Can the NKTU01-10 be used in a system that has been upgraded from AC800M to a newer ABB controller platform?
A: The NKTU01-10 is compatible with any controller platform that interfaces with the S800 I/O system via a standard ModuleBus communication interface. Compatibility with newer ABB controller generations depends on the communication interface module (CI) installed in the S800 rack — confirm the CI module type and firmware revision with your ABB system integrator before proceeding with a cross-platform migration.
