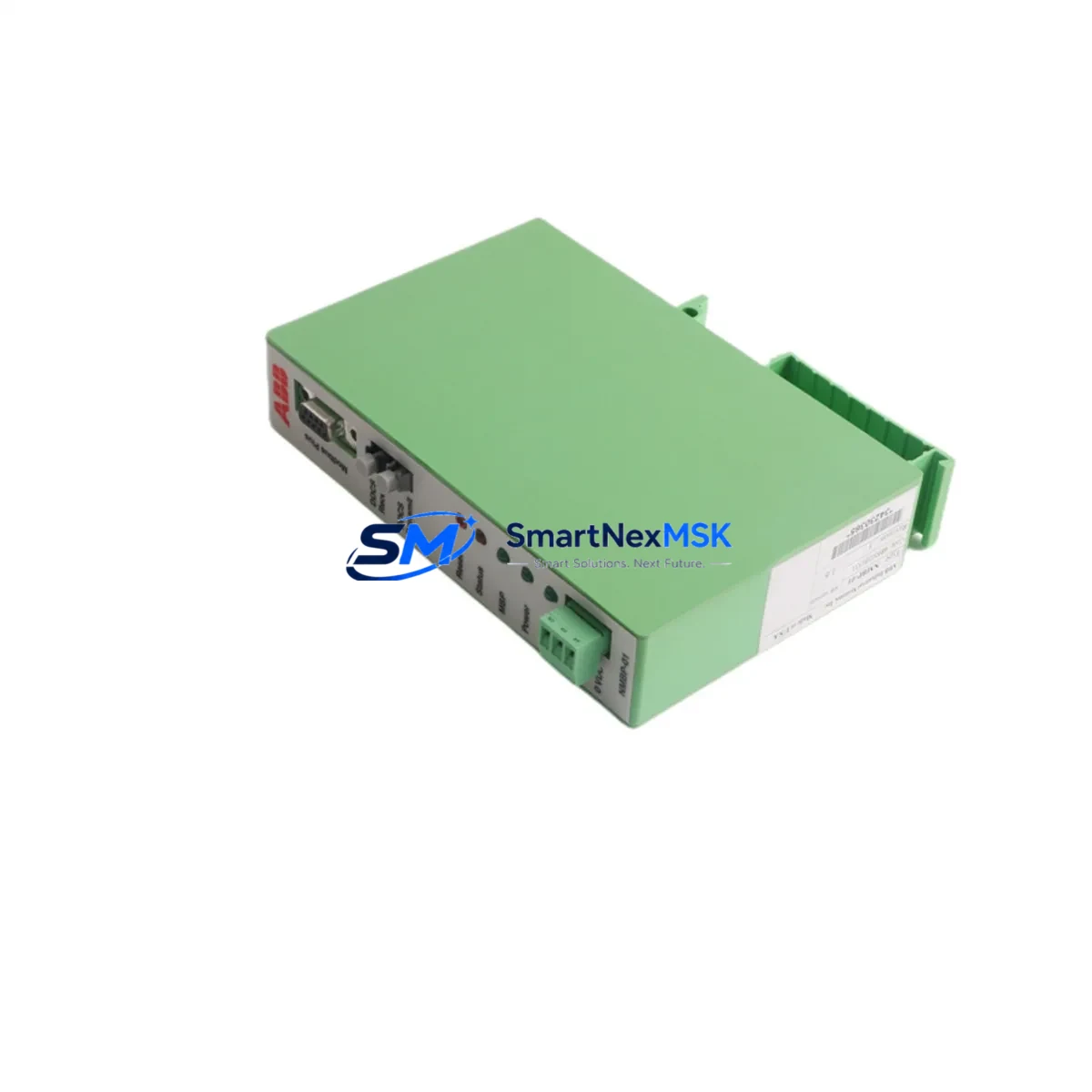

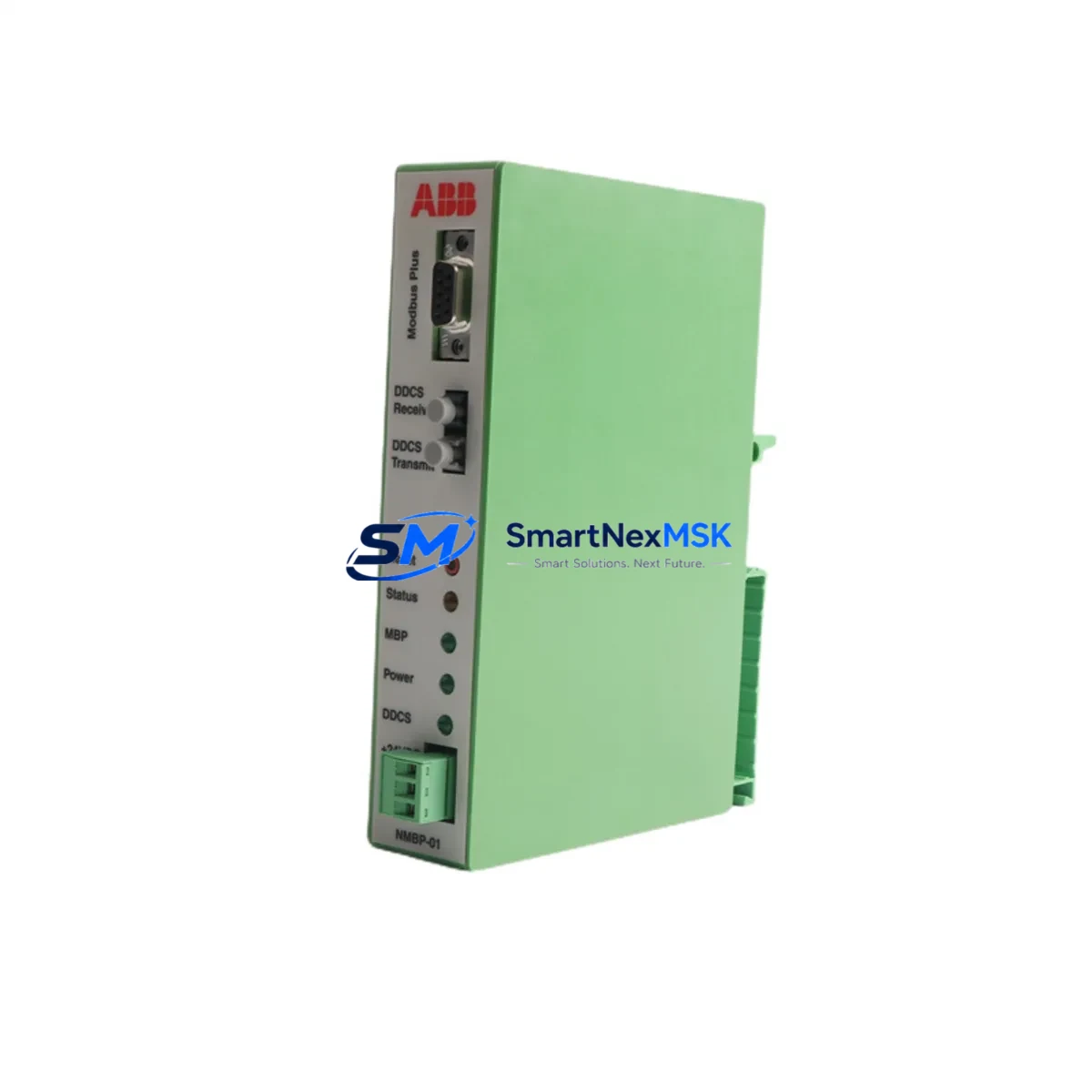

ABB NMBP-01 Safety-Enhanced Modbus Plus Fieldbus Adapter

ABB NMBP-01 Safety-Enhanced Modbus Plus Fieldbus Adapter: Reliable Control in Harsh Industrial Sites

In high-stakes industrial environments — petrochemical plants, power generation facilities, mining operations, water treatment stations, and continuous steel or aluminum production lines — communication integrity between the drive system and the control network is not a convenience; it is a safety imperative. The ABB NMBP-01 Modbus Plus fieldbus communication adapter is engineered to meet exactly this demand. Designed for seamless integration with the ABB ACS550, ACS800, and ACS600 variable speed drive families, the NMBP-01 delivers deterministic, low-latency Modbus Plus communication in environments where signal drift, electromagnetic interference, power surges, and thermal stress routinely compromise lesser components.

The NMBP-01 slots directly into the option slot of compatible ABB drives, establishing a hardwired, galvanically isolated communication path between the drive’s internal control logic and the plant-wide Modbus Plus network. This architecture eliminates the need for external signal converters or protocol gateways, reducing the number of potential failure points in the control loop. In safety-critical applications — such as emergency shutdown interlocks, fire and gas system interfaces, or turbine overspeed protection circuits — minimizing component count in the signal chain is a fundamental engineering principle. The NMBP-01 supports this principle by design.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest communication link. When deploying the ABB NMBP-01 in a drive control panel, system integrators and maintenance engineers should consider the full protection architecture surrounding it. The NMBP-01 operates within the ABB drive’s RMIO control board ecosystem, and its performance is directly influenced by the quality of upstream and downstream components.

On the power supply side, the drive’s internal 24 VDC auxiliary supply — typically sourced from an ABB APOW-01 or equivalent power supply module — must be stable and free from ripple. Voltage fluctuations as small as ±10% can cause the NMBP-01’s communication node to drop off the Modbus Plus token ring, triggering a network fault that propagates to the PLC or DCS master. Installing a dedicated ABB UNS3030A or equivalent DC/DC isolation module upstream of the drive’s control supply significantly reduces this risk in facilities with noisy bus bars or shared transformer secondaries.

For the Modbus Plus network cable itself, proper termination is non-negotiable. Each segment must be terminated with a Modbus Plus network terminator plug (Schneider/Modicon PN 990NAD23000 or equivalent) at both physical ends of the trunk. Failure to terminate correctly introduces reflections that cause intermittent communication errors — errors that are notoriously difficult to diagnose under load and that can mimic drive faults or PLC scan-time overruns.

In cabinets where the NMBP-01 coexists with high-current contactors, soft starters such as the ABB PSR or PST series, or variable frequency drives operating in regenerative mode, transient suppression is critical. Fitting RC snubber circuits or MOV-based surge arresters across contactor coils and motor terminals prevents the fast-rising voltage transients that couple into the fieldbus cable and corrupt Modbus Plus frames. Similarly, the ABB RETA-01 or RETA-02 Ethernet adapter modules, when installed in adjacent drive option slots, should be routed on separate cable trays from the Modbus Plus trunk to avoid cross-coupling.

For safety interlock circuits that rely on drive status feedback via the NMBP-01 — such as confirming drive-ready or drive-running status before permitting downstream process equipment to start — it is advisable to configure the ABB drive’s RDIO-01 digital I/O extension module as a hardwired backup. This dual-channel approach (fieldbus + hardwired DI/DO) satisfies SIL 1 or SIL 2 safety loop requirements in many process industries and ensures that a single fieldbus communication failure does not result in a loss of safety function.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the NMBP-01 enables precise speed control of pump and compressor drives via the plant DCS, while simultaneously feeding real-time drive status data to the safety instrumented system (SIS). This dual-use communication architecture supports both normal process control and emergency shutdown (ESD) monitoring from a single fieldbus node, reducing wiring complexity in classified hazardous areas (Zone 1 / Zone 2).

Power Generation and Substation Auxiliaries: Coal, gas, and hydroelectric power stations rely on variable speed drives for boiler feed pumps, cooling water pumps, and induced draft fans. The NMBP-01 allows these drives to participate in the plant’s Modbus Plus SCADA network, enabling operators to monitor motor load, detect overcurrent trends, and initiate controlled shutdowns before thermal damage occurs — all without leaving the control room.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The NMBP-01’s robust mechanical design and galvanic isolation make it suitable for conveyor drive systems, crusher motor controls, and ventilation fan drives where communication dropouts can halt production or, worse, compromise ventilation safety in underground headings.

Water and Wastewater Treatment: Municipal and industrial water treatment plants operate continuously, 24/7/365. The NMBP-01 supports uninterrupted Modbus Plus communication for pump station drives, enabling remote monitoring of flow rates, pressure, and motor health. In membrane bioreactor (MBR) systems, precise drive speed control via fieldbus is essential to maintaining transmembrane pressure within safe operating limits.

Metallurgy and Steel Production: Rolling mills, ladle furnaces, and continuous casting lines demand millisecond-level drive response and zero-tolerance for communication latency. The NMBP-01’s 1 Mbit/s Modbus Plus link ensures that speed reference updates from the process controller reach the drive within the network scan cycle, maintaining strip tension and roll gap accuracy in tandem mill configurations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the NMBP-01?
The 12-month warranty covers all manufacturing defects, communication failures attributable to component or firmware issues, and physical integrity of the module housing and connector. It does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or unauthorized modification. Warranty claims are processed with a target response time of 3 business days, and replacement units are dispatched from in-stock inventory to minimize your downtime.

Q2: What pre-shipment testing is performed on each NMBP-01 unit?
Every NMBP-01 unit undergoes a full functional communication test prior to dispatch. This includes verification of Modbus Plus token-passing behavior, node address configuration, and physical connector integrity. Units that fail any test parameter are quarantined and not shipped. A test record is maintained for traceability, and a certificate of conformance is available upon request for quality-critical procurement processes.

Q3: Is the NMBP-01 compatible with all firmware versions of the ACS550, ACS800, and ACS600?
The NMBP-01 is compatible with the standard option slot interface across the ACS550 (all variants), ACS800 single-drive and multidrive configurations, and ACS600 series. Compatibility with specific drive firmware versions should be verified against the ABB NMBP-01 hardware manual (document code 3AFE64498116). For drives with non-standard firmware or custom application programs, our technical team can assist with compatibility verification before shipment.

Q4: Can you guarantee long-term supply and replacement support for the NMBP-01?
Yes. We maintain dedicated safety stock of the NMBP-01 and its compatible drive option modules to support long-term maintenance contracts and unplanned replacement scenarios. For facilities with critical uptime requirements, we recommend establishing a consignment stock agreement or pre-ordering a spare unit to be held at your site. Our supply chain team actively monitors ABB production schedules and can provide advance notice of any end-of-life or last-time-buy situations, giving your procurement team adequate lead time to secure sufficient spares inventory.
