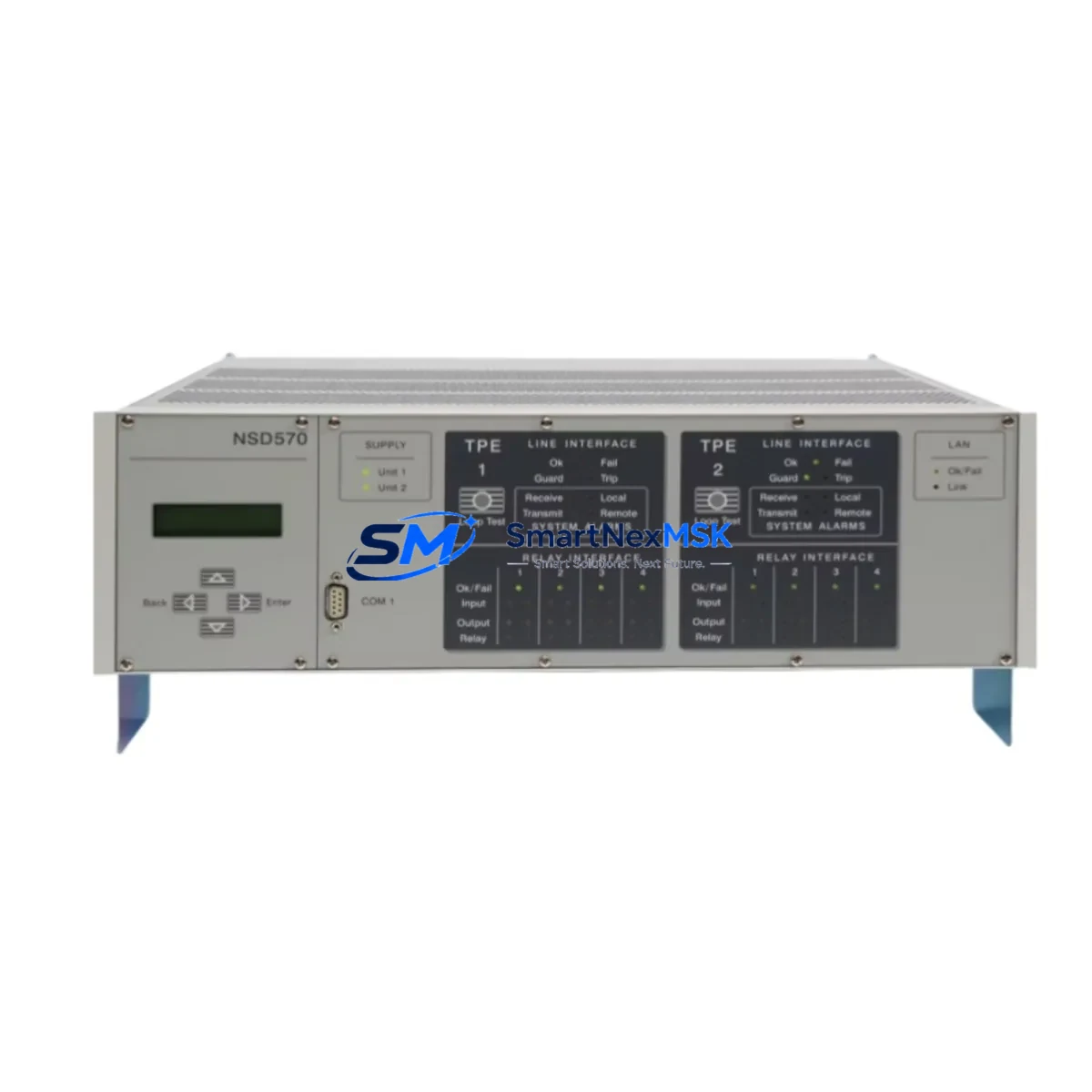

The ABB NSD570 is a digital teleprotection terminal engineered for mission-critical power grid protection and substation automation systems. As a core component in high-voltage transmission and distribution networks, the NSD570 handles teleprotection signaling over fiber optic, pilot wire, power line carrier, and microwave communication channels. When this unit fails or reaches end-of-service life, every minute of unplanned downtime carries significant operational and financial risk. Sourcing a verified, original ABB NSD570 spare — pre-tested and ready to ship — is the fastest path to restoring system integrity and resuming normal grid protection functions.

This listing provides a maintenance-ready ABB NSD570 replacement unit, sourced from authorized supply chains, fully inspected, and backed by a 12-month warranty. Whether you are executing a planned outage replacement, responding to an emergency fault, or building a strategic spare parts inventory for aging NSD570 Series infrastructure, this unit is prepared for immediate site deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing an ABB NSD570 in a live substation environment is rarely an isolated task. Maintenance engineers and procurement teams should treat this replacement as an opportunity to audit the surrounding protection and communication infrastructure. A comprehensive inspection at the time of NSD570 replacement should include the following associated components:

Begin with the power supply module feeding the NSD570 rack — a degraded or undersized PSU is a common root cause of intermittent teleprotection faults. Verify that the ABB FOX515 or FOX615 multiplexer connected to the NSD570 is operating within specification, as communication channel integrity directly affects teleprotection performance. Check all fiber optic patch cables and connectors for contamination, bend radius violations, or insertion loss exceeding manufacturer limits.

Inspect the terminal blocks and wiring harnesses in the protection panel — loose or corroded connections on the trip output circuits can cause false operations or missed commands. Review the binary input/output (I/O) modules interfacing the NSD570 with the protection relay, particularly if the system uses an ABB REL670 or REL650 line differential relay, where the teleprotection channel is integral to the protection scheme.

Evaluate the condition of any signal isolators or surge protection devices on the pilot wire or copper communication interfaces — these components absorb transient energy and degrade over time in high-voltage environments. If the substation uses power line carrier (PLC) coupling equipment, inspect the coupling capacitors, line traps, and high-frequency cables for signs of aging or insulation breakdown.

For substations running legacy ABB NSD500 or NSD570 infrastructure alongside modern IEC 61850-based systems, consider whether the protocol converter or gateway module requires firmware updates or replacement to maintain interoperability. Finally, verify that the HMI or SCADA interface — whether an ABB MicroSCADA Pro or third-party system — correctly reflects the NSD570 status after replacement, and that all alarm and event logging functions are restored.

Stocking a minimum of one NSD570 spare per substation cluster, alongside compatible power supply modules and fiber patch cables, is a recognized best practice for transmission system operators managing aging ABB teleprotection fleets.

Site Replacement Workflow

Replacing an ABB NSD570 on-site follows a structured sequence to minimize downtime and ensure system compatibility:

1. Pre-replacement verification: Confirm the replacement unit’s firmware version matches the installed system. NSD570 units are firmware-sensitive; mismatched versions can cause communication failures with the remote end terminal. Request the existing configuration file from the protection engineer or retrieve it from the substation documentation archive.

2. Coordination with the remote end: Teleprotection replacement requires coordination with the remote substation. Notify the system operator and arrange a maintenance window. Both ends of the teleprotection channel must be taken out of service simultaneously to avoid spurious trip signals.

3. Physical replacement: Power down the NSD570 rack following the lockout/tagout procedure. Disconnect fiber optic cables, pilot wire connections, and power supply leads. Install the replacement NSD570 unit, reconnect all interfaces, and restore power. Verify LED status indicators for normal operation.

4. Configuration restore and commissioning: Load the saved configuration file into the replacement unit. Perform end-to-end loop-back testing to verify signal integrity and command transmission latency. Confirm that the protection relay receives and processes teleprotection commands correctly.

5. Return to service: After successful commissioning, return the teleprotection channel to service and notify the system operator. Update the maintenance log with the replacement date, unit serial number, and test results. Register the replaced unit for warranty tracking.

This workflow applies equally to planned maintenance replacements and emergency fault recovery scenarios. Having a pre-tested, configuration-ready NSD570 spare on hand reduces the commissioning phase from days to hours.

Spare Parts Support FAQ

Q1: What is the warranty coverage for this ABB NSD570 spare?
This unit is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to dispatch. If a fault is identified within the warranty period, we provide a replacement unit or full refund based on the fault assessment.

Q2: How do I verify compatibility with my existing NSD570 Series installation?
Provide your existing unit’s model suffix, firmware version, and communication interface type (fiber, pilot wire, or PLC) when placing your order. Our technical team will cross-reference your configuration against available stock to confirm compatibility before shipment. For legacy NSD500-to-NSD570 migration scenarios, we can advise on interface adapter requirements.

Q3: What pre-shipment testing is performed on each unit?
Every NSD570 unit is powered on and subjected to functional verification testing covering power supply integrity, communication interface continuity, binary I/O response, and alarm output behavior. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q4: Can you support long-term spare parts supply for aging NSD570 fleets?
Yes. We maintain ongoing stock of NSD570 Series components and can establish a long-term supply agreement for utilities and system integrators managing large installed bases. This includes scheduled delivery programs, priority allocation during high-demand periods, and technical consultation on lifecycle extension strategies for substations where NSD570 replacement with newer platforms is not yet planned.
